330102-00-15-10-01-05 Bently Nevada 3300 XL 8 mm Proximity Transducer Probe

Bently Nevada 330102-00-15-10-01-05 3300 XL 8 mm Probes

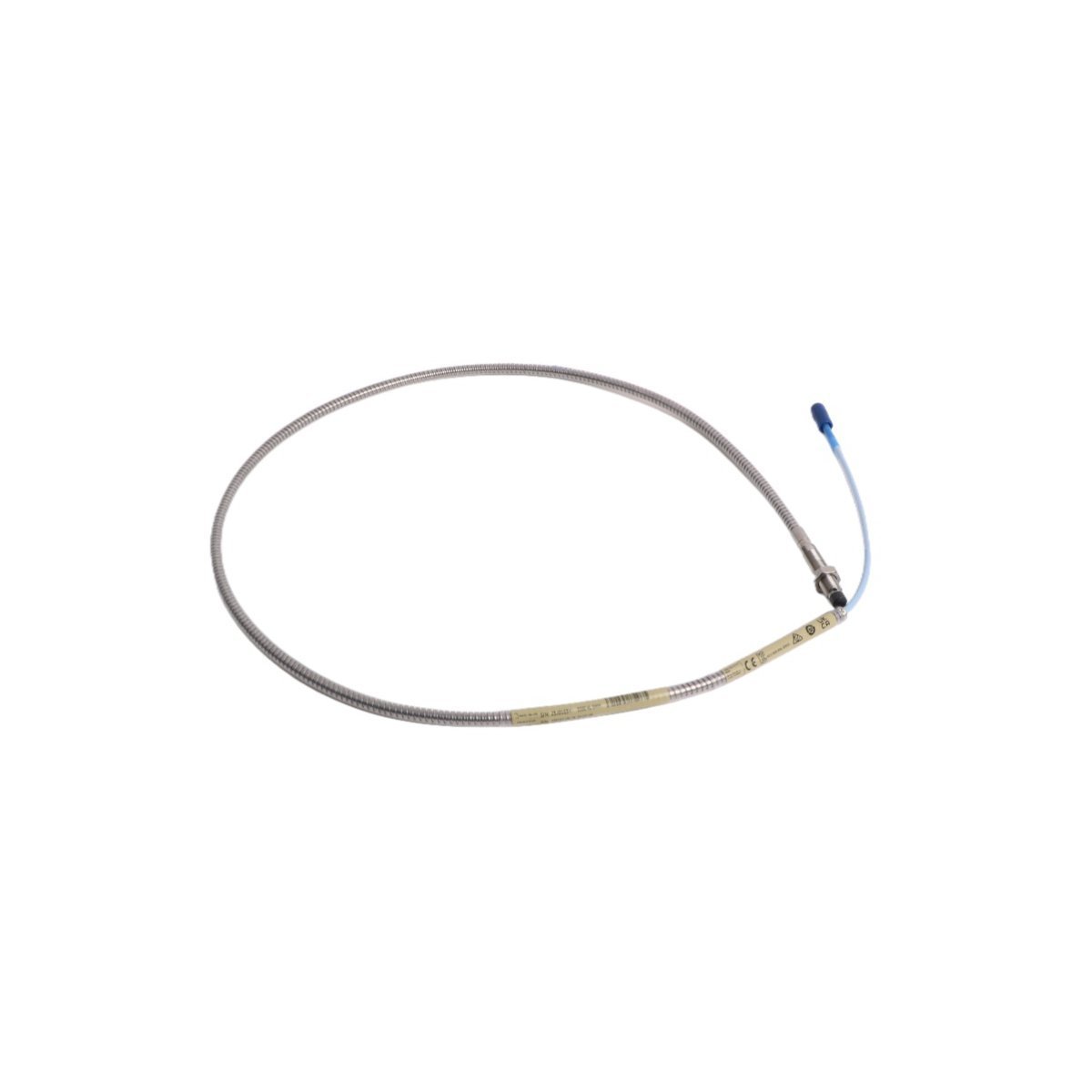

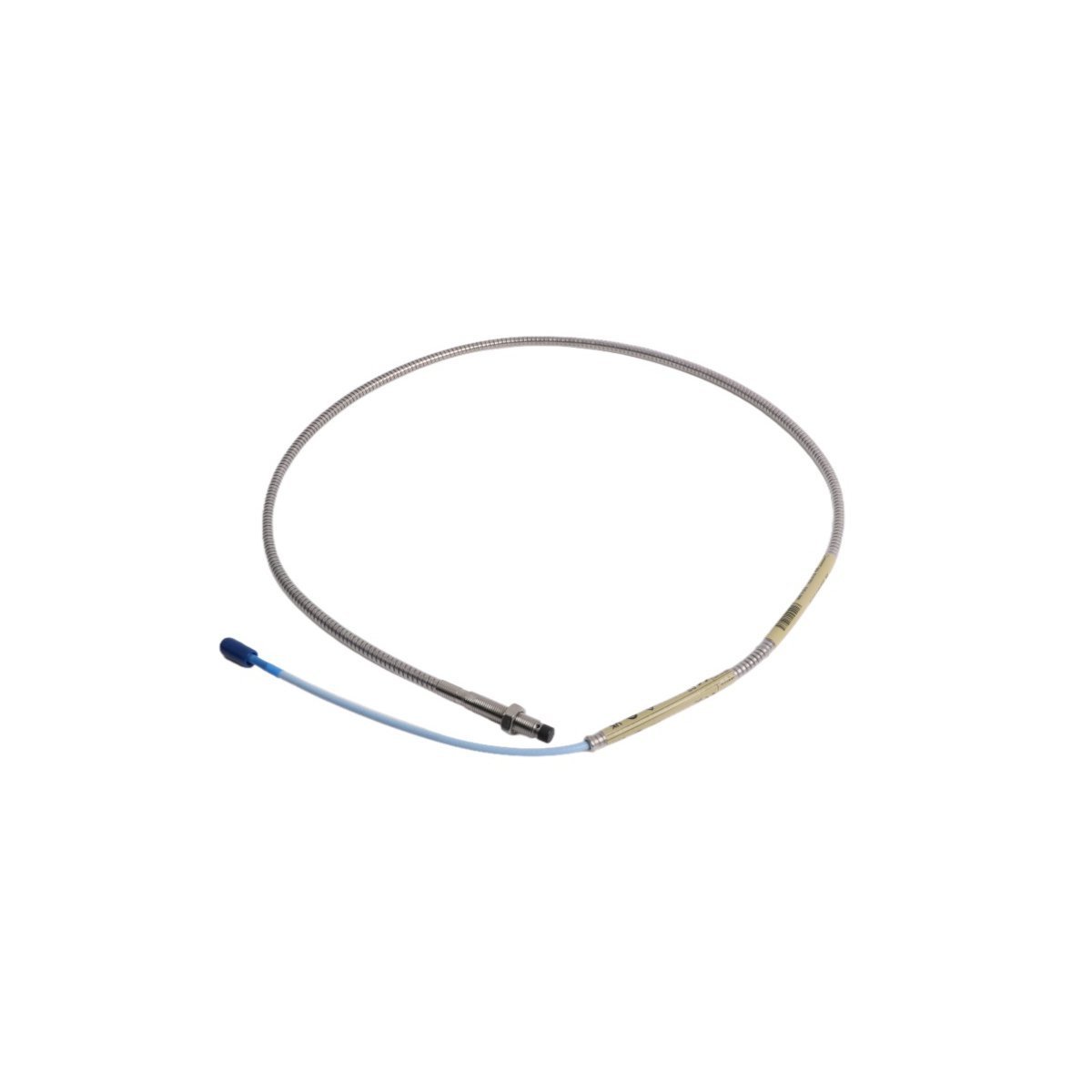

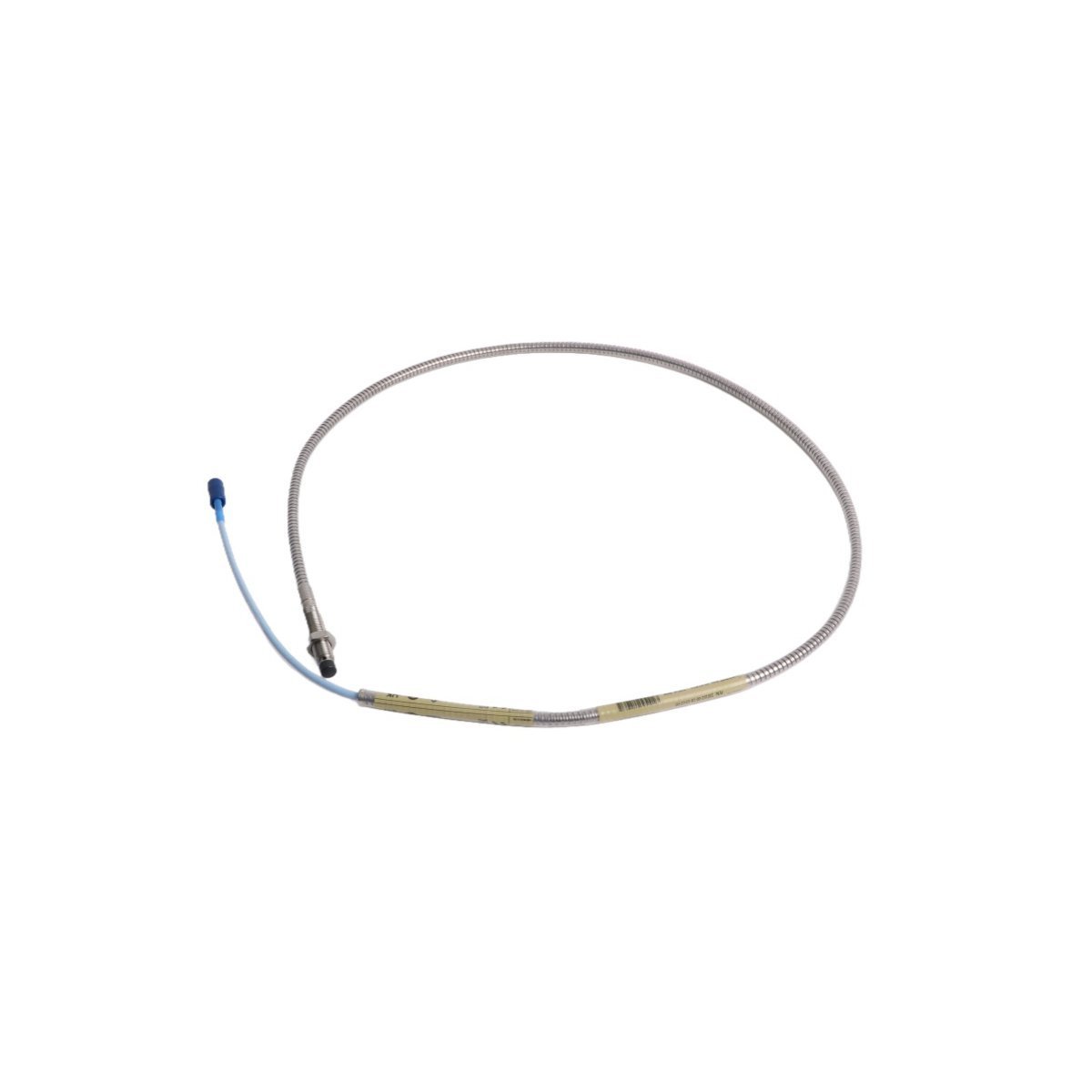

Configured for shaft position and vibration displacement measurements in TSI monitoring systems, the Bently Nevada 330102-00-15-10-01-05 (330102 Proximity Transducer Probe) provides direct physical signal execution across rotating machinery platforms. The hardware features a 3/8-24 UNF threaded body encased in protective armor to resist mechanical shear. An integrated 1.0 m cable terminates in a ClickLoc miniature coaxial connector with a protective boot. Certified under ATEX, IECEx, and CSA standards, this component transfers high-frequency eddy-current signals to Proximitor sensor units without signal degradation.

Suffix Breakdown & Model Matrix

Hardware Specifications

Eddy-Current Probe Scaling & Rotor Dynamics

The 330102 probe operates via eddy-current scaling principles to generate a high-frequency magnetic field around its tip. As a conductive target target—such as a turbine shaft—moves within the probe tip range, eddy currents form in the target material and alter the impedance of the probe coil. The connected 3300 XL Proximitor sensor conditions this change into a linear voltage signal proportional to the gap distance. To maintain precise calibration, engineers verify gap voltage targets at -10 VDC during installation. This voltage corresponds to the physical midpoint of the probe dynamic range, suppressing cross-talk and maximizing response accuracy across rotor dynamics monitoring loops.

Frequently Asked Questions

Q: How do technicians confirm correct mechanical setting during installation?

A: Installers thread the probe into the mounting bracket while measuring the DC gap voltage at the Proximitor sensor output terminals. Adjusting the probe position until the multimeter displays -10 VDC sets the probe tip at the midpoint of its linear range.

Q: What precautions prevent connector corrosion and signal loss in wet field environments?

A: Technicians must seat the ClickLoc miniature coaxial connection firmly until it snaps into place, then slide the integrated rubber connector protector completely over the junction. For exposed junction boxes, applying silicone tape over the boot prevents liquid ingress.

Field Installation Guidelines

1. Mounting Thread Engagement: Thread the 3/8-24 UNF probe body into the tapped mounting port. Ensure a minimum engagement of 5 full threads to guarantee mechanical stability under continuous vibration.
2. Gap Voltage Calibration: Connect the probe cable to the extension cable and supply power to the Proximitor sensor. Monitor the output signal with a calibrated DMM and adjust the physical position until reaching -10 VDC (-10.0 VDC +/- 0.2 VDC).
3. Cable Routing and Bend Radius: Route the armored cable along structural machine frames. Maintain a minimum bend radius of 25.4 mm (1.0 in) to prevent internal coaxial conductor damage or armor deformation.
4. Shielding and Grounding Rules: Terminate the cable shield braid strictly at the Proximitor sensor terminal block. Maintain the probe case floating relative to the machine chassis ground to eliminate ground loop interference.
