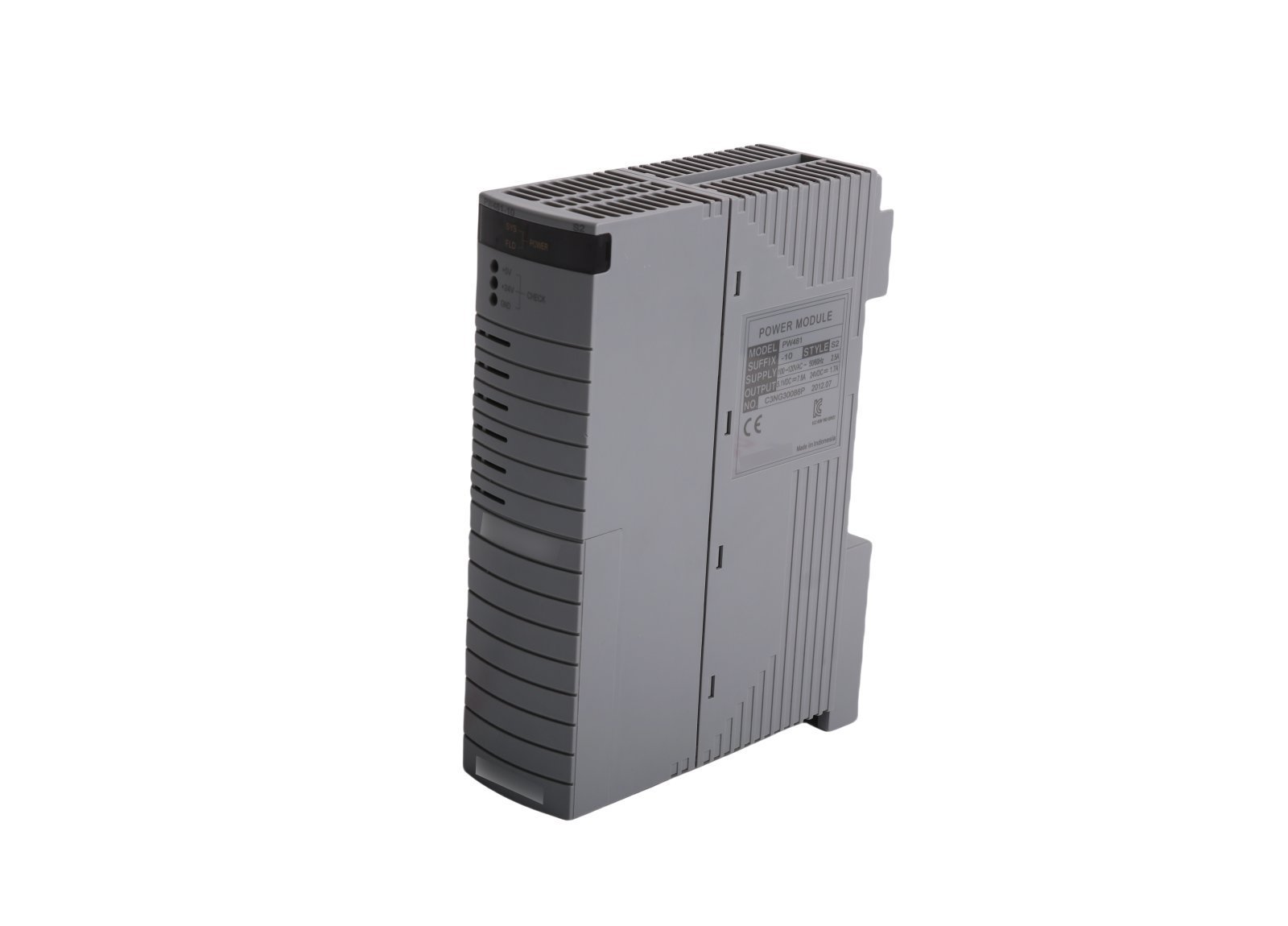

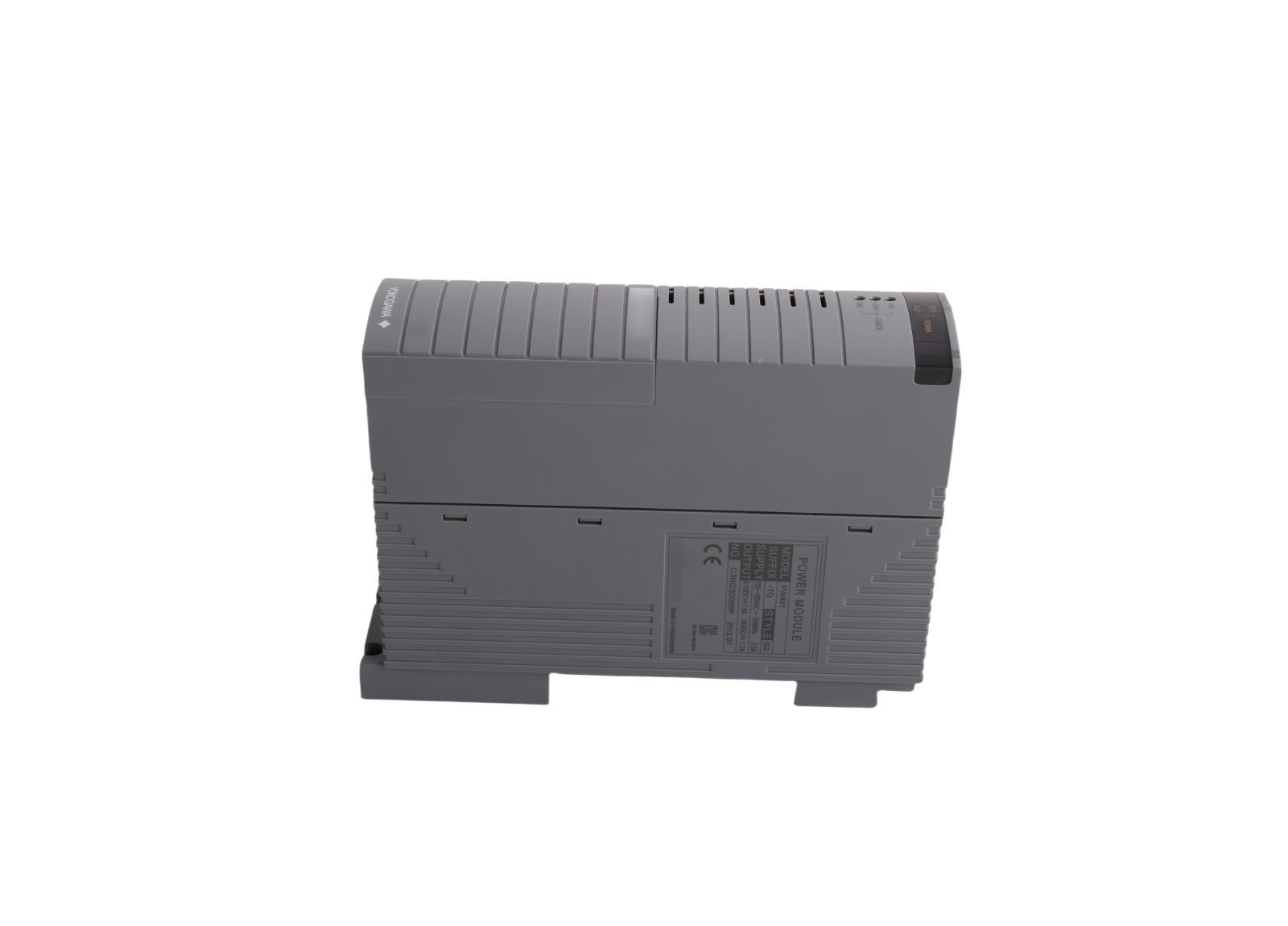

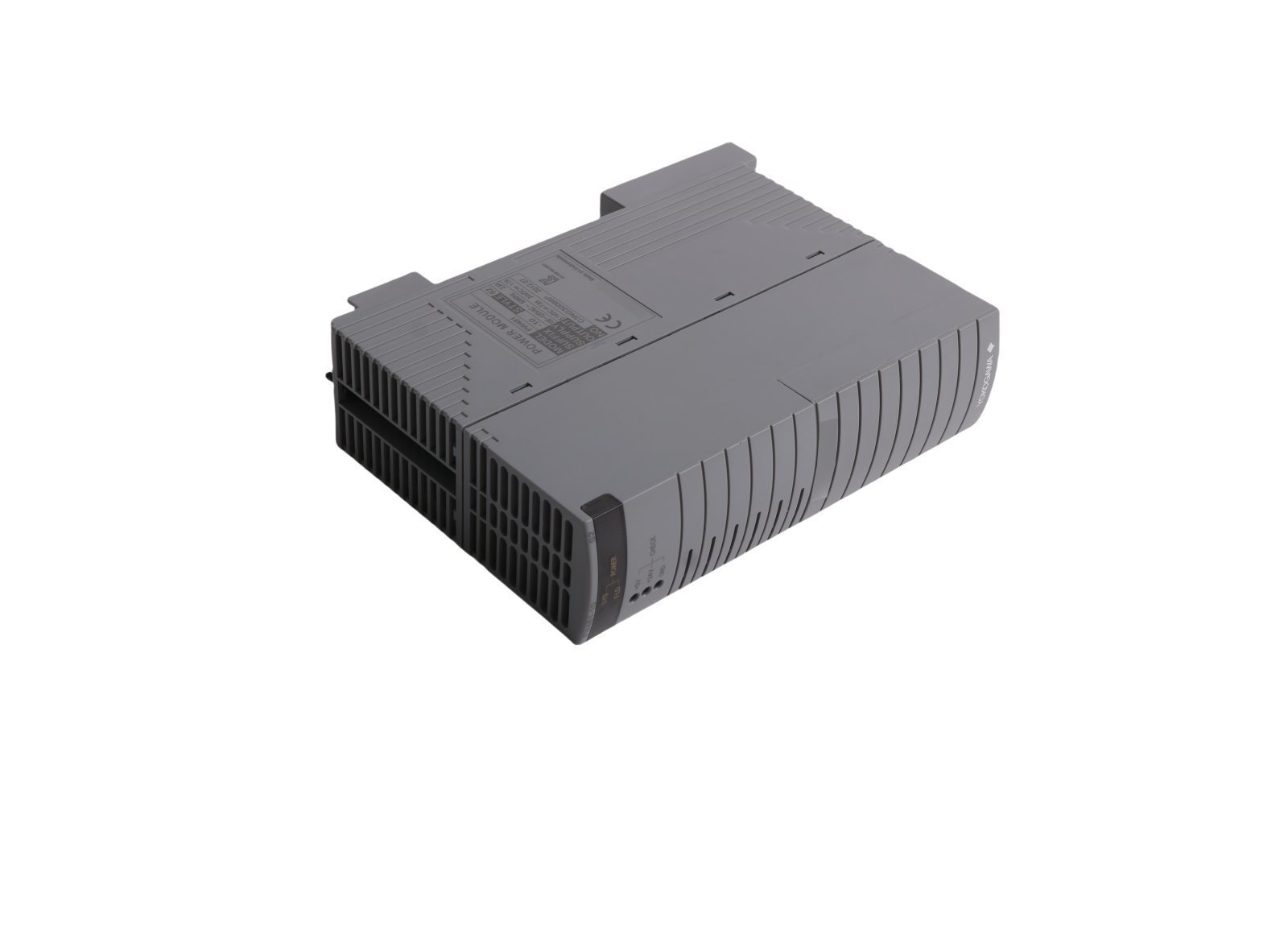

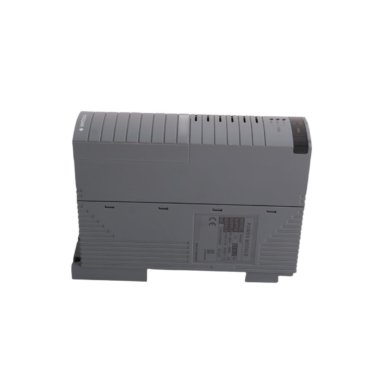

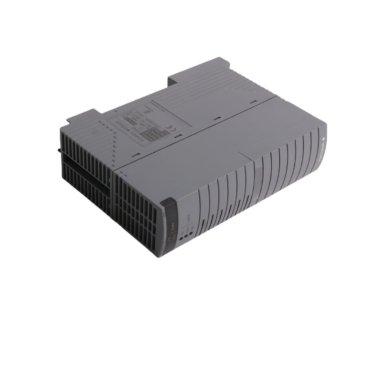

Yokogawa PW481-50 Power Supply Module

The Yokogawa PW481-50 is a high-capacity power regulation module designed for industrial Field Control Units (FCU). This essential component provides the electrical backbone for distributed control system hardware. It converts primary source energy into stable voltage for processor and I/O modules. Because it supports fault-tolerant architectures, the unit is vital for mission-critical automation. Specifically, it ensures consistent performance in energy generation and chemical processing facilities. The robust mechanical design allows for reliable operation in harsh industrial environments.

Redundant Power Architecture

Facility managers can install the PW481-50 in both standard and dual-redundant configurations. In a redundant setup, two modules share the load to prevent system failure. If one unit loses power, the secondary module maintains the entire control loop. Furthermore, the hot-swap capability allows technicians to replace units during live operations. This feature eliminates the need for costly system shutdowns during maintenance. Consequently, the module significantly improves the overall availability of the control network.

Intelligent Protection and Expansion

The PW481-50 includes advanced circuitry to protect sensitive electronics from electrical faults. It features integrated overload prevention and short-circuit detection to safeguard downstream modules. Additionally, the unit provides enough current to support up to six high-density I/O modules. This capacity offers engineers great flexibility when expanding existing control cabinets. The module also filters electrical noise to maintain signal integrity across the ESB bus. Therefore, it serves as a reliable guard for complex processor logic.

Efficiency and Operational Safety

Yokogawa prioritizes energy efficiency and thermal management in the PW481-50 design. The module maintains a cool operating temperature even under heavy hardware loads. Moreover, its wide input tolerance accommodates fluctuating industrial power standards. This versatility reduces the need for additional voltage stabilization equipment. By providing a dependable power foundation, the module protects production safety and operational continuity. It remains a benchmark for quality in high-stakes automation environments.

Technical Specifications
