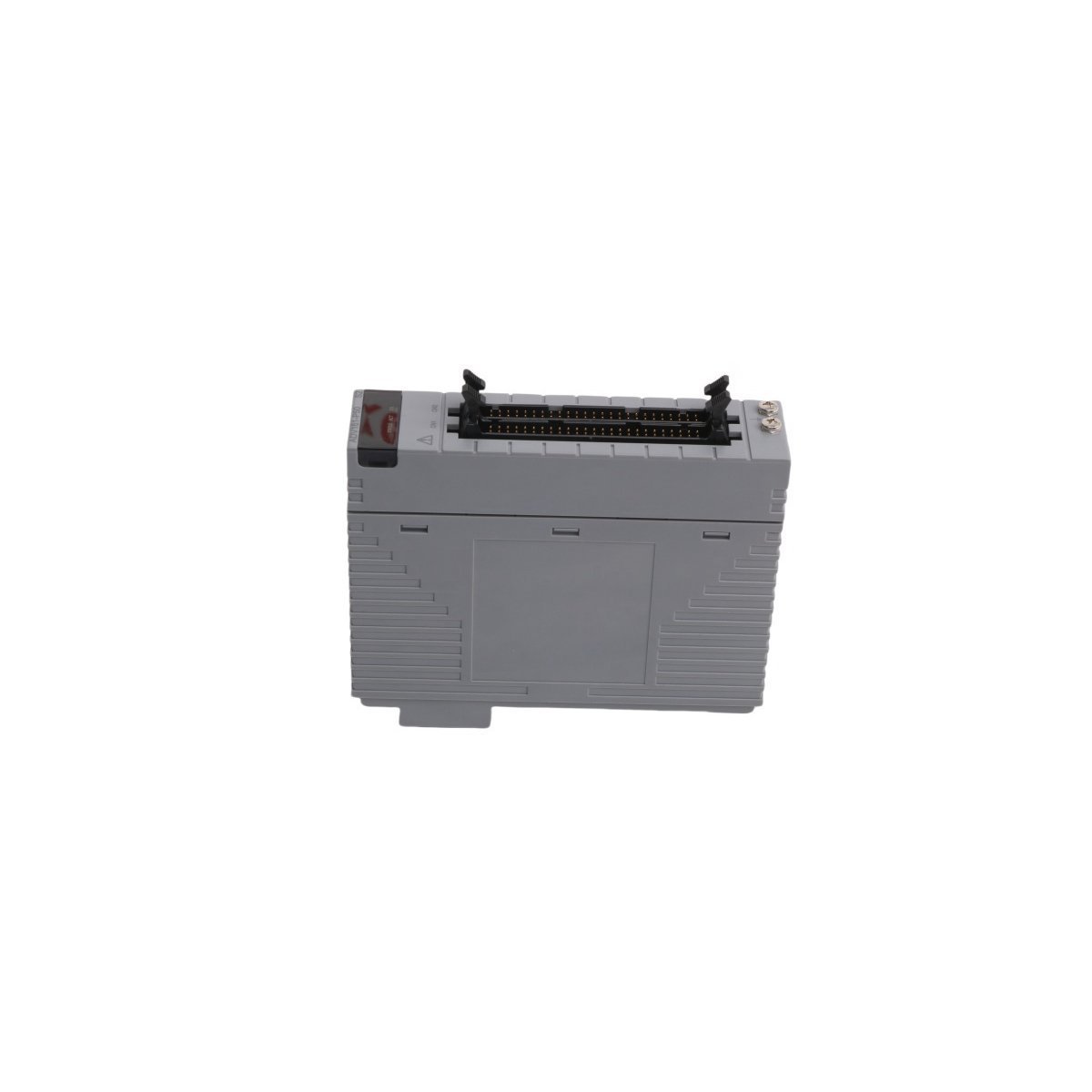

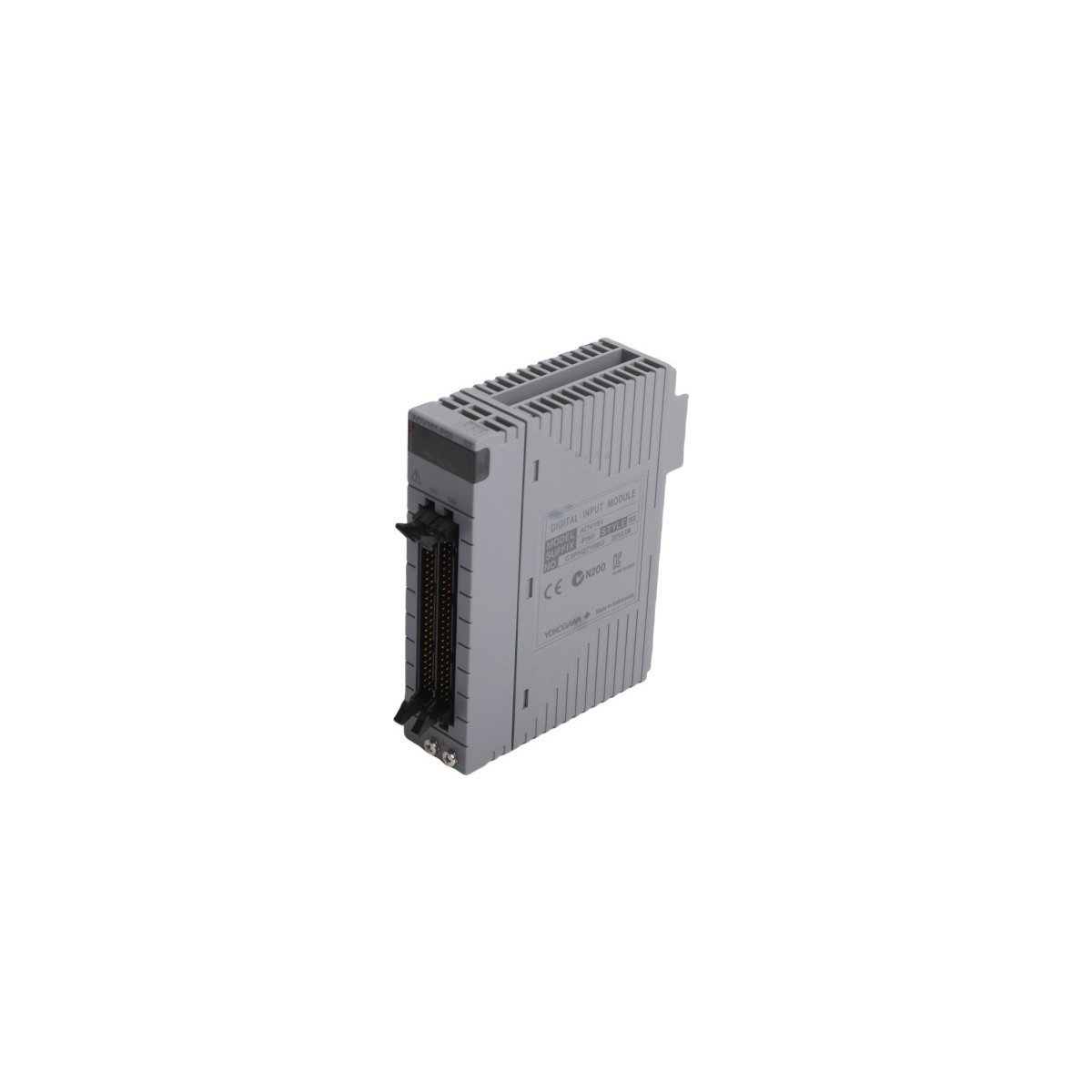

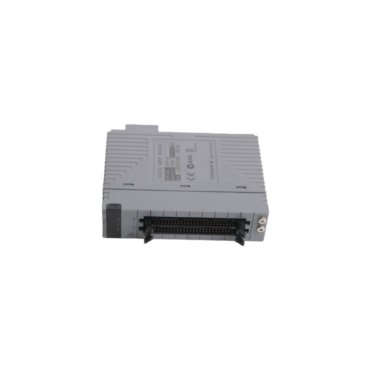

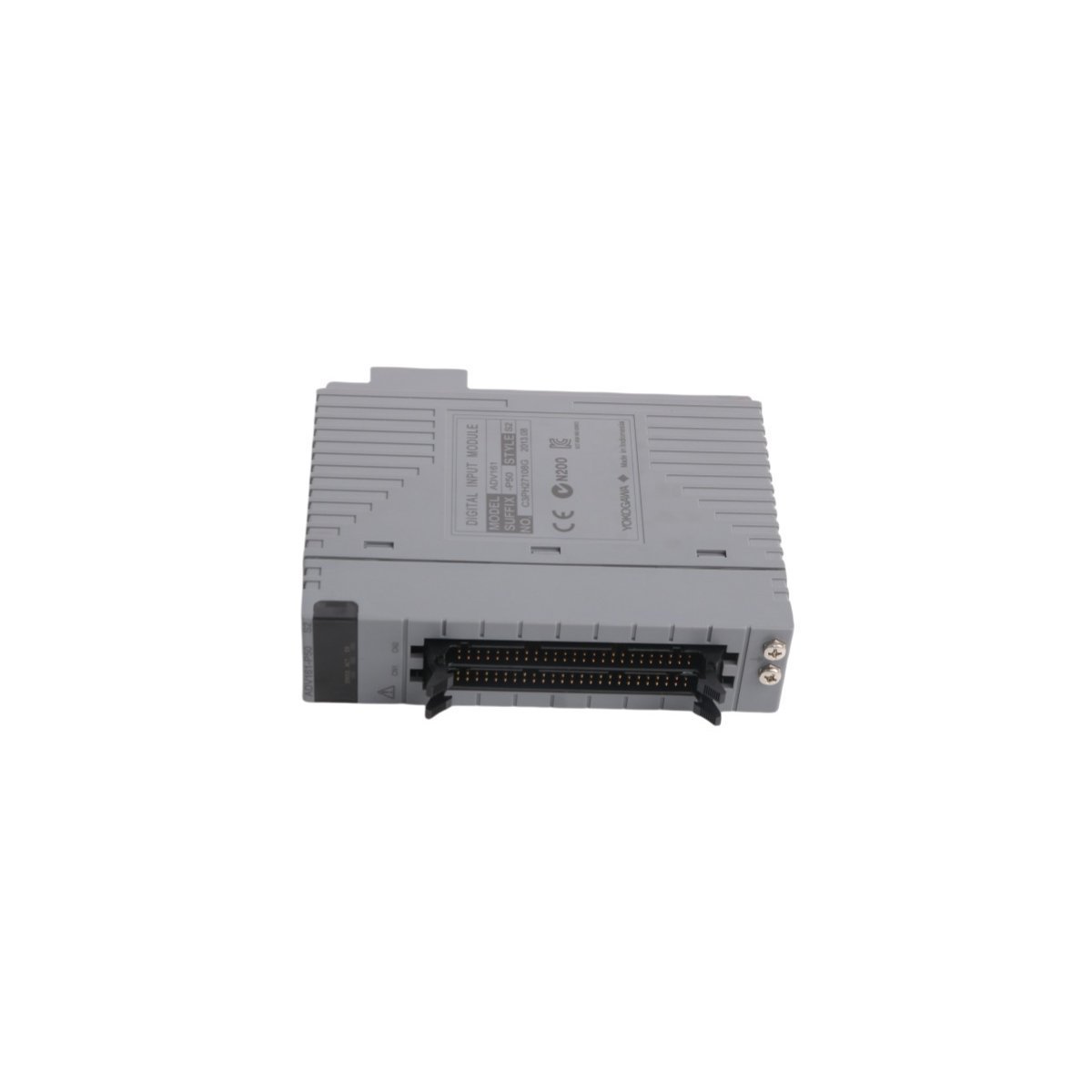

The Yokogawa ADV161-P00 S2 functions as a high-density discrete signal interface for the CENTUM VP Distributed Control System. This module excels at monitoring large arrays of field equipment by consolidating 64 individual digital input points into a single, compact unit. Because it manages a high volume of status signals—such as switch positions, alarm contacts, and sensor states—it significantly reduces the physical footprint required within control cabinets. The S2 designation indicates an enhanced hardware revision, providing superior electrical stability and long-term reliability for continuous industrial operations.
Key Technical Specifications and Performance
- Channel Density: 64-point isolated digital inputs.
- Input Signal Type: Dry contact or voltage input (typically 24V DC).
- System Interface: Compatible with FIO (Field Input/Output) bus for CENTUM VP.
- Response Time: Rapid signal scanning ensures real-time status updates for the control processor.
- Electrical Protection: Integrated galvanic isolation protects internal system logic from field-side voltage spikes.
- Dimensions: 32 mm x 120 mm x 130 mm.
- Weight: Approximately 0.28 kg.
- Environmental Rating: Engineered to resist vibration and thermal stress in heavy industrial zones.
Primary Industrial Applications
Engineering teams typically deploy the ADV161-P00 S2 in sectors requiring massive data acquisition, such as petrochemical refining, pharmaceutical production, and power generation. Its ability to interface with a wide variety of field devices—from simple pushbuttons to complex limit switches—enables comprehensive plant-wide monitoring. Consequently, the module acts as a vital data gateway, providing the DCS with the high-resolution situational awareness necessary for both automated sequencing and manual operator intervention.
