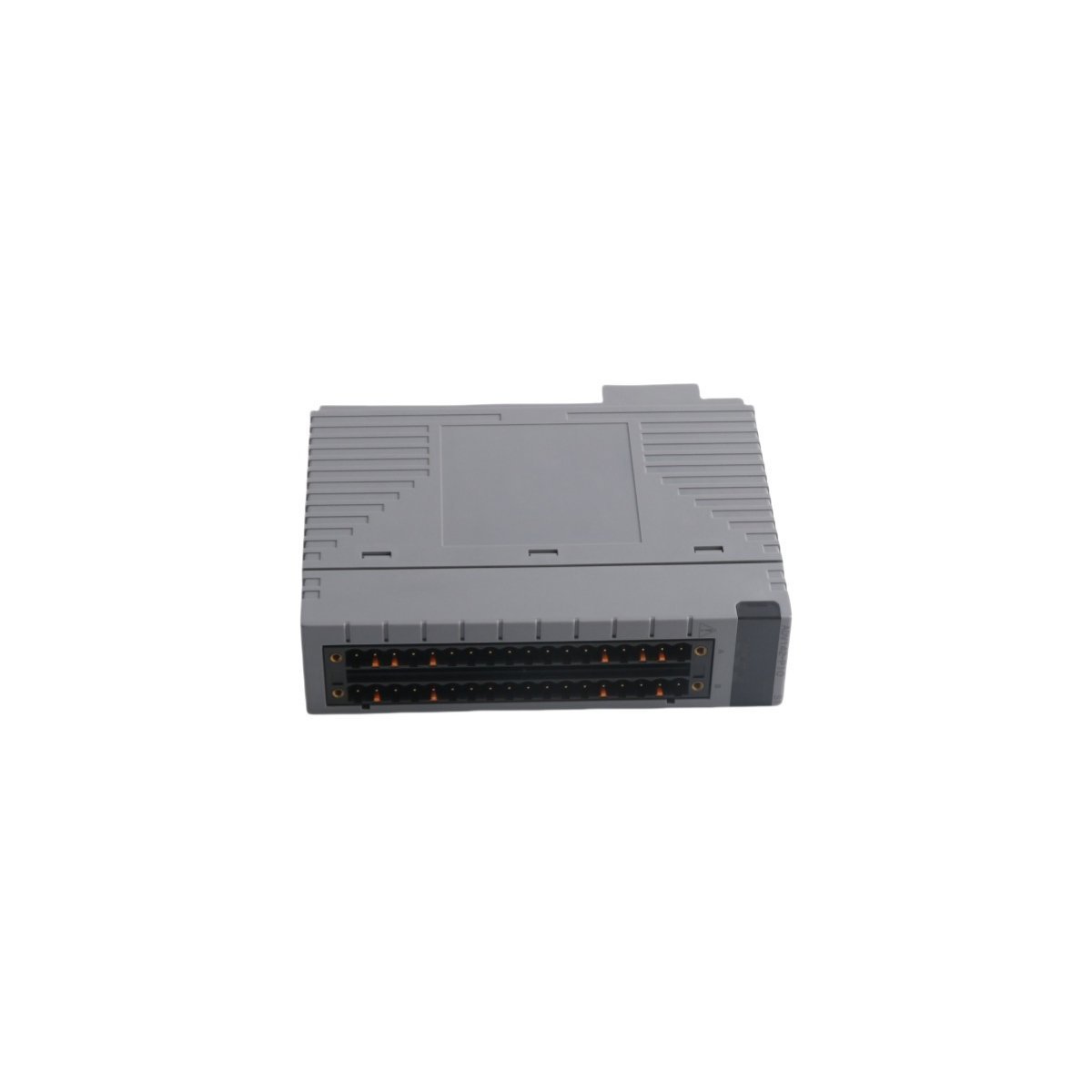

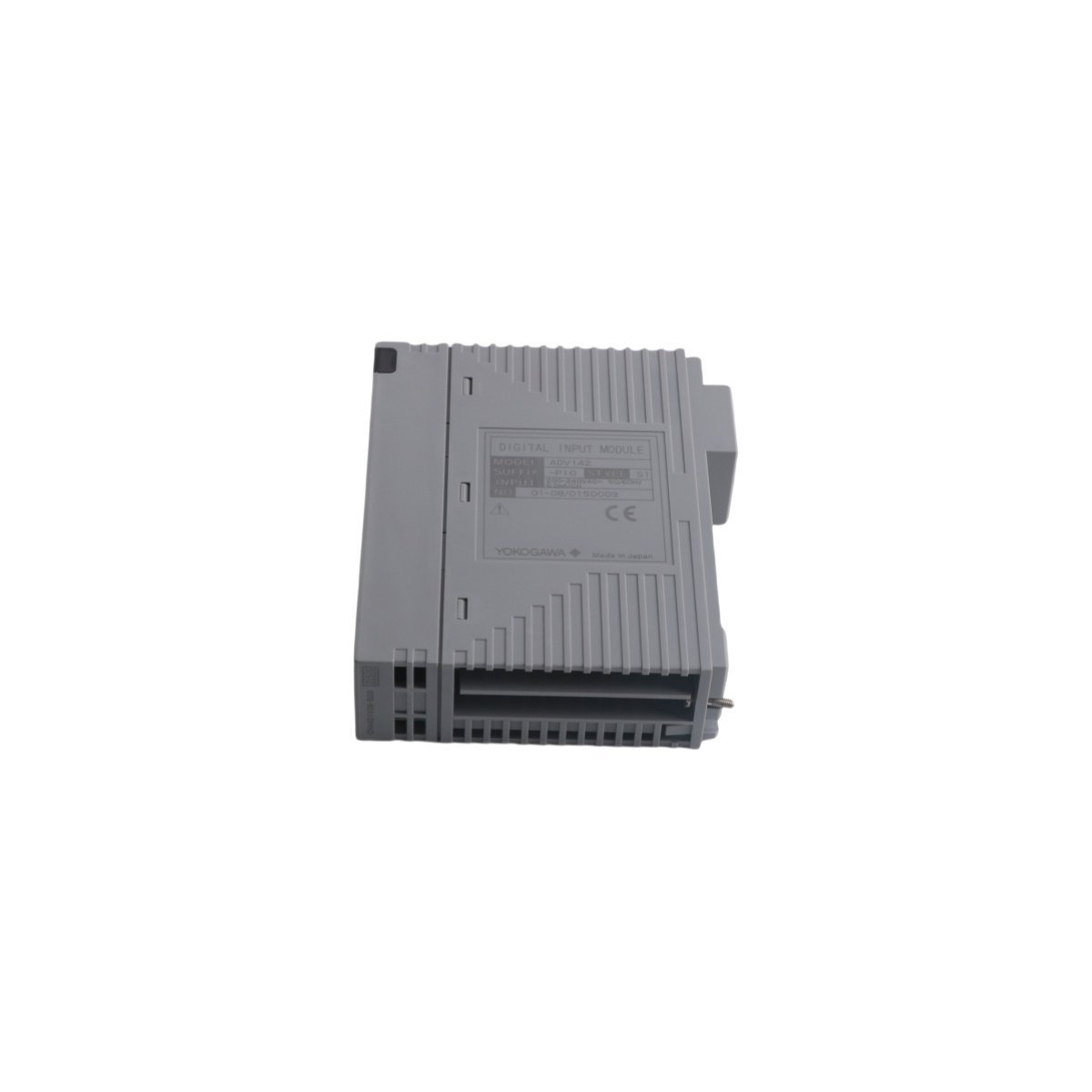

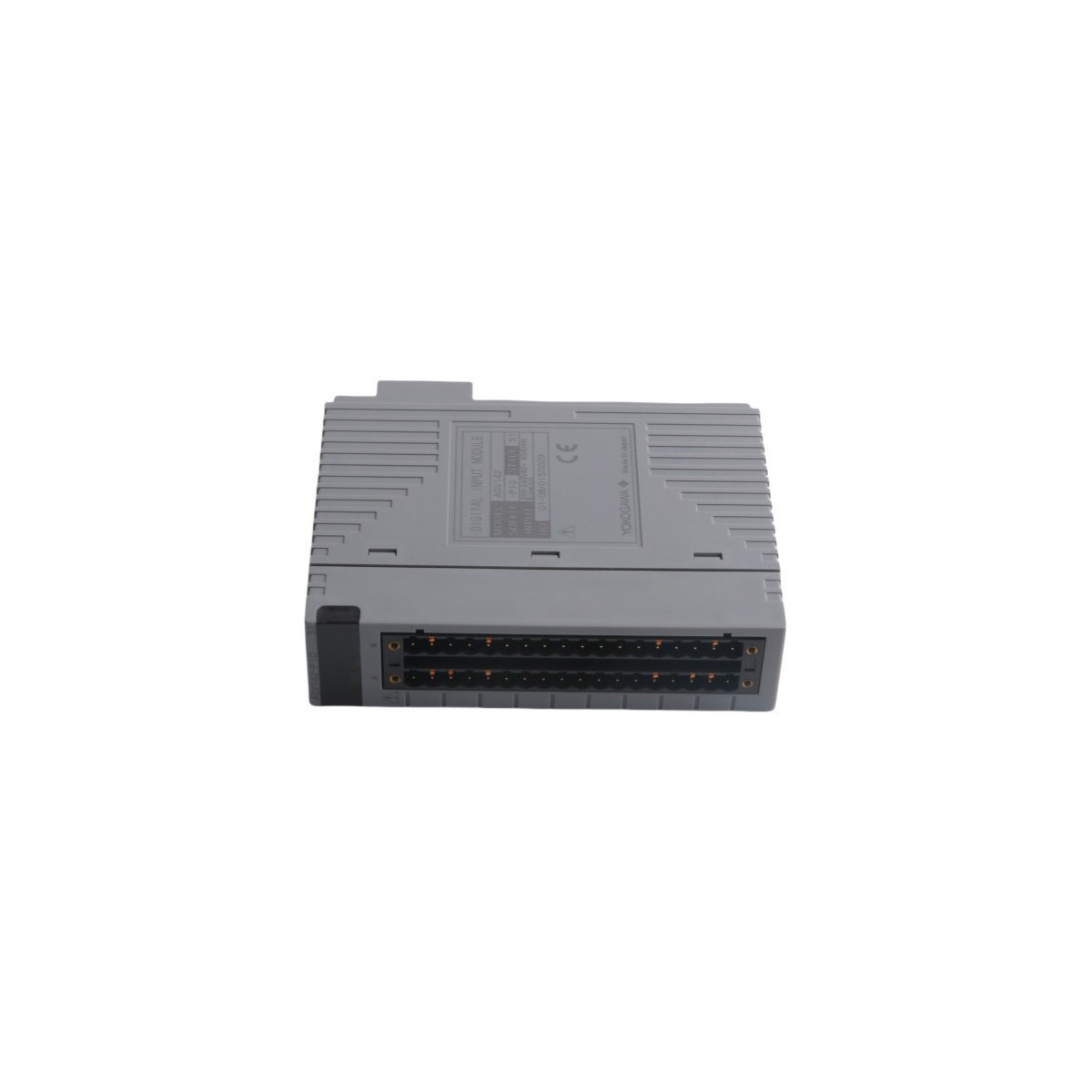

The Yokogawa ADV142-P10 S1 is a high-performance digital input module specifically developed for the CENTUM VP distributed control system. This module serves as a critical interface for monitoring discrete field signals, converting on/off states from external equipment into actionable logic for the DCS. With its 32-channel high-density architecture, the ADV142-P10 S1 allows for extensive monitoring of plant components—such as switch positions, motor status, and alarm contacts—while occupying minimal space within the I/O rack.
Technical Specifications
| Feature | Specification Details |
| Manufacturer | Yokogawa Electric Corporation |
| Model Number | ADV142-P10 S1 |
| Input Type | Digital Input (Discrete) |
| Number of Channels | 32-Channel, Isolated |
| Rated Input Voltage | 24V DC |
| Input Current | 4.1 mA (at 24V DC) |
| System Interface | FIO (Field network I/O) |
| Dimensions | 3.2 x 10.7 x 13.0 cm |
| Weight | 0.26 kg |
| Origin | Japan |
Typical Industrial Applications
- Status Monitoring: Tracking the open/closed positions of manual and automated valves.
- Safety Interlocking: Integrating emergency stop buttons and limit switches into control logic.
- Equipment Feedback: Monitoring motor run/trip signals and pump operation status.
- Sequence Control: Providing the discrete feedback necessary for automated batch processing and start-up sequences.
