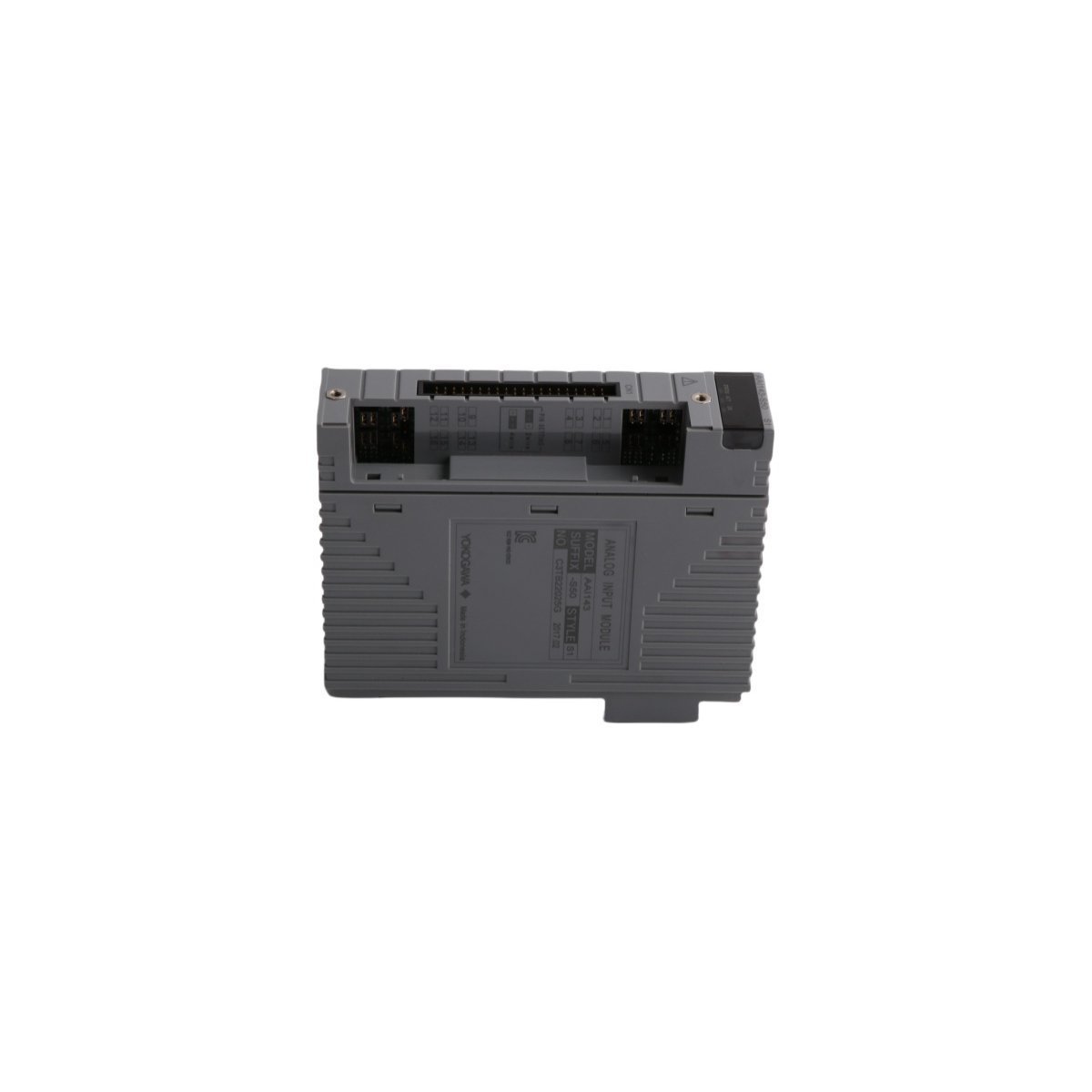

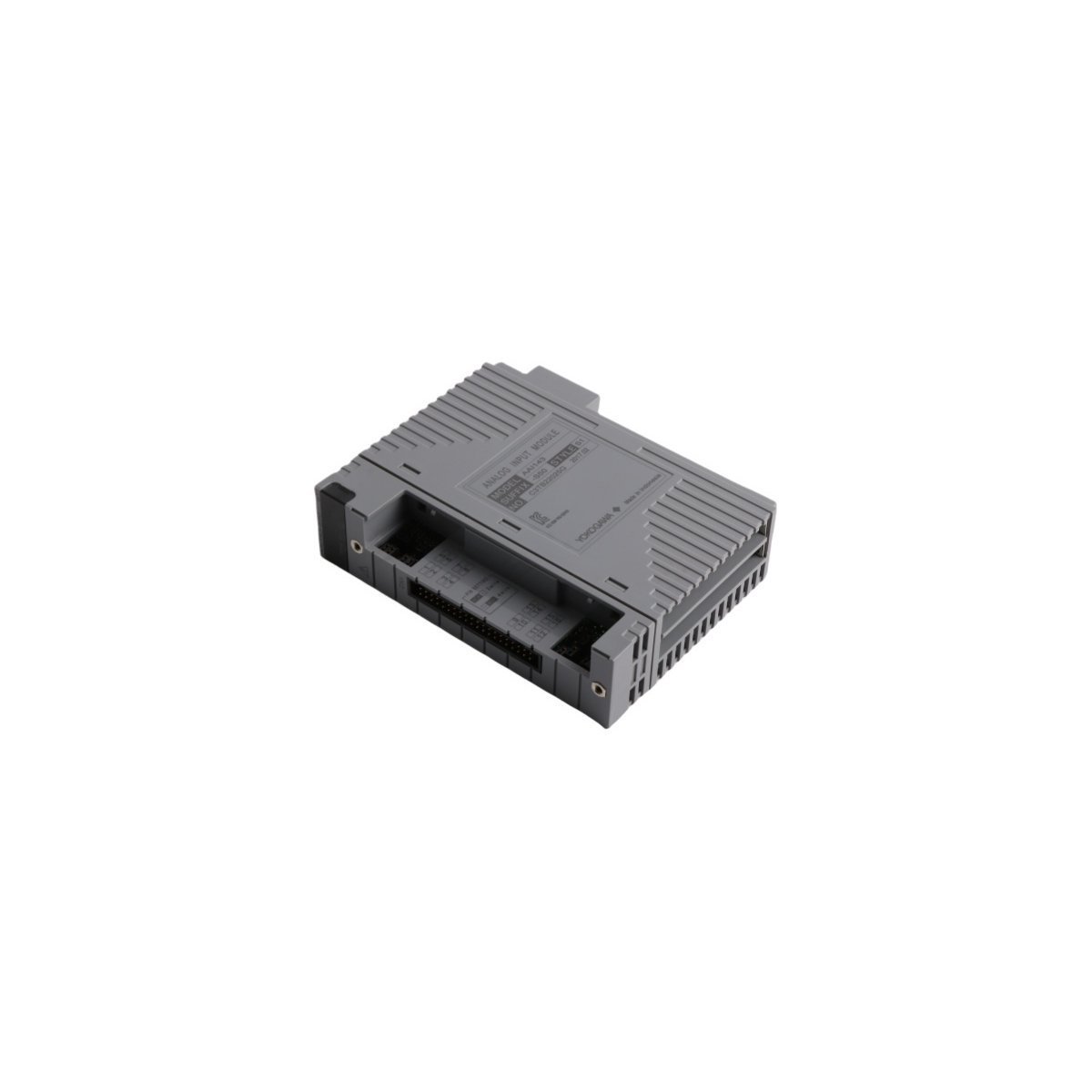

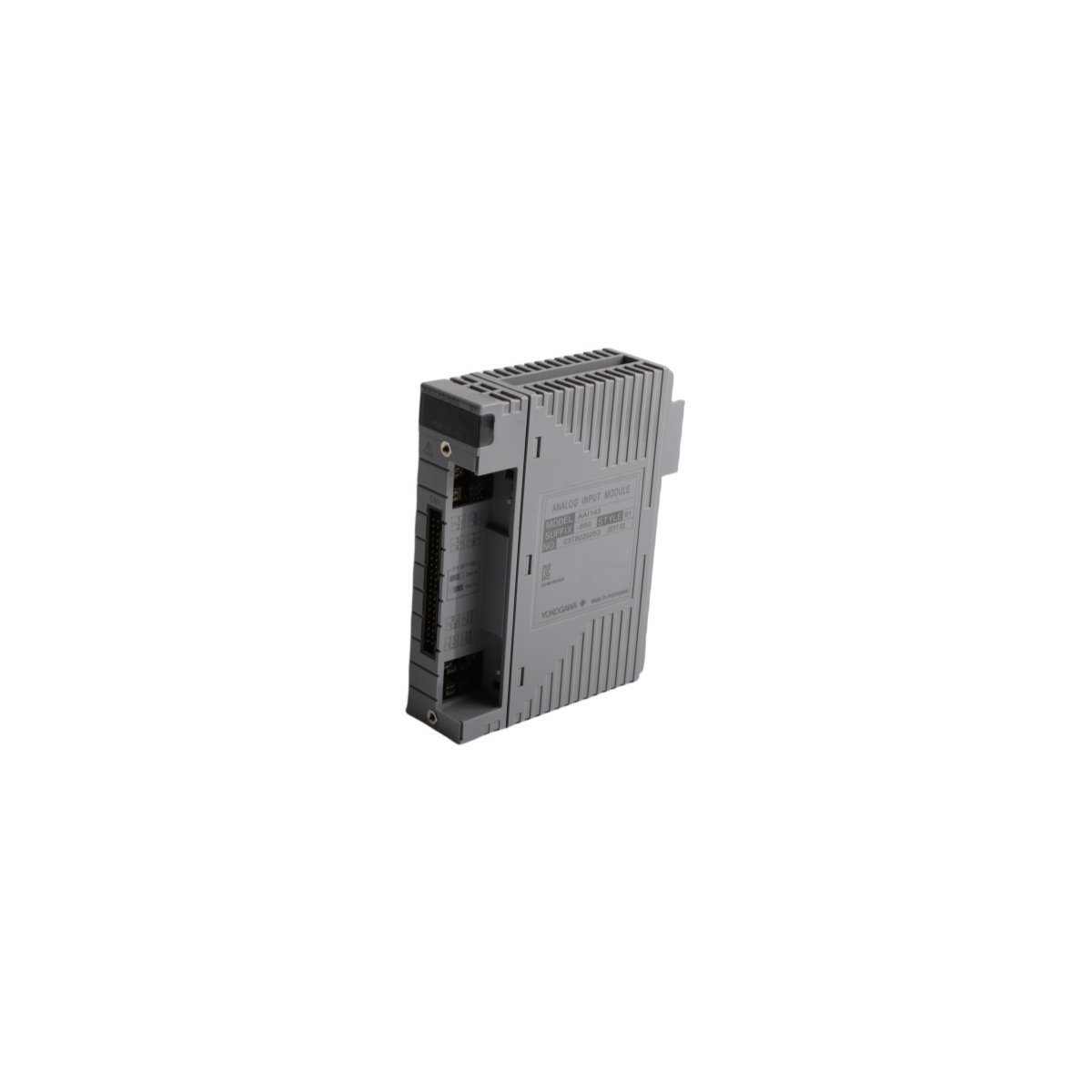

The Yokogawa AAI143-S50 S1 is a high-density 16-channel analog input module designed for use within the CENTUM VP and CS 3000 Distributed Control Systems (DCS). This module serves as a critical interface for collecting 4 to 20 mA DC current signals from field transmitters. By converting these analog process variables into digital data with high resolution, the AAI143-S50 S1 enables precise monitoring of pressure, temperature, flow, and level, ensuring the control system receives accurate information for complex automation logic.
Technical Specifications
| Feature | Specification Details |
| Manufacturer | Yokogawa Electric Corporation |
| Model Number | AAI143-S50 S1 |
| Number of Channels | 16, Isolated |
| Input Signal Range | 4 to 20 mA DC |
| Input Impedance | 250 Ω |
| Conversion Accuracy | ±0.1% of full scale |
| System Compatibility | CENTUM VP / CS 3000 (FIO System) |
| Weight | 0.24 kg |
| Dimensions | 3.2 x 10.6 x 13.0 cm |
| Operating Temperature | -20 to 60°C |
Primary Industrial Applications
- Refining and Petrochemicals: Continuous monitoring of pressure and flow transmitters in hazardous areas.
- Power Generation: Accurate tracking of boiler and turbine process variables.
- Water Treatment: Interfacing with level sensors and chemical dosage monitors.
- Batch Processing: High-density I/O collection for pharmaceutical and food production lines.
