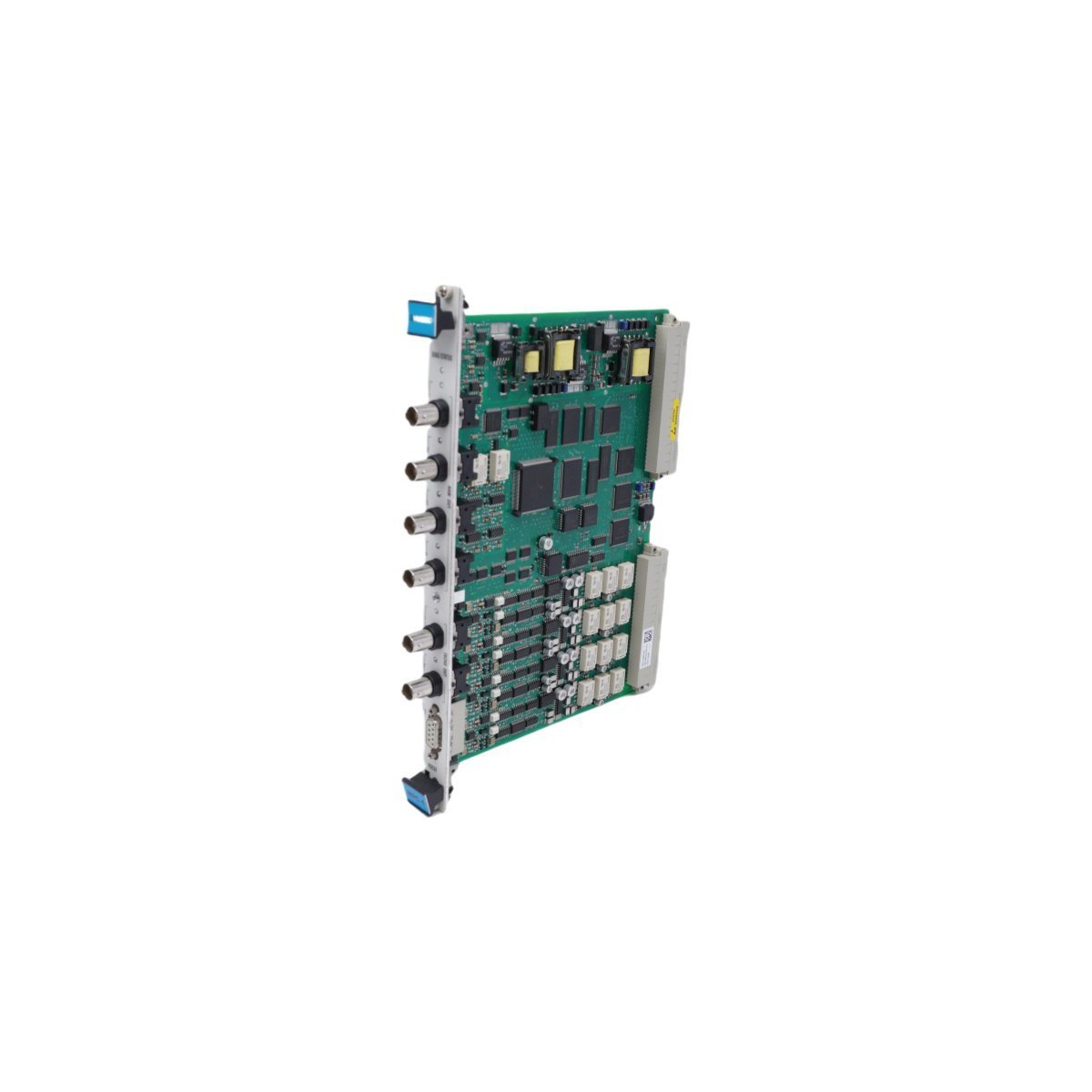

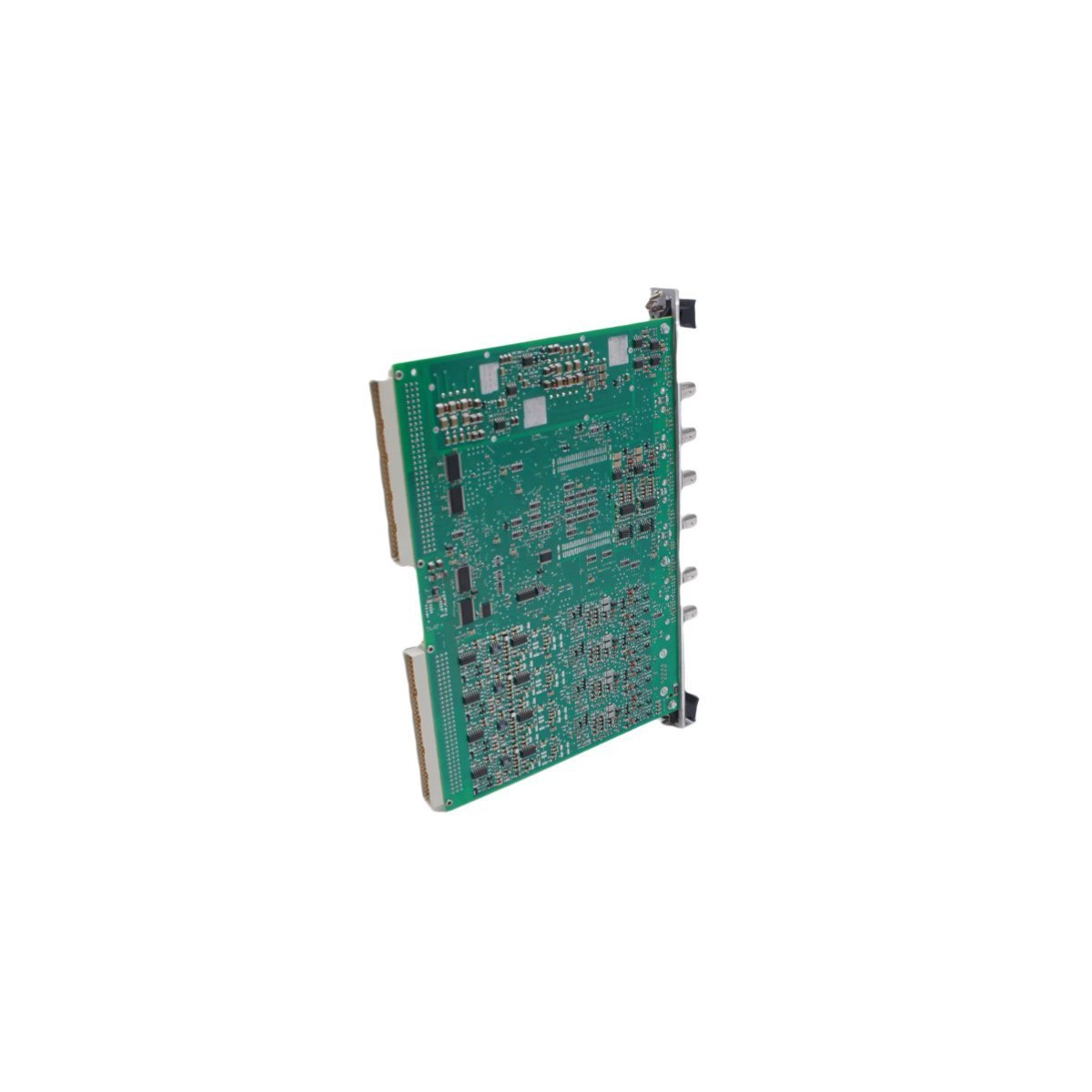

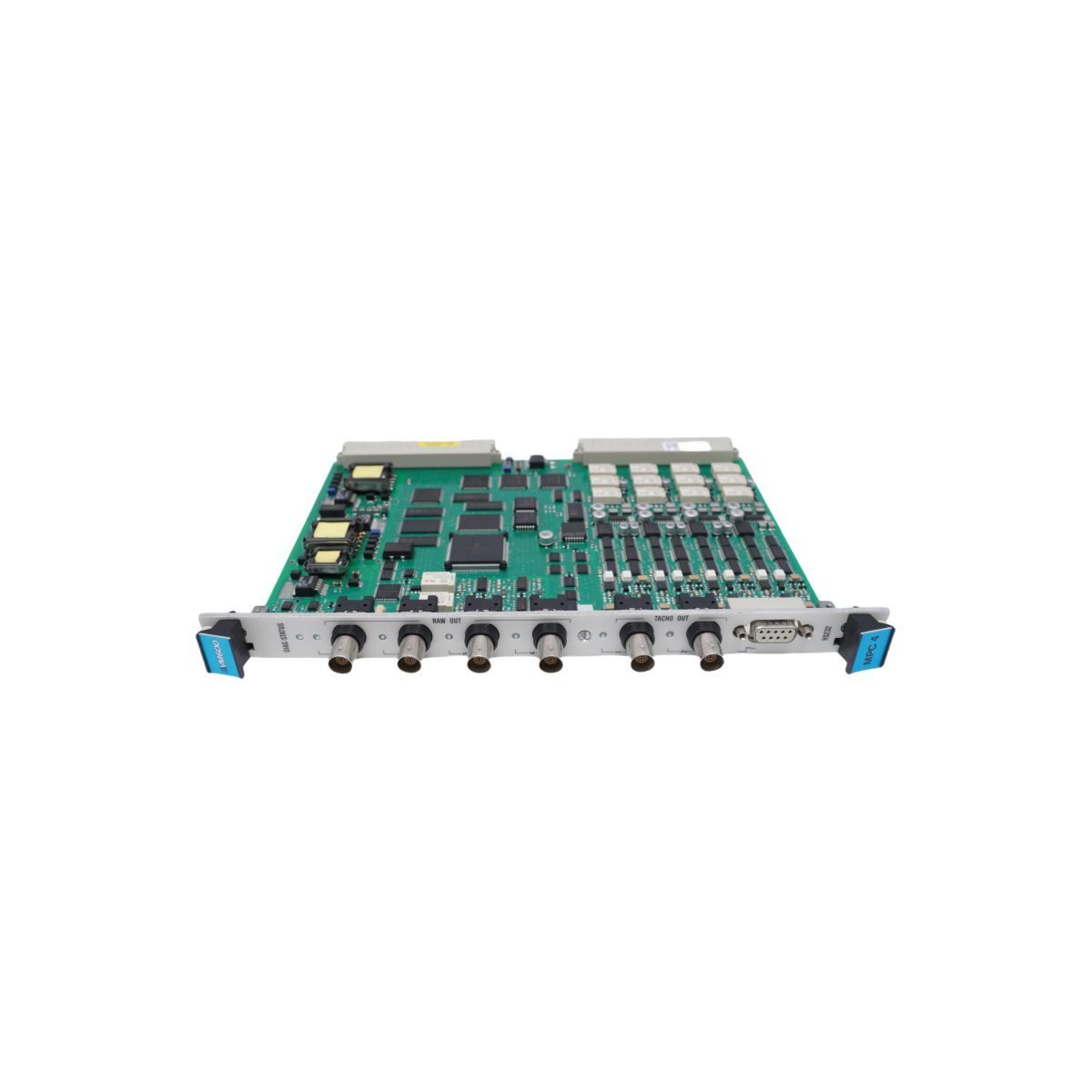

VIBRO-METER VM600 MPC4 200-510-070-113 Machinery Protection Card

The Vibro-Meter VM600 MPC4 (200-510-070-113) serves as a core processing module for industrial vibration monitoring. It functions within the Meggitt VM600 rack system to protect high-value rotating assets. This card simultaneously monitors four dynamic channels and two speed inputs. Consequently, it provides a comprehensive safety net for turbines, compressors, and pumps. The module processes real-time data to prevent catastrophic equipment failure.

Functional Capabilities

The MPC4 card handles multiple signal types including acceleration, velocity, and displacement. It performs complex digital processing such as filtering and integration. Users can track relative vibration, thrust position, and eccentricity easily. Furthermore, the card supports advanced rectification methods like RMS and true peak-to-peak. This ensures precise analysis of sensor gap and mechanical health.

Alarm and System Integration

Programmable setpoints allow for customized Alert and Danger thresholds. These alarms adjust based on operating speeds or external conditions. The card communicates via the Raw or OC bus to trigger relay modules. Additionally, it pairs with the IOC4T input/output card for physical connections. Analog signals integrate directly with plant PLC or DCS systems for seamless control.

Reliability and Self-Diagnostics

Integrated self-test routines run during every system startup. A dedicated OK system constantly monitors the entire measurement chain integrity. Front-panel LED indicators show the status of every channel clearly. Therefore, operators can verify card health at a single glance. This robust architecture ensures maximum uptime in demanding industrial environments.

Core Technical Specifications
