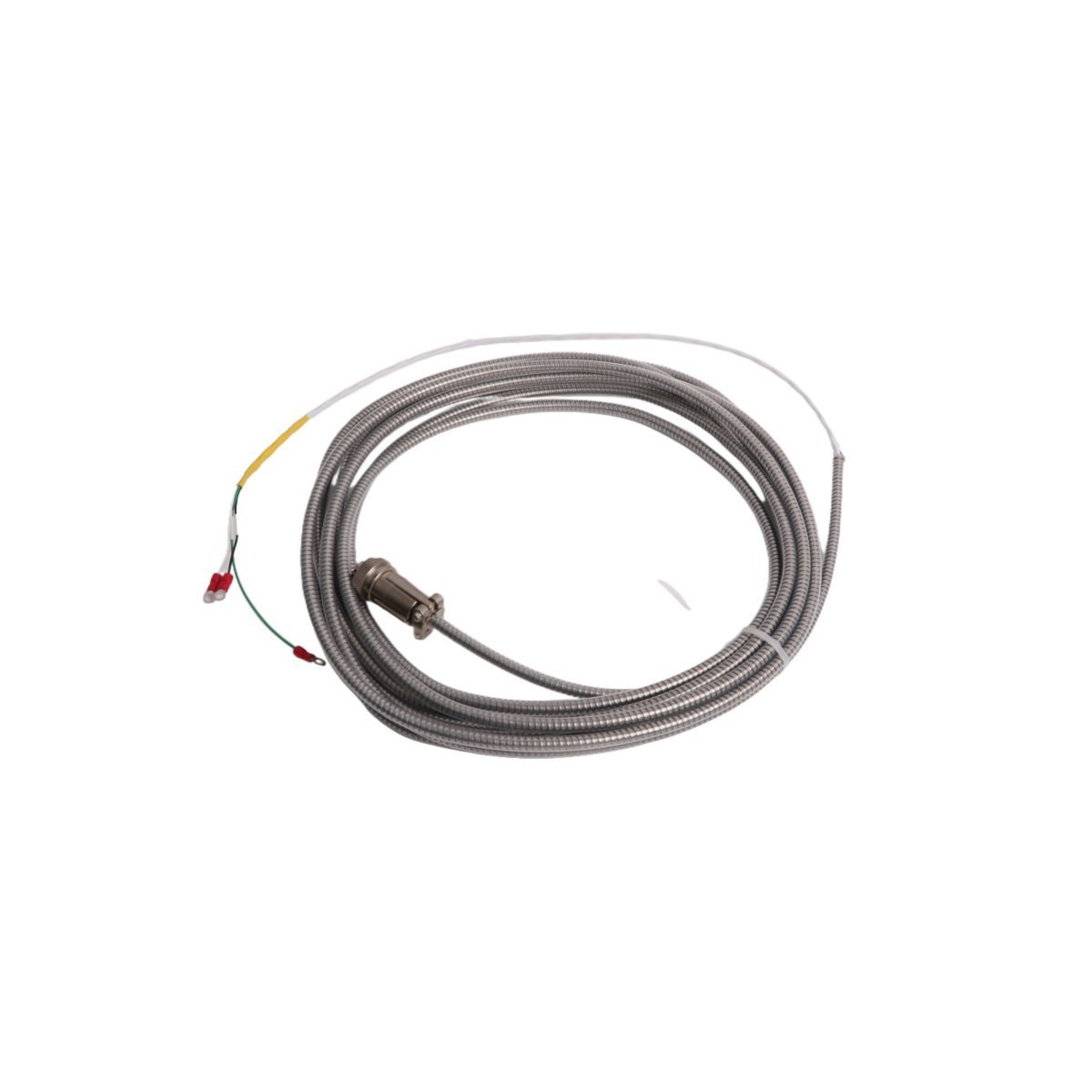

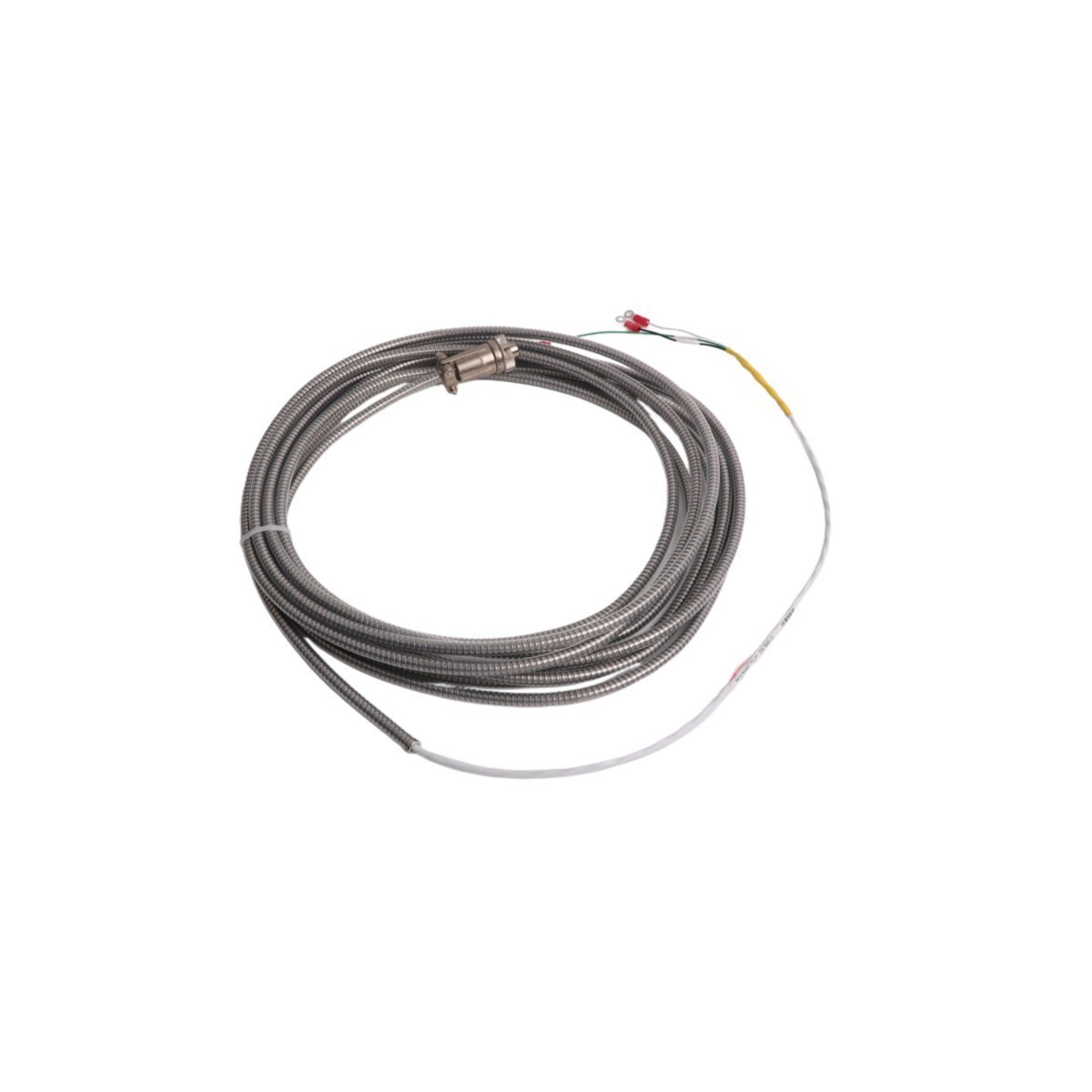

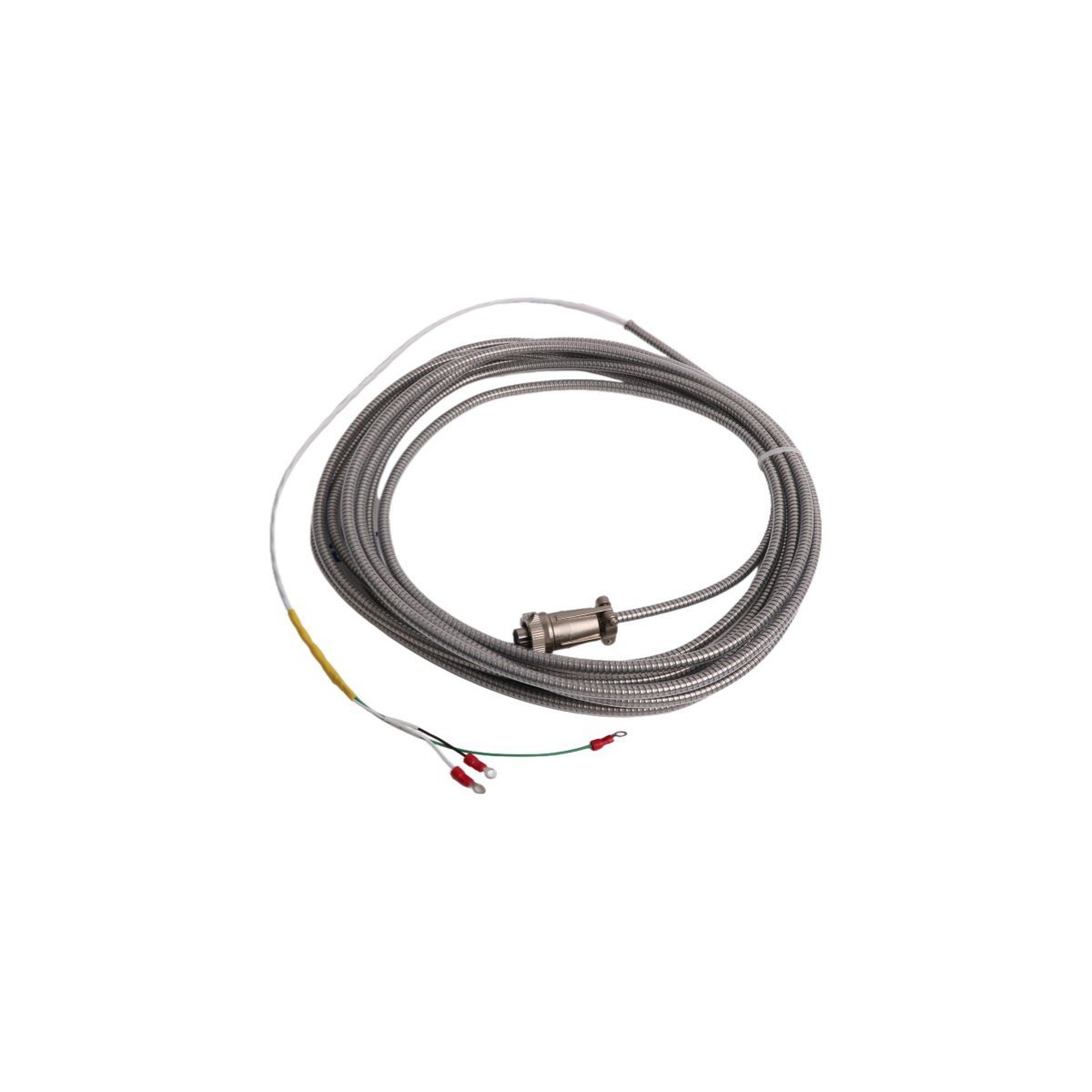

Bently Nevada 84661-21 Velomitor Interconnect Cable

The Bently Nevada 84661-21, also cataloged as the 84661 Velomitor Interconnect Cable, operates as a dedicated hardware component for specific technical tasks within TSI systems. This assembly establishes a direct physical and electrical connection between a Velomitor piezoelectric acceleration sensor and a continuous monitoring device. The cable transmits low-voltage, high-frequency vibration signals while preserving signal fidelity across its entire physical length.

Hardware Specifications

Machinery Monitoring & TSI Characteristics

The interconnect hardware incorporates specific shielding parameters to achieve precise eddy-current probe scaling and seismic sensor data integration. The internal twisted-pair architecture minimizes electromagnetic induction, which directly preserves wave characteristics essential for rotor dynamics analysis. Field engineers perform gap voltage validation checks and verify signal-to-noise ratios at the monitor terminal to ensure the loop functions within specification. Furthermore, the high-density insulation layout provides built-in cross-talk suppression, preventing signal migration between parallel multi-channel sensor runs within the same cable tray.

Frequently Asked Questions

Q: How does the cable construction prevent signal degradation across a 21-foot distance?

A: The engineering design maintains a low capacitance threshold of 100 pF per meter or less, which limits high-frequency attenuation and preserves the integrity of the raw acceleration data.

Q: Can technicians deploy the standard PVC version of this cable in high-temperature steam environments?

A: No, the standard PVC variant caps performance at +100 deg C. Applications exceeding this limit require the alternative PUR or FEP cable jackets, which withstand environments up to +150 deg C.

Q: What function does the integrated shield drain wire perform inside the assembly?

A: The drain wire provides a low-resistance path to discharge electrostatic noise and induced field voltages directly to the instrumentation ground block.

Field Installation Guidelines

• Route the cable using the mandatory minimum bend radius limit of six times the outer cable diameter to avoid structural stress or internal dielectric failure.
• Connect the shield termination exclusively at a single designated instrument ground point to eliminate ground loop currents that corrupt data signals.
• Install separate conduit pathways or physical barriers to isolate this low-voltage sensor lead from adjacent high-voltage motor power lines.
• Fasten the threaded connector shell securely to the Velomitor sensor base, ensuring complete thread seating to stop moisture ingress.
