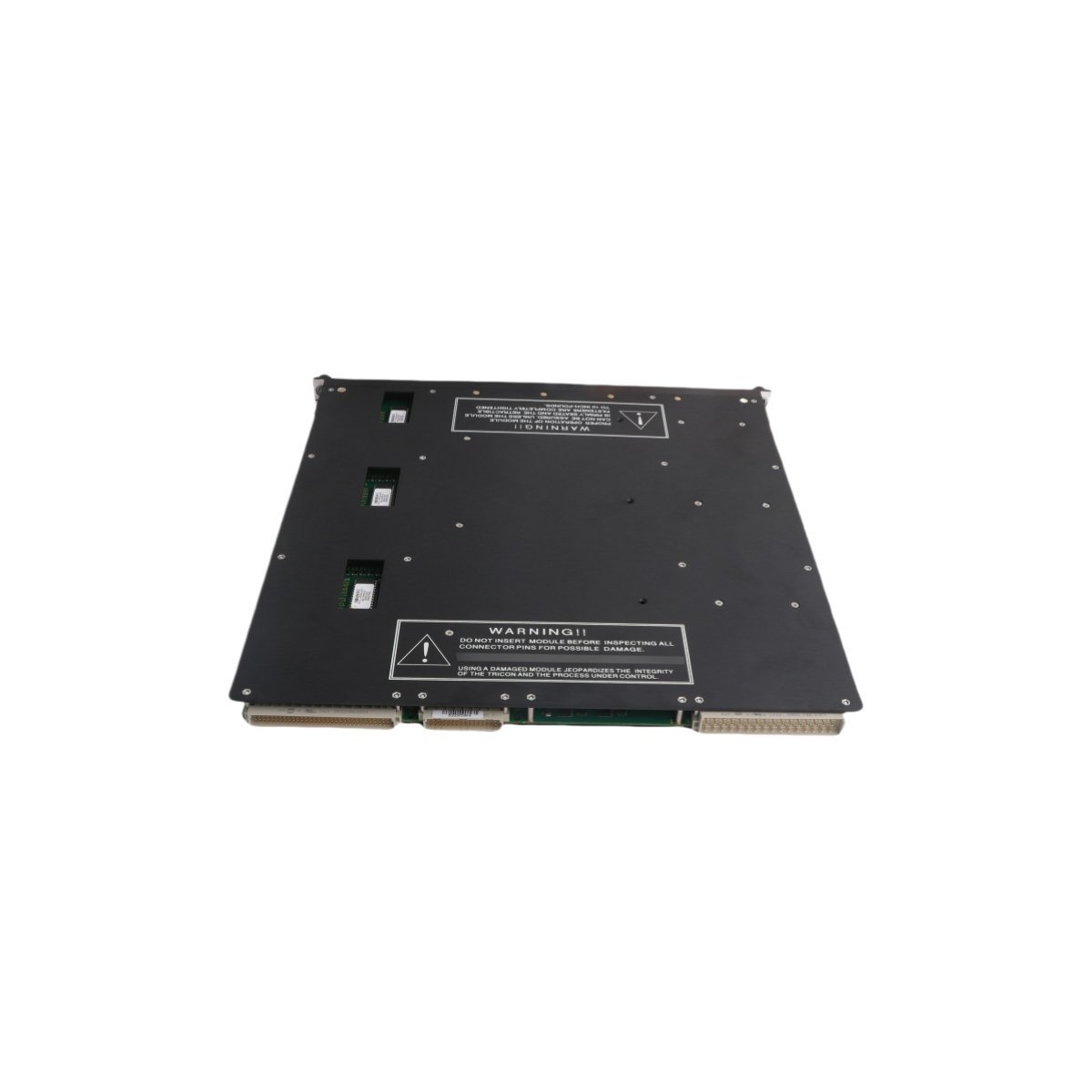

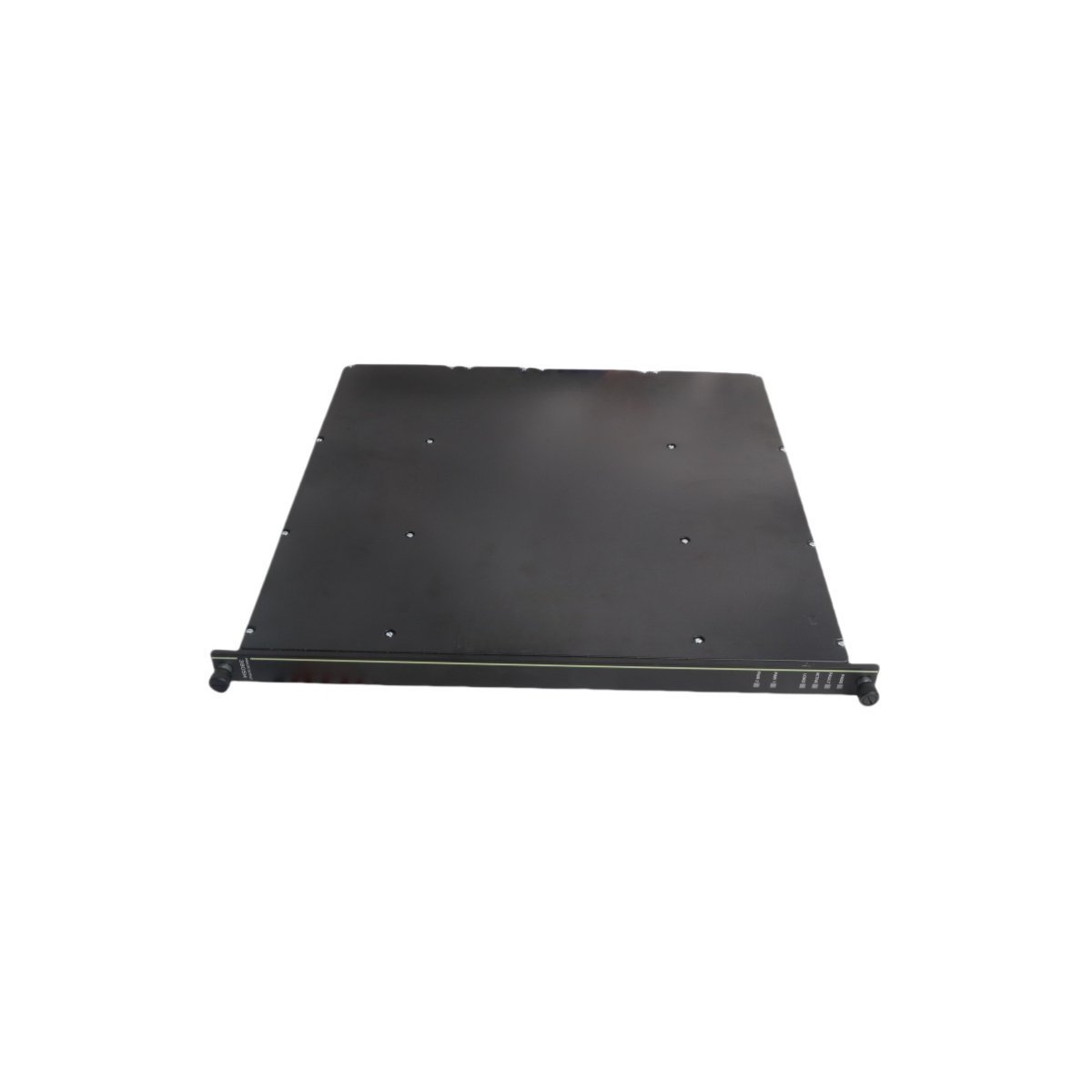

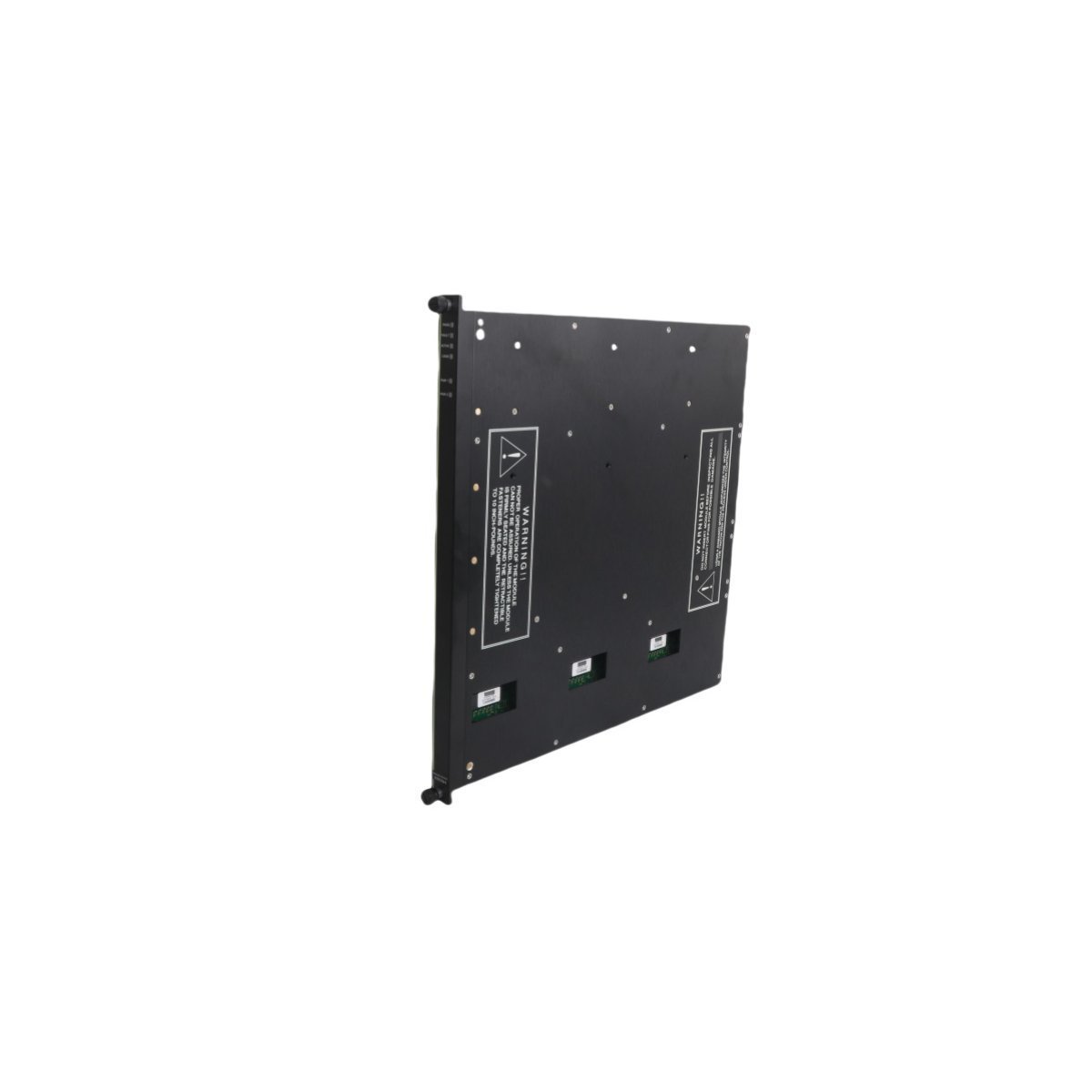

Triconex 3805H Analog Output Module

The Triconex 3805H provides critical analog output capabilities for safety-instrumented systems. This module features 8 independent channels designed for high-precision current loop control. It primarily generates 4-20mA signals to drive final control elements in hazardous environments. Because it utilizes Triple Modular Redundant (TMR) architecture, the module ensures fault-tolerant operation. This design effectively eliminates single points of failure within the control loop. Consequently, the hardware meets the most stringent SIL 3 safety integrity requirements. It remains a trusted choice for emergency shutdown and fire and gas applications.

Technical Precision and Diagnostic Reliability

This module delivers exceptional signal accuracy of less than 0.25% across the full scale. It supports a wide output range up to 21.2mA to accommodate overrange requirements. Furthermore, the 12-bit resolution allows for fine adjustments in complex process control scenarios. The internal diagnostics continuously monitor the health of each DC-coupled current loop. If a component fails, the TMR voting mechanism automatically compensates to maintain output stability. This proactive fault detection prevents accidental process trips and enhances overall plant availability.

Primary Technical Specifications

Core Functional Advantages

• TMR Architecture: Uses three-way voting to ensure continuous operation during hardware faults.
• Superior Accuracy: Maintains precise control over sensitive valves and variable speed drives.
• Hot-Swappable Design: Permits module replacement during active operation to minimize downtime.
• Isolated Channels: Prevents electrical noise or faults from spreading between different field loops.
• Broad Temperature Tolerance: Operates effectively in environments from -40°C to +70°C.
