Product Overview

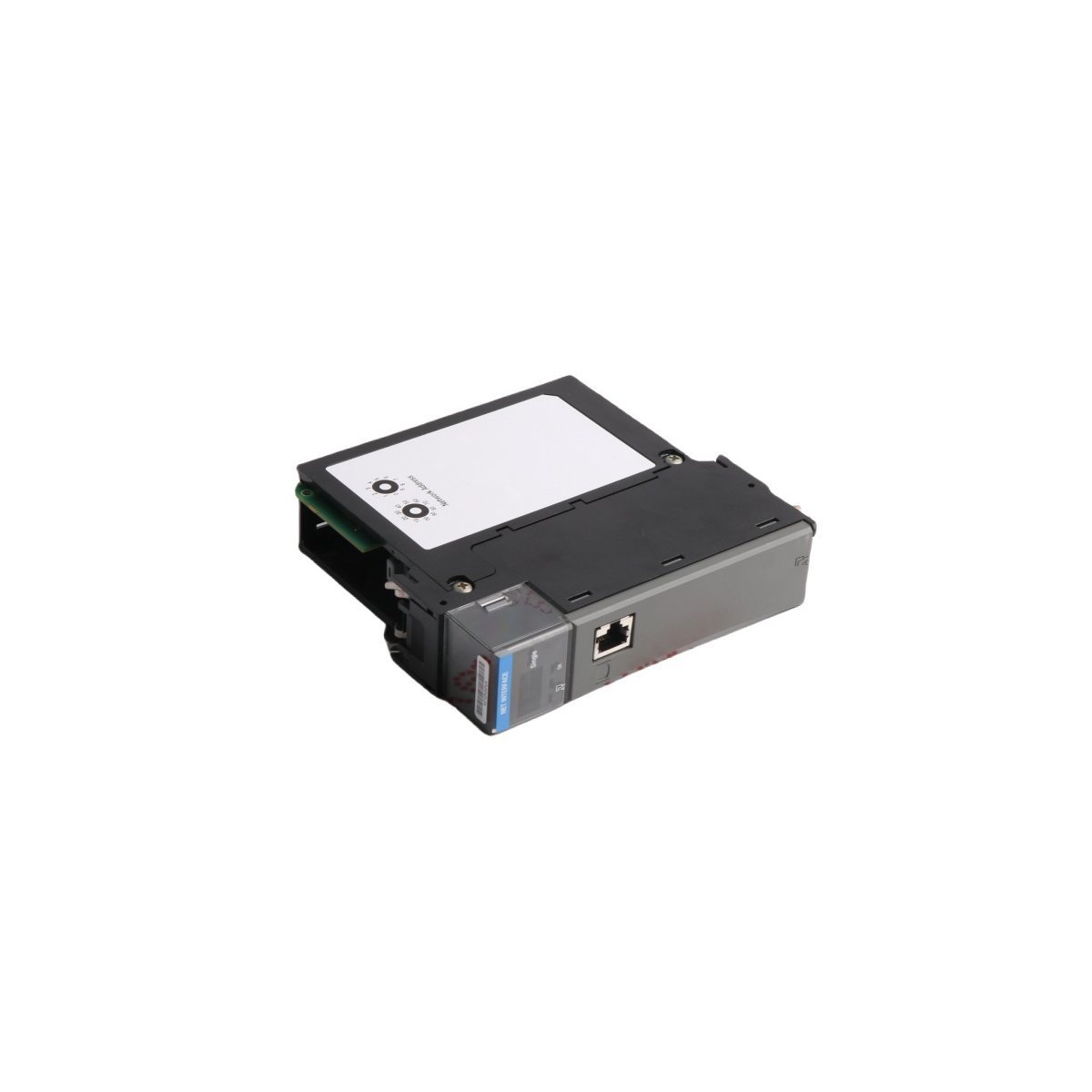

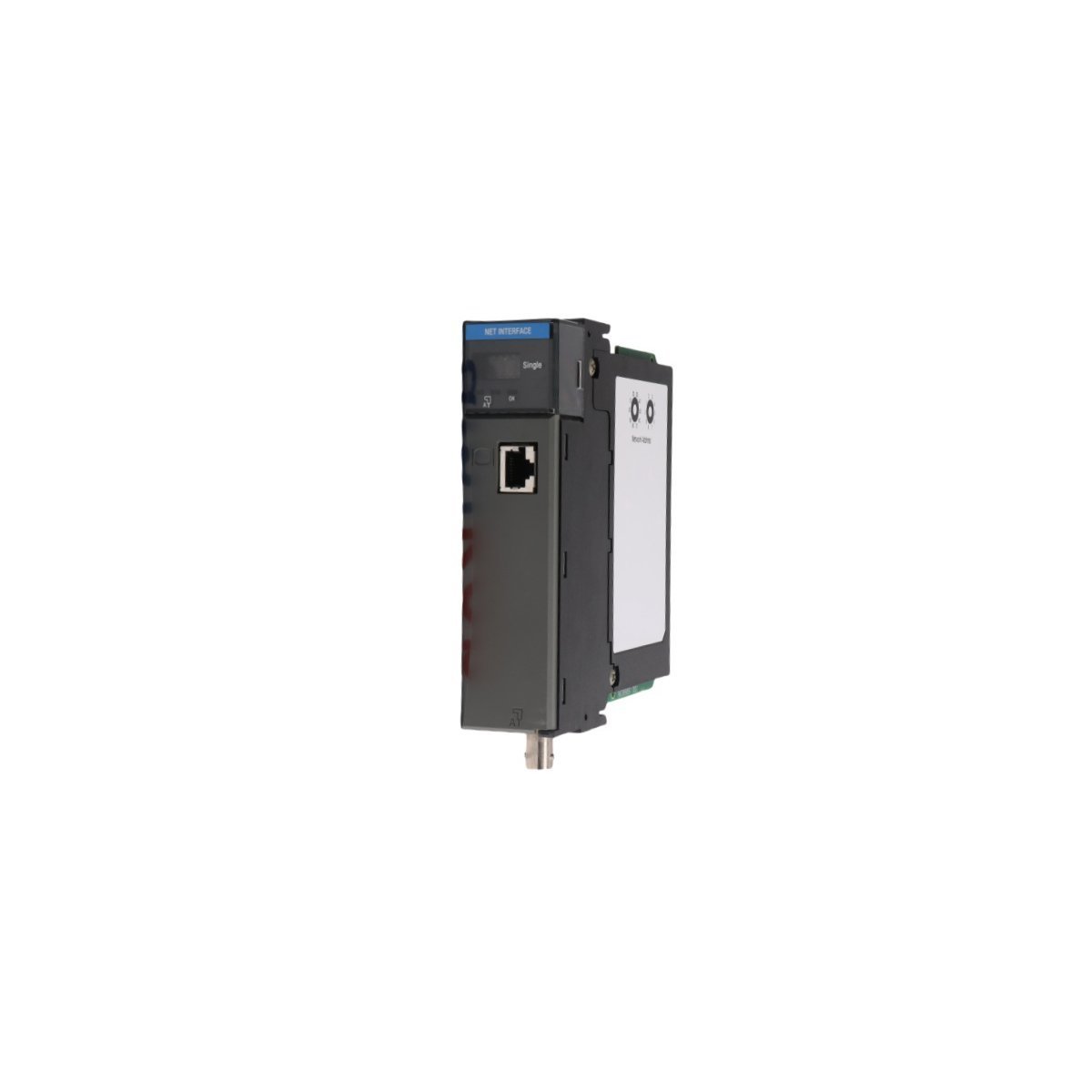

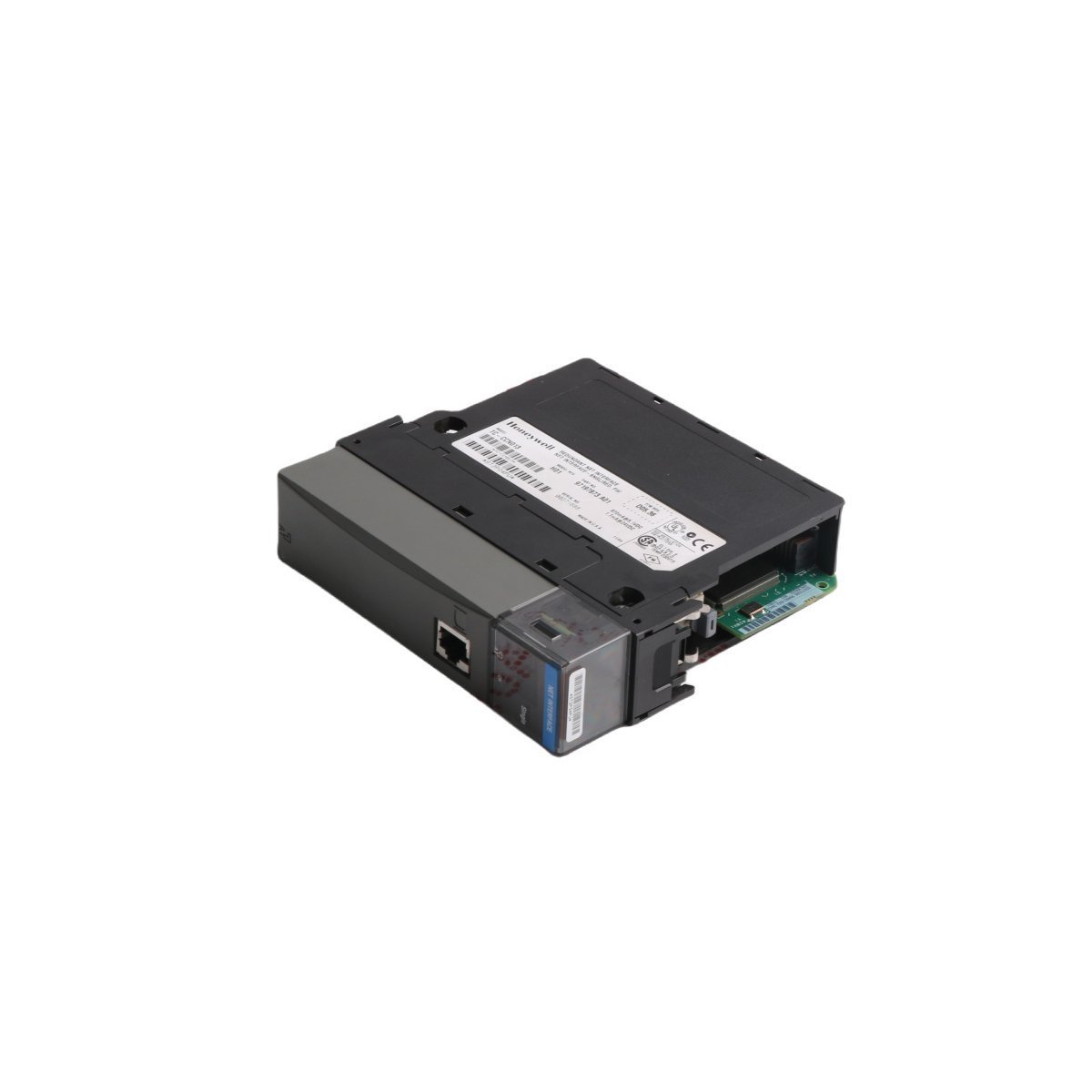

The Honeywell TC-CCN013 connects Experion LS controllers to plant-wide networks. This redundant ControlNet interface module guarantees continuous data transmission between automated sub-systems.
Technical Specifications
- Manufacturer: Honeywell
- Model Number: TC-CCN013
- Part Number: 97197873
- Product Family: Experion LS
- Module Classification: Redundant ControlNet Interface
- Hardware Architecture: Distributed Control System (DCS) Component
- Net Weight: 0.49 kg
- Physical Enclosure Dimensions: 18.8 cm x 9.1 cm x 4.1 cm
- International Tariff Code (HS Code): 8537101190
- Availability Status: Active
Functional Performance and Network Redundancy
The TC-CCN013 module manages high-speed, deterministic data transfers over industrial ControlNet architectures. By utilizing dual coaxial transmission lines, the device establishes a concurrent dual-path framework.
Consequently, the network automatically redirects traffic if a cable sustains physical damage. This active monitoring technique prevents communication dropouts without requiring processor intervention.
Furthermore, the module maintains strict real-time protocol management for time-critical interlocking signals. The compact form factor inserts directly into standard chassis slots. This hardware alignment simplifies initial setup and reduces adjacent slot heat buildup.
Industrial Applications
- Continuous process automation loops within chemical processing facilities
- Distributed network bridging inside large manufacturing plants
- Critical utility monitoring stations requiring high-availability data logging
