Honeywell TC-FXX072 97126485 Rack Module Experion LS

Honeywell TC-FXX072 Rack Module

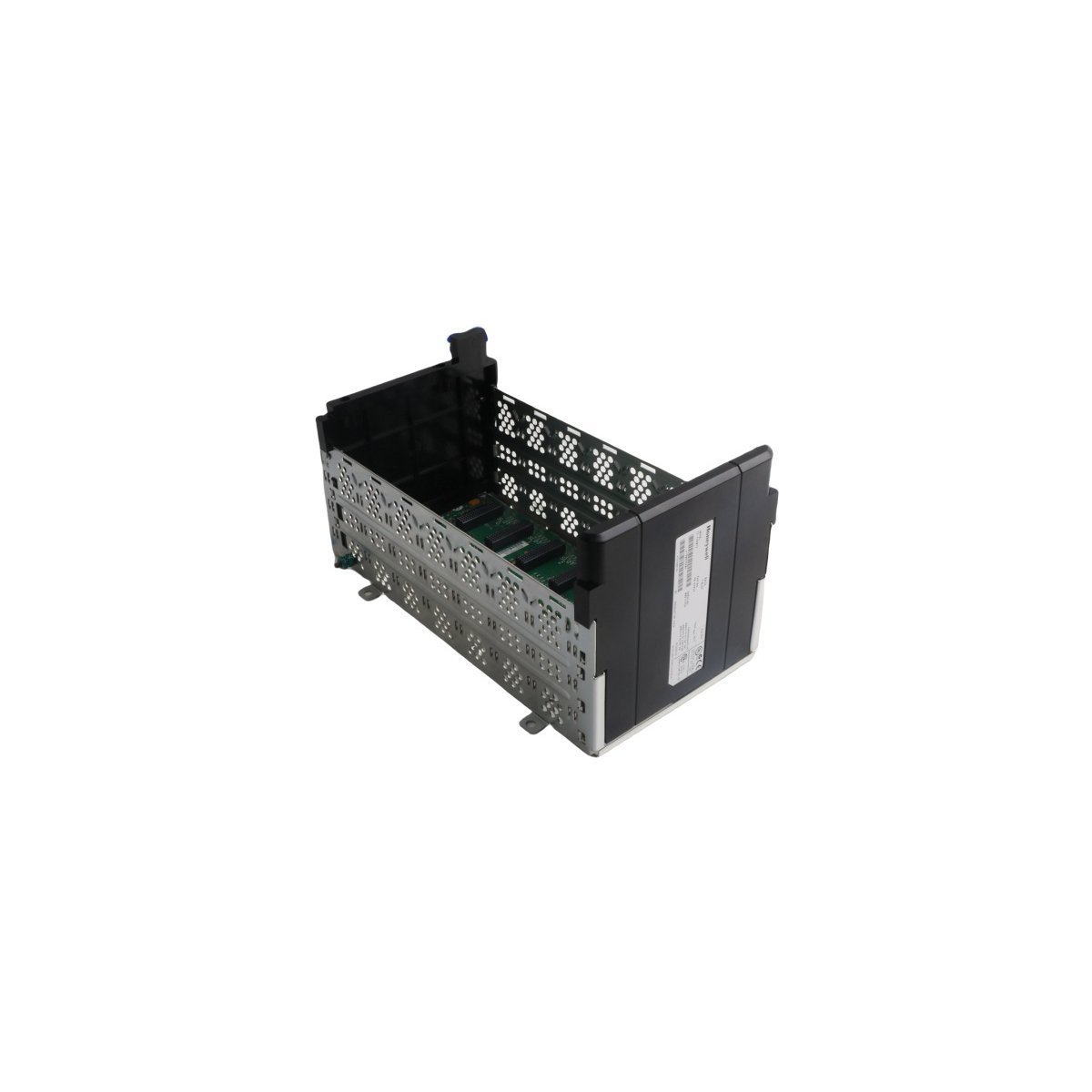

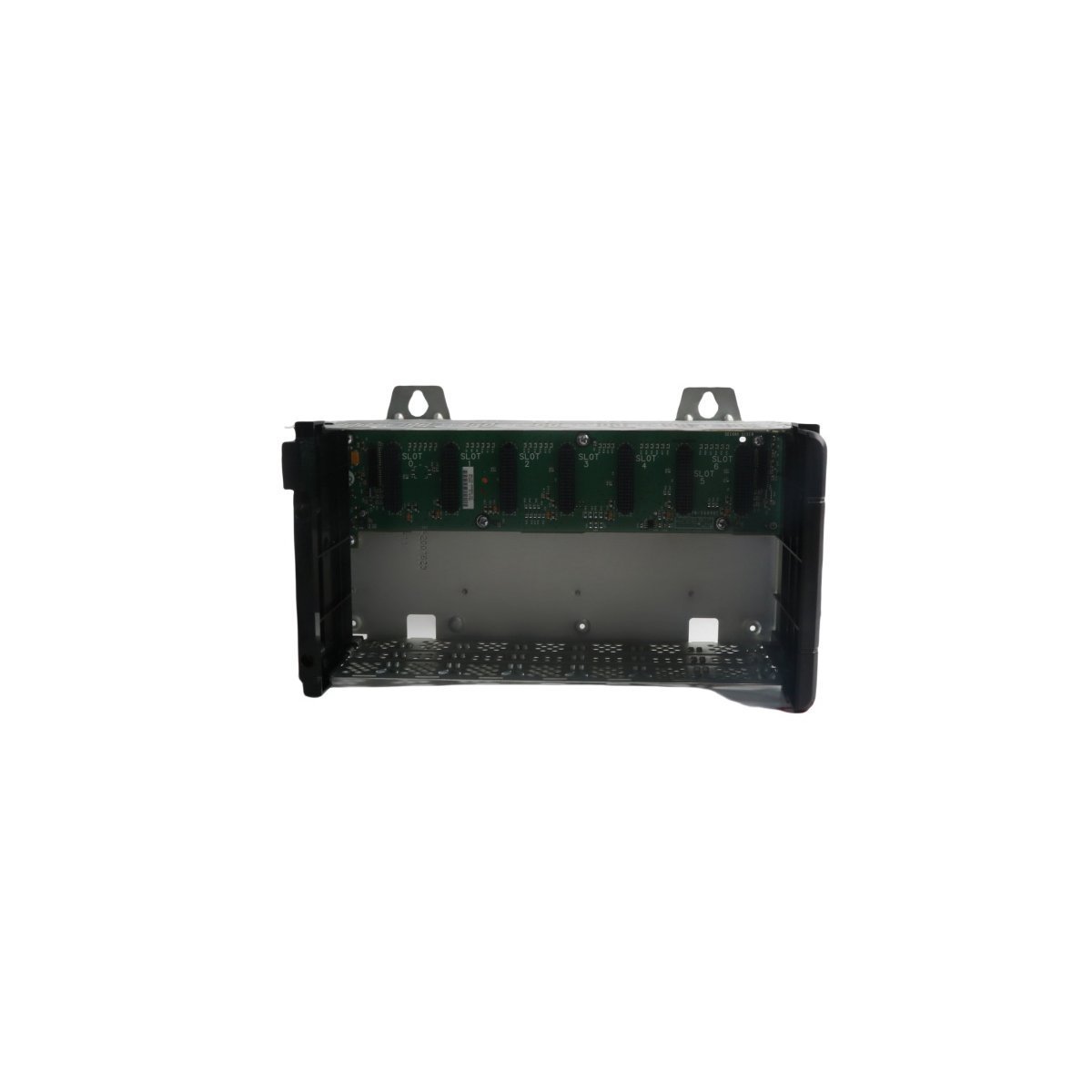

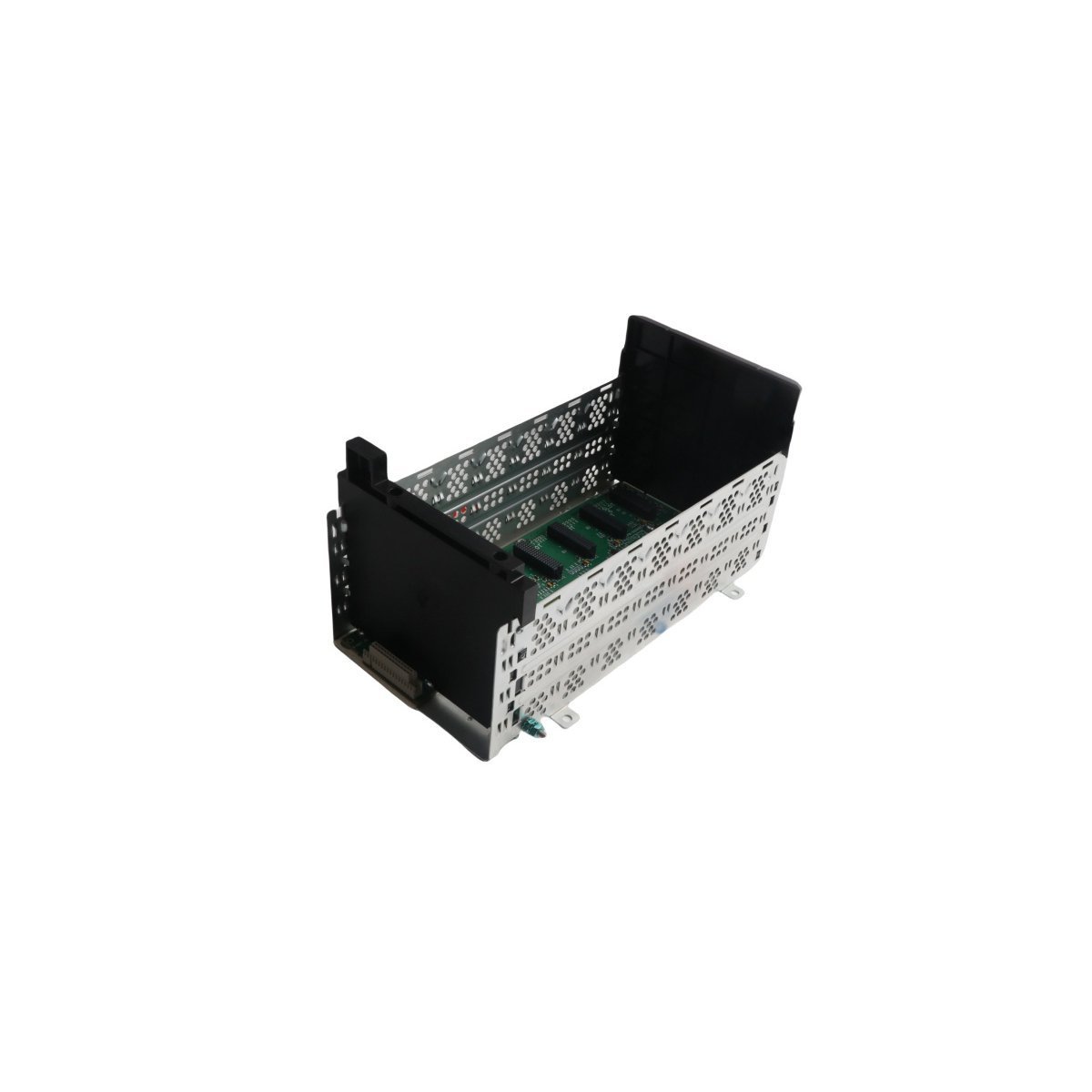

Configured for high-density hardware interfacing in Experion LS platforms, the Honeywell TC-FXX072 (TC-FXX072 97126485 Rack Module) provides direct physical execution of I/O signal distribution and backplane communication.

Hardware Specifications

Process Control and Channel-to-Channel Isolation

The TC-FXX072 serves as the mechanical and electrical foundation for modular I/O arrays. It manages the signal path between individual channel modules and the system backplane, ensuring deterministic data transfer. To preserve measurement accuracy, the module architecture supports channel-to-channel isolation, which prevents ground potential differences and common-mode interference from degrading signal fidelity. Furthermore, the unit facilitates the 4-20 mA HART loop protocol, allowing operators to extract field instrument diagnostics alongside standard process values. This isolation and protocol support maintain control loop stability in electrically noisy industrial environments.

Frequently Asked Questions

Q: Does the TC-FXX072 module support hot-swapping during active system operation?

A: The rack architecture requires the removal of power from the specific I/O nest before extracting or inserting the module. Disconnecting the power source prevents transient current spikes that damage backplane communication pins.

Q: How does the module maintain system signal integrity?

A: The module utilizes high-performance shielding and differential signal processing to suppress electromagnetic interference. When coupled with proper grounding techniques, these features minimize packet errors across the control network.

Field Installation Guidelines

1. Mounting: Bolt the TC-FXX072 rack securely to the internal cabinet chassis. Verify that all mounting surfaces are clean and free of paint to ensure a low-impedance bond for system grounding.
2. Grounding: Connect the rack chassis to the main cabinet protective earth (PE) bus. This grounding path dissipates static buildup and shunts induced noise away from the I/O signal circuits.
3. Wiring: Use high-quality shielded cabling for all field connections. Route these cables through dedicated wireways, maintaining at least 150 mm separation from high-voltage AC feeders or power drives.
4. Validation: Perform a continuity check on all backplane connections before applying power. Ensure that all module seating latches click into the locked position to guarantee firm contact.
