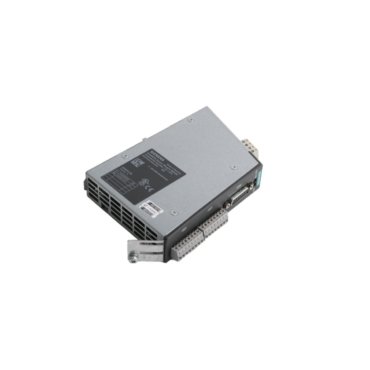

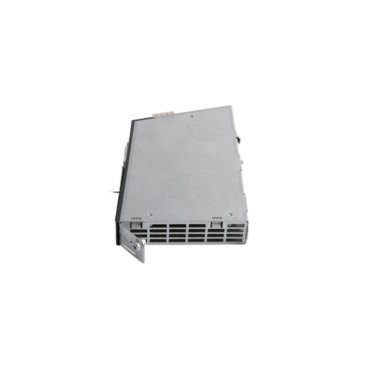

Siemens 6SL3055-0AA00-5CA2 Sensor Module

The Siemens 6SL3055-0AA00-5CA2 functions as a high-performance SMC30 Cabinet-Mounted Sensor Module. It bridges the gap between traditional encoder signals and the SINAMICS S120 drive system. This module effectively converts various feedback signals for precise motor control. It supports both incremental and absolute encoder protocols to meet diverse application needs. Furthermore, the unit facilitates accurate position and speed monitoring in complex motion control environments. The compact 30mm width allows for efficient space management within electrical enclosures.

Technical Capabilities and Versatility

• Broad Compatibility: Supports TTL and HTL incremental encoders along with SSI absolute encoders.
• Flexible Power Supply: Provides 5V DC for TTL sensors and 24V DC for HTL/SSI variants.
• Integrated Current Output: Supplies up to 300 mA to power external encoder hardware directly.
• Robust Thermal Range: Operates reliably in ambient temperatures between 0°C and 55°C.
• Dynamic Signal Processing: Evaluates SSI encoders with or without additional incremental tracks.
• Simplified Wiring: Enables straightforward connection of feedback cables without requiring specialized DRIVE-CLiQ encoders.

Technical Specifications

Industrial Drive Integration

Engineers typically utilize this module for upgrading existing machinery to modern SINAMICS drive platforms. It excels in applications where motors use non-standard or third-party encoder systems. Moreover, the rugged construction resists high levels of electrical noise and mechanical vibration. This ensures signal integrity during hig
