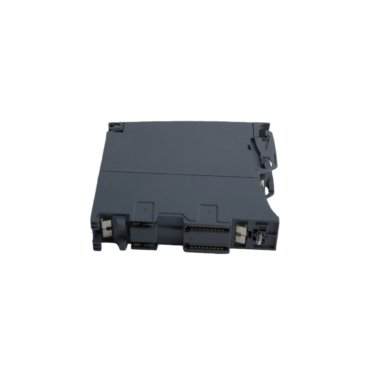

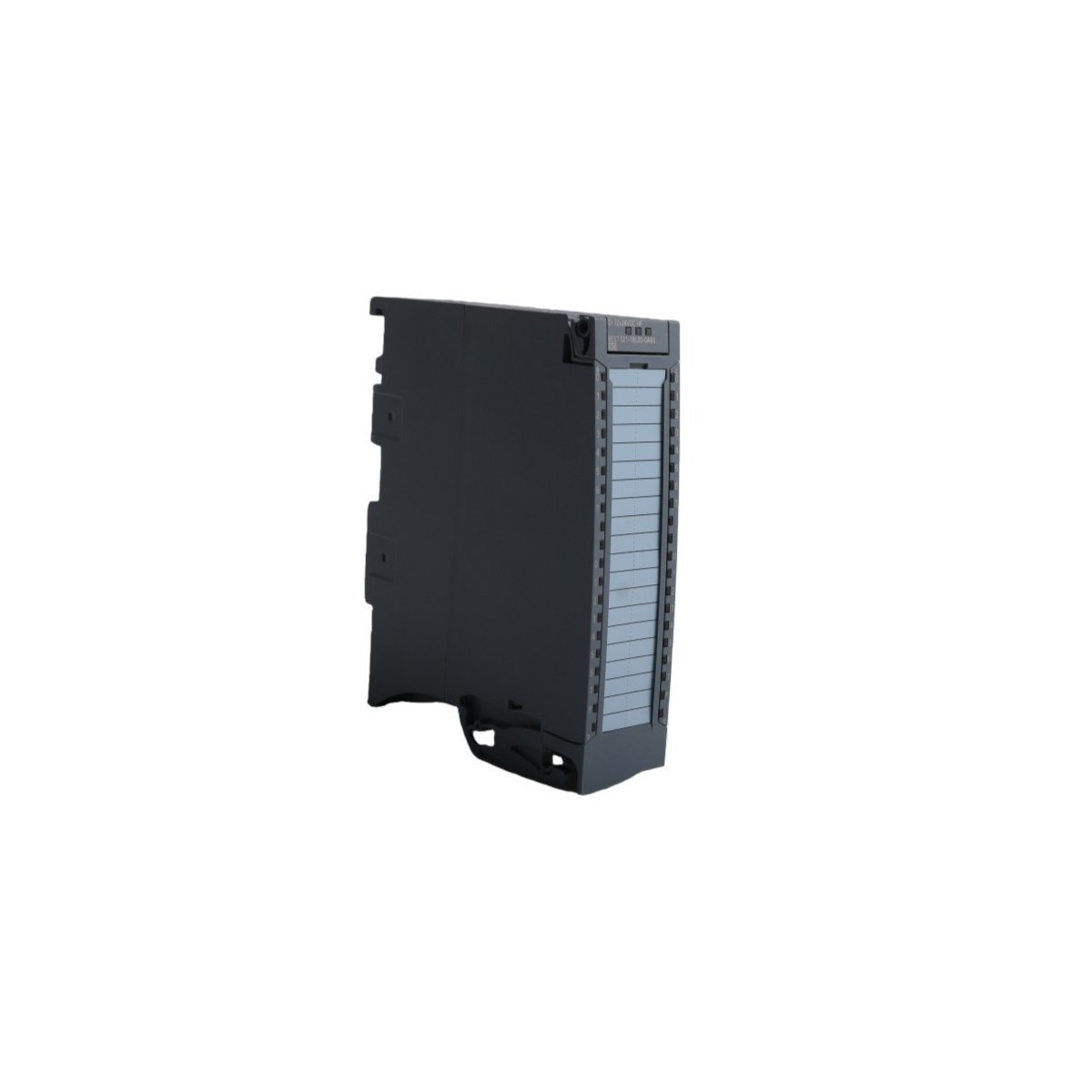

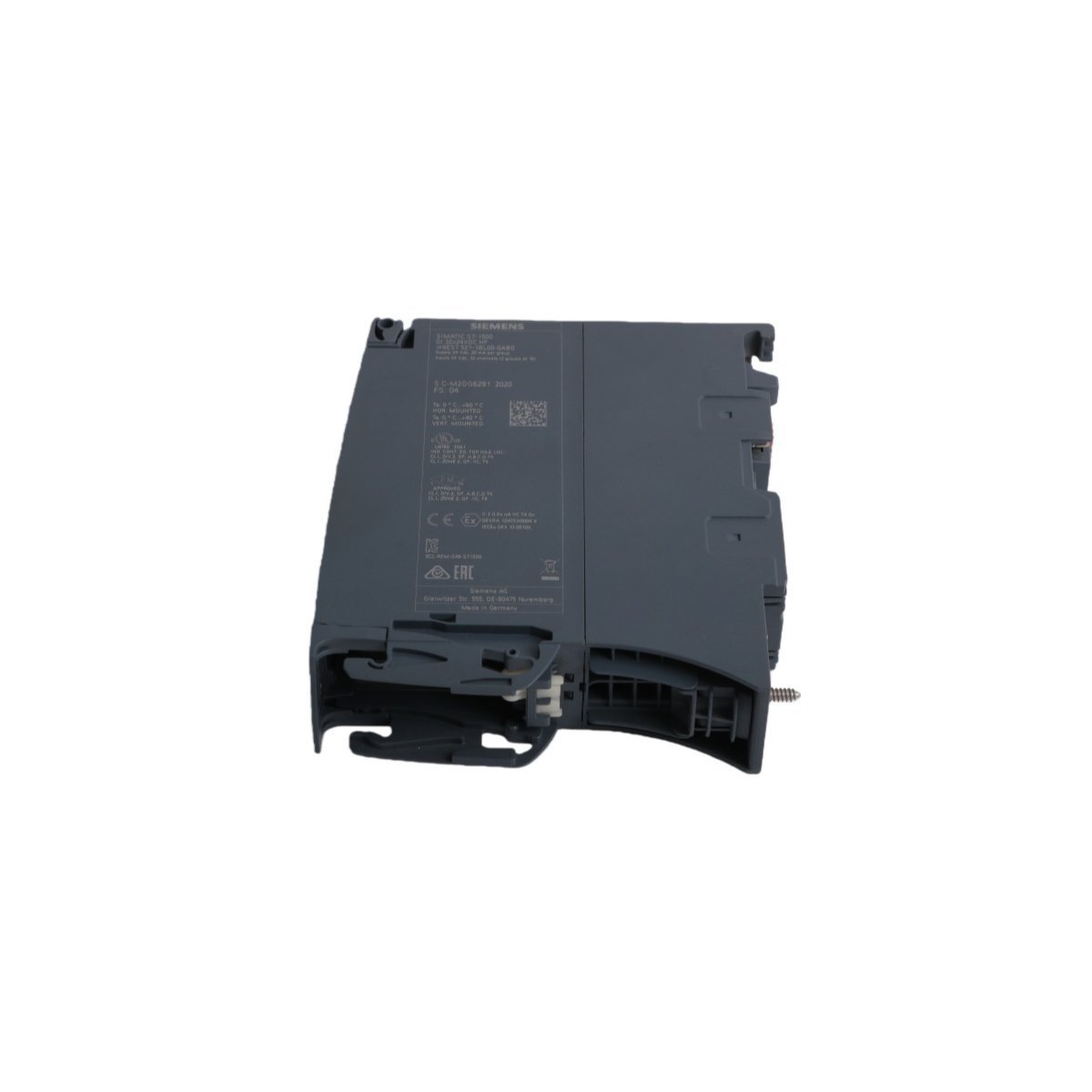

The Siemens 6ES7521-1BL10-0AA0 module provides high-density signal acquisition for S7-1500 automation systems. It features 32 digital input channels operating at 24V DC. These channels distribute across two isolated groups for flexible process wiring. The module supports Type 3 input characteristics compliant with IEC 61131 standards. Consequently, it ensures precise detection of binary sensor signals in complex industrial environments. High-frequency processing capabilities make this unit suitable for time-critical monitoring tasks.
Technical Specification Overview
| Feature | Specification |
| Brand | Siemens |
| Model | 6ES7521-1BL10-0AA0 |
| Channel Count | 32 Digital Inputs |
| Supply Voltage | 24V DC |
| Input Type | Type 3 (IEC 61131-2) |
| Input Delay | Selectable (0.05ms to 20ms) |
| Isolation | 500V DC (between channels and backplane) |
| Configuration | TIA Portal V12 or higher |
| Protection | IP20 |
Key Operational Characteristics
- Optimized Input Delay
Users can configure input delays to suit specific application requirements. Faster response times minimize latency for high-speed counting or detection. Alternatively, longer delay settings filter out transient electrical noise. This adaptability ensures stable operation in electrically noisy production zones.
- Streamlined Wiring Workflow
The module utilizes a push-in front connector for efficient electrical termination. This design significantly reduces field installation labor and maintenance downtime. Furthermore, the compact form factor allows for high-density mounting in standard control cabinets. These physical attributes simplify system integration for machine builders.
- Advanced Diagnostic Monitoring
Integrated diagnostics monitor input voltage levels and module health continuously. The CPU receives immediate alerts if signal faults or hardware issues occur. These diagnostic features allow for rapid fault localization during machine commissioning. Therefore, it effectively reduces the time required for system troubleshooting.
Industrial Automation Deployment
This digital input module reliably supports large-scale industrial control architectures. Manufacturing plants use the unit to interface with numerous proximity sensors and limit switches. It performs effectively in material handling, automotive assembly, and chemical processing sectors. Furthermore, the unit remains fully compatible with existing S7-1500 backplane configurations. It serves as a durable, high-performance solution for extensive I/O signal management requirements.
