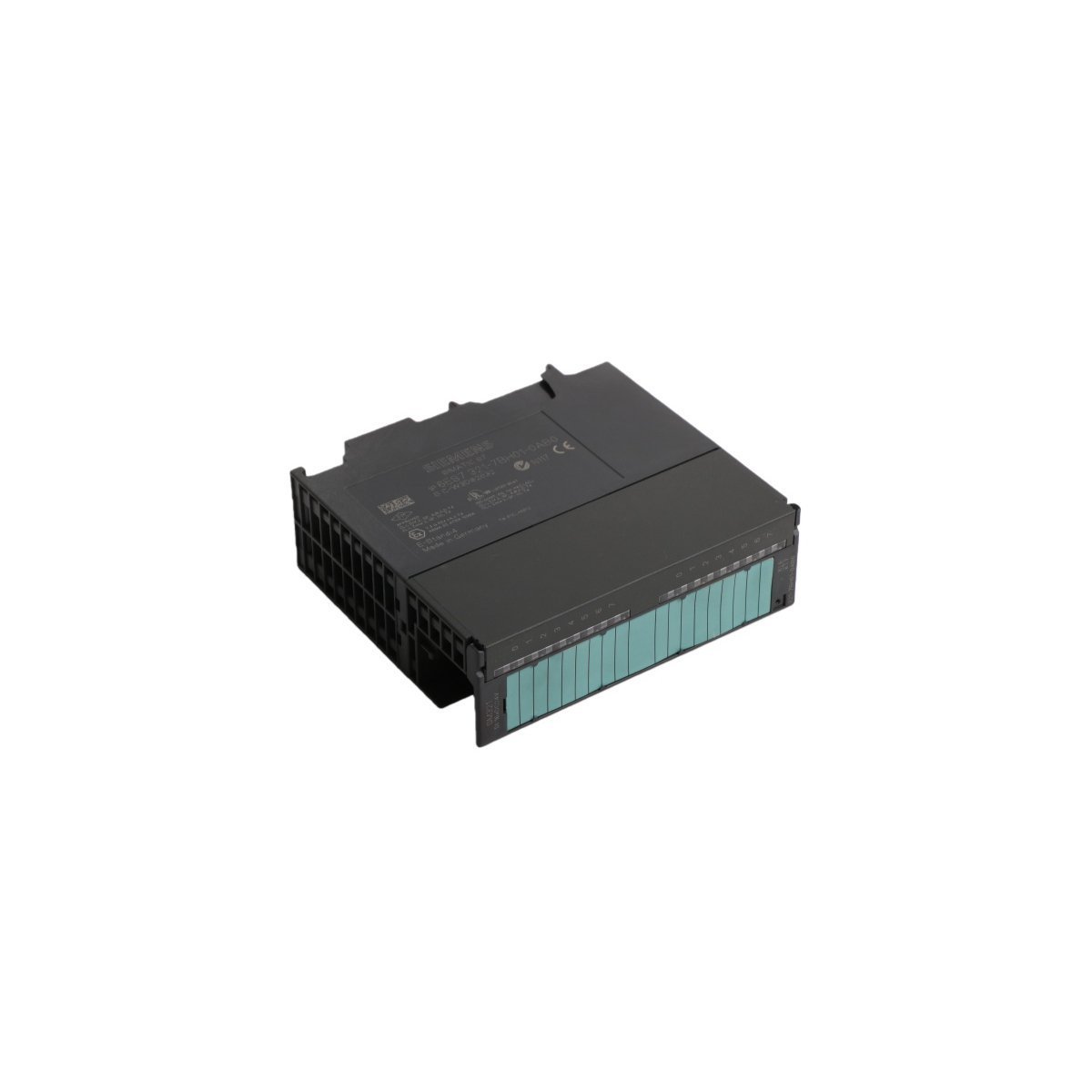

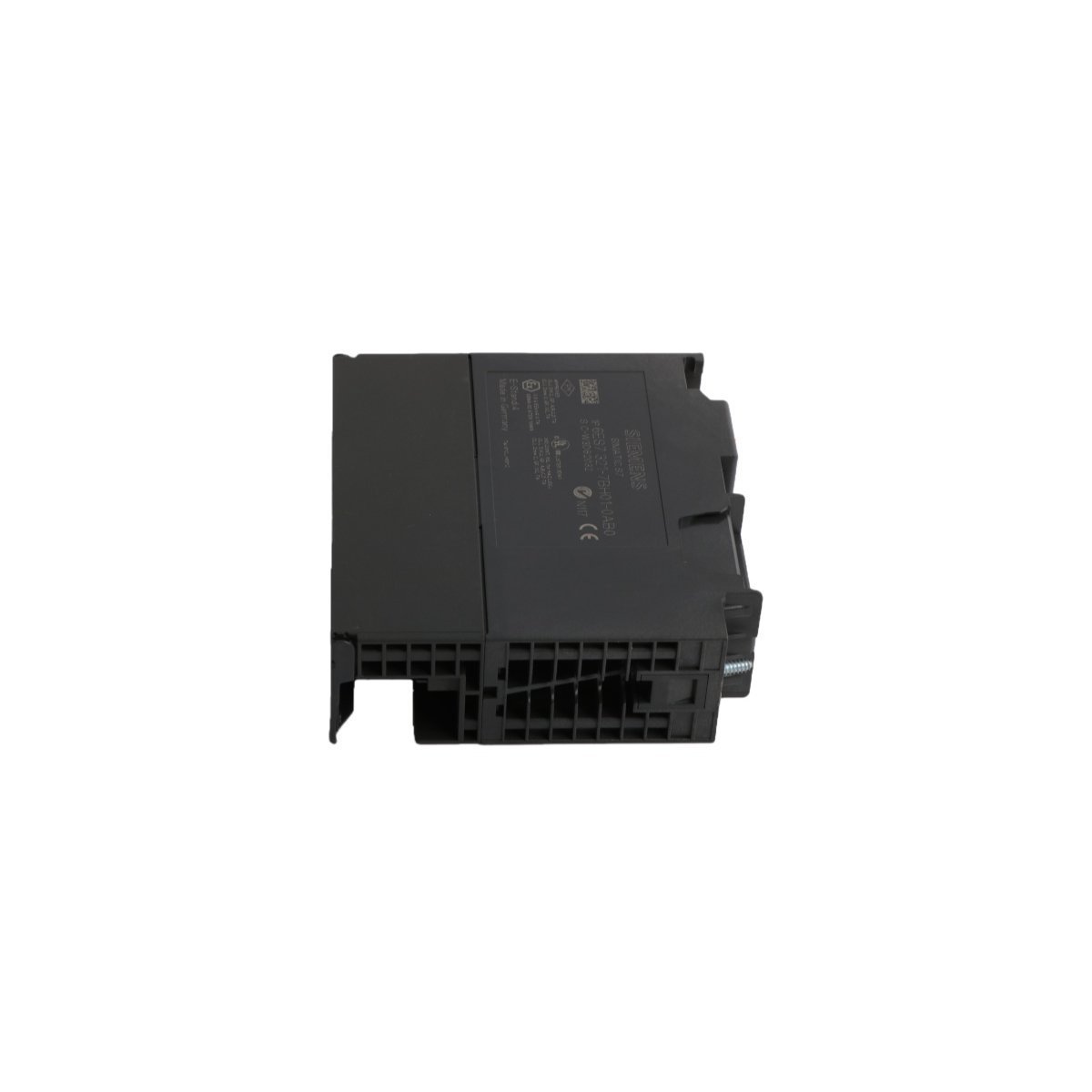

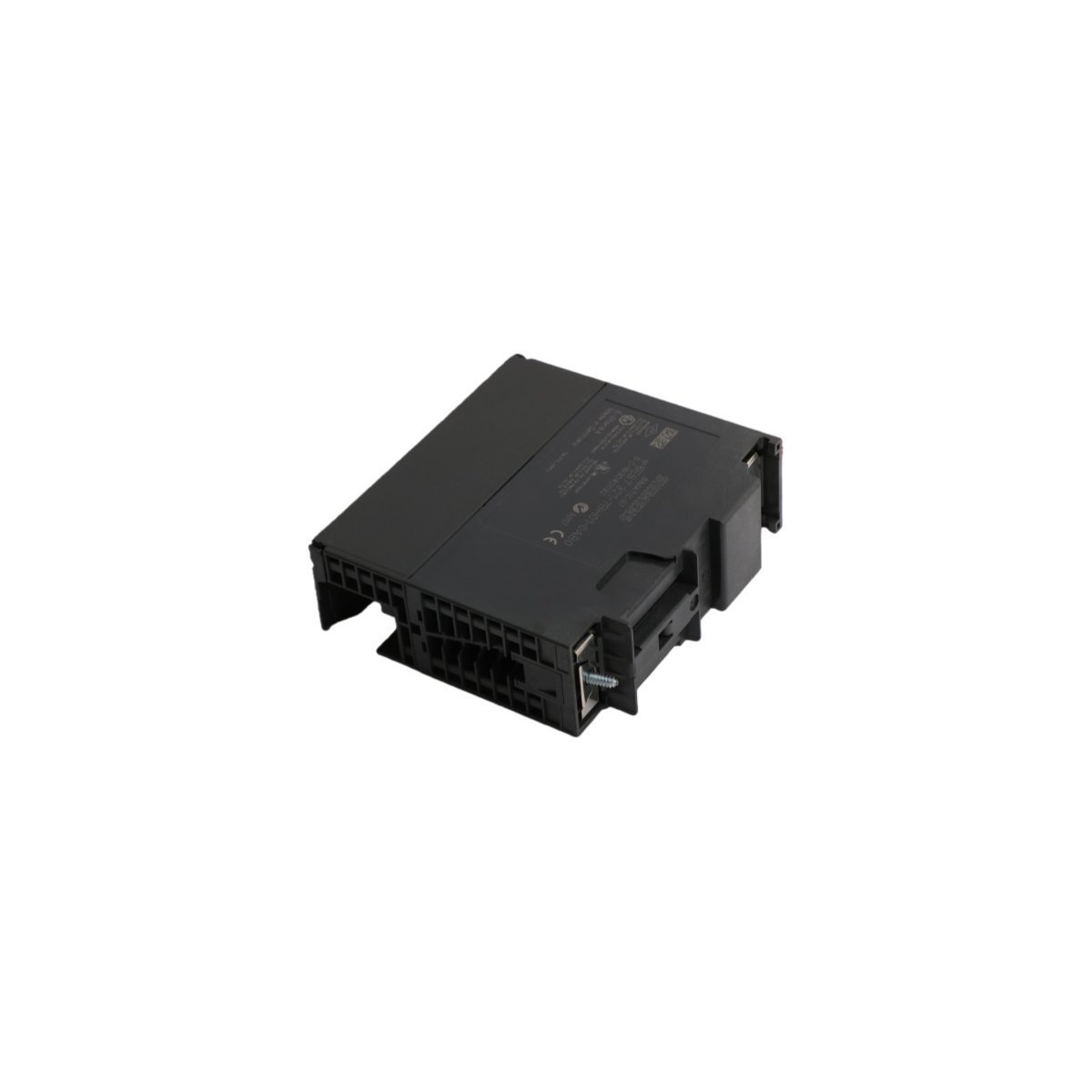

The Siemens 6ES7321-7BH01-0AB0 serves as a high-performance interface for the SIMATIC S7-300 PLC series. This digital input module captures signals from field sensors and mechanical switches with high precision. It features 16 input channels designed for standard 24V DC logic. Furthermore, the hardware includes advanced diagnostic capabilities to ensure system integrity. Integrated features like wire-break detection and short-circuit monitoring prevent unexpected production halts. This module excels in environments requiring constant status updates and high operational reliability.
Enhanced Performance and Synchronized Control
This module supports specialized functions like isochronous mode and process interrupts. These capabilities allow the controller to respond instantly to rapid changes in the machine cycle. Consequently, the 6ES7321-7BH01-0AB0 is ideal for high-speed packaging and motion control applications. Galvanic isolation between the internal bus and the input channels provides excellent noise immunity. This protection layer safeguards the CPU from electrical surges common in heavy industrial settings. Plant engineers can rely on this unit for stable data acquisition in complex automation architectures.
Technical Specifications
- Brand: Siemens
- Series: SIMATIC S7-300
- Model Number: 6ES7321-7BH01-0AB0
- Module Type: Digital Input (SM 321)
- Number of Inputs: 16 Channels
- Rated Voltage: 24V DC
- Connection: Requires 20-pole front connector
- Special Features: Diagnostics, Process Interrupts, Isochronous Mode
- Weight: 0.25 kg (approximate net weight)
- Dimensions: 40 x 125 x 120 mm
- Manufacturing Origin: Germany
Reliable Field Monitoring and Diagnostics
Front-panel LED indicators provide real-time status for each of the 16 input channels. These visual cues allow technicians to perform rapid on-site troubleshooting without external software. Additionally, the module communicates specific fault data back to the central processor. This proactive diagnostic approach reduces machine downtime significantly. The 6ES7321-7BH01-0AB0 represents a smart investment for facilities prioritizing data accuracy and functional safety.
