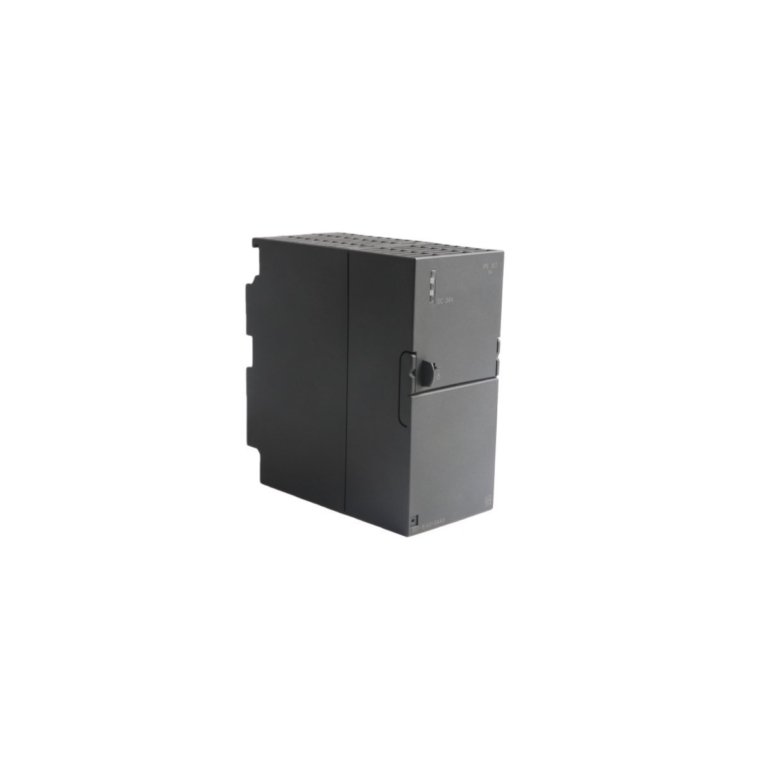

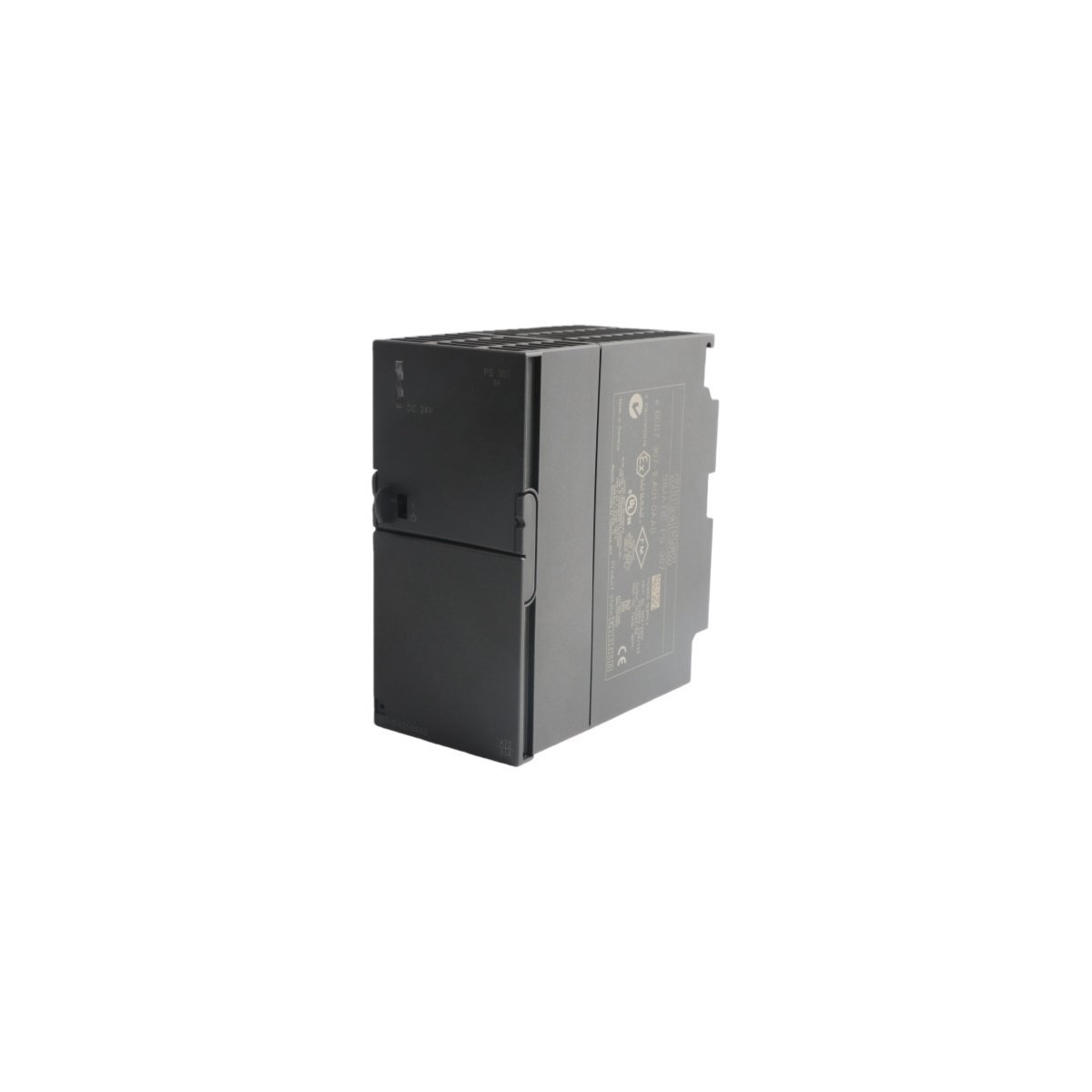

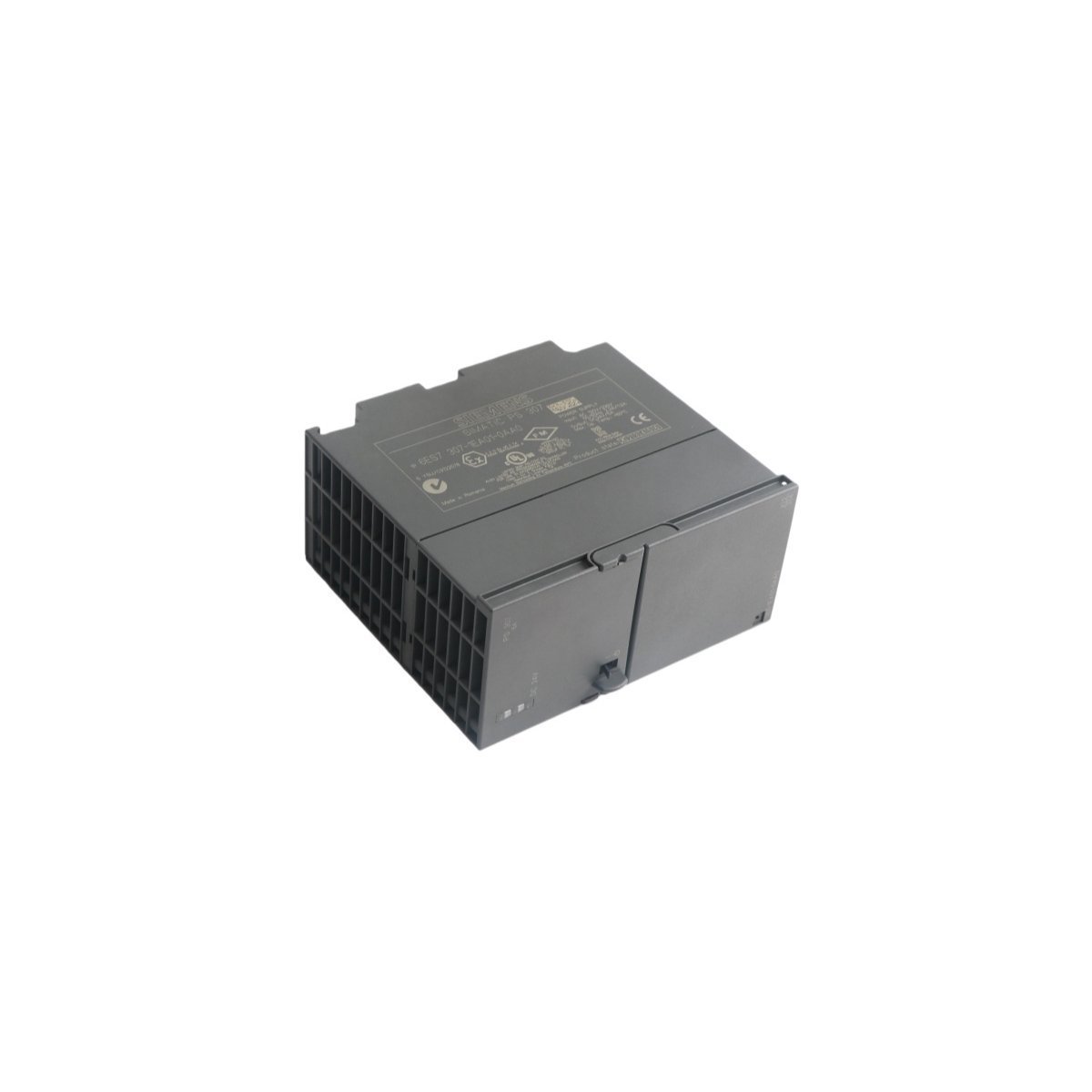

The Siemens 6ES7307-1EA01-0AA0 serves as the primary energy source for SIMATIC S7-300 PLC systems. This stabilized PS-307 module converts incoming AC line voltage into a regulated 24V DC output. It provides a consistent power backbone for the CPU and all connected I/O modules. Reliable energy distribution remains vital for the overall stability of the automation rack.
This hardware ensures that sensitive electronic components receive clean, noise-free electricity. It effectively isolates the control logic from external electrical disturbances and voltage transients. Consequently, the power supply prevents system crashes and erratic behavior caused by power quality issues. It represents a fundamental building block for dependable industrial control units.
Technical Performance Characteristics
- Manufacturer: Siemens
- Model Number: 6ES7307-1EA01-0AA0
- Product Series: SIMATIC S7-300 PS-307
- Input Voltage: 120/230 V AC (Auto-ranging)
- Output Voltage: 24 V DC (Stabilized)
- Output Current: 5 Amperes
- Power Frequency: 50/60 Hz
- Mounting Type: S7-300 Rail Mounting
- Net Weight: 0.95 kg
- Unit Dimensions: 80 x 125 x 120 mm
- Country of Origin: Germany
Load Capacity and System Safety
A robust 5A output current provides sufficient capacity for expanded PLC configurations. This module powers the main processor alongside multiple digital and analog expansion modules. Ample power reserves prevent voltage dips during peak demand periods or high-load switching events.
Additionally, the PS-307 includes integrated protection against short circuits and overloads. The module automatically recovers once the fault condition clears in the field. This self-healing functionality minimizes maintenance requirements and reduces plant downtime significantly. It protects the entire S7-300 system investment through high-quality electrical engineering.
