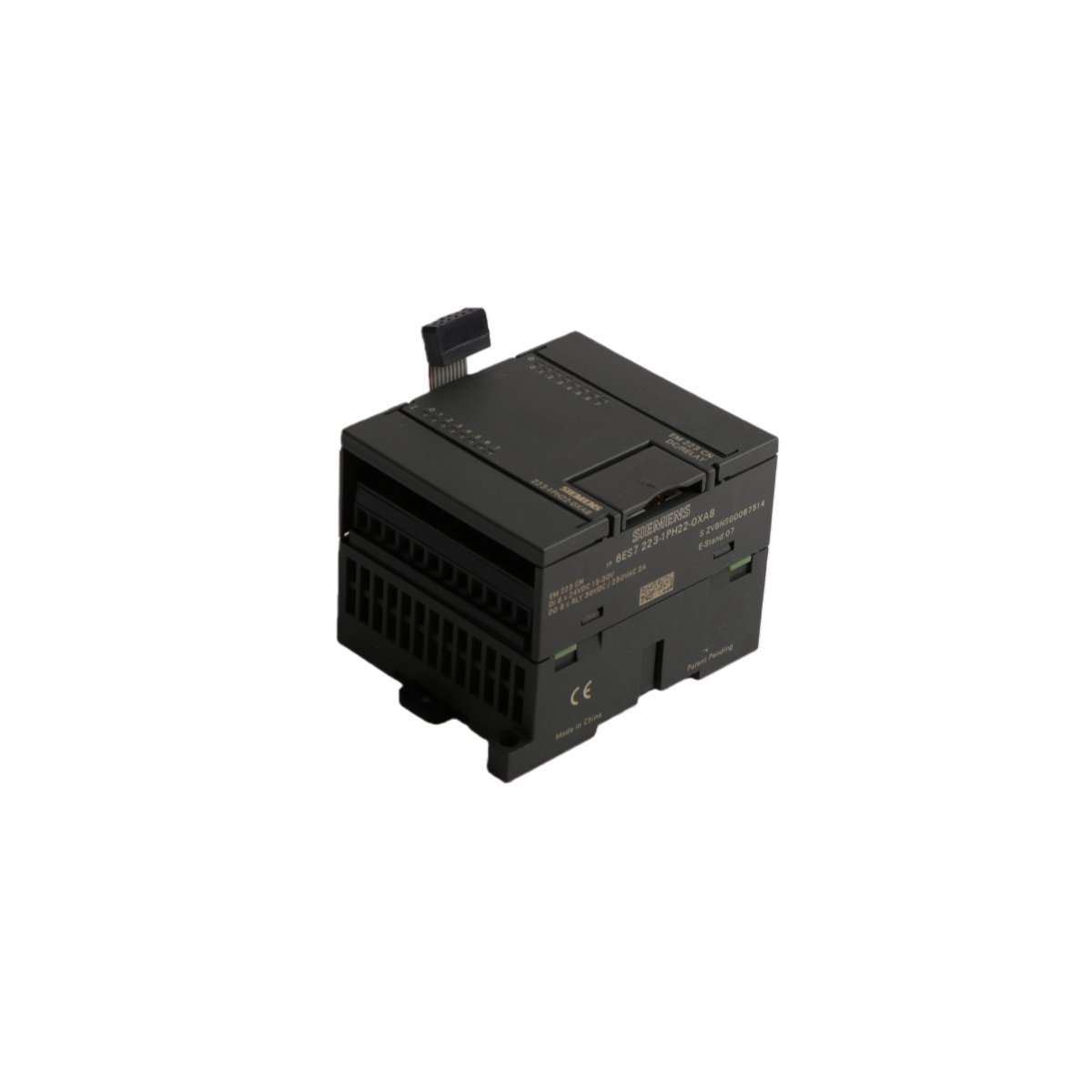

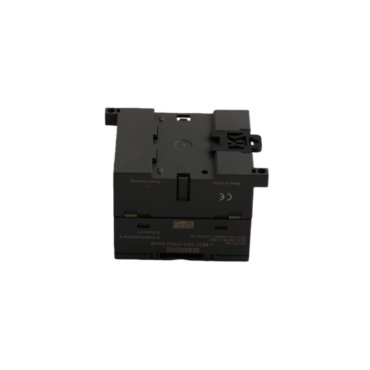

Siemens 6ES7223-1PH22-0XA8 Digital I/O Module

The Siemens 6ES7223-1PH22-0XA8 functions as a versatile expansion unit for the SIMATIC S7-200 CN PLC range. This module increases the hardware capacity of S7-22X series CPUs by adding discrete signal channels. It specifically provides balanced digital processing through eight inputs and eight relay outputs. Consequently, it supports complex automation tasks within a single compact footprint. The design targets space-sensitive control cabinets requiring reliable switching capabilities. Its robust construction ensures long-term performance in diverse industrial manufacturing sectors.

Primary Technical Specifications

Functional Capabilities

• Flexible Input Wiring

  The module features eight 24V DC digital inputs. These channels support both sink and source wiring configurations. This versatility simplifies installation when using different sensor types. Moreover, it reduces the need for external polarity converters.

• High-Current Relay Outputs

  The eight integrated relay outputs manage loads up to 2A each. This capacity allows direct control of solenoid valves and motor starters. Consequently, engineers can eliminate many interposing relays. This reduction in hardware lowers both system costs and cabinet heat.

• Seamless System Integration

  The 6ES7223-1PH22-0XA8 connects directly to the S7-22X expansion bus. The CPU recognizes the additional I/O immediately upon configuration. Furthermore, the unit maintains low power dissipation to prevent overheating. It fits perfectly into high-density rail mounting setups.

Industrial Applications

The SIMATIC EM 223 expansion module excels in small-scale machine control. It handles packaging equipment and material handling systems effectively. Additionally, the relay outputs provide excellent isolation for water treatment facilities. Its German engineering guarantees reliability in high-vibration environments. The module also serves as a critical component for legacy system maintenance.
