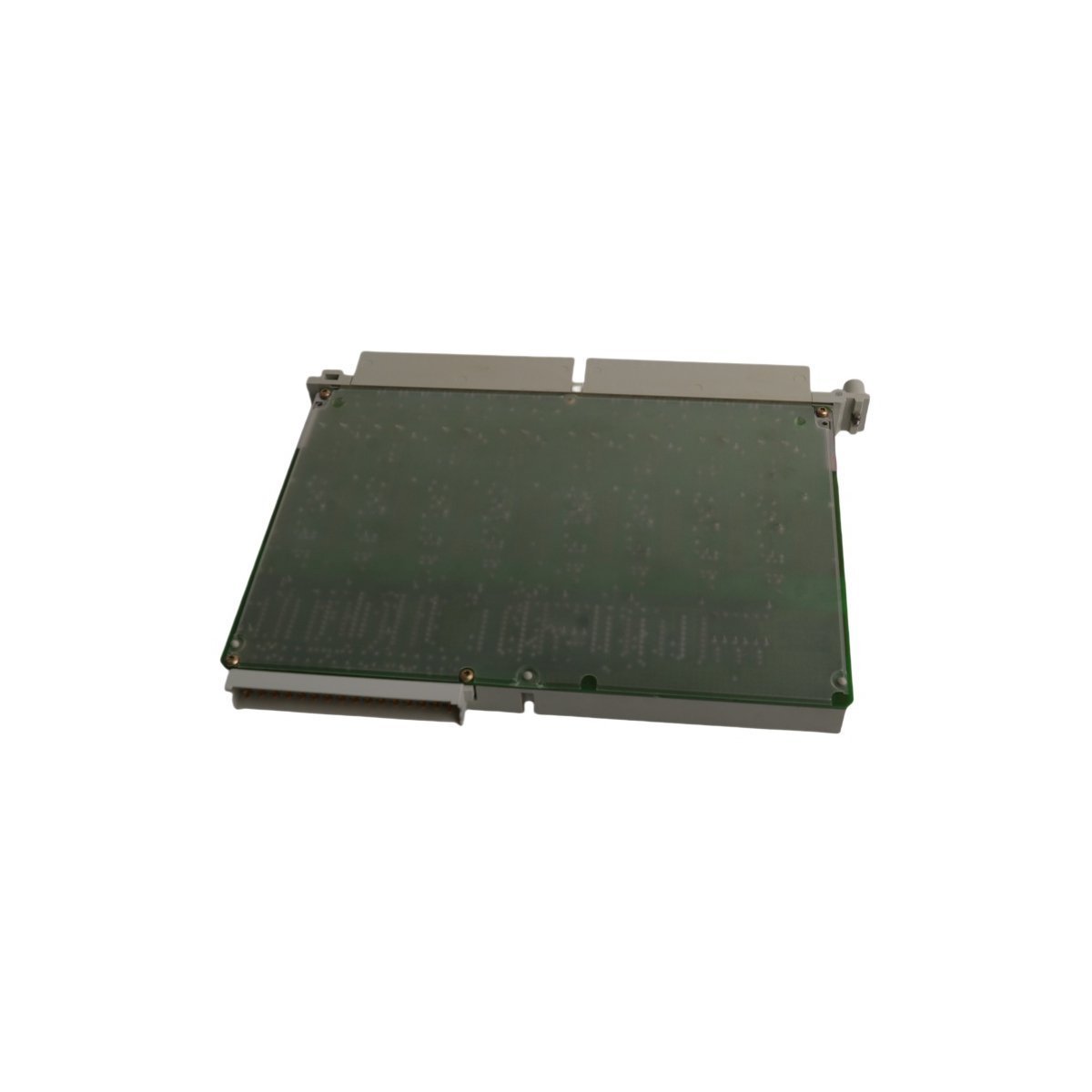

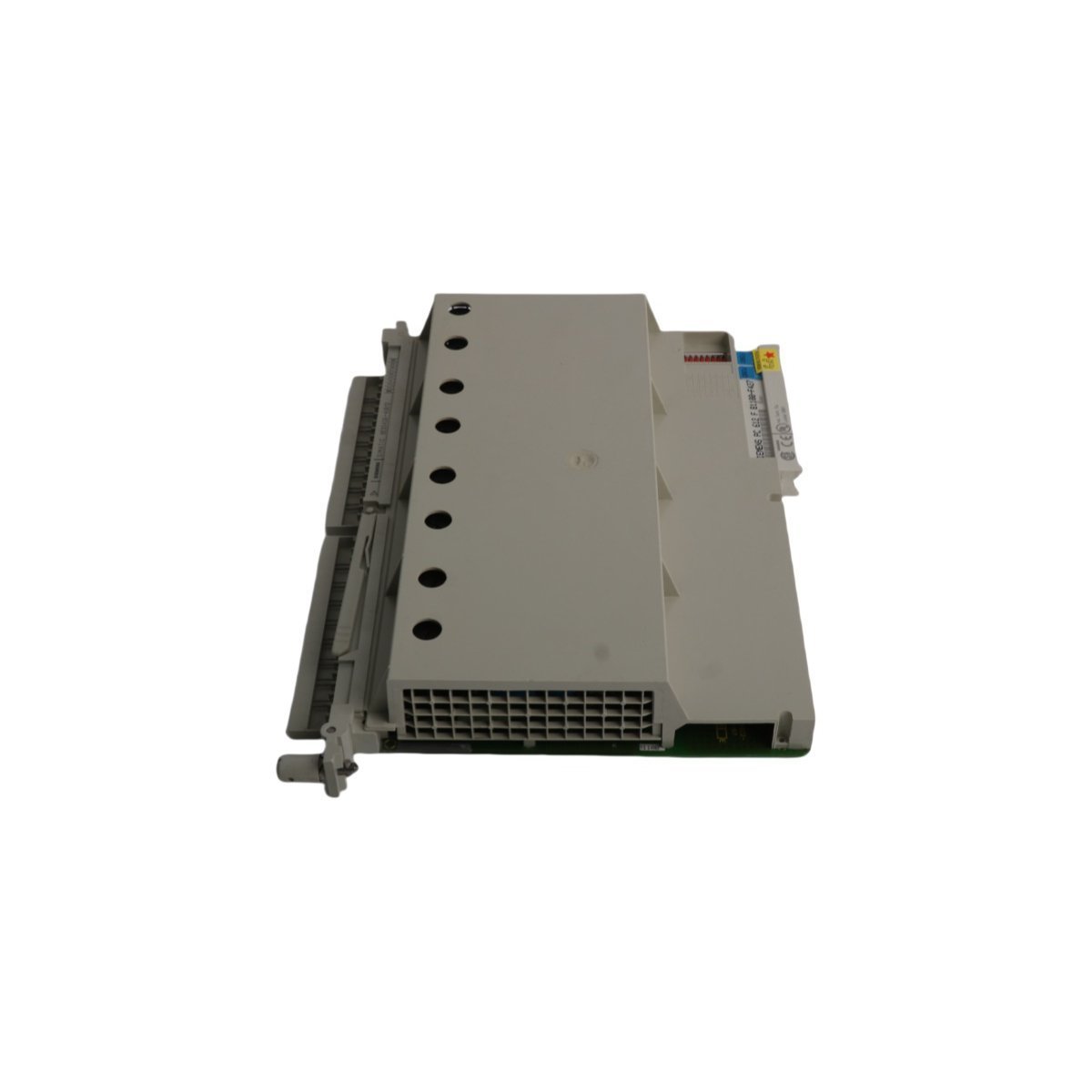

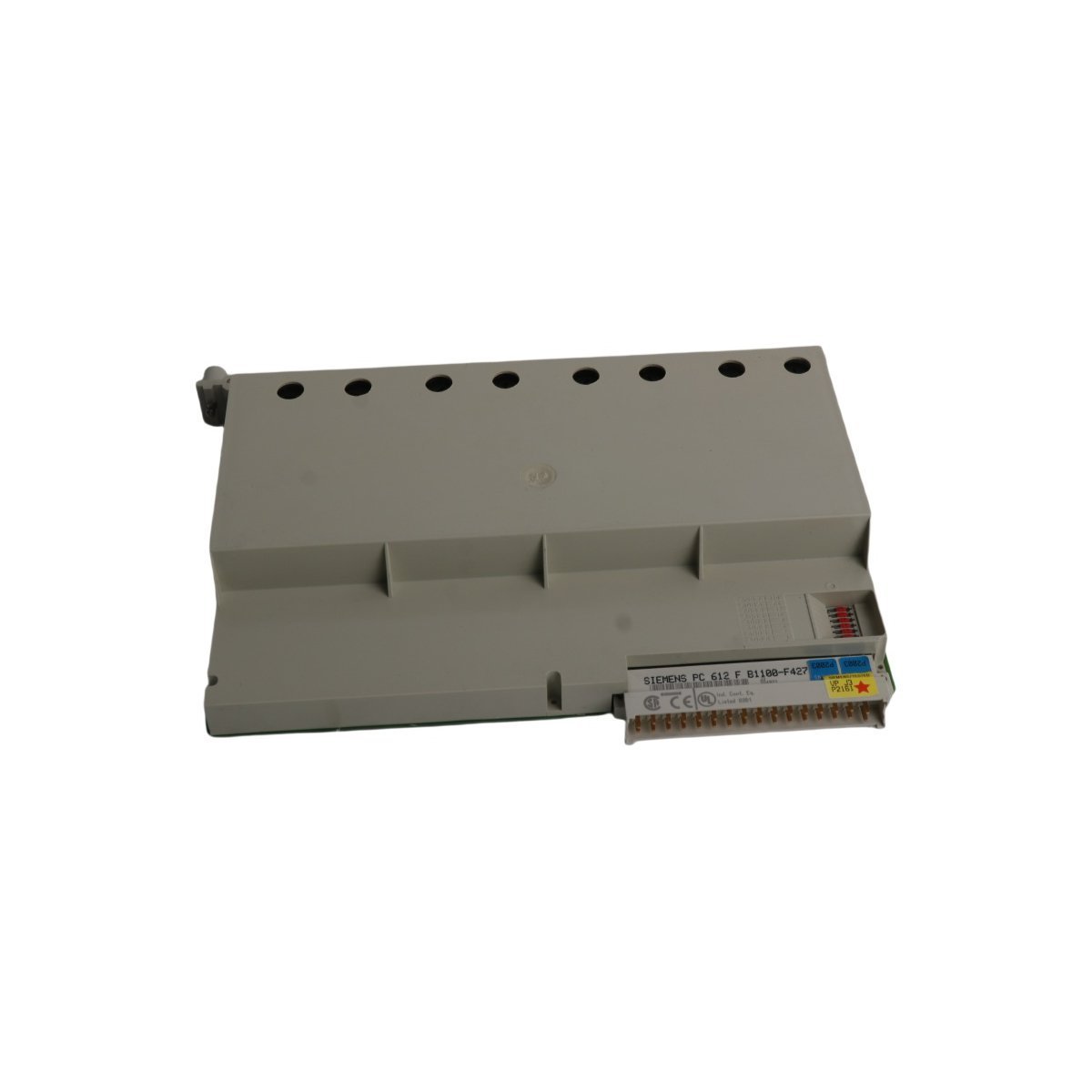

Siemens 6ES5456-4UB12 Digital Output Module

Key Technical Specifications

• Brand: Siemens
• Series: SIMATIC S5
• Model Number: 6ES5456-4UB12
• Module Type: Digital Output (Floating)
• Output Channels: 8 AC Outputs
• Voltage Range: 115V to 240V AC
• Current Capacity: 2A per channel
• Weight: 0.65 kg
• Dimensions: 21 x 239 x 255 mm
• Origin: Germany

The Siemens 6ES5456-4UB12 is a high-capacity digital output module for the SIMATIC S5 automation series. This hardware effectively controls AC-powered actuators in demanding industrial environments. It features eight floating output channels designed for high-voltage applications. Each channel manages loads between 115V and 240V AC safely. Furthermore, the module supports a robust 2A current rating per individual output. These characteristics make it suitable for switching heavy-duty solenoids and motor starters.

Efficient System Migration and Upgrades

This module provides a strategic bridge between legacy architecture and modern control standards. Plant operators often utilize the 6ES5456-4UB12 during phased system modernizations. Because it supports Interface Module Adapters (IMA), migration to S7-400 platforms remains simple. Engineers can upgrade the central controller without replacing the existing field wiring. Consequently, this compatibility reduces labor costs and shortens scheduled maintenance windows. The plug-in adapter solution ensures production continuity during essential technical transitions.

Technical Performance and Isolation

The floating design of the 6ES5456-4UB12 ensures superior electrical isolation between channels. This architecture protects the internal PLC bus from external voltage surges or faults. Meanwhile, the compact form factor allows for efficient use of rack space. The module operates reliably within standard industrial temperature ranges. Professional-grade German engineering guarantees a long service life for vintage automation racks. It remains an essential component for maintaining older production lines today.
