Name: Schneider Electric BMEXBP1200 Rack
Brand: Schneider Electric
SKU: BMEXBP1200
Availability: InStock

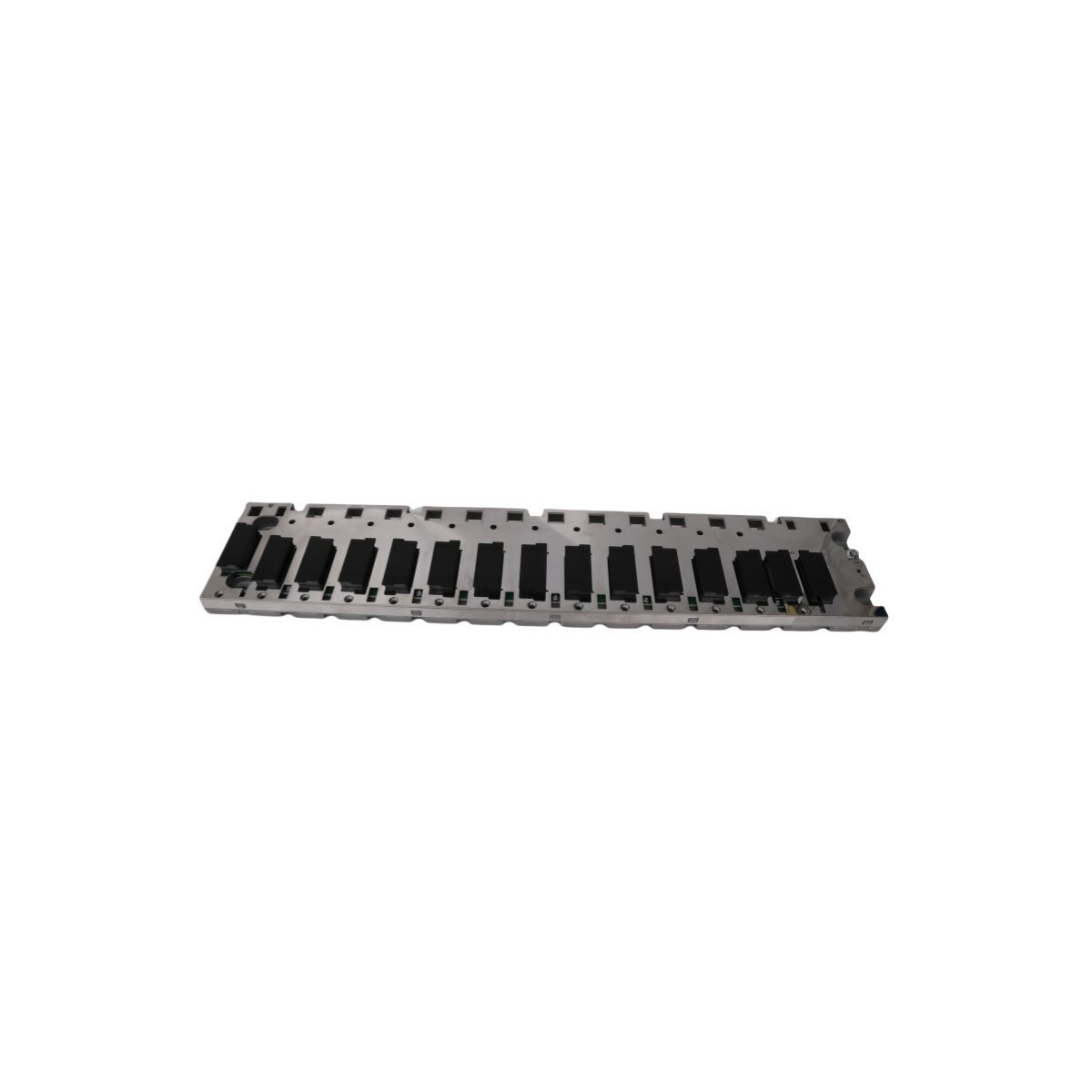

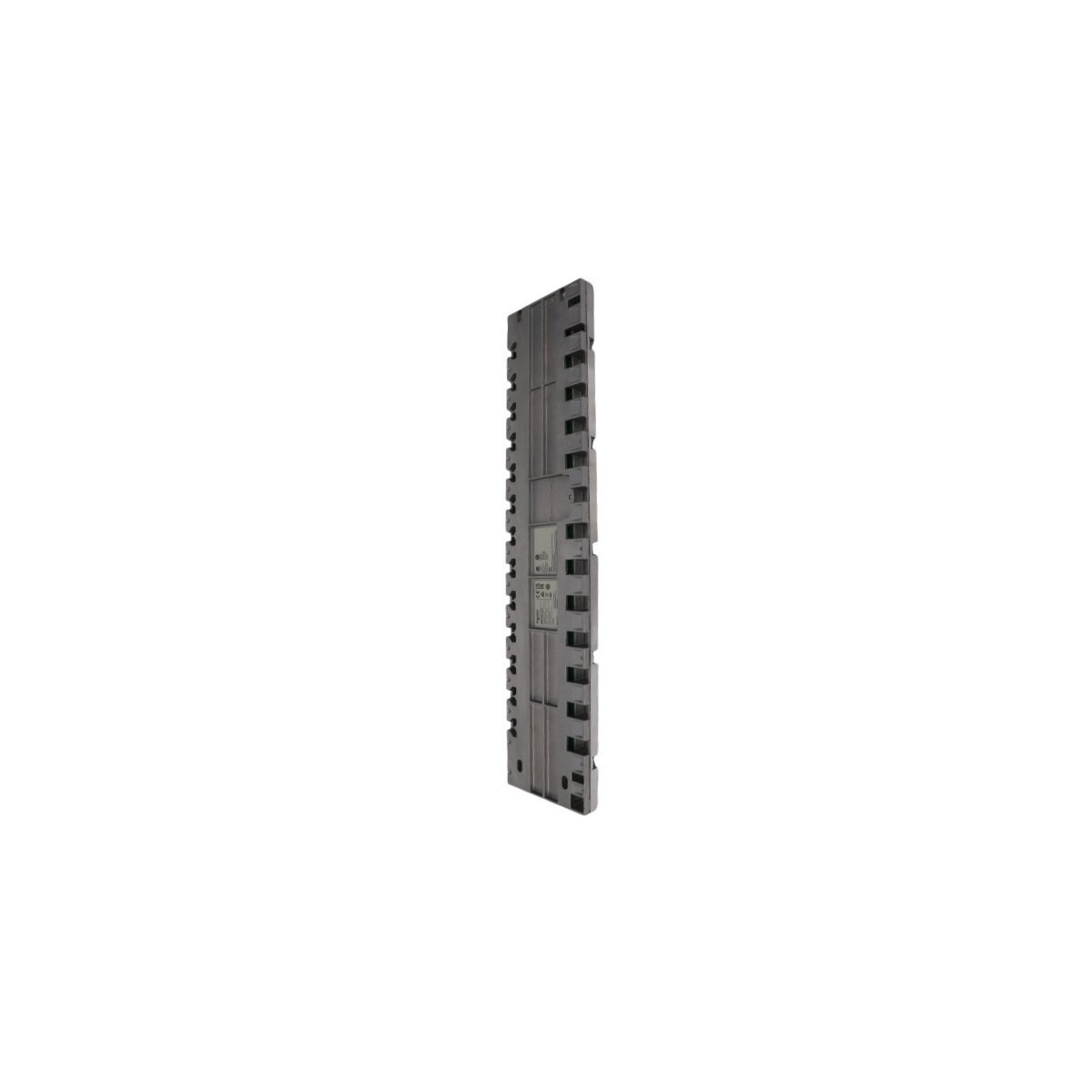

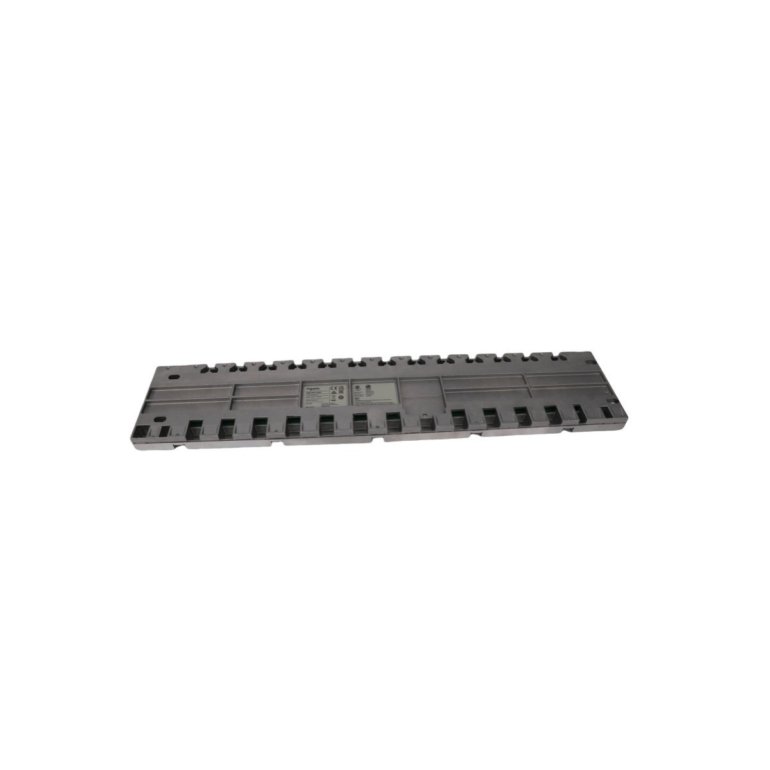

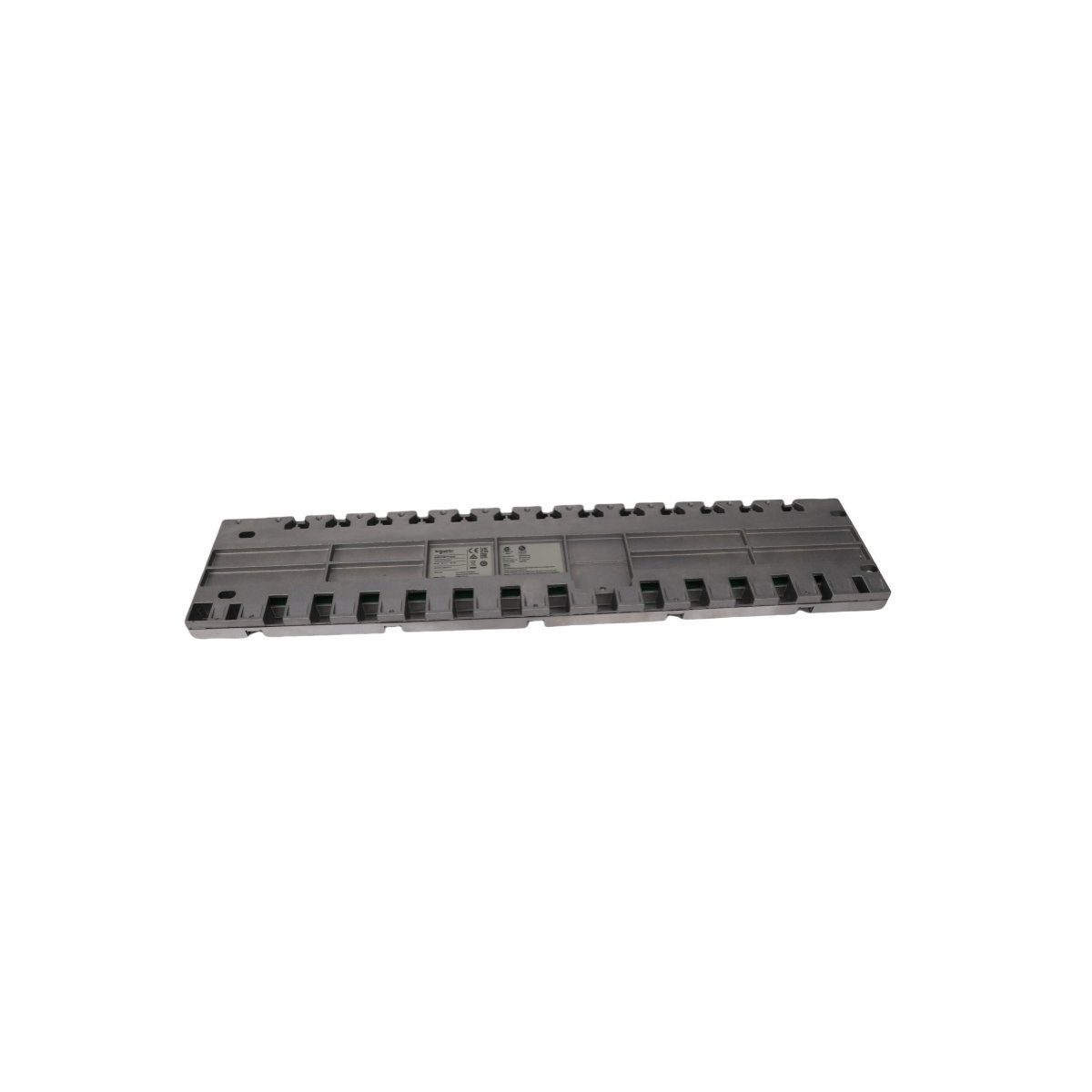

The Schneider Electric BMEXBP1200 serves as a high-performance 12-slot Ethernet rack within the Modicon X80 ecosystem. This backplane provides a unified hardware foundation for M580 and M340 automation controllers. It features a sophisticated dual-bus architecture to support diverse industrial modules. Specifically, the rack includes 8 multi-purpose slots for both Ethernet and X-bus communication. Four additional slots provide dedicated X-bus connectivity for standard I/O modules. This hybrid configuration allows engineers to build scalable control systems for medium to large processes.

Enhanced Connectivity and System Reliability

This Ethernet backplane improves data exchange between processors and distributed I/O modules. It incorporates a specialized connector for XBE expansion modules to facilitate multi-rack architectures. Furthermore, the unit demonstrates exceptional durability with a mean time between failures of 1,500,000 hours. The hardware operates efficiently across an ambient temperature range from 0°C to 60°C. Because it uses energy-efficient circuitry, the rack only consumes 164mA at 24V DC. These features ensure stable performance in rigorous manufacturing and process environments.

Industrial Standards and Future-Proof Design

The BMEXBP1200 complies with international safety regulations including EN 61131-2 and EN 61000-6-4. It offers a direct upgrade path for facilities utilizing legacy 140XBP01600 hardware. This transition maintains backward compatibility while introducing advanced Ethernet capabilities. Consequently, maintenance teams can reduce spare part inventory through standardized X80 components. The robust French-engineered frame resists mechanical stress in demanding cabinets. It provides a future-proof investment for high-availability automation projects.
