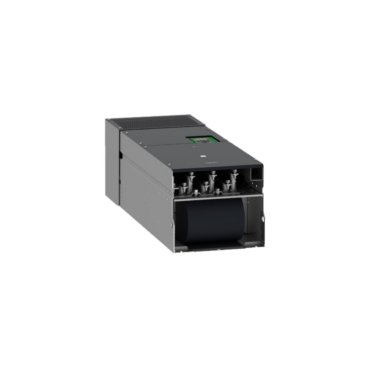

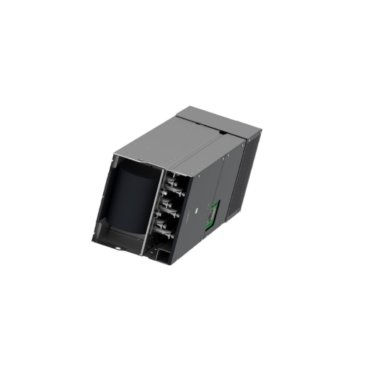

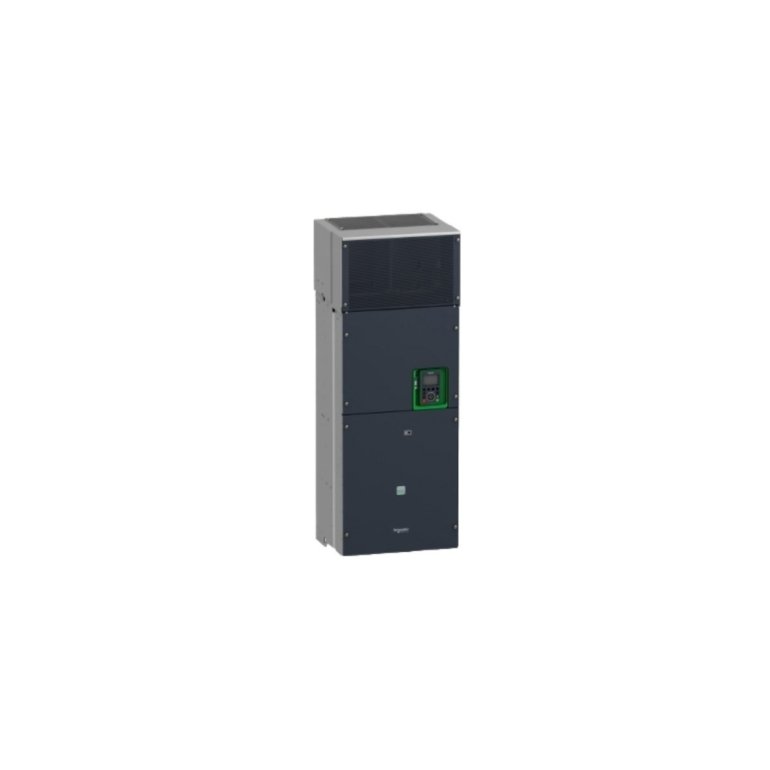

The Schneider Electric ATV930C22N4 is a sophisticated variable speed drive within the Altivar Process ATV900 family. This 22 kW unit provides precise control for both asynchronous and synchronous three-phase motors. It operates efficiently within a voltage range of 380V to 480V AC. Furthermore, the drive supports a 120% overload capacity for standard duty applications. This robustness makes it an essential component for heavy-duty industrial environments. Consequently, it excels in sectors like mining, oil and gas, and wastewater treatment.
Advanced Connectivity and System Intelligence
This drive features dual-port Ethernet connectivity to support modern Industrial Internet of Things (IIoT) requirements. It integrates seamlessly with Modbus TCP and EtherNet/IP protocols for real-time data exchange. Additionally, the embedded web server allows for remote monitoring and simple configuration. The unit also includes comprehensive data logging functions for proactive maintenance. These tools help operators identify potential issues before they cause system failures. Thus, the drive significantly enhances overall plant availability and operational transparency.
Precise Motion and Integrated Safety
The ATV930C22N4 delivers superior torque performance across a wide speed range. It manages complex master/slave configurations for coordinated machine movements effectively. Moreover, the hardware design ensures network resilience during communication drops. This drive includes an integrated braking unit to handle regenerative energy during deceleration. Because it carries an IP00 rating, the unit requires installation in a protected electrical cabinet. This setup protects the internal electronics from dust and moisture in harsh factories.
Core Technical Specifications
- Manufacturer: Schneider Electric
- Model Number: ATV930C22N4
- Power Output: 22 kW (30 HP)
- Input Voltage: 380…480 V AC
- Protection Category: IP00 (Open Type)
- Overload Capacity: 120% (Normal Duty) / 150% (Heavy Duty)
- Mounting Orientation: Vertical (± 10 degrees)
- Integrated Features: Internal braking unit included
- Weight: 1.9 kg
- Country of Origin: France
