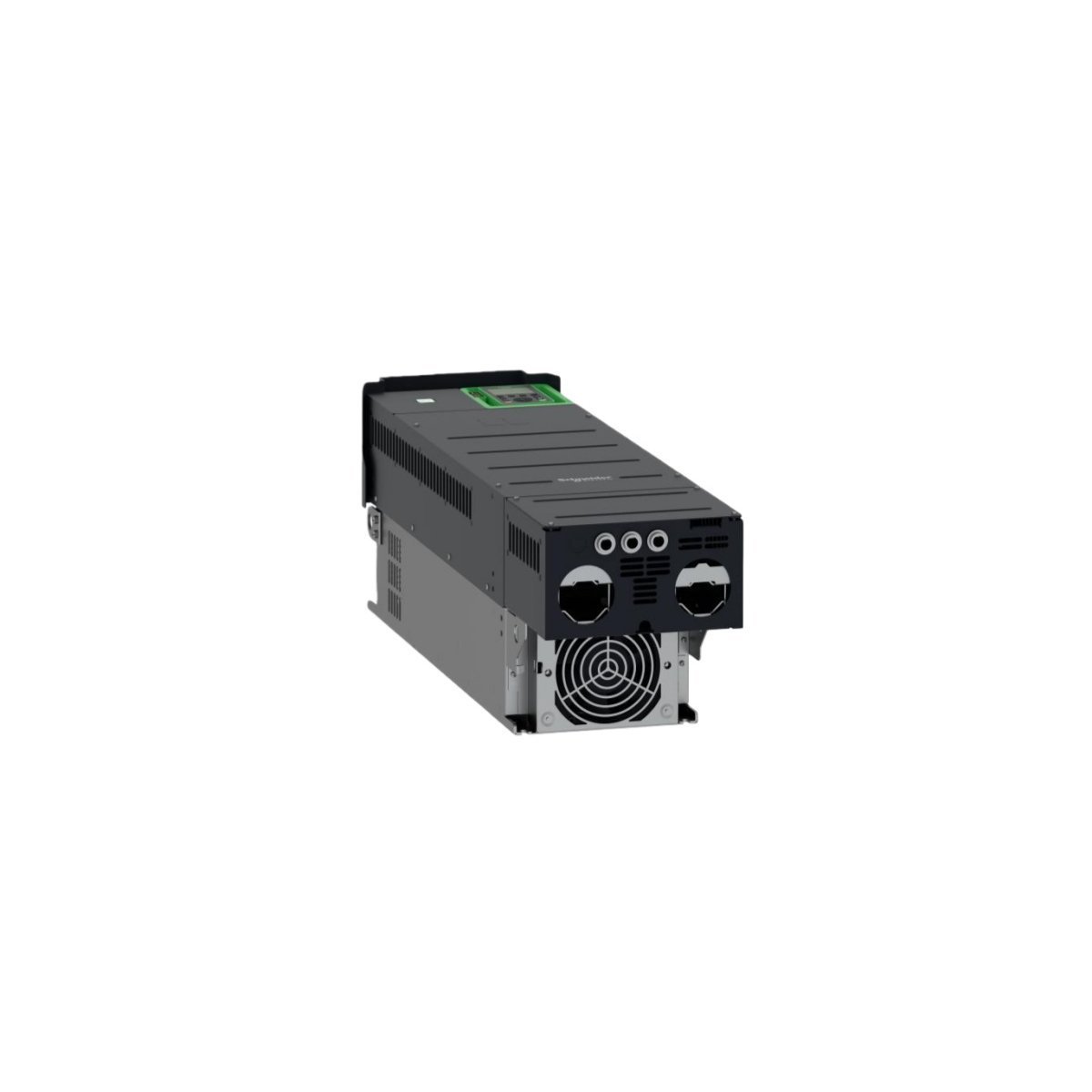

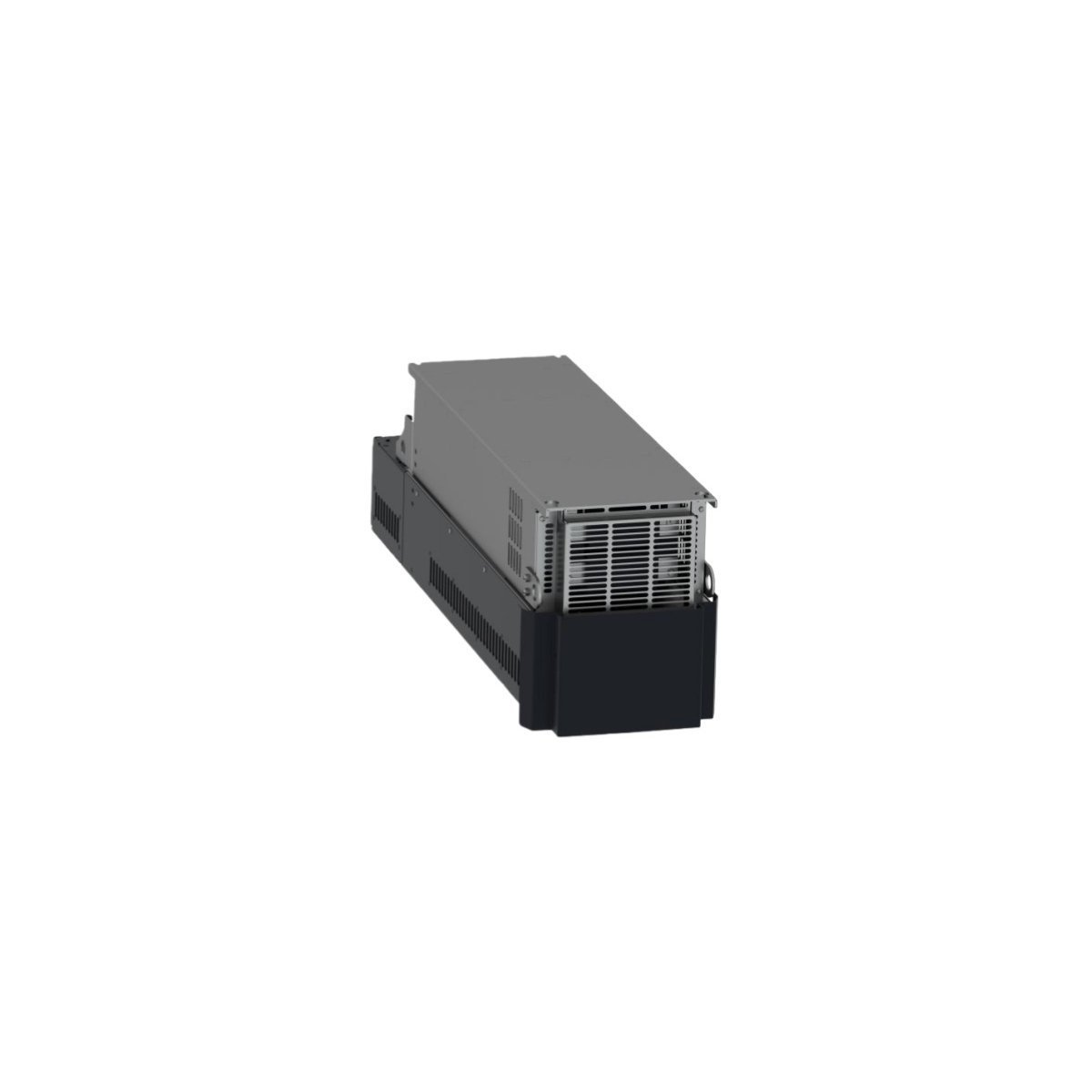

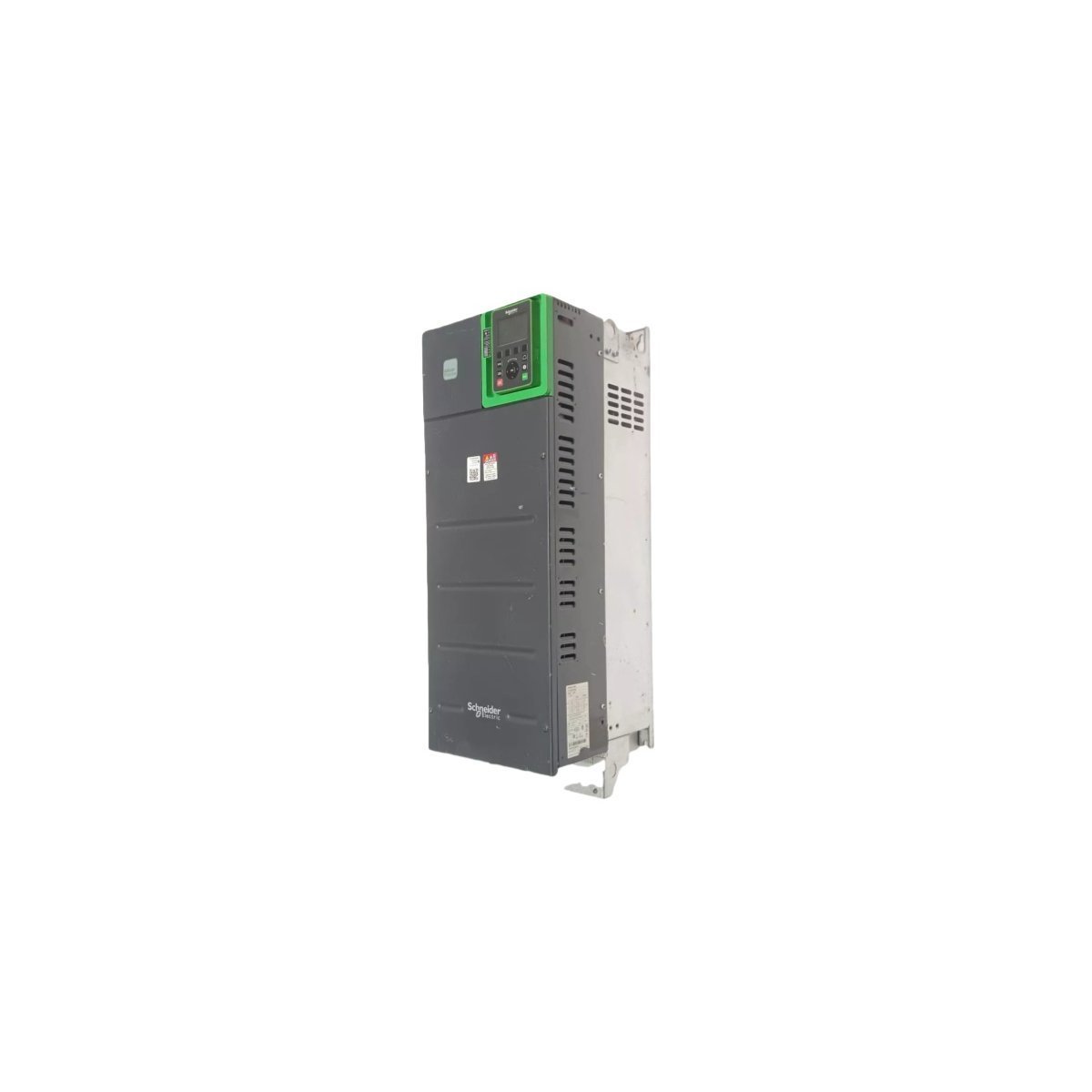

Schneider ATV630D37N4 Variable Speed Drive

The Schneider Electric ATV630D37N4 belongs to the Altivar Process 600 series for industrial automation. This 37 kW (50 hp) drive regulates three-phase asynchronous and synchronous motors with high precision. It operates reliably within a voltage range of 380V to 480V AC. Furthermore, the innovative ‘Stop and Go’ technology minimizes power consumption during idle periods. This feature reduces standby energy usage by up to 30%. Consequently, the drive significantly lowers operational costs in continuous fluid processing environments.

Modular Connectivity and System Integration

This variable speed drive features a robust architecture for seamless network communication. It includes dual Ethernet ports and one Modbus serial port as standard equipment. Additionally, three RJ45 ports facilitate quick peripheral connections. The hardware supports several expansion modules for diverse industrial protocols. These include Profinet, DeviceNet, and CANopen for broad compatibility. Integration into existing PLC systems remains straightforward due to the modular I/O design. Maintenance teams can monitor performance data directly through the integrated web server.

Robust Protection for Harsh Environments

Schneider Electric engineers the ATV630D37N4 to withstand demanding industrial conditions. It serves critical applications in water treatment, mining, and oil and gas sectors. Moreover, the drive handles moderate overloads of up to 120% for 60 seconds. Built-in thermal monitoring and short-circuit protection preserve motor integrity. The IP21 rating provides essential defense against dripping water and solid contaminants. These safety layers ensure long-term stability and reduce unplanned production downtime.

Technical Specifications

Optimization of Process Performance

The Altivar 630 series focuses on enhancing the total cost of ownership. It provides real-time pump monitoring to detect blockages or dry-running conditions. Furthermore, the intuitive graphic display terminal simplifies parameter adjustments for operators. The unit adapts motor speed dynamically to meet changing flow requirements. This precise control prevents mechanical stress on pipes and valves. Choosing the ATV630D37N4 guarantees superior asset management and reliable motor performance for modern facilities.
