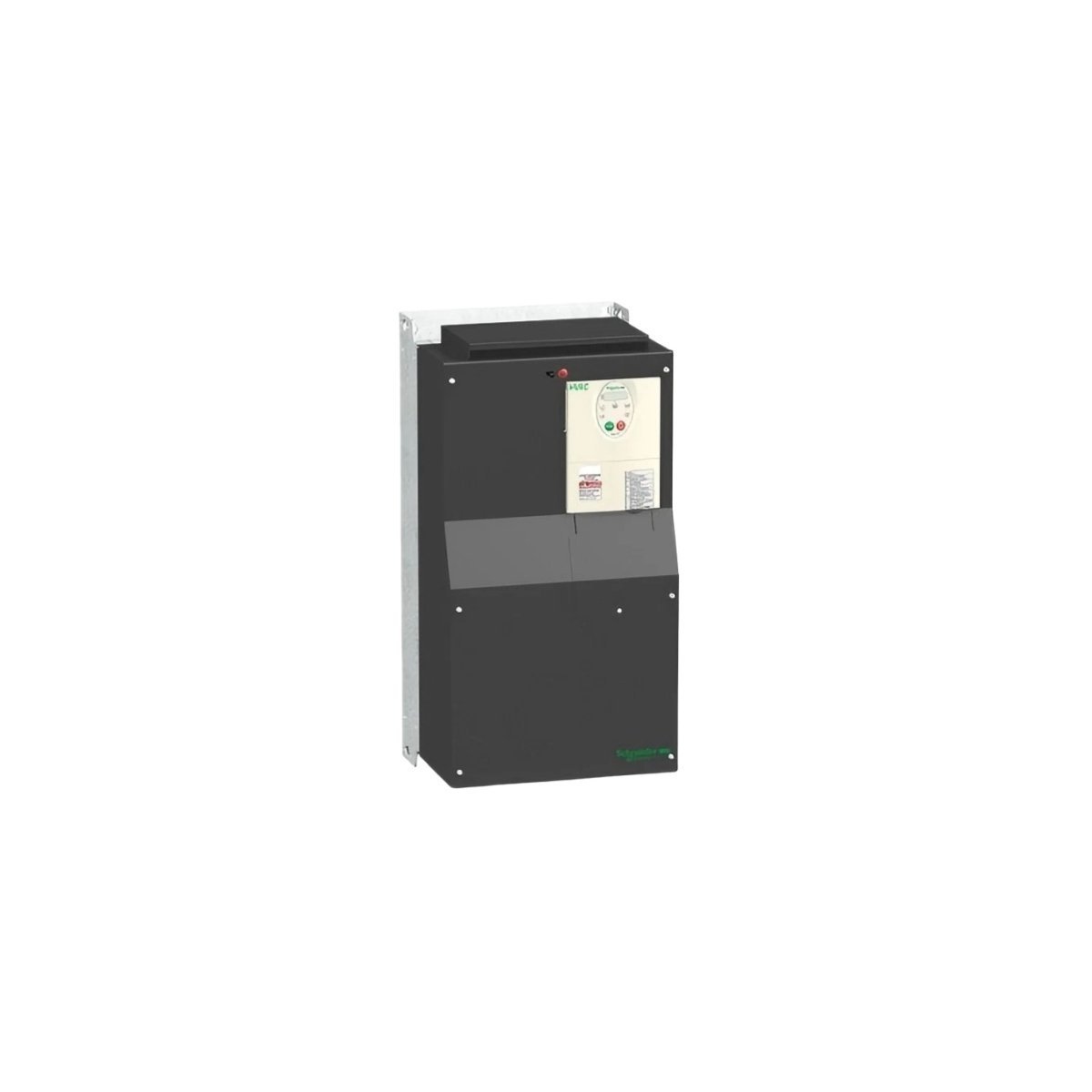

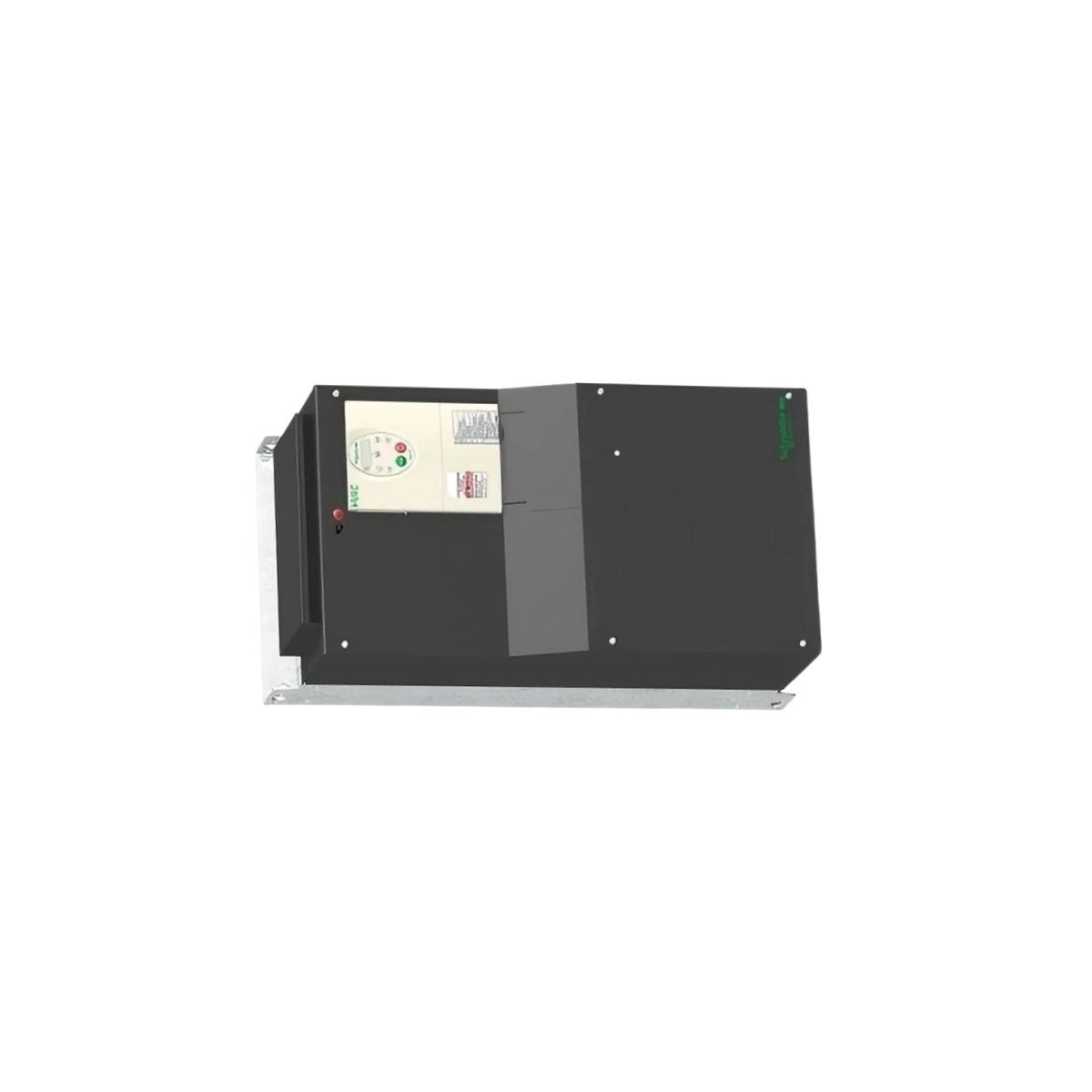

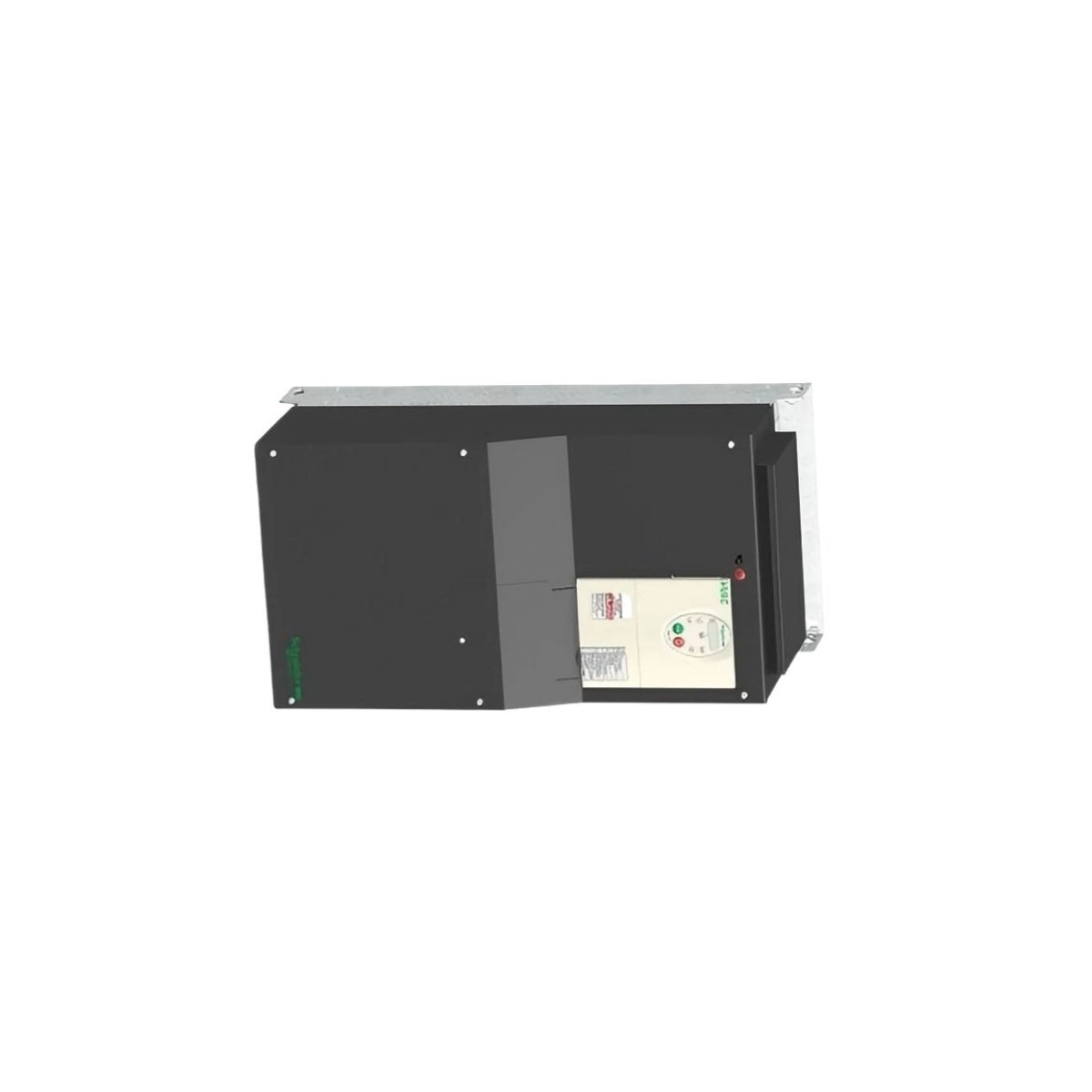

The Schneider Electric ATV212HD75N4 specifically handles fan and pump applications within modern building management systems. This 75kW (100 HP) variable speed drive regulates three-phase asynchronous motors with high precision. It operates efficiently within a voltage range of 380V to 480V AC. Furthermore, the Altivar 212 series focuses on optimizing air flow and water pressure in tertiary sector buildings. This drive ensures reliable motor performance while maintaining an IP21 protection rating for indoor environments. Consequently, it serves as a critical component for large-scale heating and ventilation infrastructures.
Advanced Energy Optimization and Harmonic Mitigation
Energy efficiency defines the core value of the ATV212HD75N4 inverter system. It reduces power consumption by up to 70% compared to traditional motor control methods. Additionally, unique internal technology limits current harmonics without requiring external DC chokes or line reactors. This design prevents excessive cable temperature rise and simplifies the overall electrical installation process. The drive also features an integrated EMC filter to maintain signal integrity in sensitive building environments. Therefore, facilities achieve significant operational savings while meeting strict environmental standards.
Seamless Building Management Integration
This Altivar 212 drive offers extensive connectivity through several embedded communication protocols. It supports BACnet, Modbus, and METASYS N2 for immediate integration into automation networks. Moreover, these features allow facility managers to monitor system health and energy data remotely. The drive also supports vertical mounting with a tolerance of plus or minus ten degrees. Technicians can further extend motor cable lengths by installing optional motor chokes. These capabilities ensure the unit adapts perfectly to complex architectural layouts and remote motor locations.
Technical Specifications
- Brand: Schneider Electric
- Model Number: ATV212HD75N4
- Product Type: Variable Speed Drive (VFD)
- Rated Power: 75 kW (100 HP)
- Network Voltage: 380…480 V AC (3-Phase)
- Protection Class: IP21 (UL Type 1)
- Communication: BACnet, Modbus, METASYS N2, APOGEE FLN
- EMC Filter: Integrated C2 class
- Dimensions: 320mm x 630mm x 290mm
- Unit Weight: 55.4 kg
