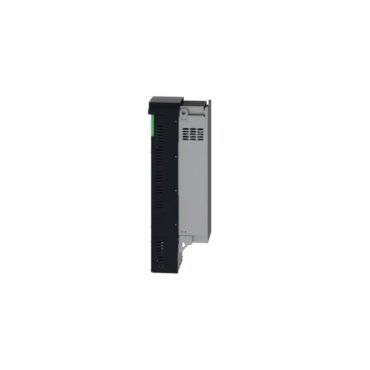

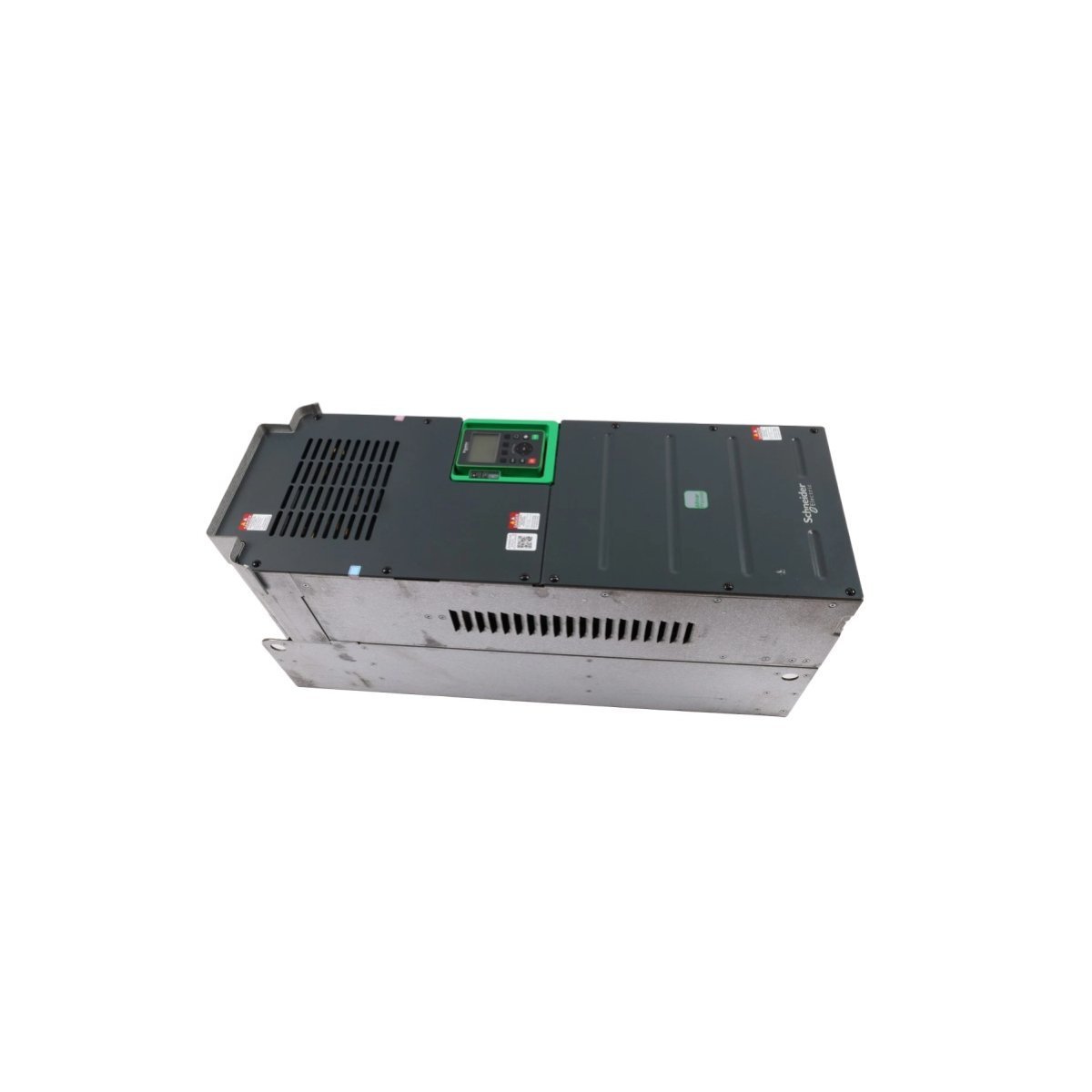

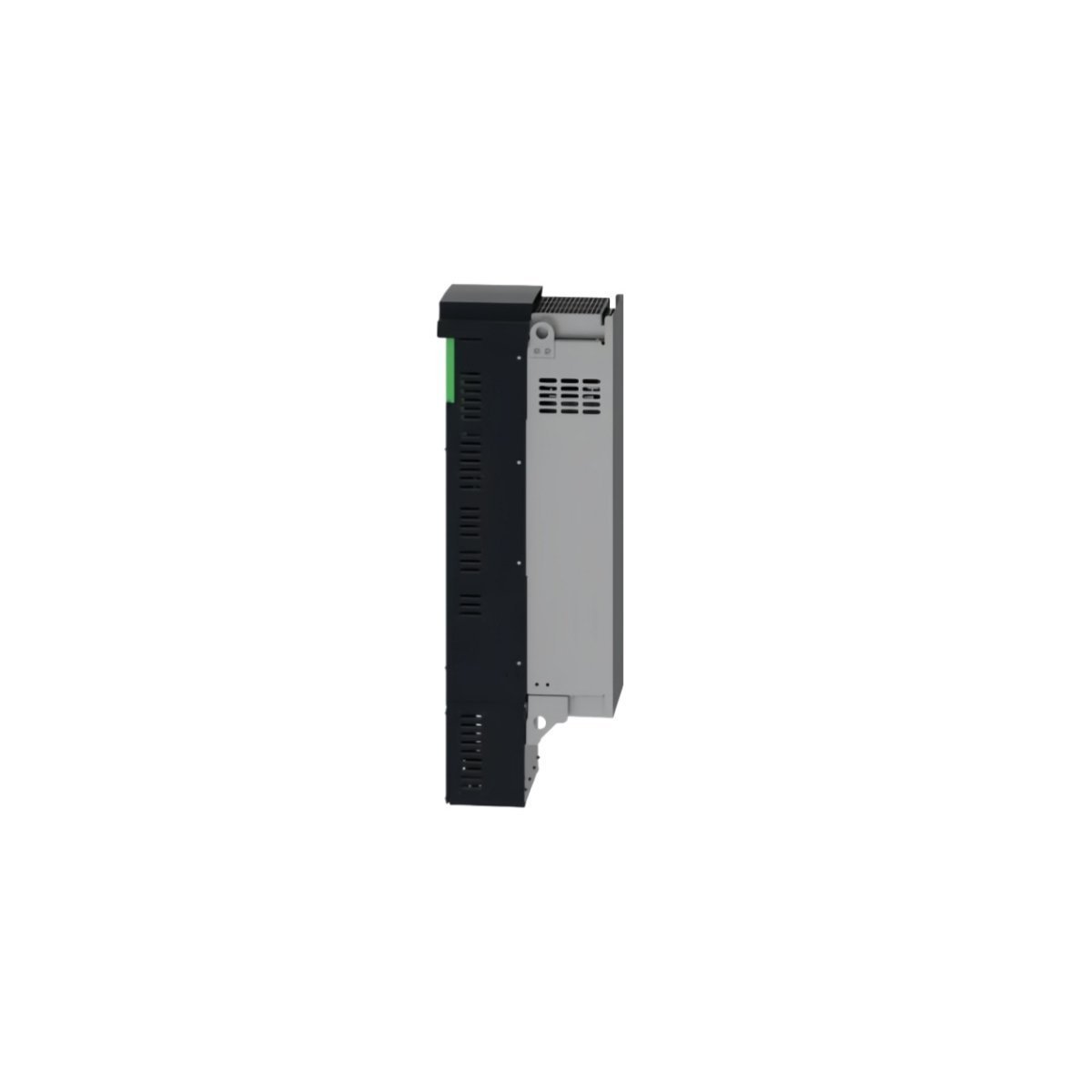

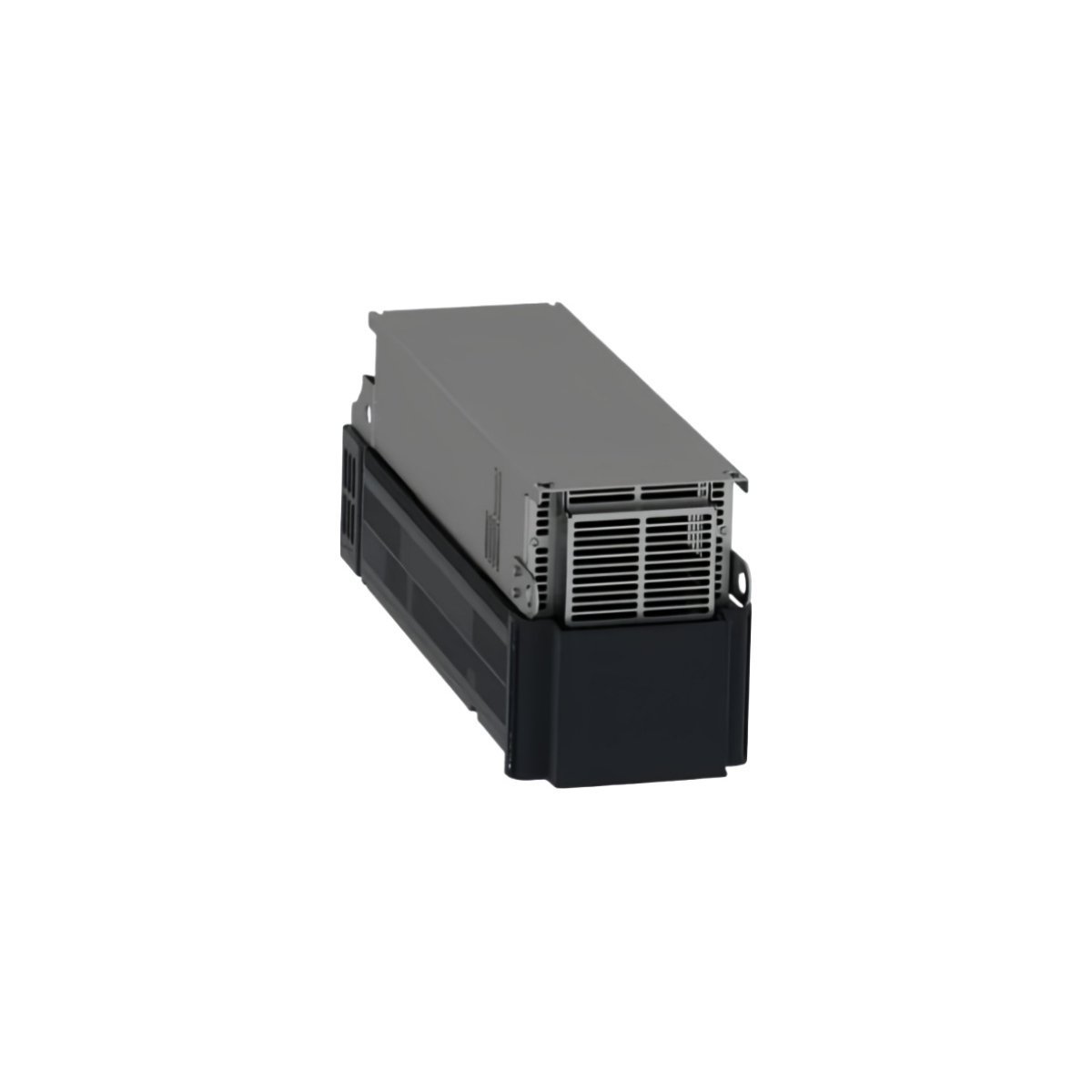

Schneider ATV630C11N4 Variable Speed Drive

The Schneider Electric ATV630C11N4 belongs to the sophisticated Altivar Process ATV600 family. This drive specializes in industrial fluid management and high-performance motor control. It delivers a robust 110 kW (150 hp) output for 380V to 480V three-phase systems. Furthermore, the unit supports both asynchronous and synchronous motor architectures. The integrated “Stop and Go” technology significantly reduces energy waste during standby periods. Consequently, facilities can achieve up to 30% reduction in idle power consumption. This drive represents a core component for modern, sustainability-focused industrial automation.

Core Technical Specifications

Seamless Connectivity and System Integration

The ATV630C11N4 facilitates effortless communication within complex PLC networks. It features a built-in Ethernet port along with two versatile serial ports. Additionally, three dedicated RJ45 ports allow for fast peripheral connections. This connectivity ensures real-time data monitoring for critical process variables. The drive also supports various expansion options for increased I/O requirements. Technicians can easily integrate the module into existing water treatment or mining infrastructures. These features allow for comprehensive asset management and remote diagnostics.

Operational Safety and Mechanical Reliability

Safety remains a primary focus for the Altivar Process series. The drive effectively handles temporary overloads up to 150% during heavy-duty cycles. Moreover, the hardware includes thermal monitoring and short-circuit protection for the motor. The mechanical design requires vertical wall mounting within a 10-degree tolerance. For high-demand environments, users can add optional fan kits and EMC filters. These additions enhance the drive’s durability in harsh industrial settings. High-performance cooling ensures stable operation during peak load conditions.
