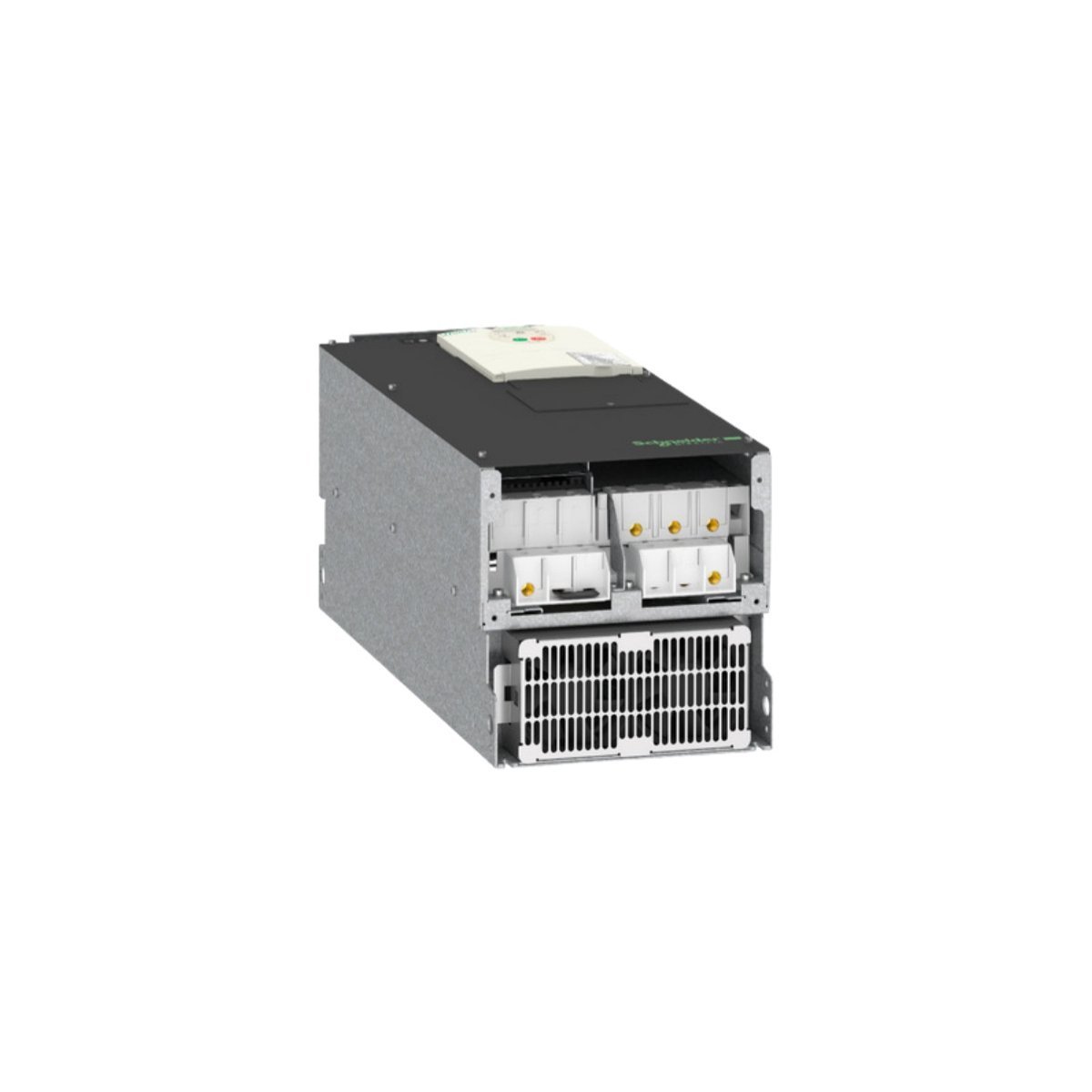

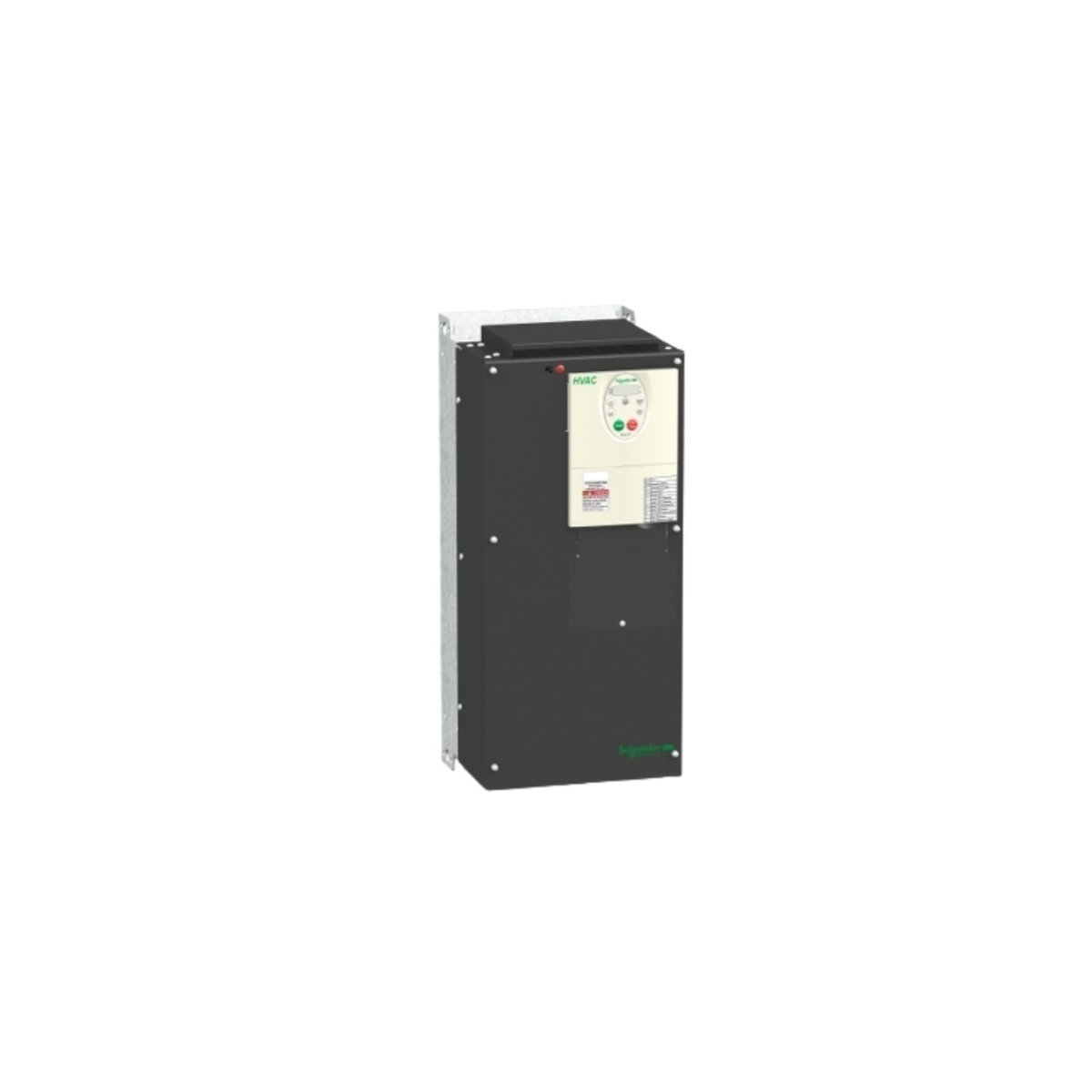

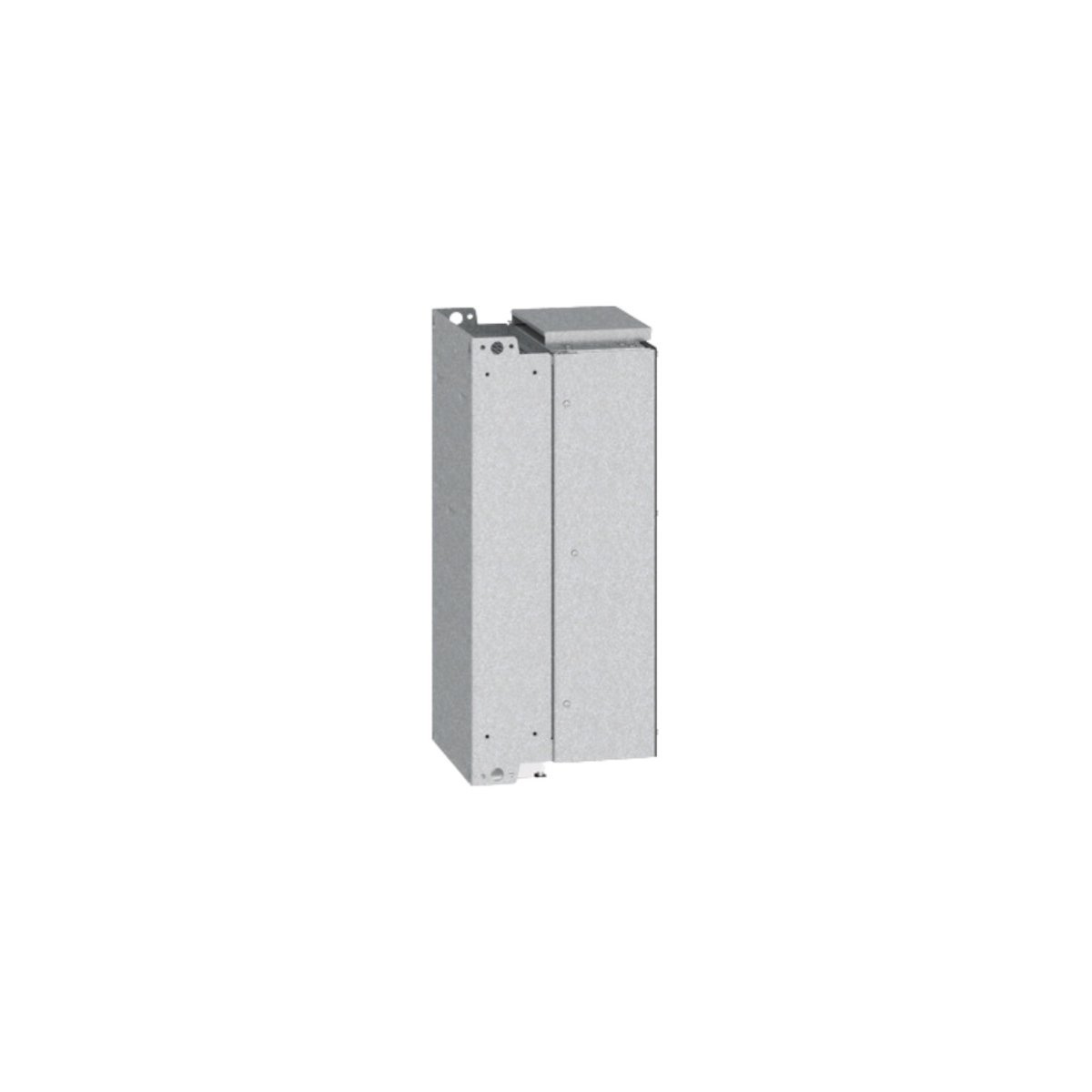

The Schneider Electric ATV212HD45N4 belongs to the dedicated Altivar 212 series. This range specifically targets fluid management in commercial building automation systems. It provides precise frequency control for three-phase asynchronous motors. Furthermore, the drive handles power ratings up to 45kW (60 HP) at 380V to 480V AC. This solution prioritizes streamlined performance for fans, pumps, and compressors. By replacing traditional damper or valve control, it ensures significant operational efficiency.
Core Technical Specifications
| Feature | Specification Details |
| Model Number | ATV212HD45N4 |
| Nominal Power | 45 kW (60 HP) |
| Supply Voltage | 380…480 V AC (Three-Phase) |
| Line Current | 83.8 A at 380 V |
| Apparent Power | 61.9 kVA at 380 V |
| Protection Rating | IP21 / UL Type 1 |
| Integrated Protocols | BACnet, Modbus, METASYS N2, APOGEE FLN |
Energy Efficiency and Harmonic Mitigation
The ATV212HD45N4 utilizes specialized technology to reduce harmonic distortion. This design eliminates the need for bulky line chokes or DC bus reactors. Consequently, the drive occupies less panel space while maintaining electrical network health. Users can achieve up to 70% energy savings compared to standard motor starters. The integrated “Eco-mode” further optimizes power consumption during low-load periods. These features help facilities meet stringent environmental standards and lower utility costs.
Seamless Building Management Integration
Communication remains a core strength of this Altivar 212 model. It supports major building automation protocols without additional hardware. Technicians can easily link the drive to BACnet or Metasys networks. This connectivity allows for remote monitoring of temperature, pressure, and flow rates. Additionally, the drive includes protective functions like pump cavitation detection and fire mode. These intelligent safety algorithms ensure the HVAC system remains reliable during critical building events.
