Schneider ACE949-2 Electric SEPAM Protection Relay Interface Module

Schneider Electric ACE949-2 Interface Module

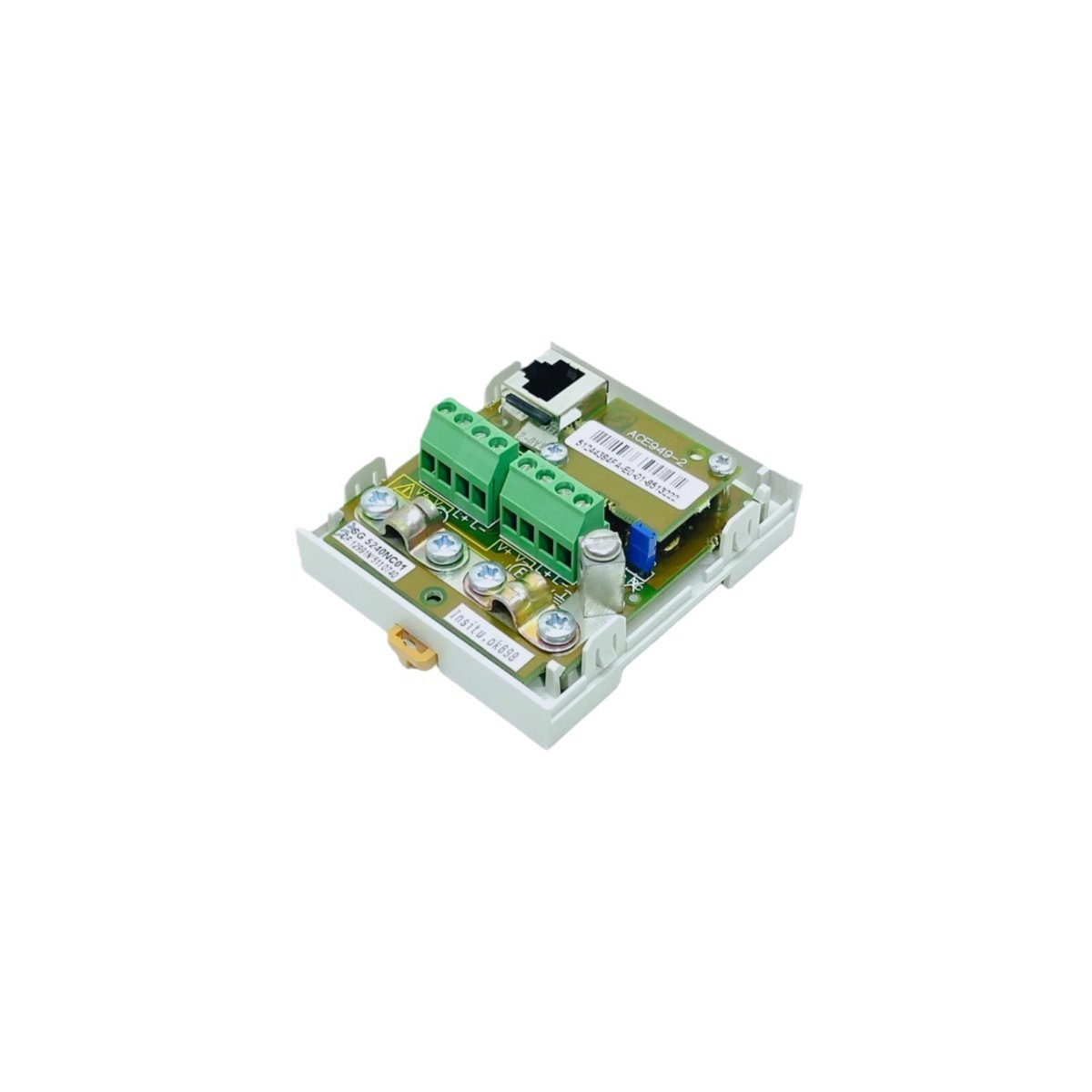

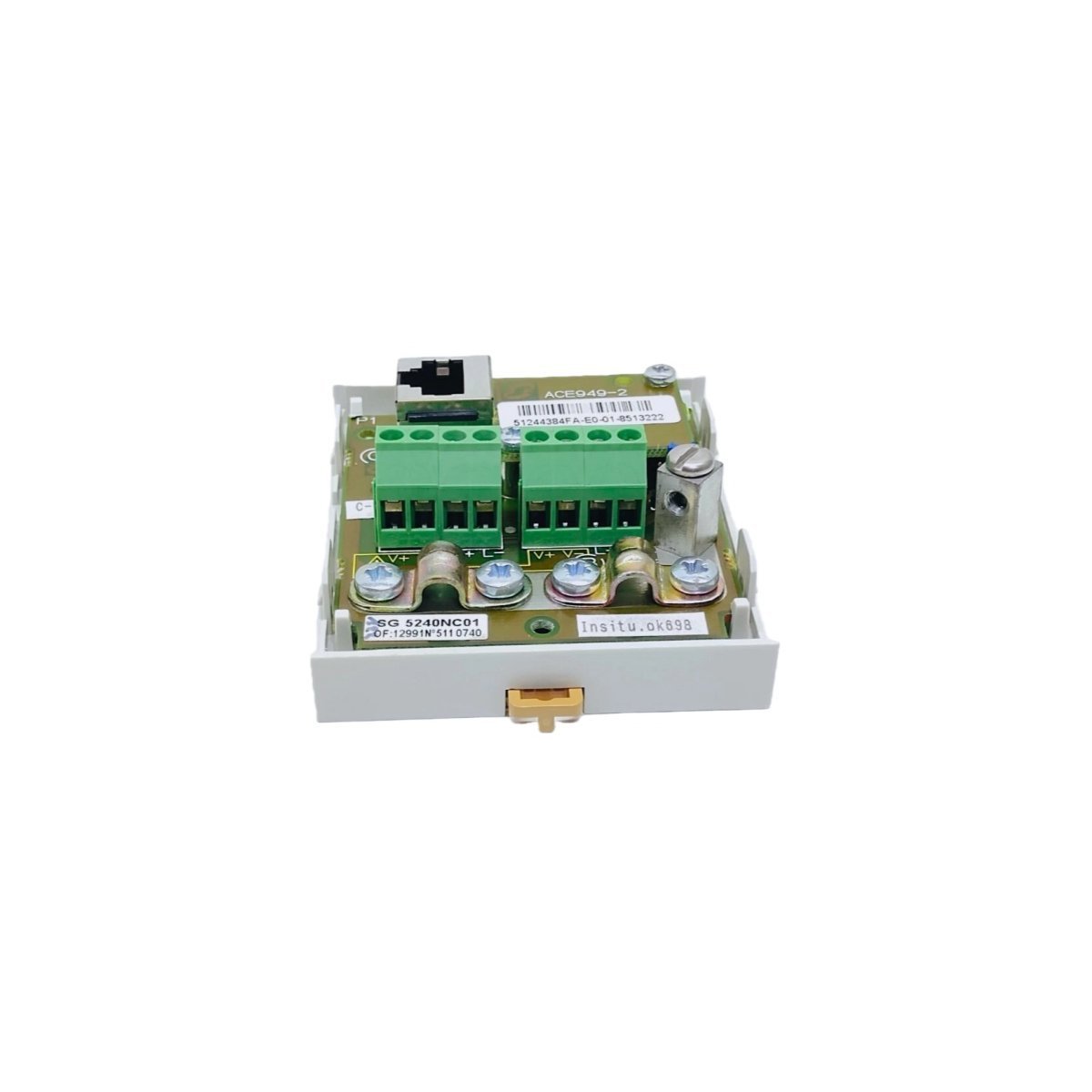

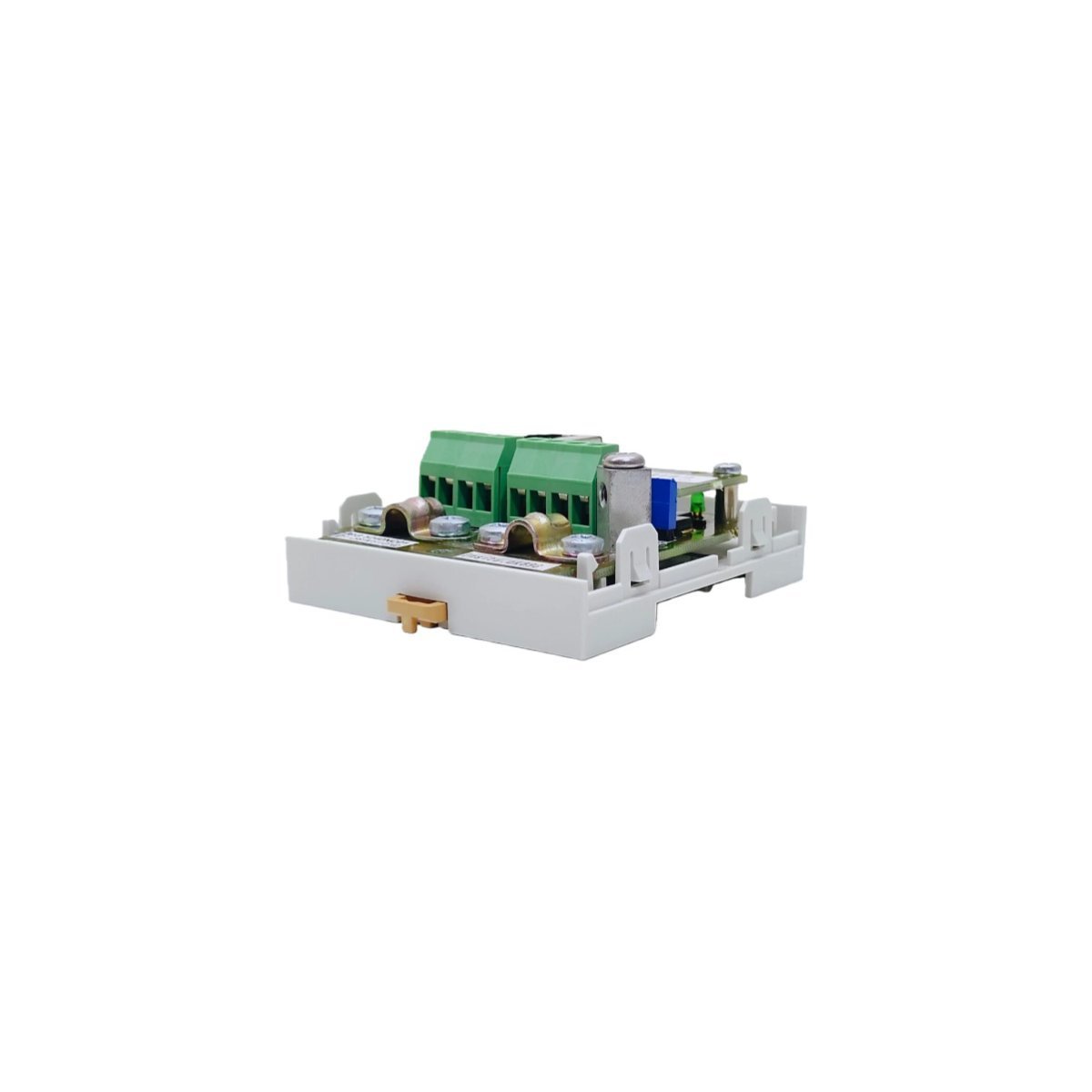

The Schneider Electric ACE949-2, also cataloged as the ACE949-2 Interface Module, operates as a dedicated hardware component for 2-wire RS485 network signal translation within SEPAM protection relay platforms.

Hardware Specifications

Firmware Flash Compatibility and Deterministic Communication

The internal line drivers process incoming RS485 serial frames while high-speed optical couplers maintain galvanic isolation up to 1500 V AC between the field network and the internal logic controller. Built-in bus transceivers negotiate data frames directly with higher-level Ethernet router nodes, which prevents signal reflection across long twisted-pair cable runs. In addition, firmware flash compatibility inside the host SEPAM relay ensures automatic protocol synchronization upon boot, so the interface module executes rapid register updates without degrading backplane bus communication velocity.

Frequently Asked Questions

Q: How do engineers prevent signal reflection across the 2-wire RS485 bus when cascading multiple protection relays?

A: Technicians must switch on the internal termination resistor circuit at the physically last node on the RS485 segment. This matches the characteristic line impedance, which suppresses signal reflections and maintains clean square-wave transitions across high baud rates.

Q: Does the module support hot-swapping while the host SEPAM relay processes live protection routines?

A: No, engineers must de-energize the 24 V DC auxiliary power supply before removing the interface module. Unplugging the module under power interrupts the serial fieldbus frame stream instantly, which triggers communication fault flags in the upstream PLC system.

Q: How does the internal isolation layer protect host system electronics against common-mode voltage surges?

A: Internal optocouplers and isolated DC-DC converters separate the 2-wire field terminals completely from the internal backplane logic. This physical barrier blocks voltage spikes between 500 V AC and 1500 V AC, which prevents field transient noise from damaging host processor components.

Field Installation Guidelines

Snap the module base onto a standard 35 mm DIN rail inside an IP54-rated metal control cabinet. Maintain at least 50 mm of vertical ventilation space above and below the module housing, which promotes natural air convection across the enclosure casing.

Connect the 2-wire RS485 communication line using shielded twisted-pair cable (STP). Technicians must clamp the cable braid shield directly to the nearest earth ground rail using a conductive grounding strap, and they should avoid running serial data lines parallel to high-voltage AC power cabling. Finally, check that the 24 V DC auxiliary power supply wiring maintains correct polarity before energizing the control circuit.
