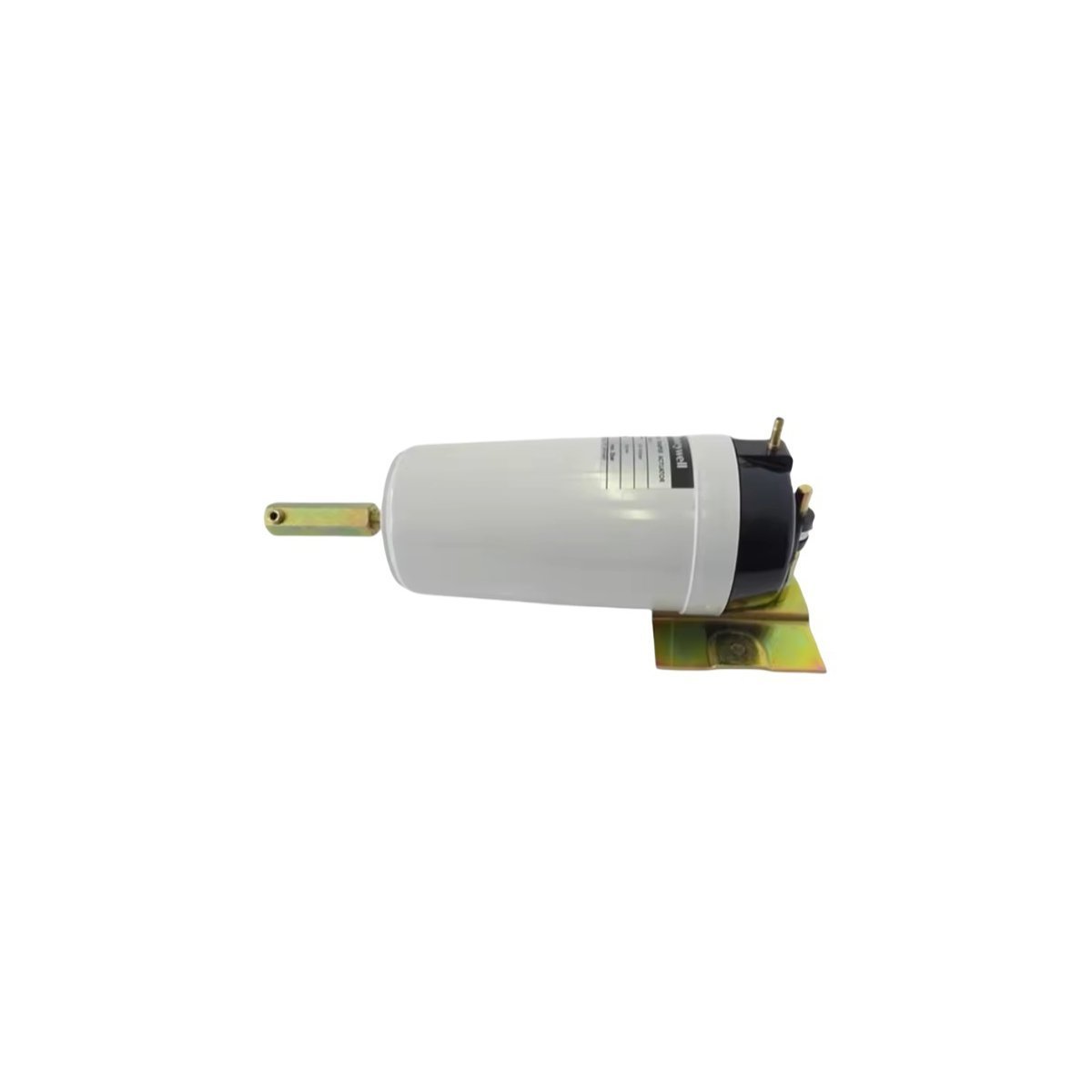

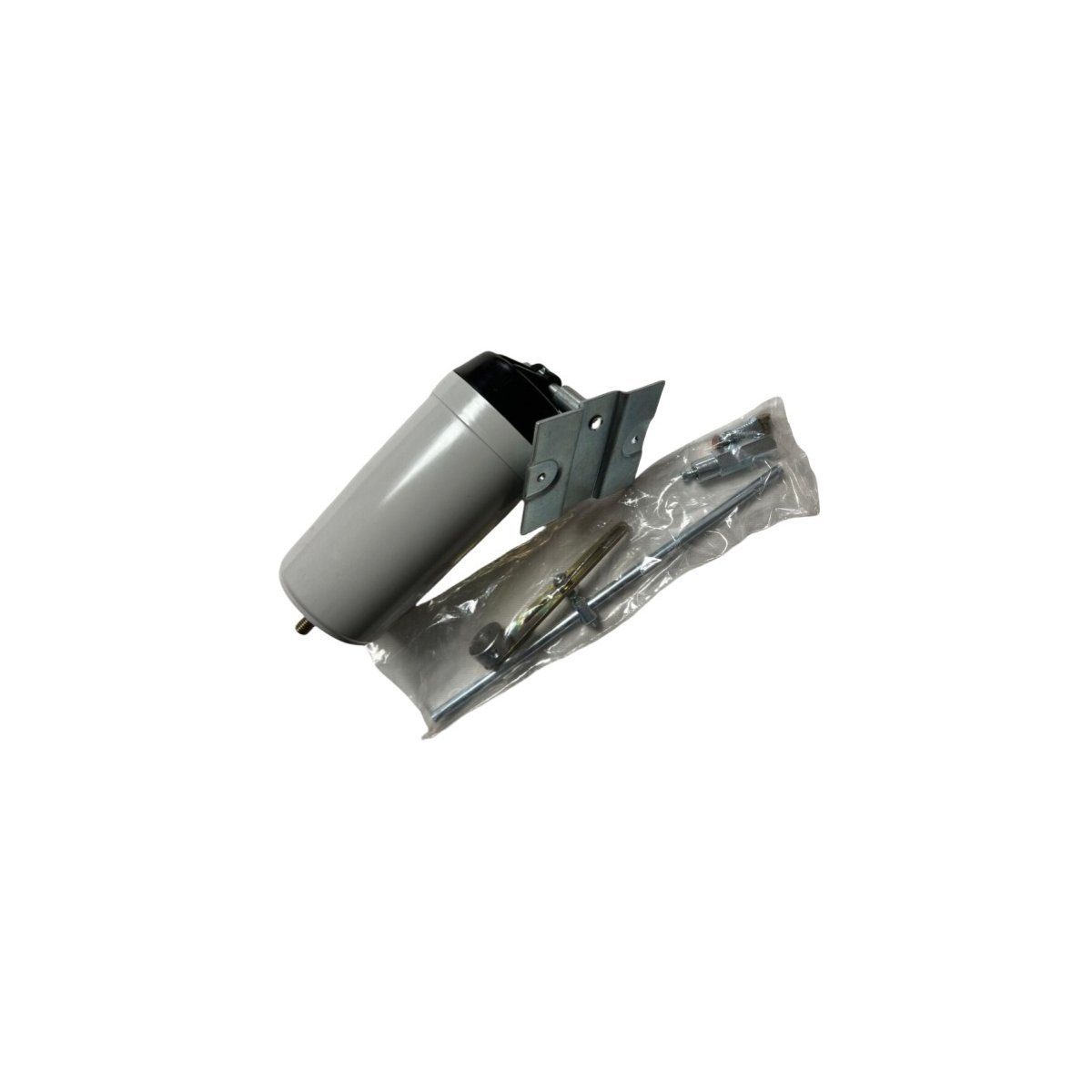

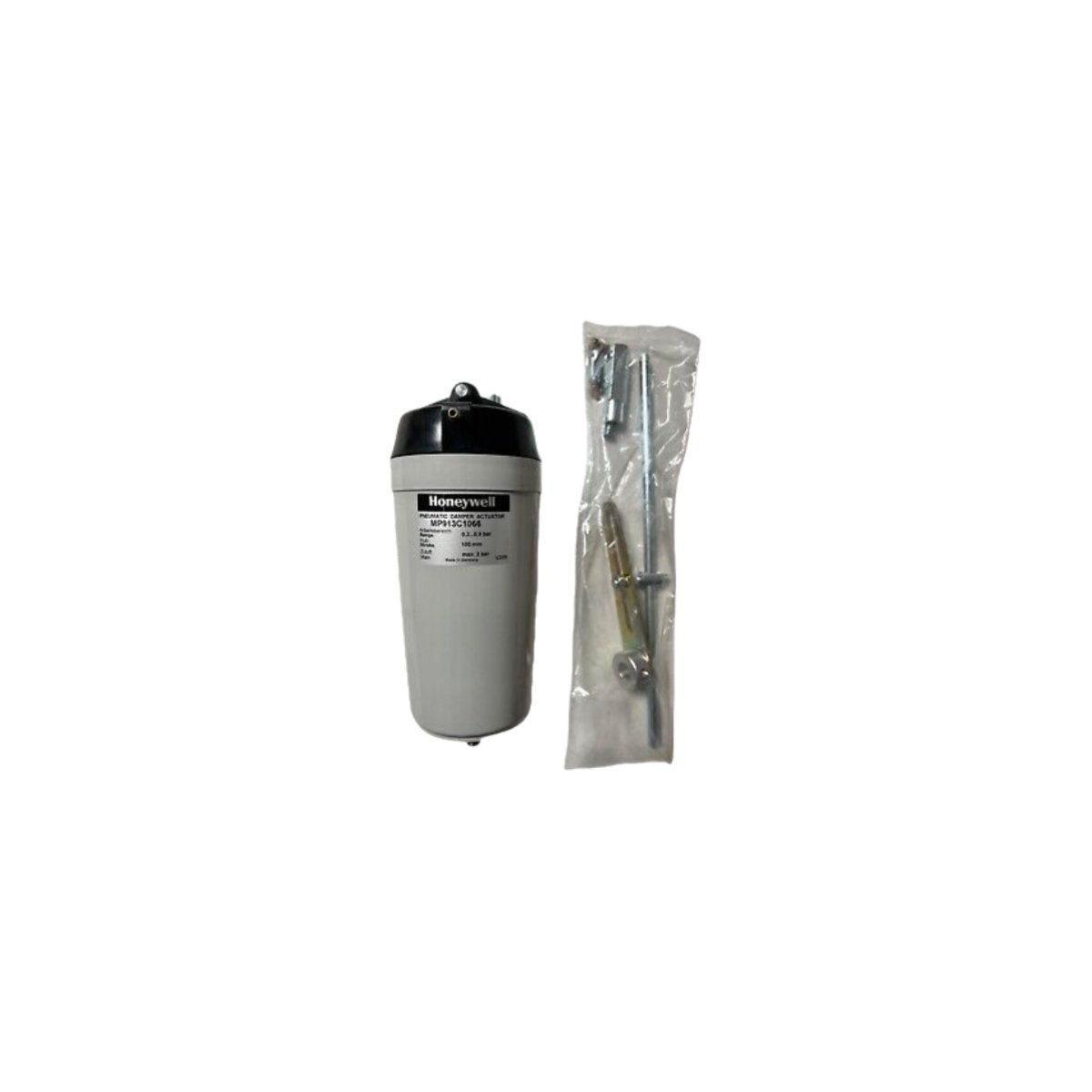

MP913C1066-1 Honeywell Industrial Pneumatic Shaft Coupling Interface

Product Overview

The Honeywell MP913C1066-1 serves as a high-precision mechanical interface between pneumatic actuators and damper louvers. This shaft connection component translates pneumatic force into controlled rotational or linear movement, allowing for the meticulous modulation of air volume in large-scale industrial ventilation systems. Because industrial environments often present corrosive atmospheres, Honeywell utilizes high-grade stainless steel in the construction of this unit to prevent oxidation and mechanical binding. This ensures that the actuator maintains consistent torque transmission even after years of continuous operation in power plants or manufacturing facilities.

Technical Specifications

The MP913C1066-1 is built to exacting industrial standards, ensuring compatibility with standard pneumatic control loops:

• Manufacturer: Honeywell
• Model Number: MP913C1066-1
• Product Type: Pneumatic Damper Actuator Shaft Connection
• Product Series: HDLS Series
• Material Construction: Industrial Grade Stainless Steel
• Ingress Protection: IP65 Rated
• Net Weight: 0.65 kg
• Unit Dimensions: 15 x 3.5 x 8 cm
• Operating Origin: USA
• Compliance Standards: UL and CE Certified
• System Integration: Distributed Control System (DCS) / HVAC

Engineering Characteristics

This shaft connection optimizes airflow control by eliminating mechanical play and hysteresis during the actuation cycle. Since the MP913C1066-1 features an IP65-rated design, it effectively resists the ingress of dust and moisture, which is critical for maintaining performance in outdoor or high-humidity installations. The component operates reliably across a broad temperature spectrum, allowing it to withstand the thermal extremes typical of industrial boiler rooms or cooling towers. Furthermore, the robust linkage design facilitates smooth and precise movement, which directly contributes to the overall stability of the process control environment.

Transitioning to this genuine Honeywell hardware ensures that the pneumatic system meets international safety and performance benchmarks. The MP913C1066-1 undergoes rigorous testing to verify its structural integrity under high-load conditions, making it a superior choice compared to generic alternatives. By utilizing this specific shaft connection, maintenance teams can improve the reliability of their air-side systems and reduce the frequency of calibration adjustments.

Operational Applications

• Regulating primary and secondary airflows in industrial boiler systems
• Interfacing pneumatic actuators with large-scale HVAC dampers
• Controlling airflow within hazardous or wash-down manufacturing zones
• Managing ventilation dampers in power generation and chemical processing

FAQs

• What materials are used for the MP913C1066-1?
• The unit is primarily constructed from high-quality stainless steel to ensure longevity and resistance to environmental stress.
• Is this component suitable for outdoor use?
• Yes, the IP65 rating provides significant protection against dust and water, making it suitable for various sheltered and exposed environments.
• Does this model require specialized communication protocols?
• While the actuator may be part of an Ethernet-monitored system, this specific part is a mechanical shaft connection that operates via pneumatic pressure.
