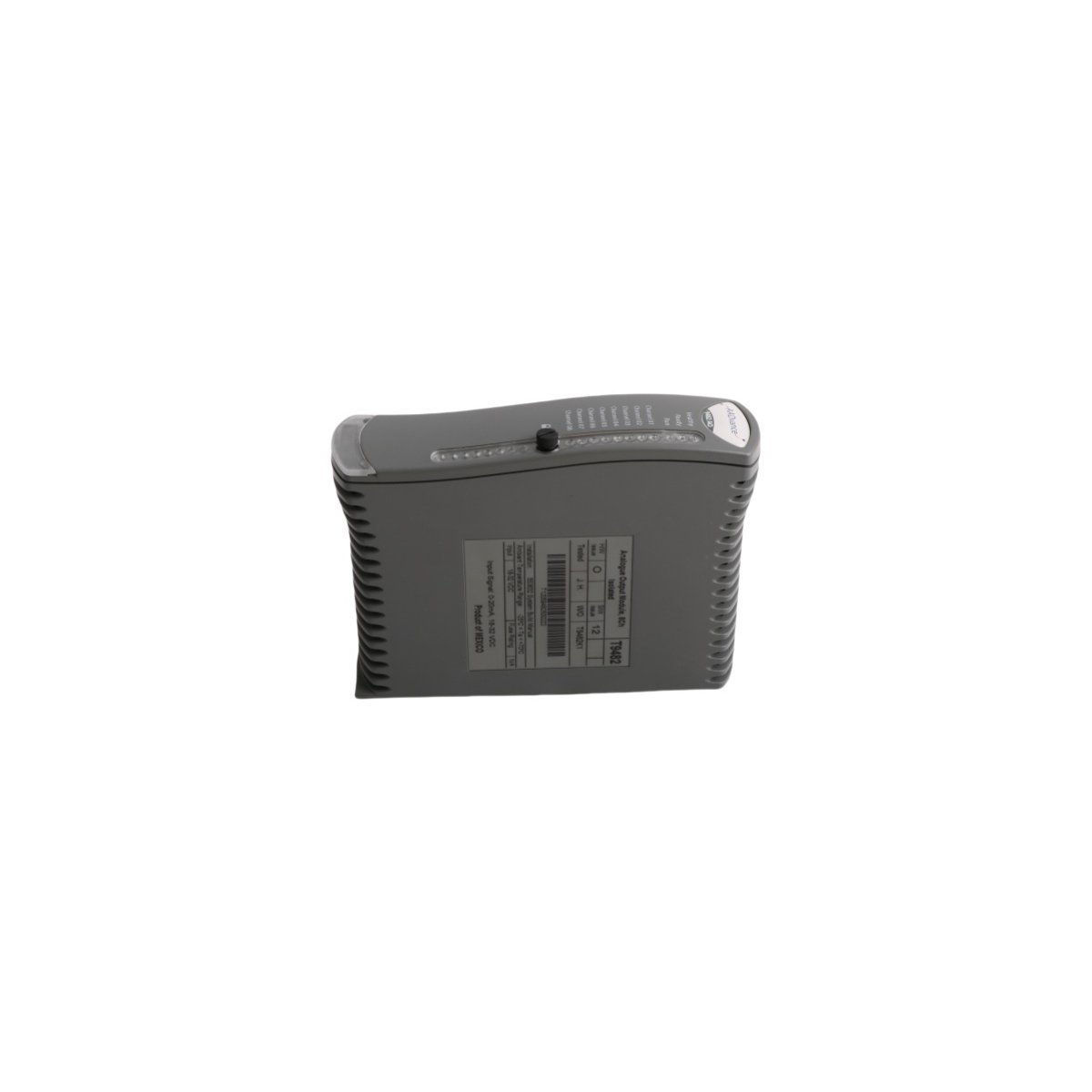

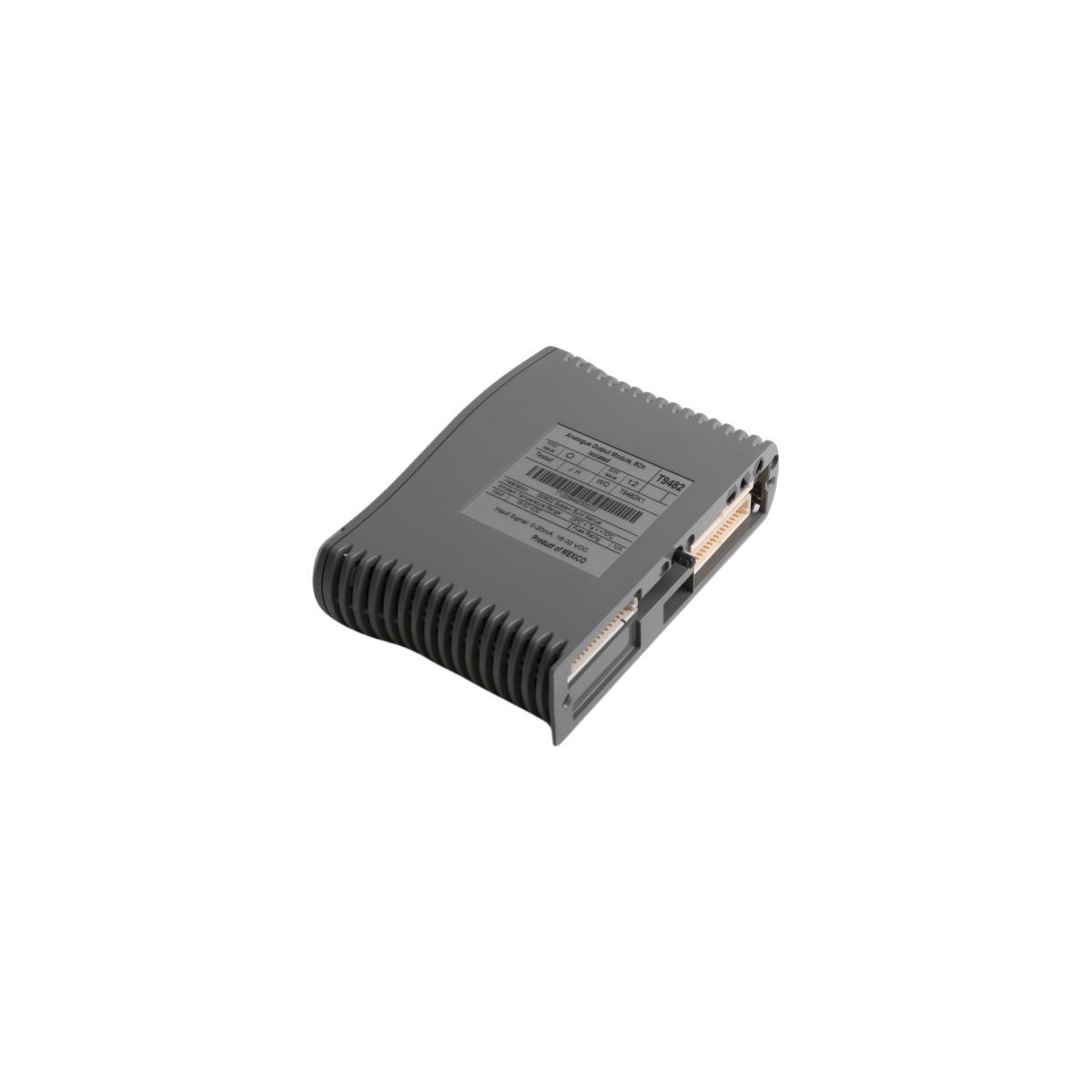

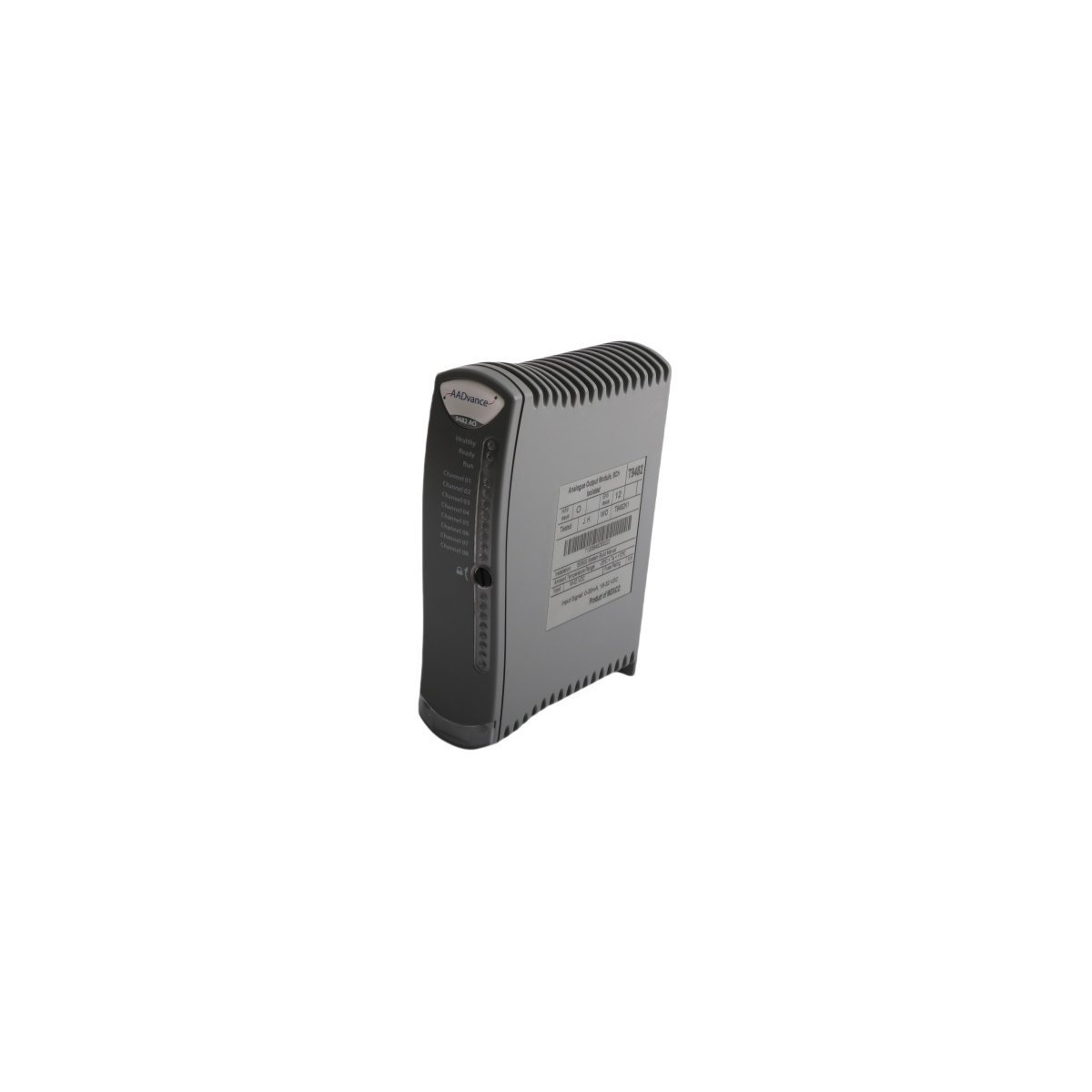

The ICS Triplex T9482 is a high-integrity analog output module engineered for the AADvance functional safety system. This module provides precise control signals to final elements such as control valves, actuators, and variable speed drives. By utilizing a distributed architecture, the T9482 maintains high accuracy and signal stability in safety-critical loops. It serves as a vital component for processes requiring continuous control and high availability. The hardware design focuses on minimizing signal interference while maximizing diagnostic coverage for the entire output loop.
Technical Specifications and Overview
| Feature | Specification Details |
| Brand | Rockwell Automation / ICS Triplex |
| Model Number | T9482 |
| Product Line | AADvance System |
| Output Type | Analog (Isolated) |
| Number of Channels | 8 Channels |
| Supply Voltage | 24 VDC Nominal |
| Maximum Channel Load | 50 mA |
| Operating Temperature | -20°C to +70°C |
| Weight | 0.36 kg |
| Dimensions | 4.1 cm x 12.7 cm x 16.5 cm |
Advanced Technical Characteristics
- Loop Integrity Monitoring: The hardware continuously checks the health of each output circuit. It identifies open loops or short circuits to prevent dangerous failures in the field.
- Thermal Resilience: Advanced engineering allows for stable performance in extreme temperatures. The module functions reliably from factory floors to unheated outdoor enclosures.
- System Interoperability: An integrated RS-485 interface supports Modbus RTU communication. This allows for high-level data exchange and remote diagnostics across the industrial network.
- Precision Current Control: Each of the 8 channels delivers stable current up to 50mA. This ensures compatibility with a broad spectrum of industrial actuators and high-impedance loads.
