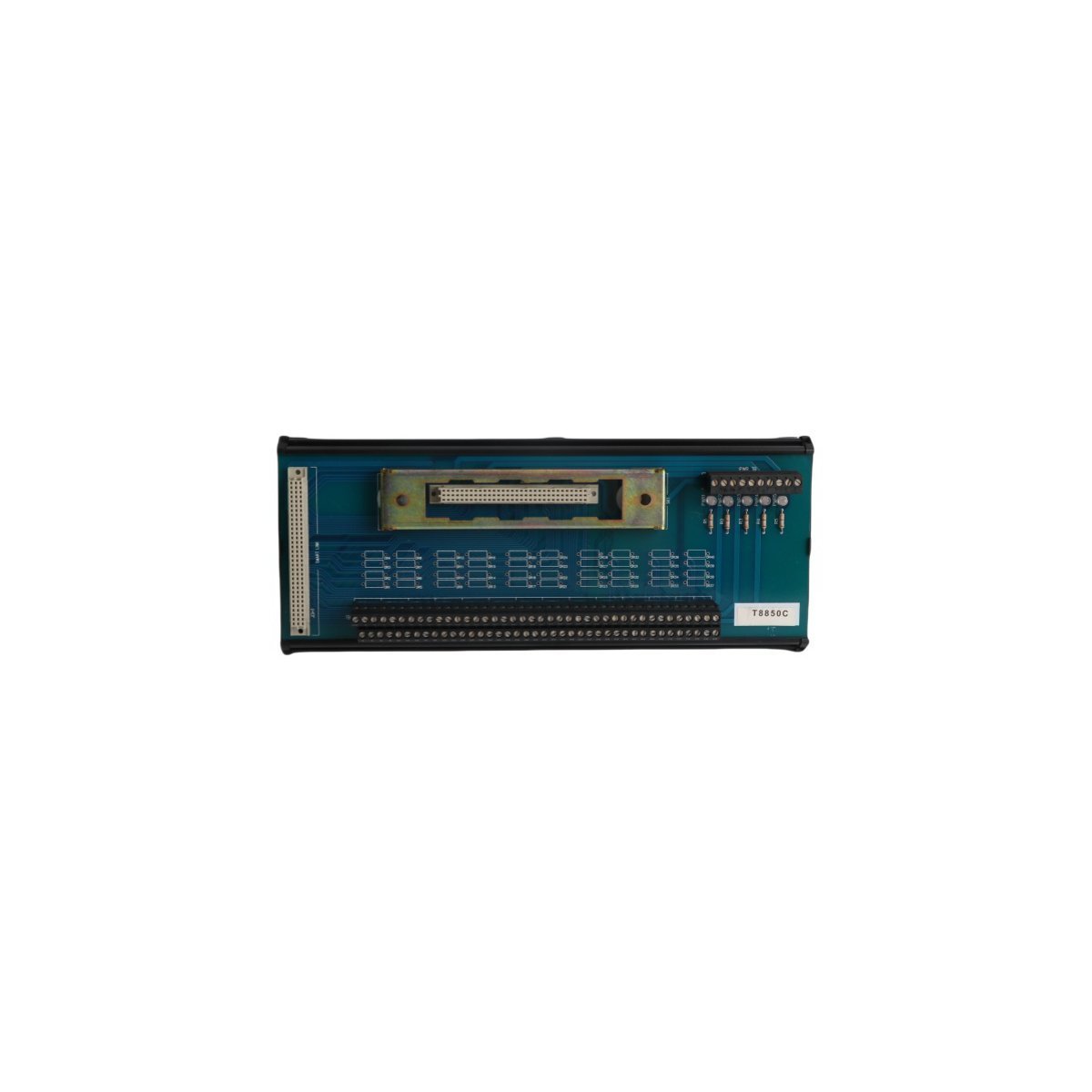

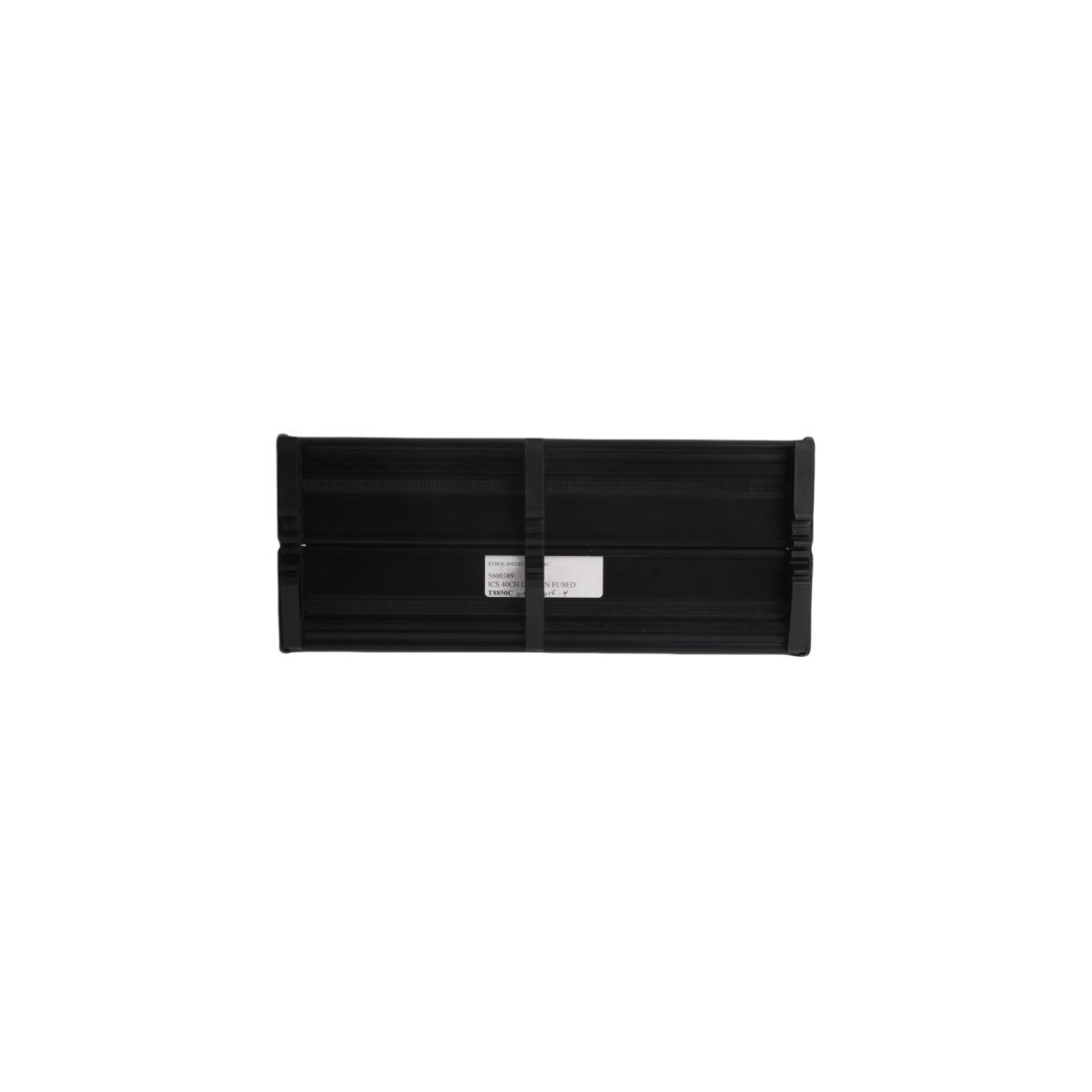

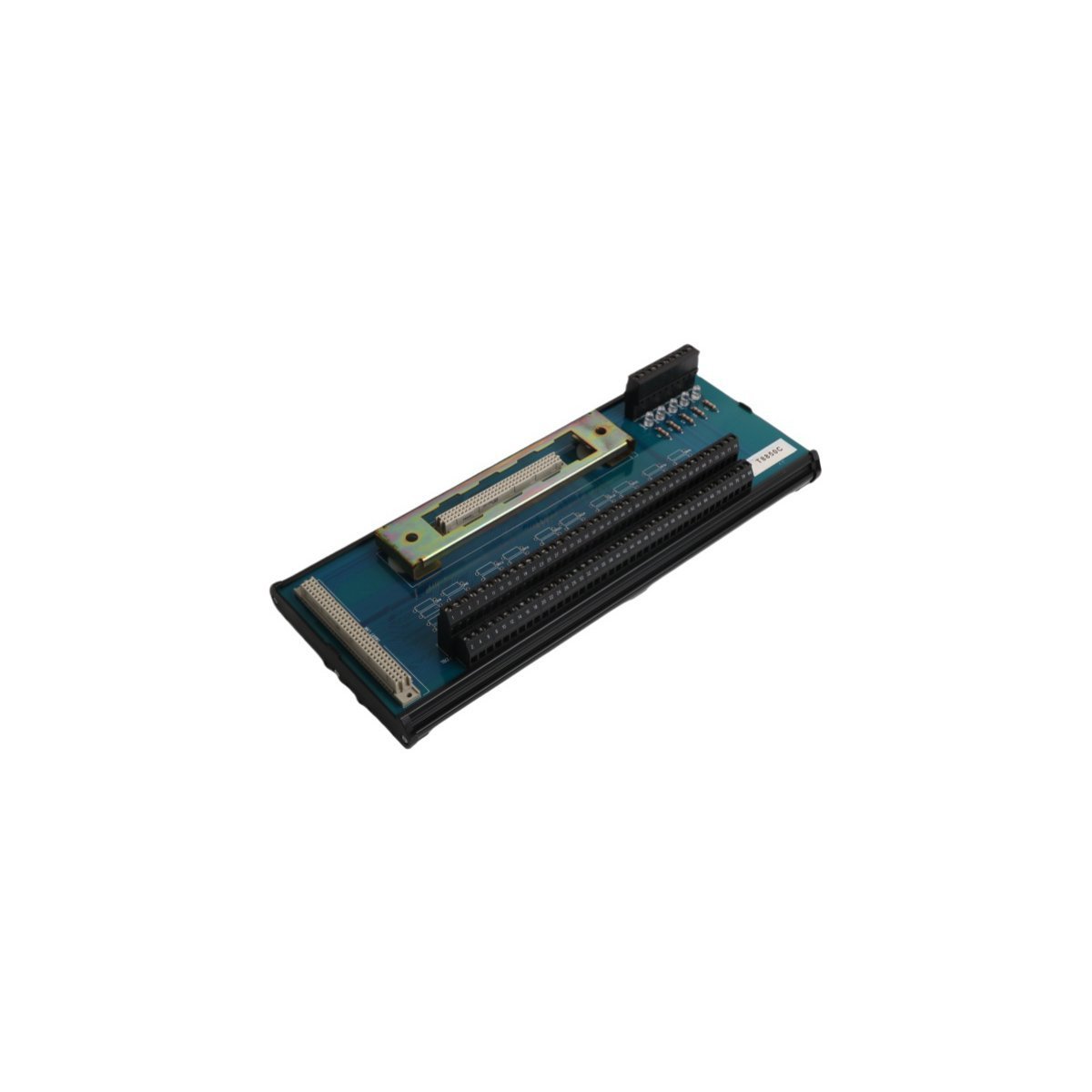

ICS Triplex T8850C Digital Output FTA Module

The T8850C serves as a specialized Field Termination Assembly (FTA) designed for the Rockwell ICS Triplex Trusted Triple Modular Redundant (TMR) system. This module provides a high-density physical interface that connects 40 digital output channels from the controller to the field devices. By utilizing the “C” variant architecture, the T8850C offers enhanced component resilience for safety-instrumented functions. It ensures that the control system maintains a high degree of signal integrity while providing a ruggedized landing point for complex field wiring.

Technical Specifications and Overview

Core Technical Characteristics

• Advanced Signal Routing: The FTA manages signal distribution for 40 digital outputs, providing a stable hub for 24 VDC field equipment. Consequently, this minimizes cable clutter and reduces the risk of installation errors during system commissioning.
• TMR Architecture Support: This module works in tandem with Triple Modular Redundant logic solvers. Because it supports redundant signal paths, it ensures that a single failure within the circuitry does not compromise the overall safety function.
• Rugged Environmental Protection: The IP67 rating guarantees that the module resists dust ingress and moisture. Therefore, the T8850C operates reliably in environments ranging from extreme cold to high-humidity climates.
• Interoperability and Communication: The hardware supports standard industrial communication, including Modbus RTU and ASCII protocols. This allows operators to integrate the FTA into existing Ethernet-based infrastructures with minimal configuration.
