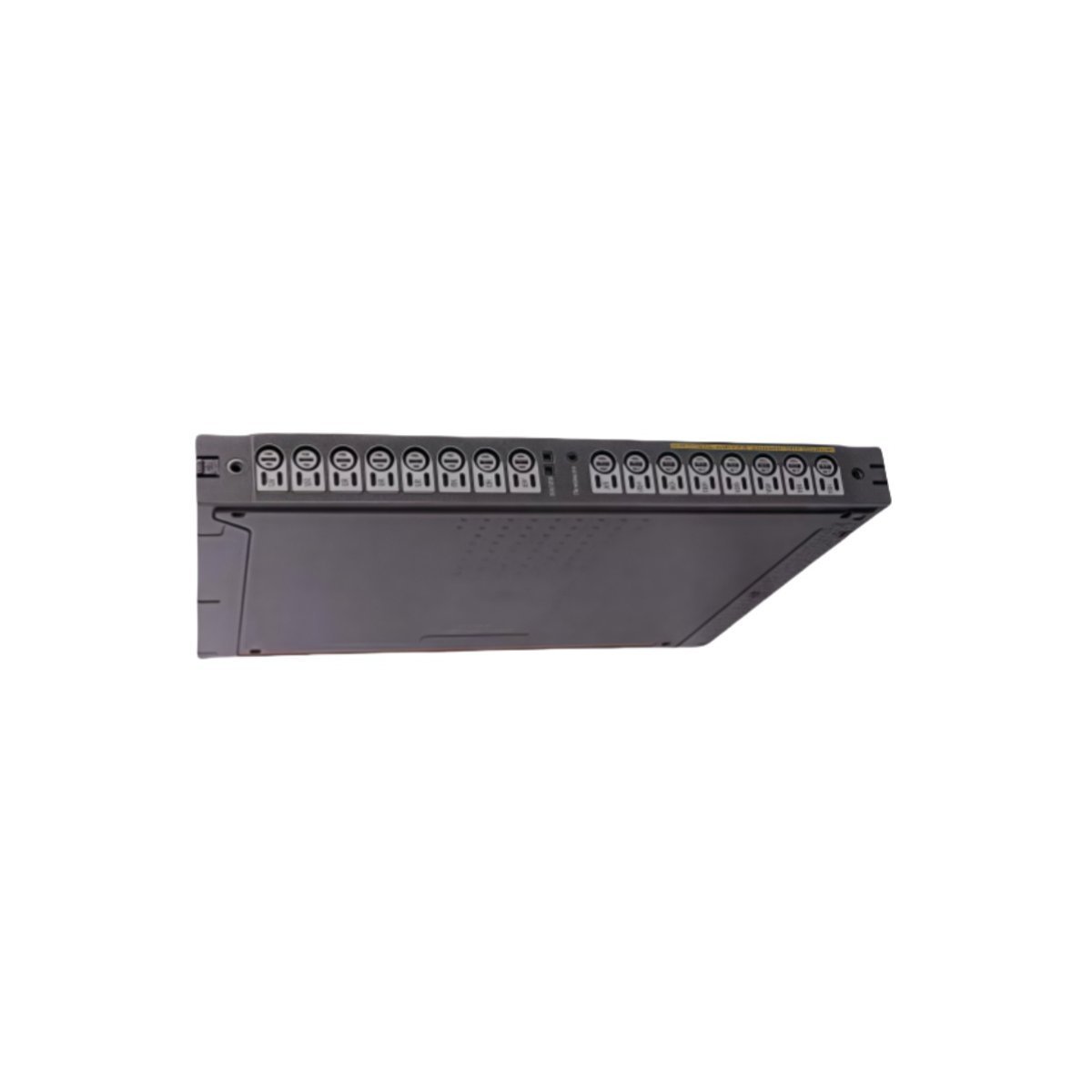

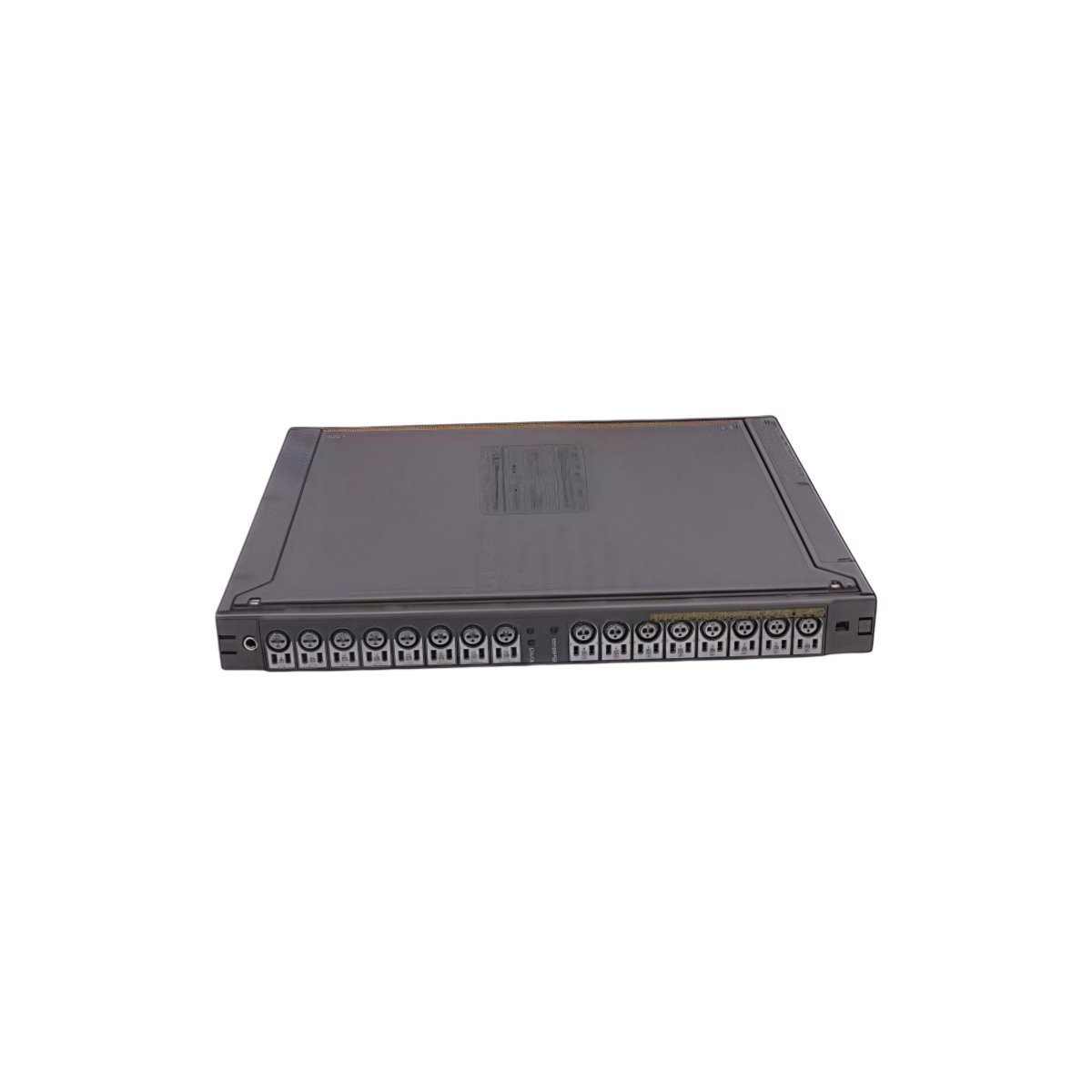

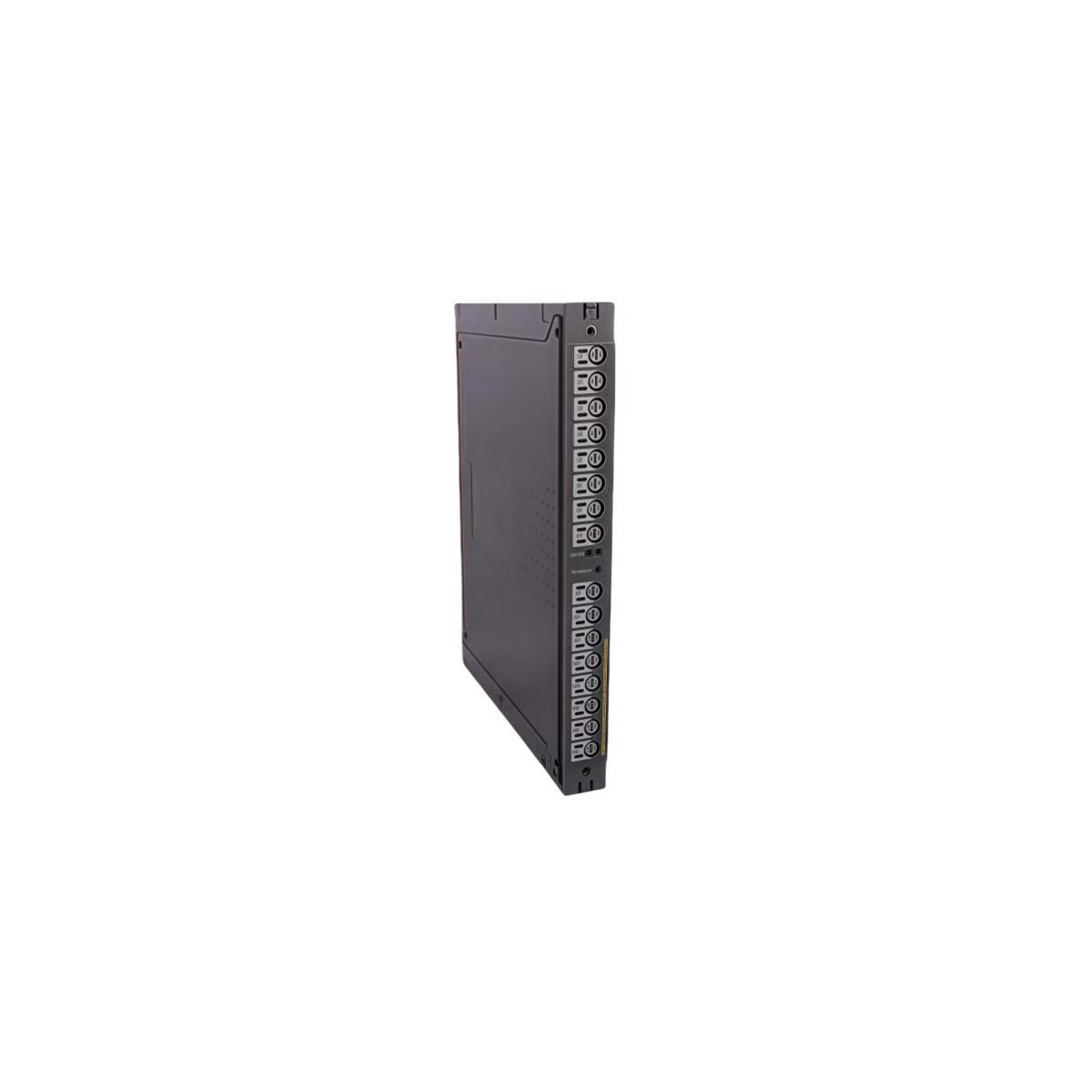

ICS Triplex T8240C Digital Input Module

Core Technical Specifications

The ICS Triplex T8240C serves as a high-integrity interface within the Trusted Triple Modular Redundancy (TMR) platform. This digital input module captures critical field signals with extreme precision and provides the necessary data for safety-related decision-making. By utilizing a fault-tolerant architecture, the unit maintains continuous operation even during internal component failures. Consequently, this module remains a primary choice for emergency shutdown systems and fire and gas detection networks.

Advanced Fault Management and Safety Compliance

This module features a Class 3 Fault Management rating, which ensures that the system handles anomalies safely without interrupting the process loop. Because the T8240C meets IEC 61508 SIL 2 requirements, it adheres to the strictest international safety standards for high-risk industrial sectors. The internal voting logic compares multiple signal paths to eliminate errors and prevent false trips. Furthermore, the hardware provides comprehensive self-diagnostics to alert operators of potential field-side issues before they escalate into system-wide failures.

Technical Performance and System Integration

• Redundant Communication: The module utilizes Modbus RTU protocols to facilitate reliable data exchange with external PLC and SCADA systems.
• Ruggedized Construction: Industrial-grade housing protects internal electronics from thermal fluctuations and mechanical vibration.
• Flexible Channel Density: The hardware supports up to 8 dedicated channels for diverse field instrument connections.
• High-Speed Input Processing: Advanced processor interfaces allow the module to register signal changes in milliseconds.
• Compact Integration: The 0.5 kg unit fits easily into standard Trusted system backplanes to optimize cabinet space.
• Environmental Resilience: Engineered for mission-critical uptime, the device operates effectively in unconditioned industrial environments.
