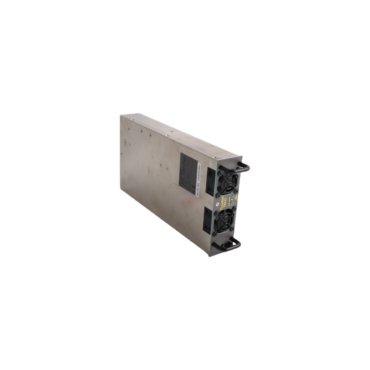

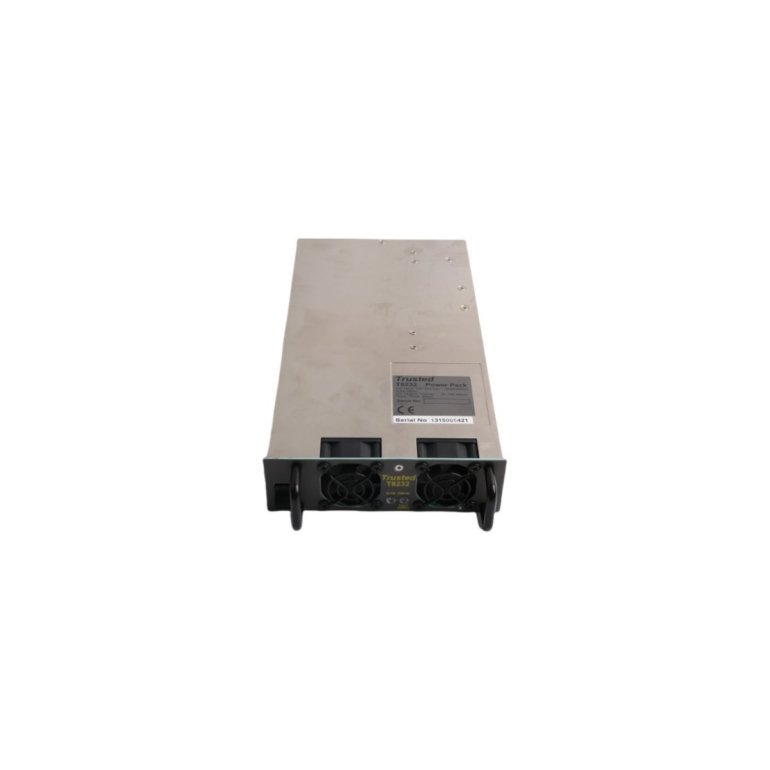

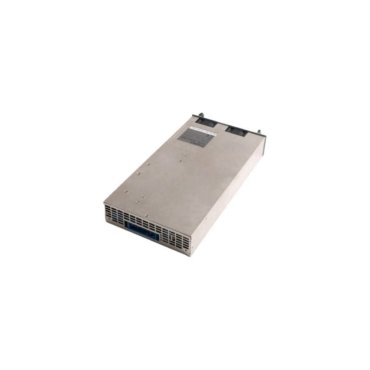

ICS Triplex T8232 Power Pack Module

The ICS Triplex T8232 is a Trusted® power supply module engineered specifically for the Regent Triple Modular Redundant (TMR) control platform. It converts primary input power into regulated secondary voltages required by CPU, I/O, and backplane circuits within the chassis.

Unlike standard industrial power supplies, the T8232 operates as part of a synchronized, voting-based power architecture. Multiple T8232 modules can be installed in parallel to provide N+1 redundancy. If one unit fails, the system continues uninterrupted while alerting operators via diagnostic channels.

Each module features isolated outputs, over-current protection, and real-time health monitoring. Status LEDs and backplane communication enable immediate fault identification without external tools.

Key Technical Characteristics

• Primary Input: 24 VDC nominal (operating range: 18–32 VDC)
• Secondary Outputs:
  • +5 VDC @ up to 10 A (for logic/backplane)
  • +24 VDC @ up to 2 A (for I/O and peripherals)
• Redundancy Support: Parallel operation with current sharing
• Hot-Swappable: Yes—no system shutdown required for replacement
• Efficiency: >85% at typical load
• Protections: Over-voltage, over-current, short-circuit, thermal shutdown
• Diagnostics: Built-in voltage monitoring and fanless design
• Compliance: Designed for IEC 61508 SIL 3 applications
• Cooling: Convection-cooled; no internal fans
