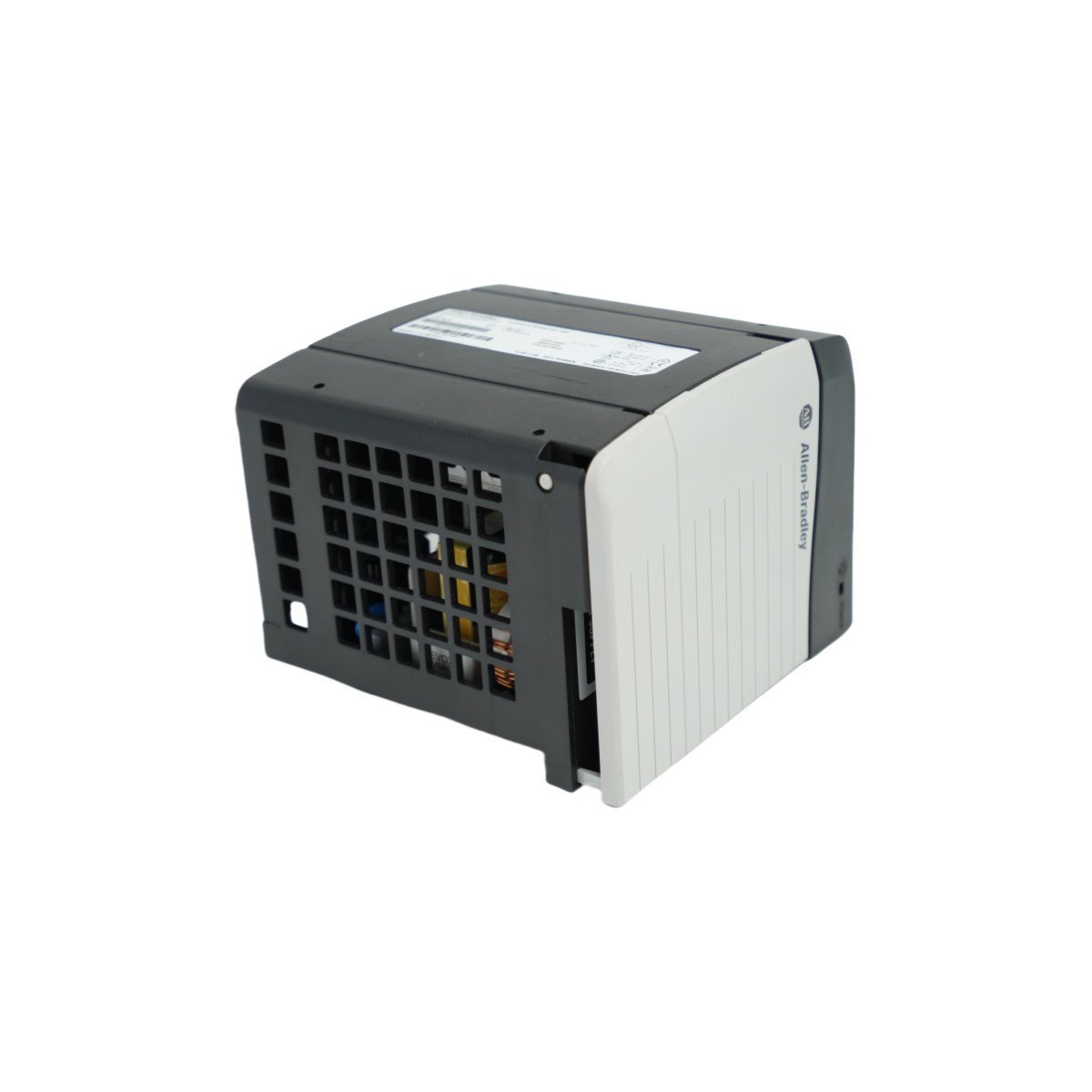

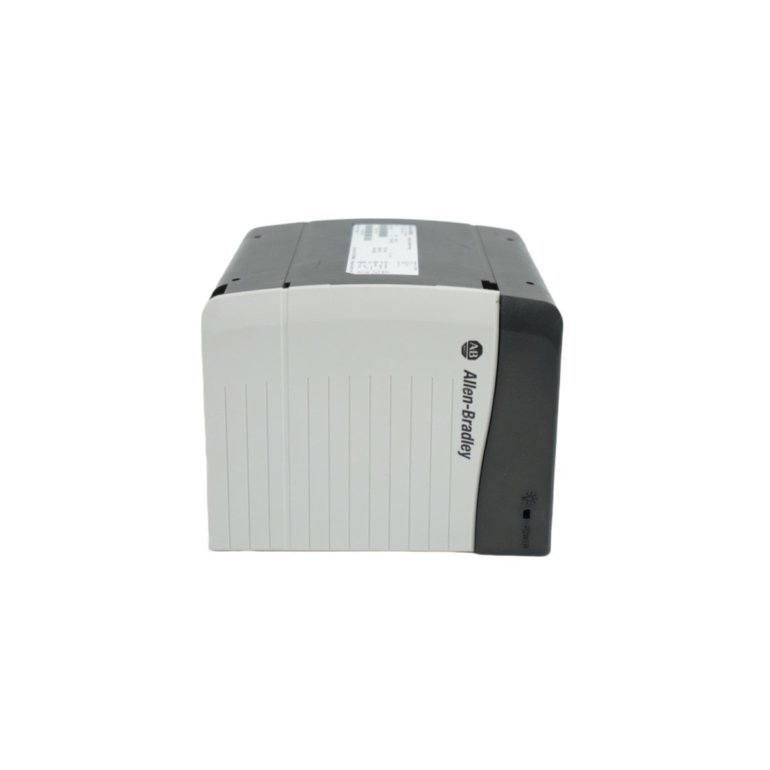

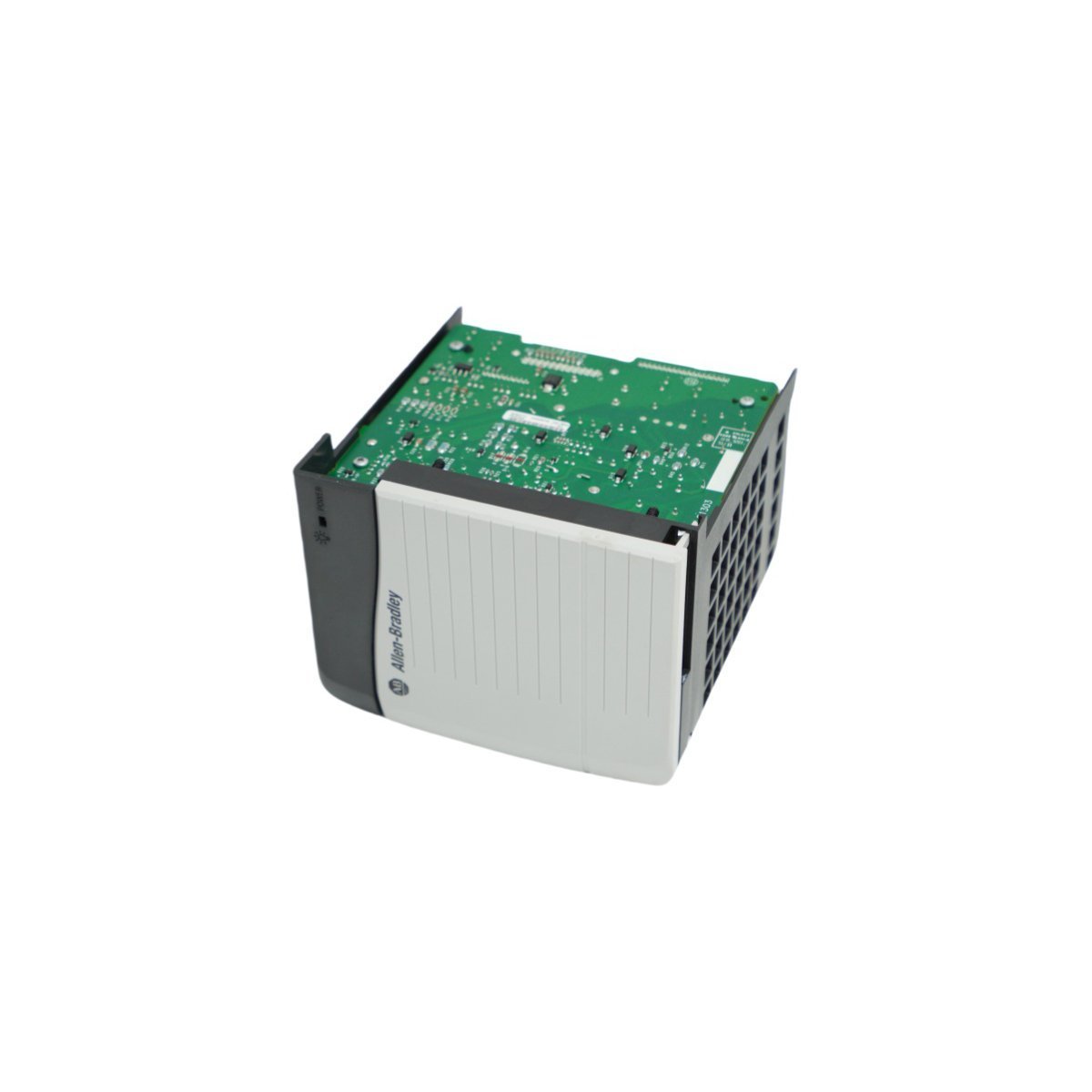

Allen Bradley 1756-PBR2 Redundant Power Supply

The Allen Bradley 1756-PBR2 provides high-availability power for ControlLogix chassis environments. This module specifically supports redundant configurations to prevent system failure during power loss. It supplies regulated 24V DC power directly to the backplane for controllers and I/O modules. Industries such as pharmaceuticals and energy production rely on this hardware for continuous uptime. Furthermore, the unit manages seamless transitions between primary and secondary power sources. This capability eliminates the risk of costly process interruptions in automated facilities.

Technical Specifications

System Reliability and Automatic Failover

The 1756-PBR2 features an intelligent failover mechanism for mission-critical automation. This module pairs with a second power supply and a redundancy adapter. Together, they create a fault-tolerant energy system for the PLC chassis. If one unit fails, the other assumes the full load instantly. Consequently, the ControlLogix CPU maintains its operational state without rebooting. This setup provides peace of mind for high-stakes manufacturing and safety-critical tasks.

Advanced Diagnostics and Load Management

Integrated monitoring circuits track the health of the power distribution in real-time. The 1756-PBR2 utilizes LED indicators to show current status and fault conditions clearly. Additionally, the hardware balances the electrical load across the backplane to prevent overheating. This balanced distribution extends the lifespan of sensitive electronic components within the rack. The compact design also maximizes available space inside the control cabinet. Engineers can therefore pack more functionality into a smaller footprint.

Hot-Swappable Maintenance and Durability

The modular architecture allows for hot-swapping under full system power. Maintenance teams can replace a faulty unit without stopping the industrial process. This feature significantly reduces mean time to repair (MTTR) for the facility. Furthermore, the 1756-PBR2 withstands high-vibration and extreme temperature environments effectively. Its rugged construction meets stringent industrial standards for reliability and longevity. Therefore, the power supply remains a cornerstone of robust plant-wide automation strategies.
