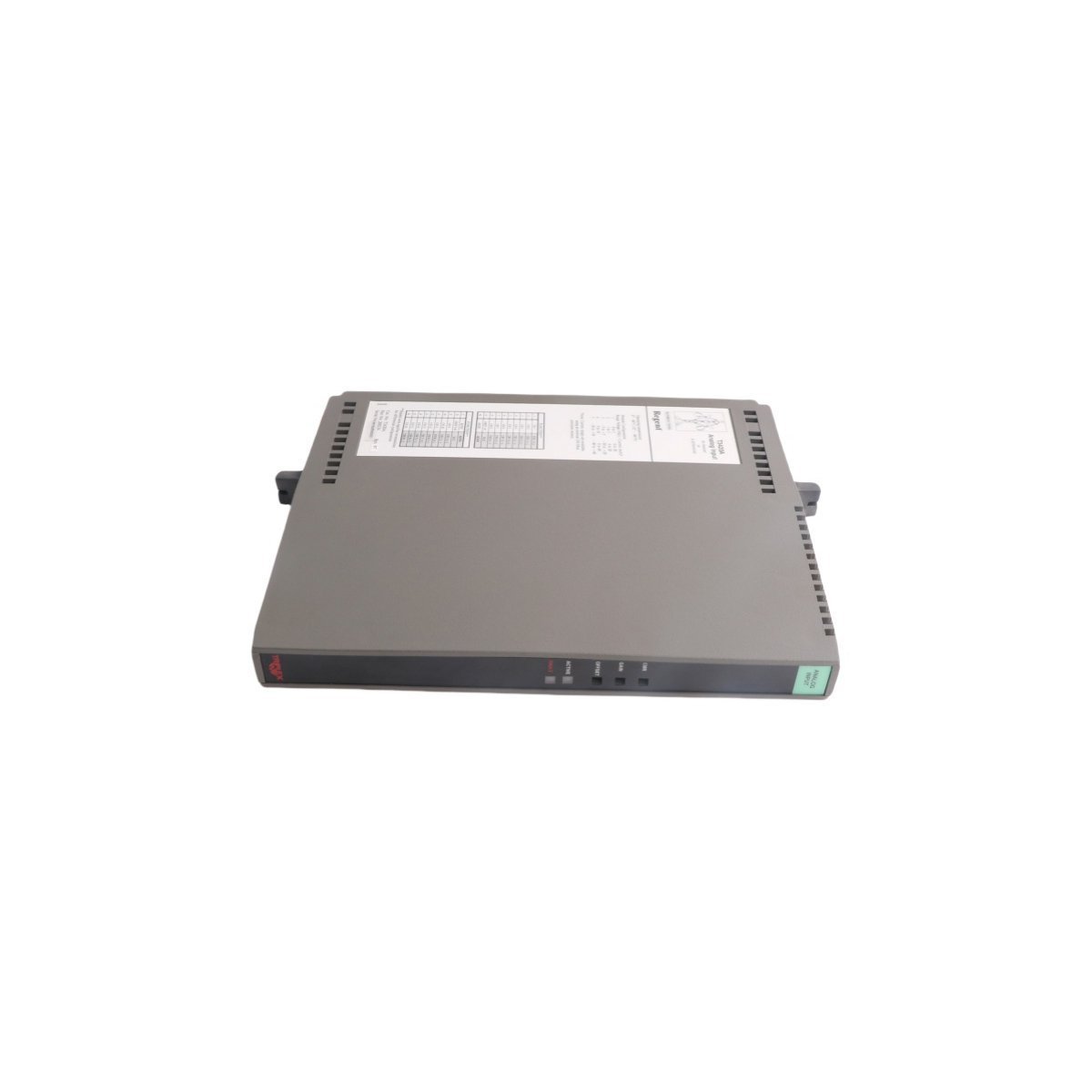

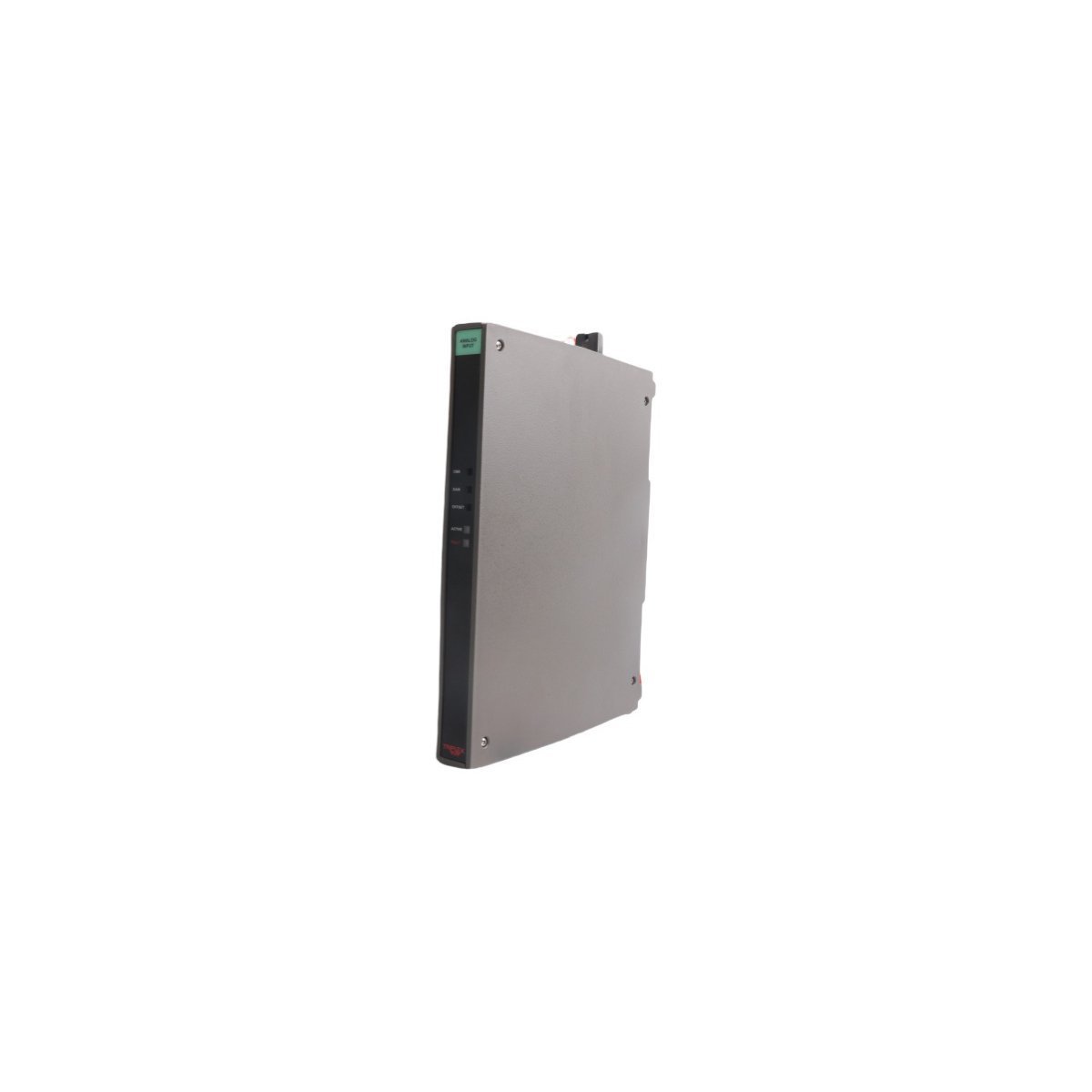

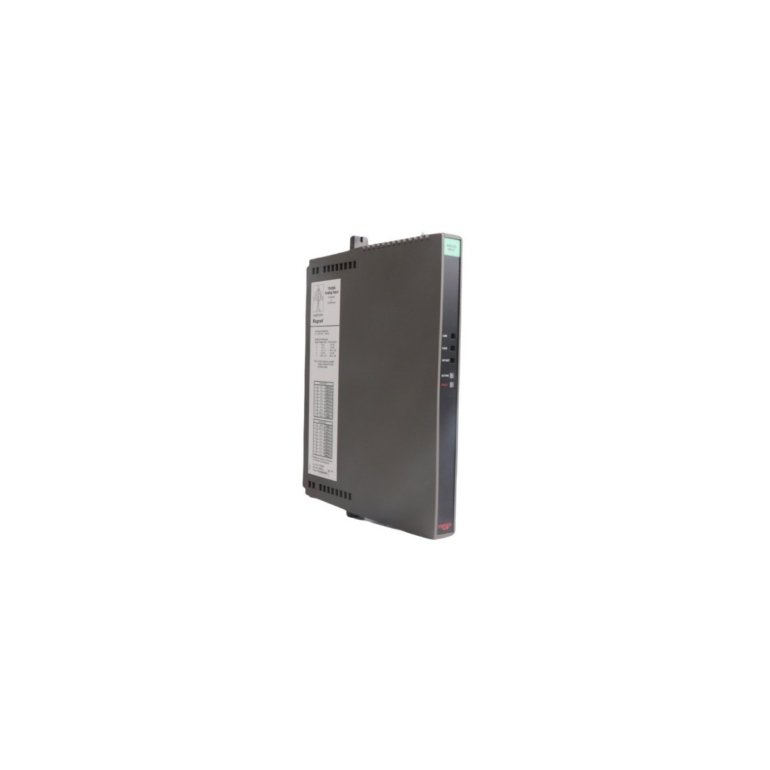

ICS Triplex T3420A Analog Input Module

The T3420A functions as a high-precision interface for analog signals within the ICS Regent control system. This module accurately converts continuous voltage or current signals from field sensors into digital data. Because industrial processes require extreme stability, the T3420A incorporates robust shielding to minimize electrical noise interference. It ensures that the central processor receives clean and reliable information from the field. Consequently, this unit serves as a vital link for monitoring critical process variables in real-time.

Performance and Communication Features

The module utilizes a high-resolution analog-to-digital converter to deliver rapid and precise data acquisition. Furthermore, the T3420A supports the widely used MODBUS RTU communication protocol for enhanced networking flexibility. This compatibility allows the module to exchange data seamlessly with a variety of third-party industrial devices. Since the hardware accommodates a broad range of sensor types, it offers significant versatility for different applications. Moreover, integrated diagnostic features constantly check the integrity of the input loops to prevent data errors.

Technical Construction and Integration

ICS Triplex builds the T3420A using industrial-grade materials to survive demanding operating environments. Its compact mechanical footprint facilitates easy installation into existing control cabinets without requiring excessive space. Additionally, intuitive software tools simplify the initial setup and calibration process for engineers. This streamlined configuration reduces the time needed for system deployment and periodic maintenance. The module also features heavy-duty internal circuitry to resist thermal stress and mechanical vibrations.

Technical Specifications
