IC220PBI002 GE PACSystems RX3i DP Network Interface Modules

GE IC220PBI002 DP Network Interface Module

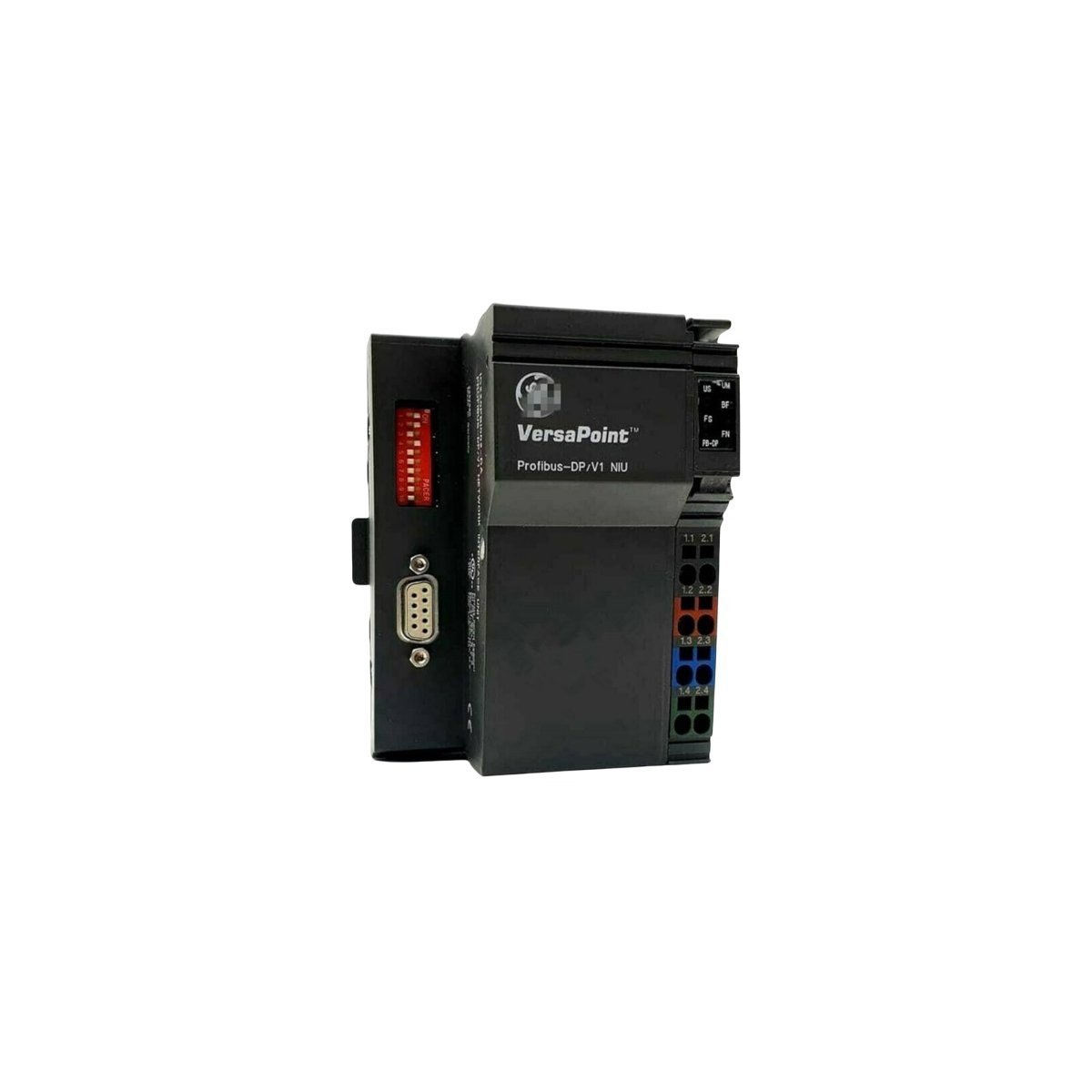

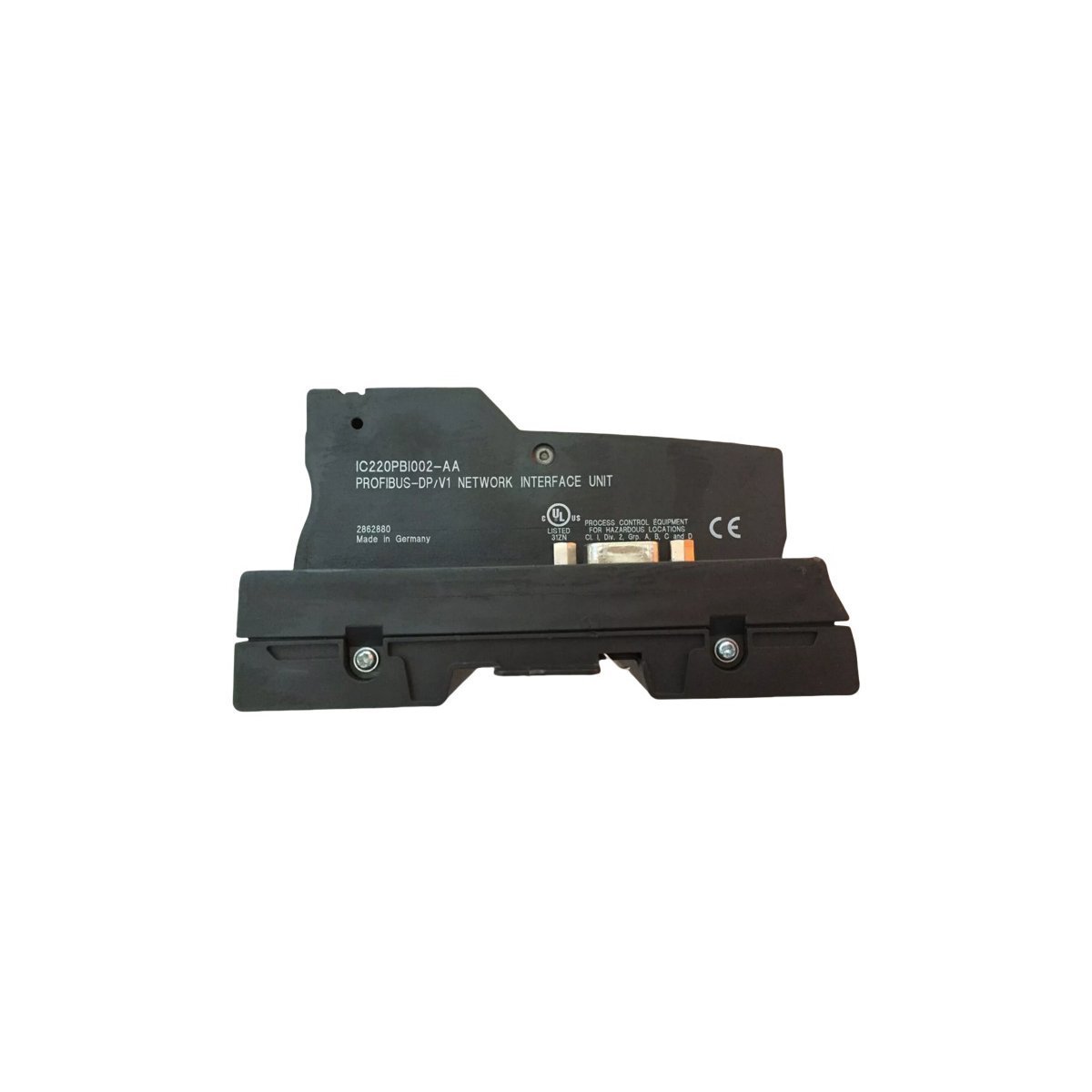

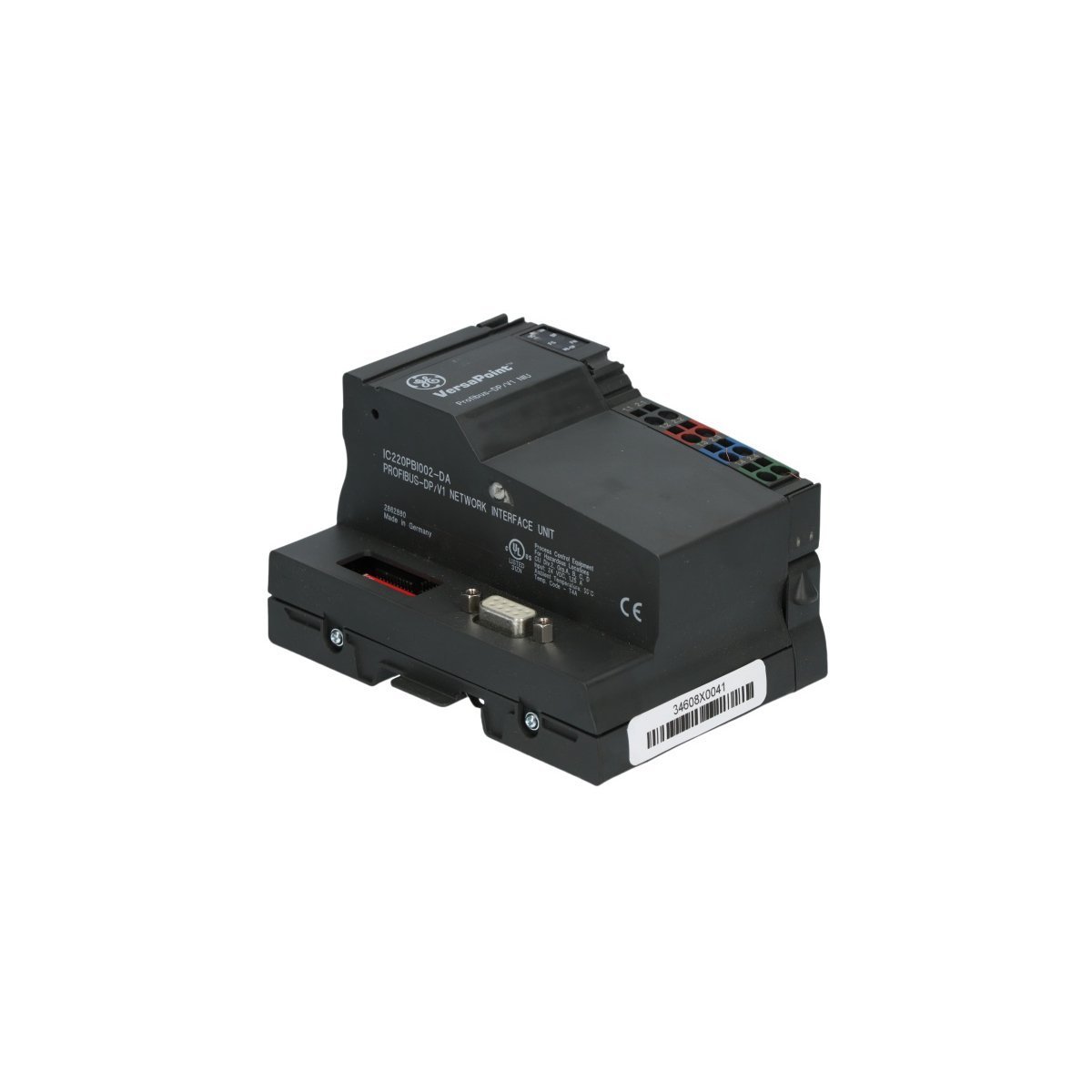

Configured for PROFIBUS-DP network integration within PACSystems RX3i platforms, the GE IC220PBI002 (IC220PBI002 DP Network Interface Module) provides direct electrical execution of fieldbus data exchange.

Hardware Specifications

Industrial Control and Network Determinism

The IC220PBI002 operates as a slave node within the PROFIBUS-DP ecosystem, managing high-speed backplane bus communication velocity to ensure deterministic I/O data alignment. The module architecture facilitates transparent acyclic communication for specialized serial modules and enforces strict I/O density scaling across the VersaPoint expansion chain. The interface unit automatically adapts its timing parameters to the master clock frequency, ensuring synchronization without requiring manual firmware flash compatibility adjustments.

Frequently Asked Questions (FAQ)

Q: Does the IC220PBI002 module support firmware updates via the PROFIBUS network?

A: No, the module hardware does not support field firmware upgrades. The internal logic remains fixed as manufactured.

Q: How is the Station ID assigned when replacing an existing unit?

A: You must set the Station ID using the physical DIP switches located on the module housing. When performing a direct replacement for an existing unit, ensure DIP switch 8 is set to ON to maintain backward compatibility with legacy configuration profiles.

Q: Can this module operate without an external terminal strip?

A: No, the IC220PBI002 requires the IC220TBK087 terminal strip to establish physical field-side connections for both power distribution and I/O signals.

Field Installation Guidelines

1. Mounting Integrity: Attach the module firmly to the DIN-rail. Ensure the locking mechanism engages completely to prevent loosening caused by industrial vibration.
2. Terminal Strip Assembly: Align the IC220TBK087 terminal strip correctly with the module base. Apply consistent pressure until the connection clicks into place to secure the 10 connection points.
3. Power Distribution: Supply the module with 24 VDC (19.2-30 VDC range). Ensure that the total current draw for the Local Bus does not exceed the 500 mA limit to avoid logic voltage drops.
4. Shielding and Grounding: Connect the PROFIBUS cable shield to a low-impedance earth bus at the entry point of the control cabinet. Keep high-frequency communication lines physically separated from 230/400 VAC power cables to mitigate electromagnetic interference.
