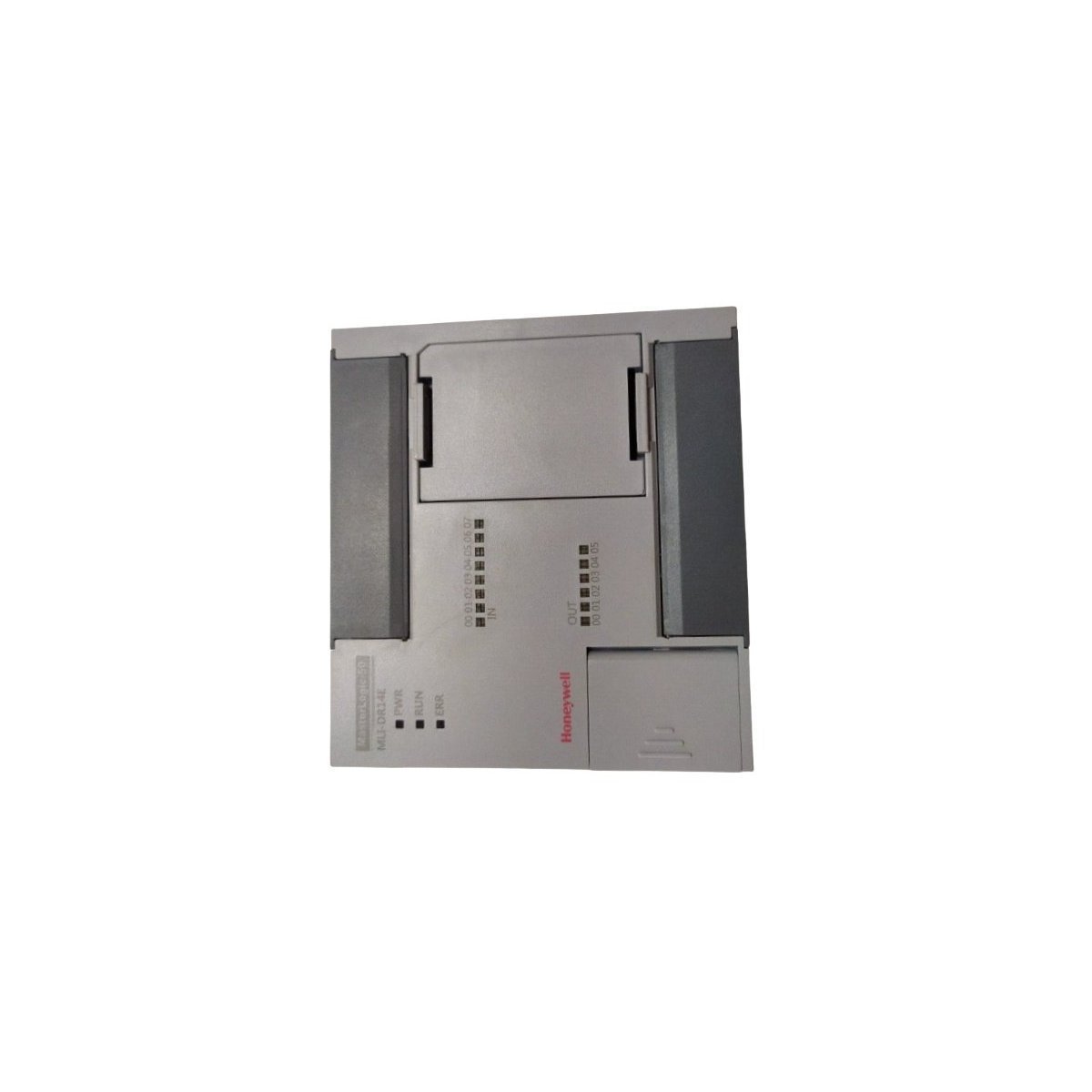

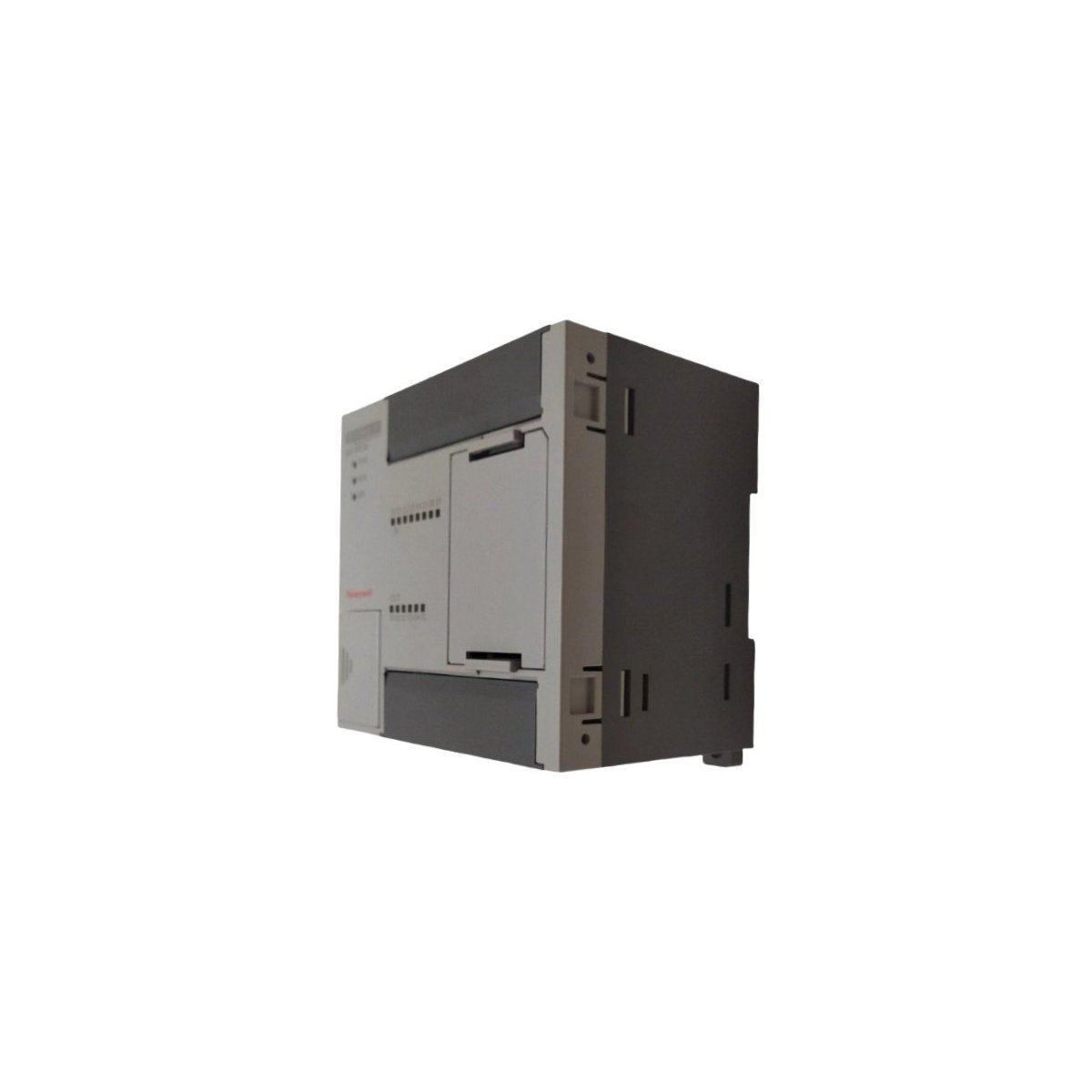

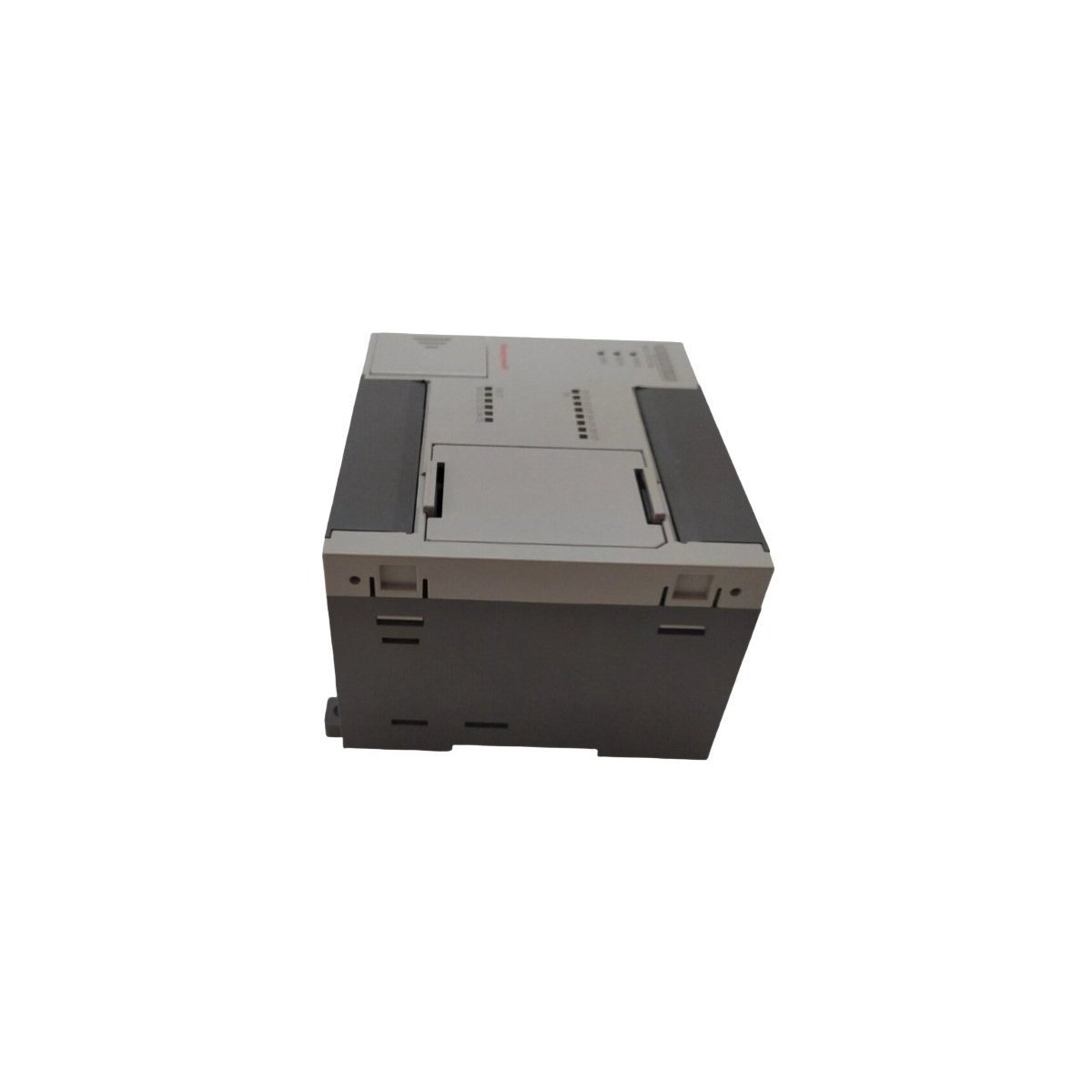

Honeywell MLI-DP10E TR Digital Output Module

The Honeywell MLI-DP10E provides discrete control signaling within the ML50 series automation framework. This transistor (TR) output module manages binary switching tasks for industrial actuators and indicators. It utilizes a source-type configuration with an open collector architecture to interface with external loads. Consequently, the module serves as a reliable execution layer for logic commands within a Distributed Control System.

Signal Control and Safety Standards

This digital output unit features four high-integrity points designed for continuous industrial operation. Each channel incorporates silver alloy contacts to maintain low resistance over millions of switching cycles. Furthermore, the hardware provides 1500V AC isolation between individual channels to prevent electrical surge propagation. This protective barrier ensures that field-side disturbances do not damage sensitive internal control electronics.

Design and Load Compatibility

The MLI-DP10E handles a variety of electrical loads including solenoids, relays, and pilot lights. It supports a maximum contact rating of 2A at 30V DC for heavy-duty switching requirements. Additionally, the compact physical dimensions allow for high-density installation in standard control cabinets. This space-saving design facilitates complex system expansion without requiring additional enclosure upgrades.

Industrial Resilience and Deployment

Engineered for durability, the module operates effectively in high-vibration and electrically noisy plant environments. The rugged construction minimizes the risk of signal chatter or contact failure. Therefore, plant engineers can rely on the MLI-DP10E for critical interlocking and status signaling. This commitment to quality ensures long-term operational stability and reduced maintenance costs for modern automated facilities.

Technical Specifications
