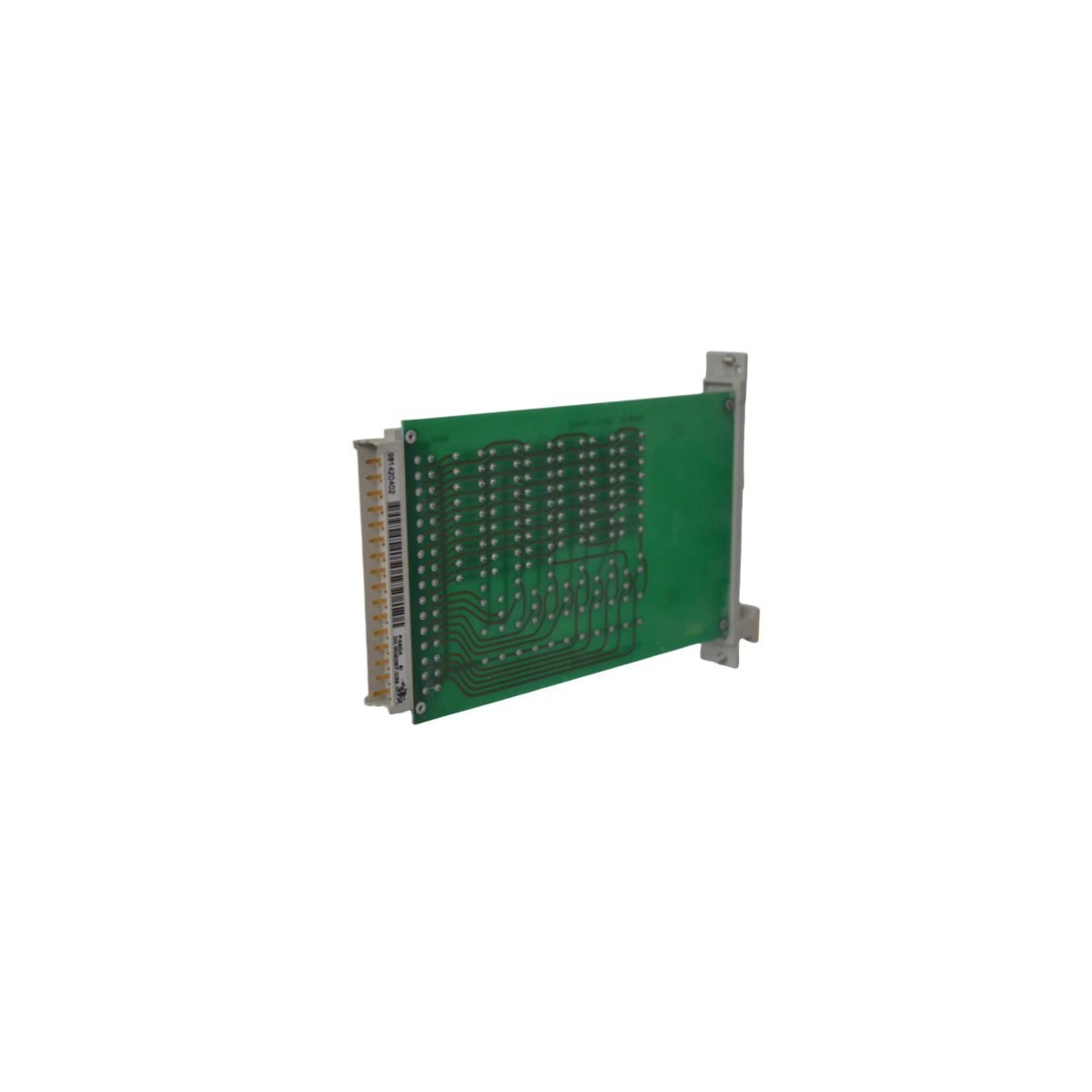

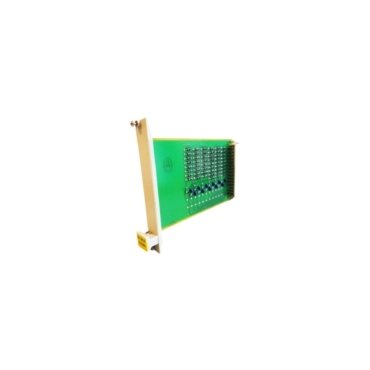

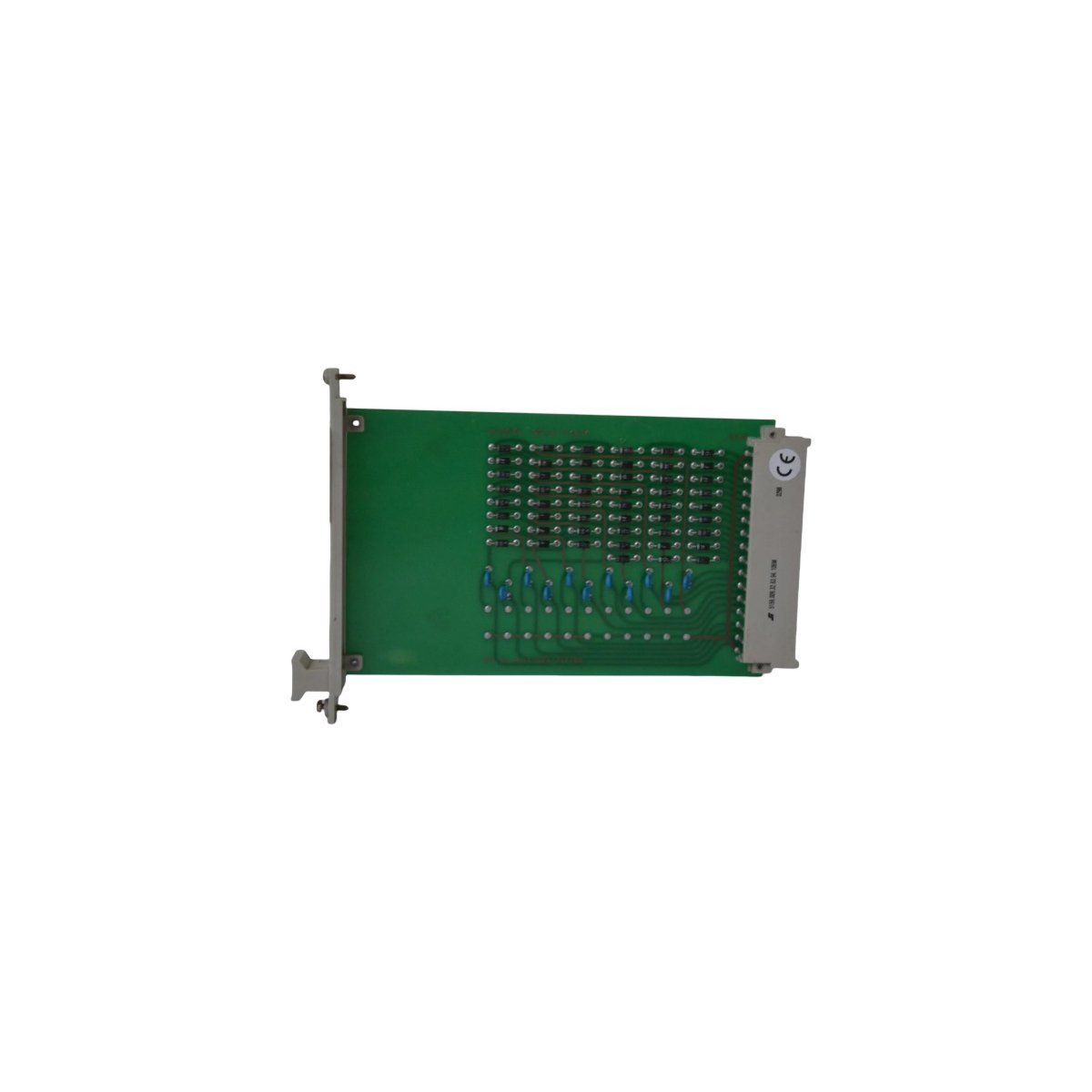

HIMA F4204 Safety-related Digital Utputs

The HIMA F4204 serves as a high-integrity digital output interface for H41q and H51q safety systems. This module provides sixteen safe channels to control critical field actuators and diagnostic devices. It effectively executes safety logic commands from the central processor to maintain plant security. By using advanced circuit monitoring, the F4204 ensures precise switching in emergency shutdown scenarios. This hardware integration supports complex automation tasks within safety-instrumented systems (SIS). Consequently, it enhances the overall reliability of distributed control architectures.

Electrical Performance and Channel Density

This industrial output module operates on a standard 24V DC power supply for broad compatibility. Each of the sixteen channels delivers a 1A current capacity to drive industrial loads. This high channel density allows engineers to maximize cabinet space without compromising safety performance. Furthermore, the module incorporates short-circuit protection and over-current monitoring for every output. These internal safeguards prevent field-side faults from damaging the primary control hardware. Such robust electrical design guarantees stable operation during continuous heavy-duty industrial cycles.

Environmental Resilience and Mechanical Design

The F4204 features a rugged IP20-rated enclosure to protect against dust and mechanical contact. It functions reliably across an expanded temperature range from -25°C to +70°C. This thermal flexibility allows for deployment in diverse geographical locations and unconditioned environments. Moreover, the 0.4kg lightweight construction minimizes the total weight load on the system rack. The compact dimensions ensure easy fitting into standard HIMA subracks for fast hardware expansion. These mechanical characteristics reflect superior German engineering standards for mission-critical industrial components.

Technical Specifications

Industry-Specific Utility

Safety professionals utilize the F4204 in sectors requiring SIL-certified output management. It performs flawlessly in emergency shutdown loops within petrochemical refineries. Power generation facilities rely on this module for reliable control of safety-critical interlocks. Additionally, it provides the necessary digital switching for burner management and fire protection systems. Its fail-safe architecture meets the most demanding global standards for industrial process safety.
