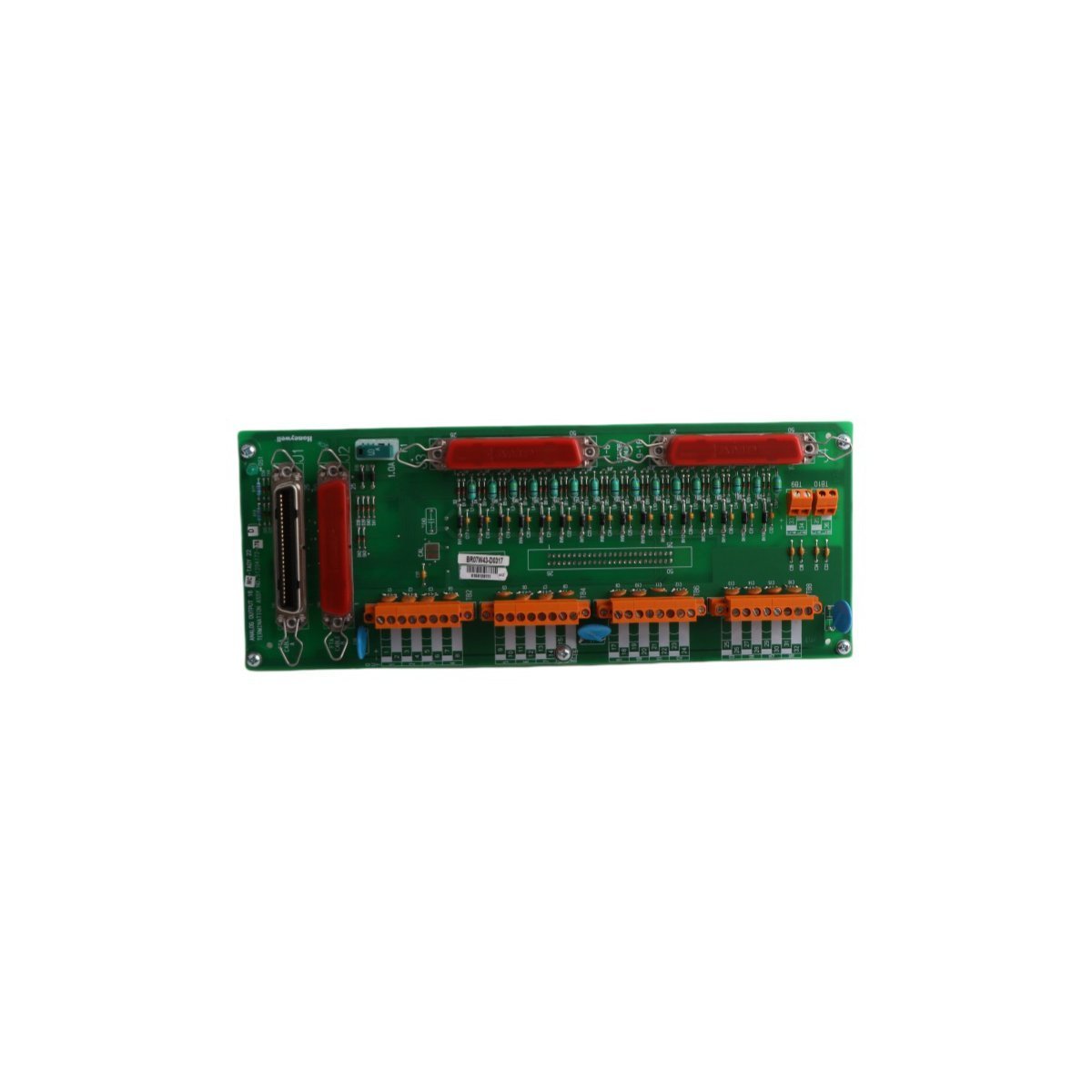

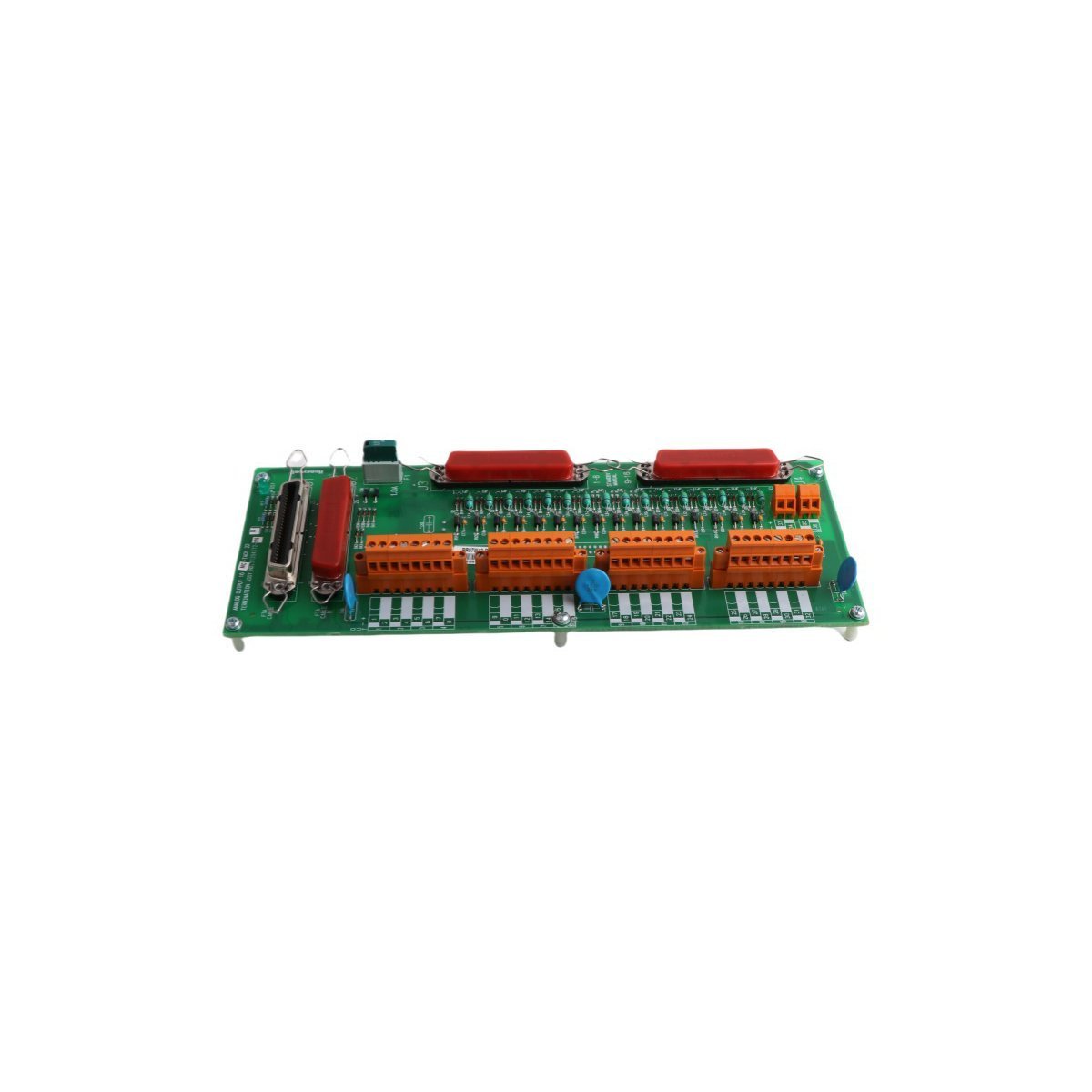

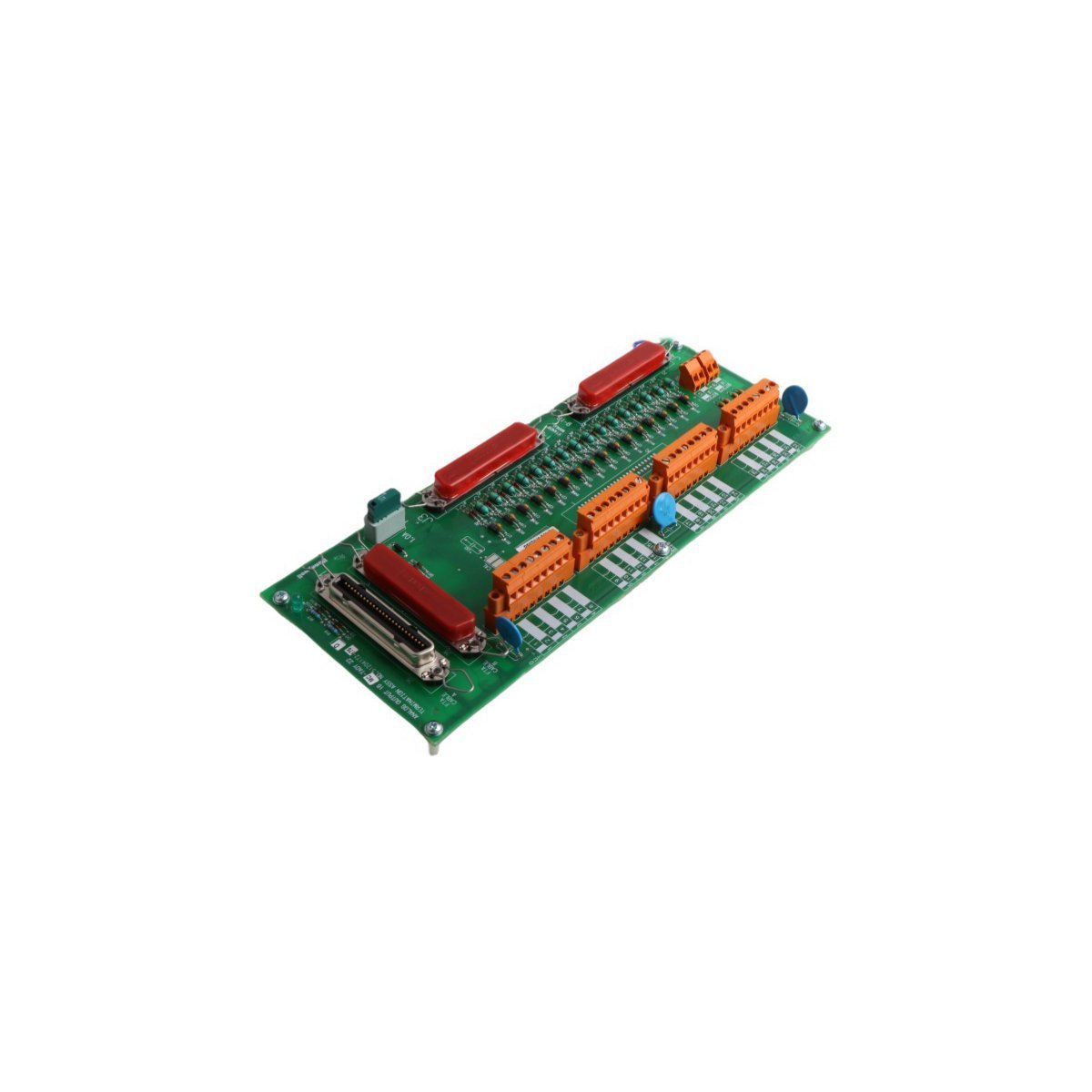

The Honeywell MC-TAOY22 serves as a high-density Field Termination Assembly (FTA) for modern industrial control systems. This module primarily facilitates the connection between the controller and various field actuators. It supports up to 16 independent analog output channels for comprehensive process management. Consequently, the unit allows for precise modulation of control valves and motor drives. It functions seamlessly within the Universal Control Network (UCN) architecture. This ensures high-speed data transmission and minimal signal latency across the facility.
Enhanced Signal Integrity and Protection
Honeywell engineers this FTA to maintain superior signal purity in electrically noisy environments. The MC-TAOY22 51204172-175 provides a secure termination point for field wiring. It effectively isolates sensitive control electronics from external electrical surges. Furthermore, the module features robust grounding points to prevent common-mode interference. This protection extends the life of both the controller and connected field devices. Reliability remains high even during significant temperature fluctuations or heavy vibrations.
Comprehensive Technical Specifications
The following list outlines the essential physical and operational characteristics of the MC-TAOY22 module.
- Model Reference: MC-TAOY22
- Order Number: 51204172-175
- Output Capacity: 16 Independent Analog Channels
- Operating Voltage: 15 to 30 VDC Range
- Physical Weight: 0.4 kg
- Total Dimensions: 30.6 cm x 12 cm x 5 cm
- HS Classification: 8537101190
- Manufacturing Origin: United States
Seamless System Integration and Application
This FTA module simplifies the complex wiring requirements of large-scale Distributed Control Systems (DCS). Its streamlined design allows for quick mounting in standard industrial enclosures. Moreover, the MC-TAOY22 integrates perfectly with existing Experion and legacy UCN hardware. Technicians can perform maintenance and testing without disrupting the entire control loop. This flexibility proves invaluable in sectors like chemical processing and power generation. The hardware ensures consistent performance in critical flow and temperature control applications.
