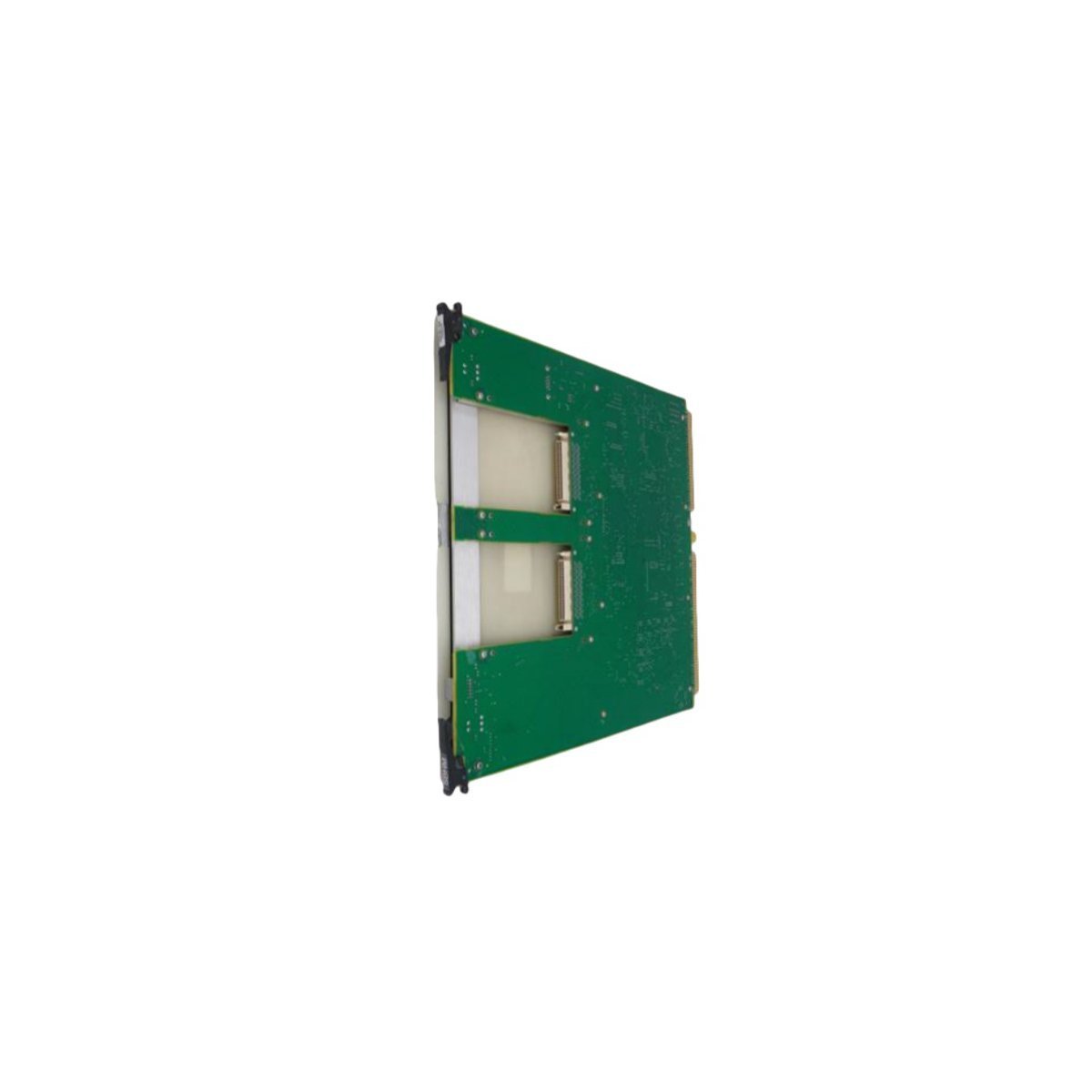

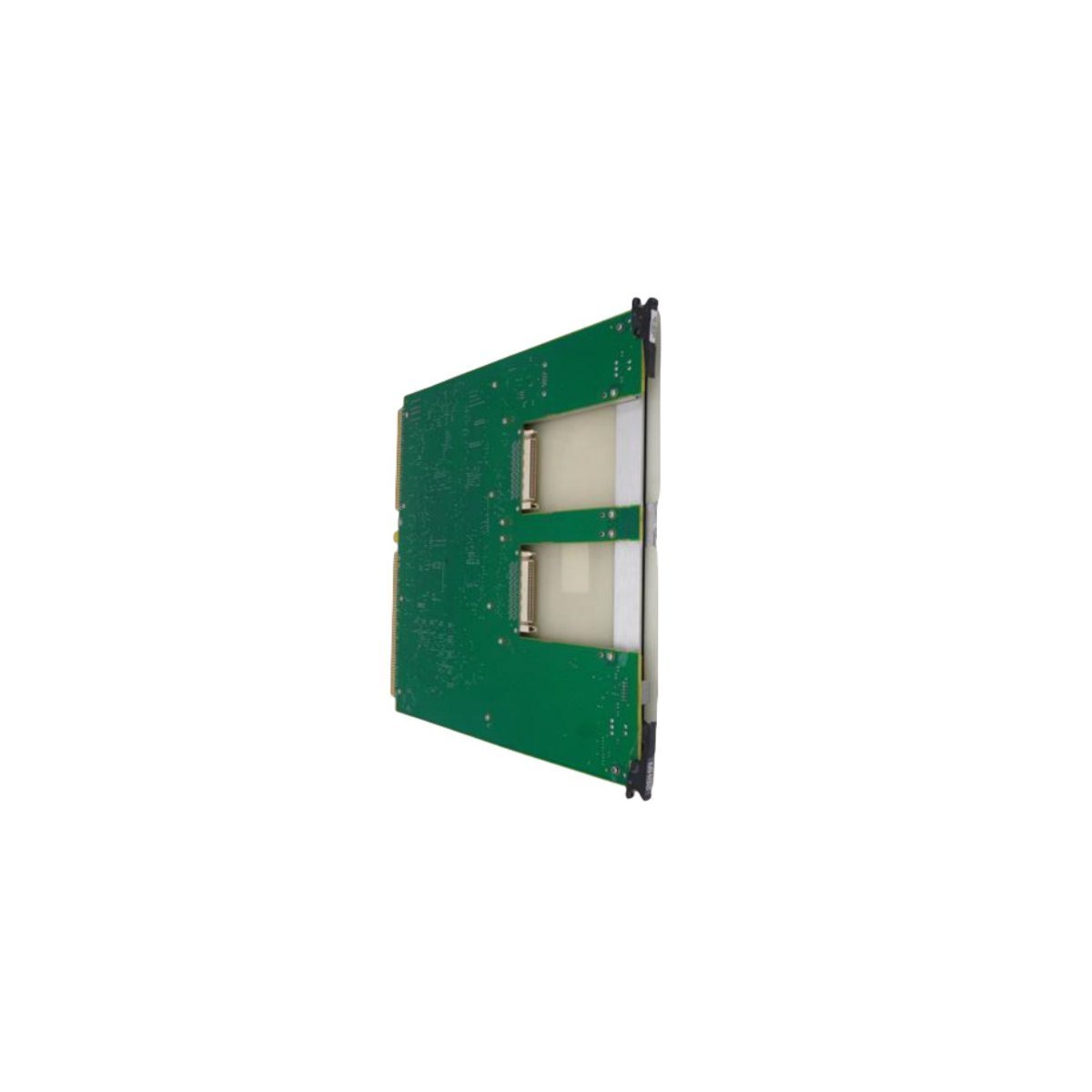

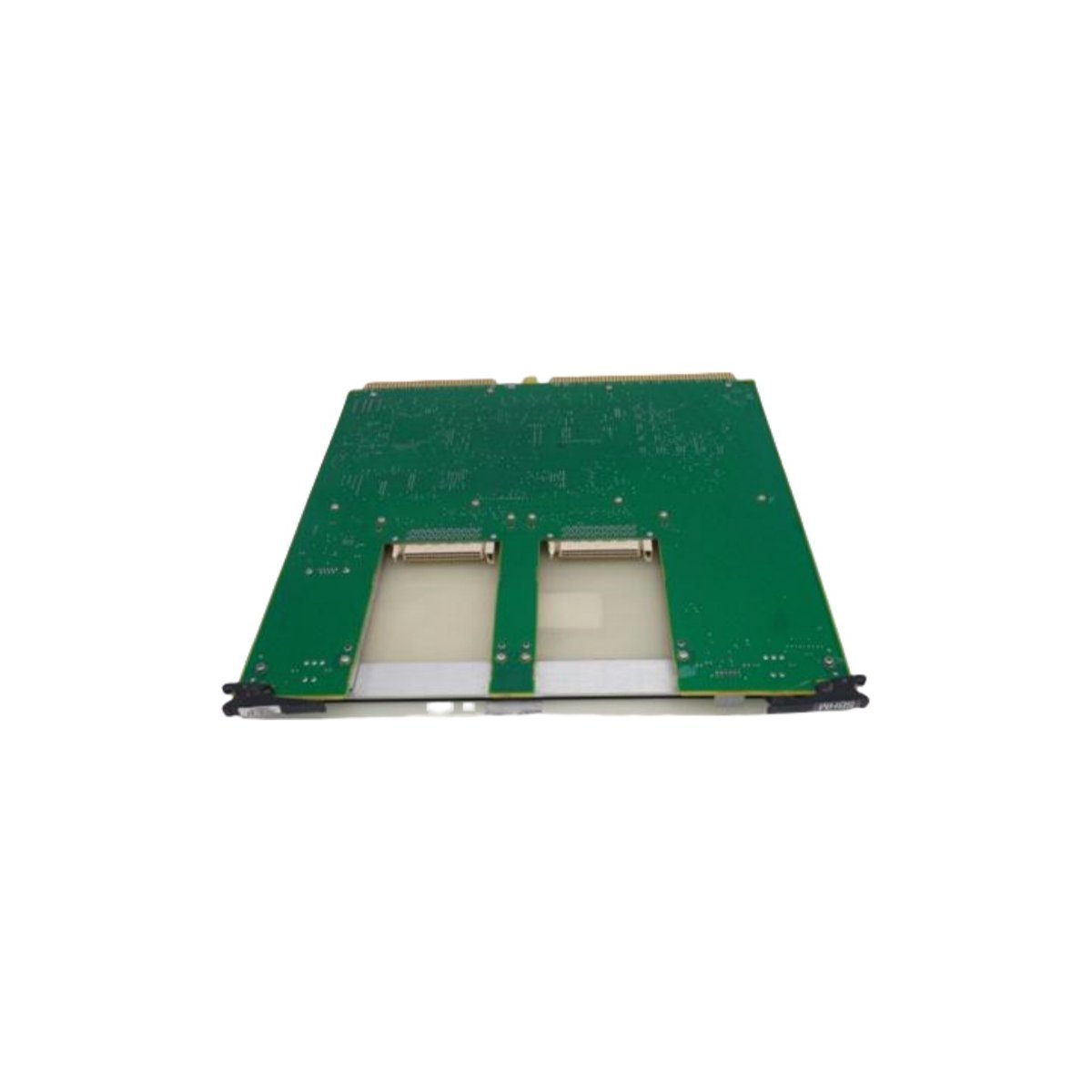

Honeywell High-Performance I/O Link Interface Card 51407190-150

Product Overview

The Honeywell 51407190-150 is a sophisticated communication interface designed for the Experion Process Knowledge System (PKS). This High-Performance I/O Link Card functions as the primary bridge for real-time data transmission, ensuring that process controllers receive instantaneous updates from field instrumentation. By utilizing advanced circuitry, the card maintains a high-bandwidth link that supports the dense I/O configurations required in modern distributed control systems (DCS). Consequently, this hardware provides the deterministic performance necessary for mission-critical automation in the chemical, power, and oil and gas sectors.

Technical Specifications

The 51407190-150 incorporates ruggedized components to ensure longevity in demanding industrial environments:

• Manufacturer: Honeywell
• Model Number: 51407190-150
• Module Type: High-Performance I/O Link Card (HPM)
• System Compatibility: Experion PKS / TDC 3000
• Communication Interface: High-speed I/O Link Bus
• Physical Dimensions: 36.5 x 36.6 x 2.0 cm
• Unit Weight: 0.9 kg
• Hardware Condition: Brand New Original
• HS Code: 8537101190
• Country of Origin: USA

Engineering Advantages

This I/O link card maximizes system availability by providing a highly stable communication path that resists electromagnetic interference. Since industrial facilities often operate under fluctuating thermal conditions, Honeywell engineered this board to maintain consistent signal timing even within a broad temperature range. Furthermore, the 51407190-150 supports redundant configurations, which allows the system to switch communication paths instantly if a fault occurs. This redundancy effectively prevents process interruptions and enhances the overall safety of the automation layer.

The modular design of the 51407190-150 simplifies the expansion of existing Experion PKS clusters. Technicians can integrate additional I/O racks by leveraging the card’s robust bandwidth, which eliminates data bottlenecks. Because the card adheres to strict global safety standards, it remains a preferred choice for engineers managing SIL-rated safety loops and complex control strategies.

Operational Applications

• Interfacing High-Performance Process Managers (HPM) with I/O modules
• Managing real-time data flow in large-scale Experion PKS environments
• Supporting redundant I/O link topologies for critical safety functions
• Modernizing legacy TDC 3000 systems with high-performance hardware upgrades

FAQs

• Does the 51407190-150 support hot-swapping?Yes, when utilized in a properly configured redundant I/O link pair, you can replace this card without de-energizing the system or losing process control.
• Is this card compatible with older Honeywell systems?The 51407190-150 specifically supports the Experion PKS platform but also maintains backward compatibility with certain high-performance process manager (HPM) configurations.
• How does this card handle system diagnostics?The card features onboard diagnostic indicators that report link status and hardware health directly to the Experion system console for immediate troubleshooting.
