Product Overview

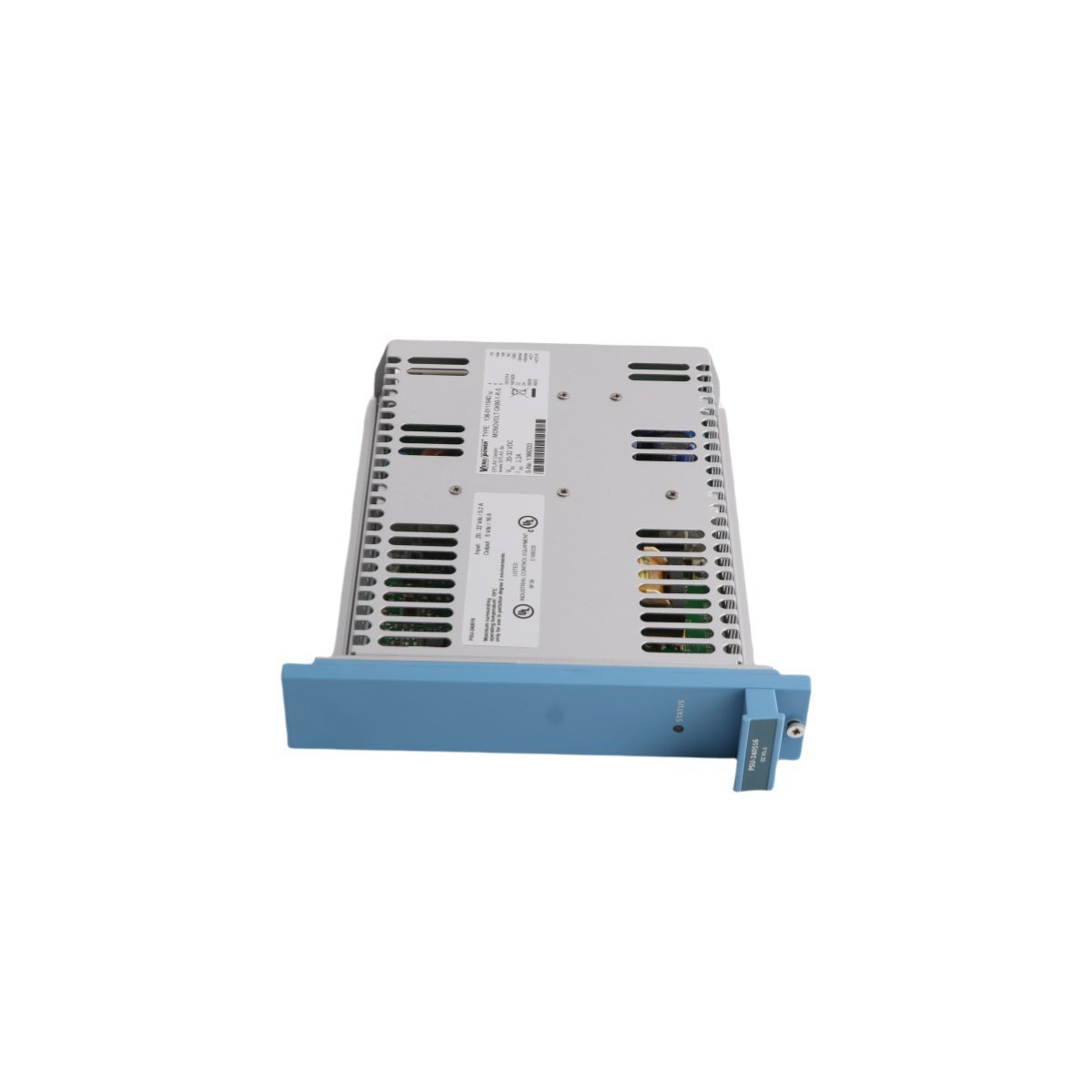

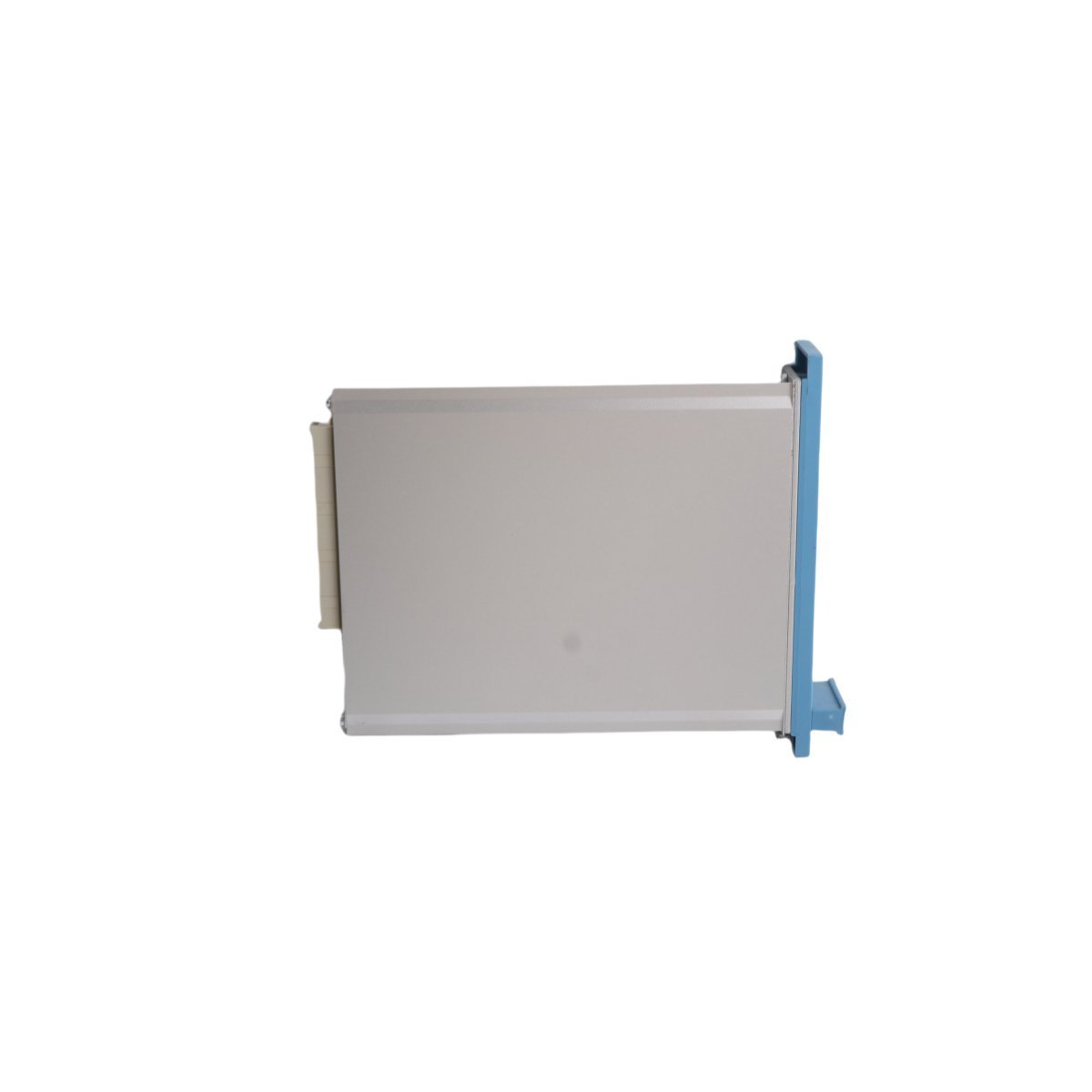

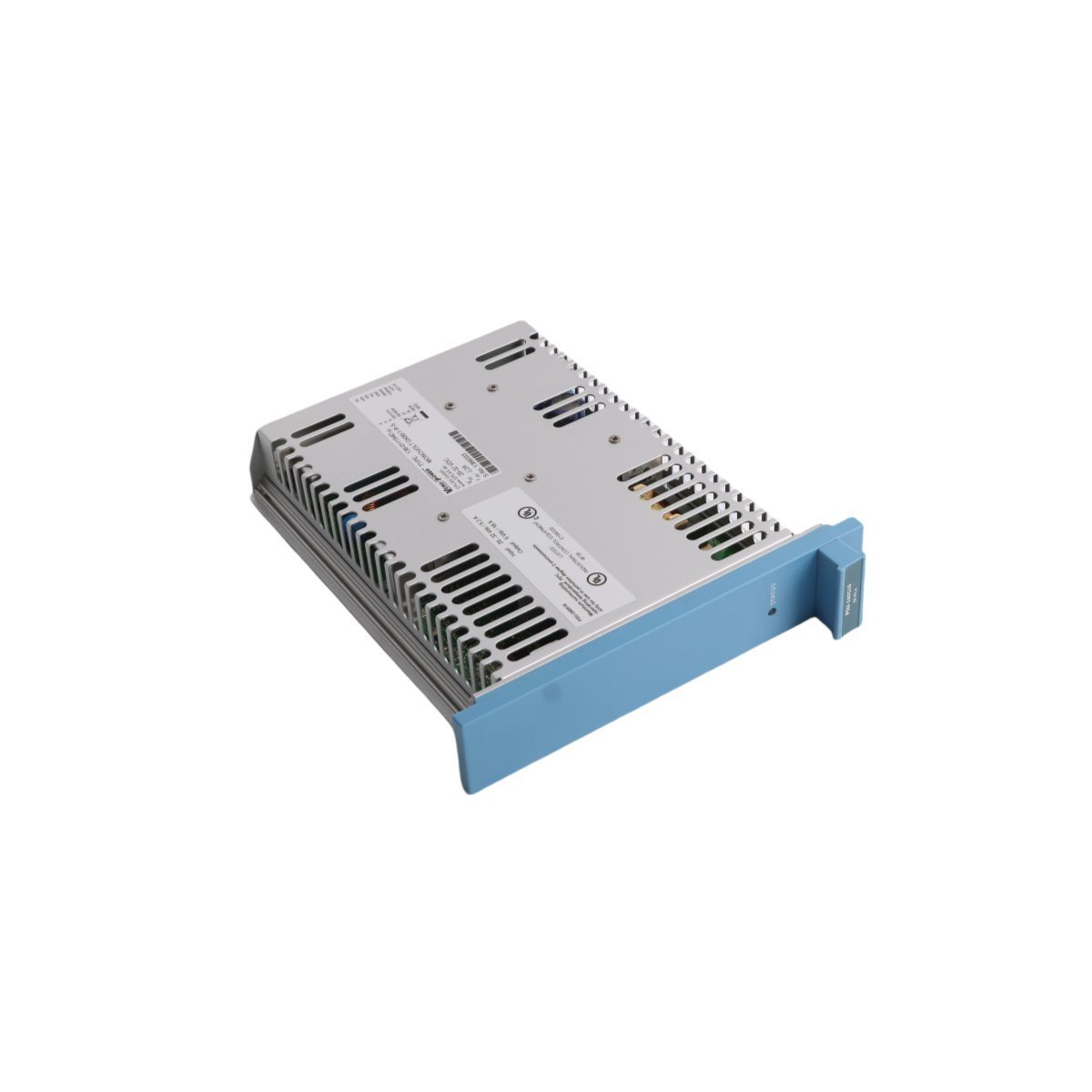

The Honeywell FC-PSU-240516 V1.0 operates as a high-efficiency power distribution component within the Honeywell Safety Manager and DCS ecosystems. This power unit converts primary source energy into stabilized 24/5 V DC rails, delivering a substantial 16A current capacity to drive processor packs, I/O modules, and field-side instrumentation. Because industrial environments demand constant uptime, this module incorporates advanced regulation circuitry that shields sensitive electronic components from voltage fluctuations and electrical noise.
Technical Specifications
The FC-PSU-240516 V1.0 features a compact footprint optimized for high-density cabinet mounting:
- Manufacturer: Honeywell
- Model Designation: FC-PSU-240516 V1.0
- Equipment Category: Power Supply Unit (PSU)
- Output Voltage: Dual 24/5 V DC Regulated
- Current Rating: 16 Amperes
- System Application: Safety Manager / Distributed Control Systems (DCS)
- Dimensions: 2.2 x 12.4 x 12.6 cm
- Unit Weight: 0.1 kg
- Country of Origin: USA
- HS Code: 8537101190
Engineering Advantages
This power module maximizes system reliability by maintaining tight voltage tolerances even under varying load conditions. Since the FC-PSU-240516 V1.0 utilizes high-grade solid-state components, it achieves superior thermal management without the need for excessive external cooling. Furthermore, the 16A output provides ample headroom for fully populated I/O racks, effectively preventing power-related brownouts in critical safety loops.
Transitioning to this specific power unit simplifies maintenance routines due to its user-friendly interface and rapid-mount design. Honeywell engineered this module to comply with rigorous global safety standards, ensuring that it operates as a fail-safe energy source for Emergency Shutdown (ESD) and Fire and Gas (F&G) applications. Consequently, this power unit reduces the total cost of ownership by extending the service life of the connected control hardware.
Operational Applications
- Powering Safety Manager processor racks and I/O clusters
- Supporting high-current field instrumentation loops
- Emergency Shutdown (ESD) system energy distribution
- Providing regulated power for Fire and Gas (F&G) monitoring nodes
FAQs
- What systems are compatible with the FC-PSU-240516 V1.0?The module integrates perfectly with Honeywell Safety Manager platforms and various DCS rack configurations requiring 24/5 V DC.
- Does this unit support redundant configurations?Yes, you can install multiple FC-PSU-240516 units in a parallel redundant setup to ensure zero power interruption during a single-module failure.
- Is this power unit currently active?The FC-PSU-240516 V1.0 remains an active product in Honeywell’s current safety system portfolio and is readily available for new installations or site expansions.
