Honeywell FE-USI-0002 V1.0 Safety Manager Module Experion PKS DCS

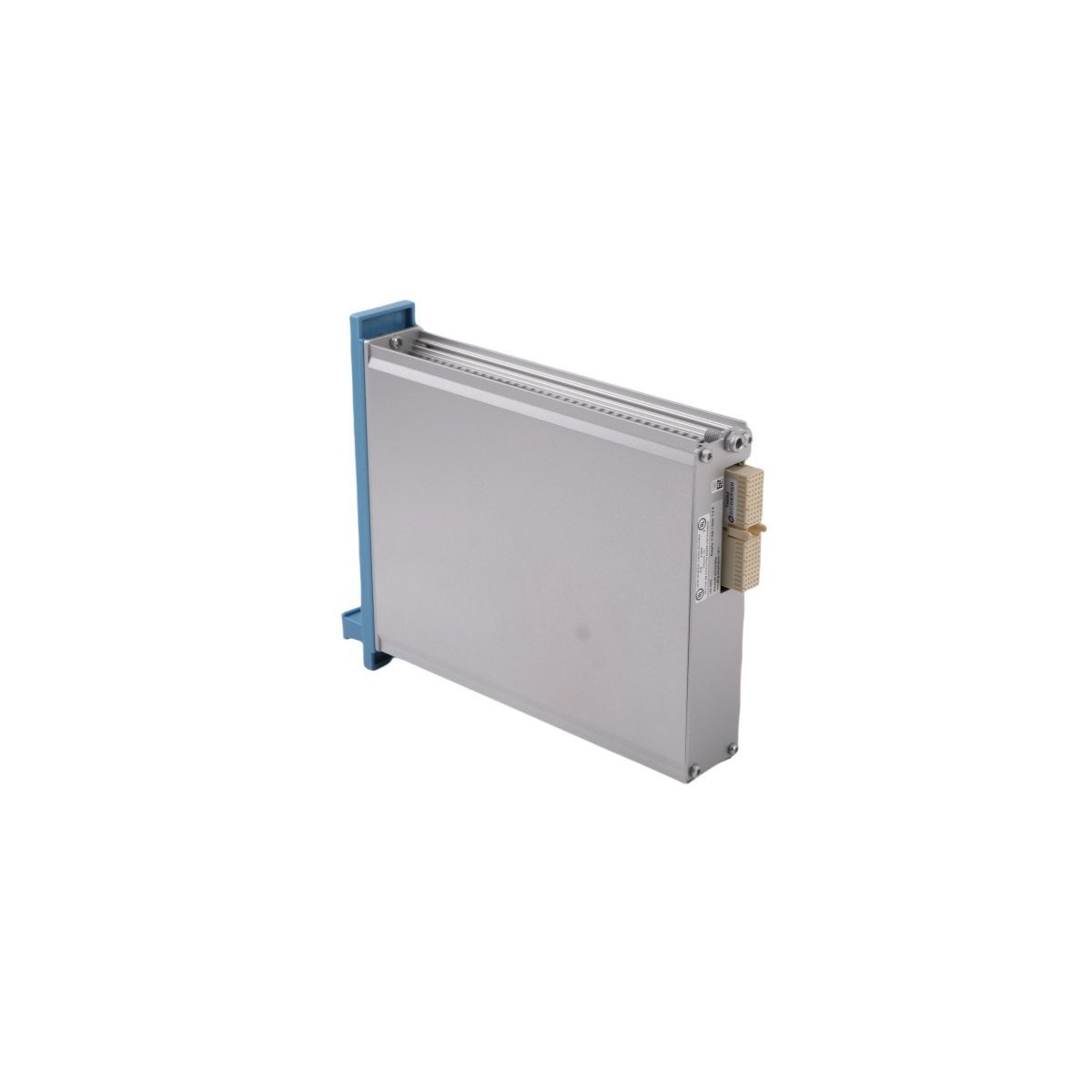

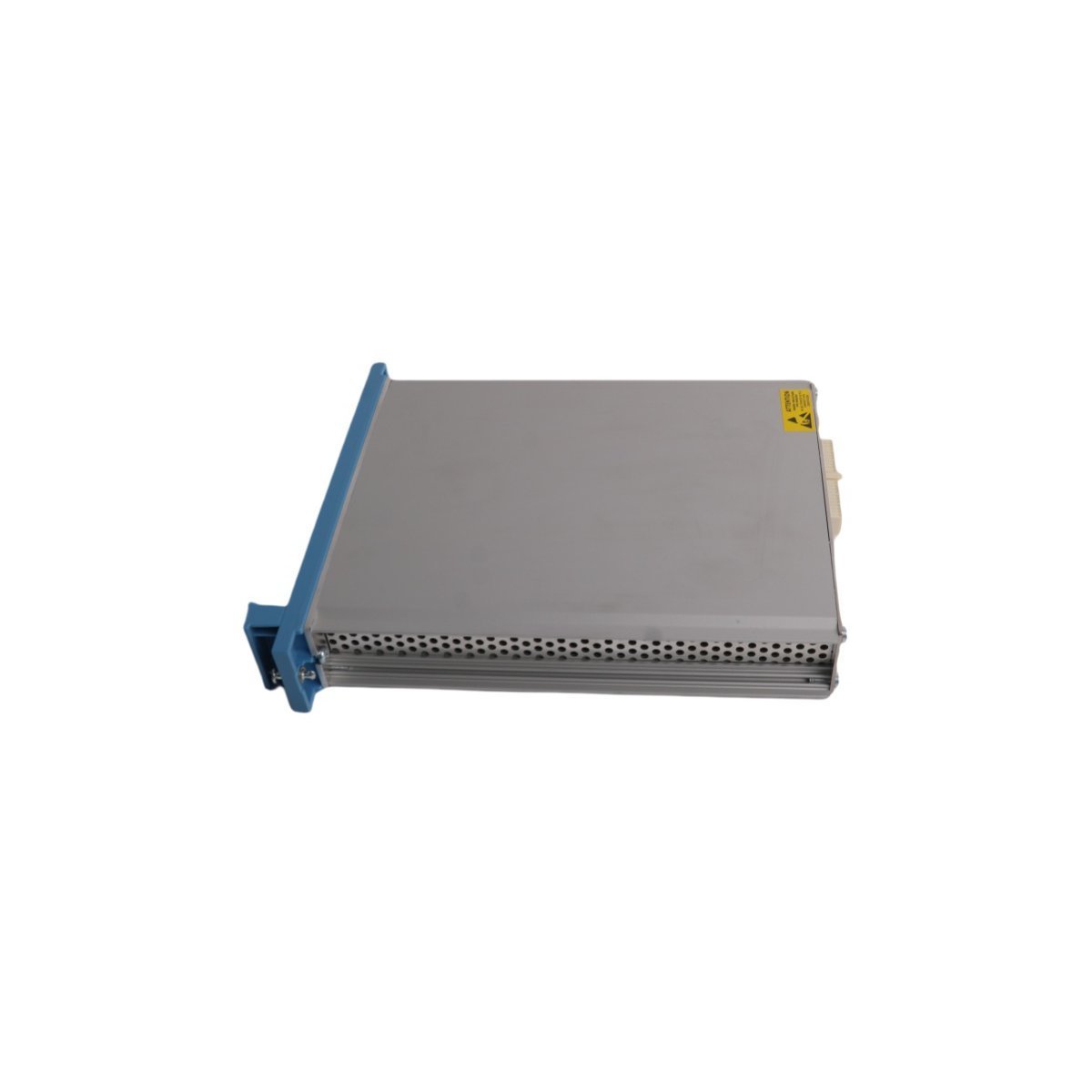

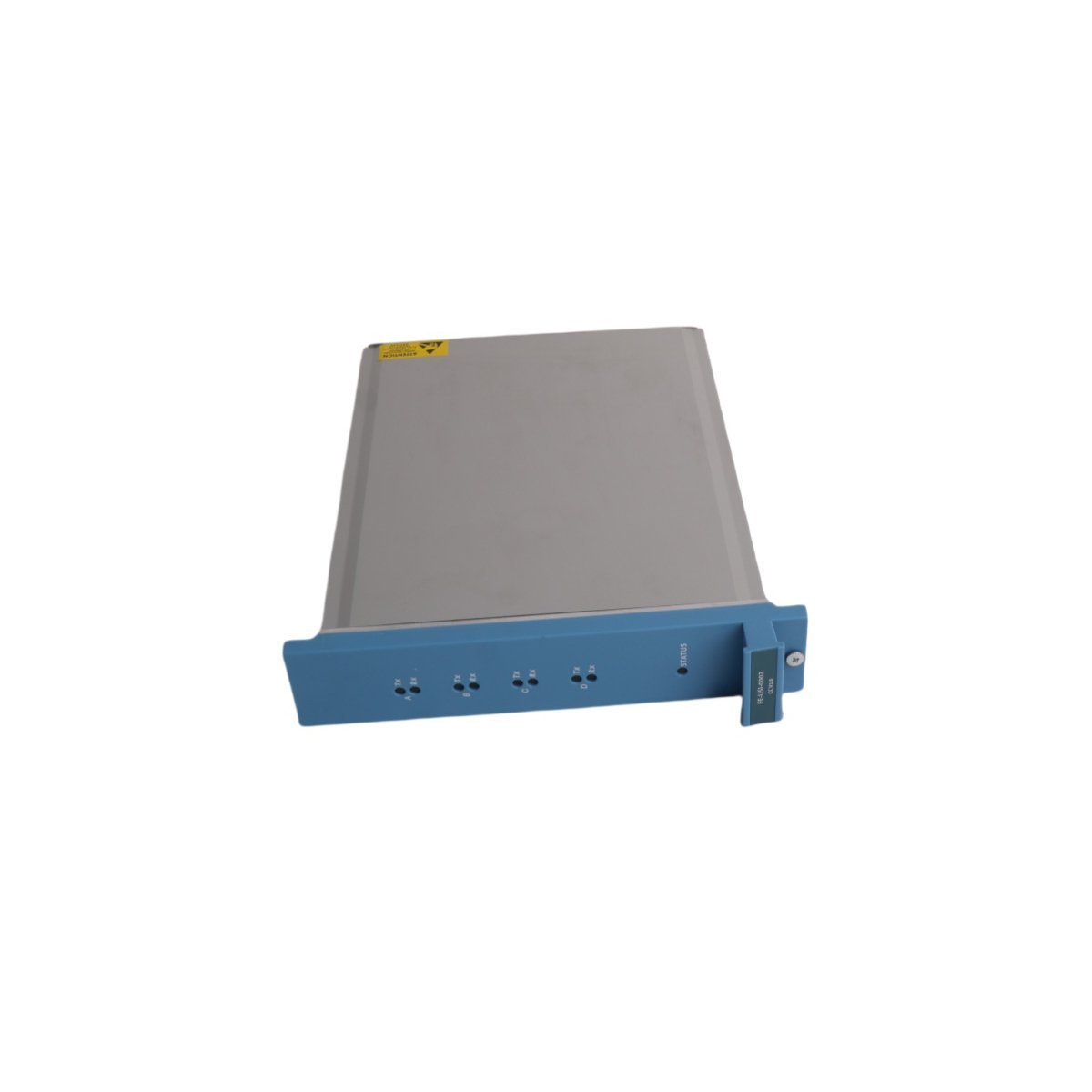

Honeywell FE-USI-0002 V1.0 Safety Manager System Module

Configured for Universal Safety Interface data routing and node authentication in Experion PKS platforms, the Honeywell FE-USI-0002 V1.0 (FE-USI-0002 Safety Manager System Module) provides direct physical/electrical execution.

Hardware Specifications

SIL3 Fail-Safe State Execution & Network Authentication

The safety interface hardware executes deterministic signal validation across fault-tolerant architecture channels. Built-in firmware maintains SIL3 certification standards by enforcing fail-safe state execution whenever diagnostic logic detects hardware or communication corruption. Dual galvanic isolation barriers separate the internal processor logic from external EUCN network loops, while continuous hardware self-tests verify memory structures and routing integrity. Consequently, the module prevents transient line faults from propagating to central Safety Manager processing nodes and ensures deterministic emergency shutdown responses under fault conditions.

Frequently Asked Questions

Q: How do firmware version discrepancies affect EUCN network authentication during module swaps?

A: Installing a module configured with EUCN authentication under Safety Manager R16x into systems running versions prior to R130.1 causes certificate loss, whereupon the ENIM node rejects communication and logs diagnostic error EC75.

Q: What physical isolation measures preserve signal integrity across high-density safety racks?

A: Internal galvanic isolation shields internal processor components from high-voltage field surges, so localized electrical faults cannot disrupt logic processing or corrupt backplane traffic.

Q: Can field technicians hot-swap the module without removing rack power?

A: Technicians must verify system redundancy and follow ESD safety guidelines before extracting the card, because pulling an active primary node without secondary backup triggers an immediate fail-safe shutdown trip.

Field Installation Guidelines

1. Power Isolation & ESD Safeguards: Disconnect power feeds to the chassis slot, and connect an ESD wrist grounding strap to an unpainted metal frame point before handling the board.
2. Firmware Verification: Check system firmware levels prior to insertion, and ensure Safety Manager runs version R130.1 or higher to avoid EUCN certificate rejection.
3. Mechanical Alignment: Slide the module along cabinet guide tracks, and press both retaining latches firmly until the backplane connectors seat completely.
4. Shielding & Wiring Routing: Ground all Ethernet network cable shields directly to the cabinet ground bar, while maintaining a minimum 30 cm gap from AC power wiring.
5. Connector Engagement: Secure all terminal screws firmly, ensuring threaded panel fittings achieve at least five full turns before restoring system power.
