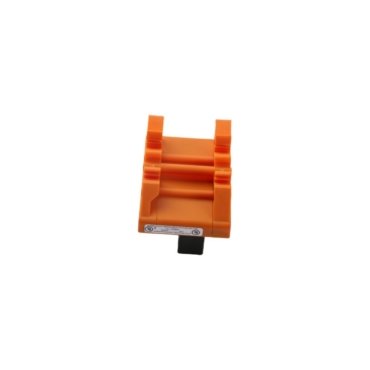

Honeywell FC-TSAO-0220M Safe Analog Output Module

The Honeywell FC-TSAO-0220M functions as a specialized output interface for the Safety Manager (SM) platform. This module converts digital commands into precise current signals to regulate critical field actuators. It supports applications requiring SIL-rated safety integrity for proportional control valves and dampers. Because it uses redundant internal hardware, the module ensures that critical loops remain operational. It provides the high-precision feedback necessary for maintaining strict process envelopes. This hardware effectively bridges the gap between digital safety logic and physical process regulation.

Comprehensive Diagnostics and Environmental Protection

Honeywell incorporates continuous self-testing features within the FC-TSAO-0220M to monitor output loop health. The module identifies wiring faults such as open circuits or shorted lines immediately. Consequently, operators receive instant alerts before process disruptions occur. The hardware features a robust IP65-rated enclosure to resist moisture and dust ingress. This protection level allows the module to operate reliably in challenging offshore and refinery locations. Furthermore, the unit manages heat dissipation efficiently within its compact 7cm form factor.

Core Technical Specifications

The following table summarizes the mechanical and electrical properties of the FC-TSAO-0220M hardware.
