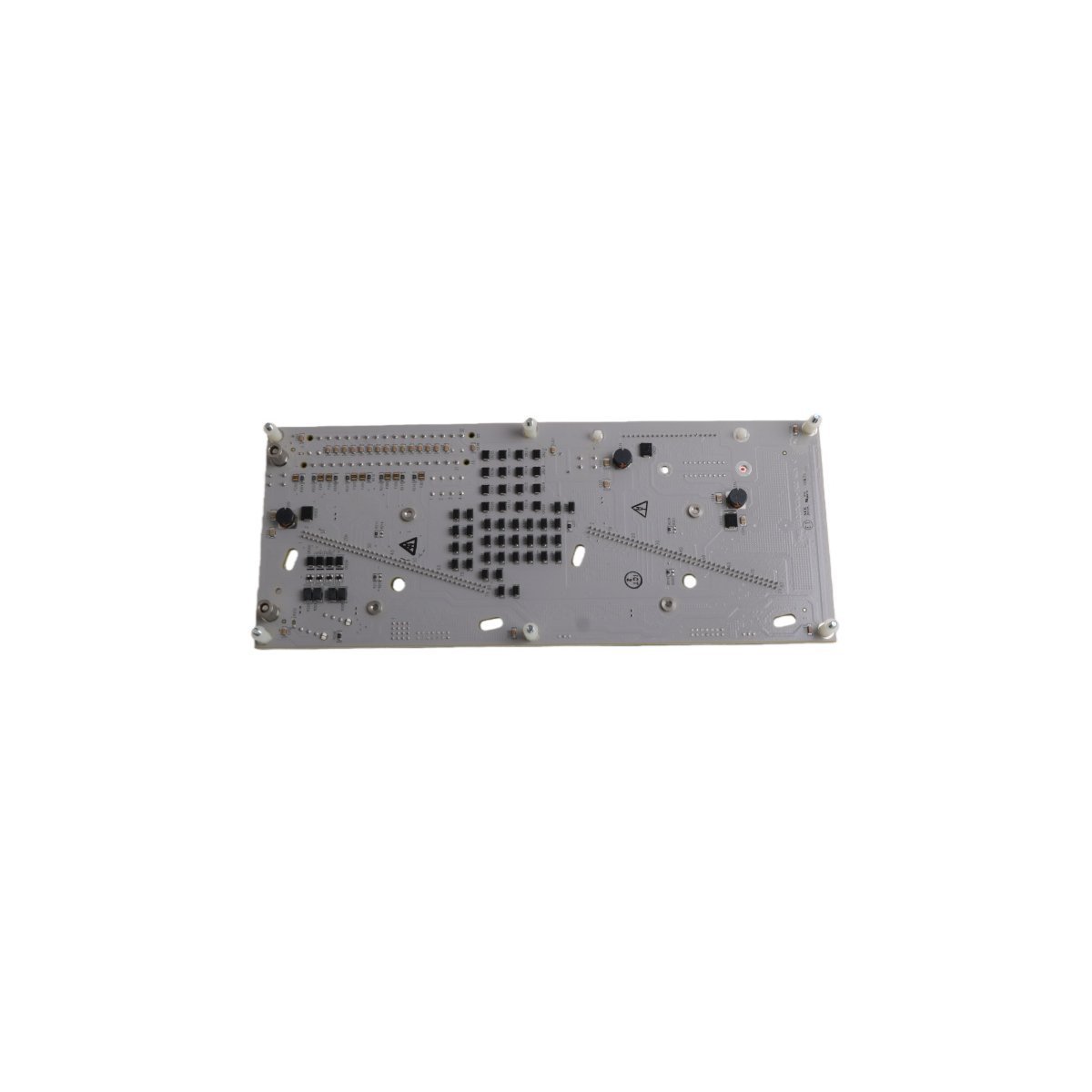

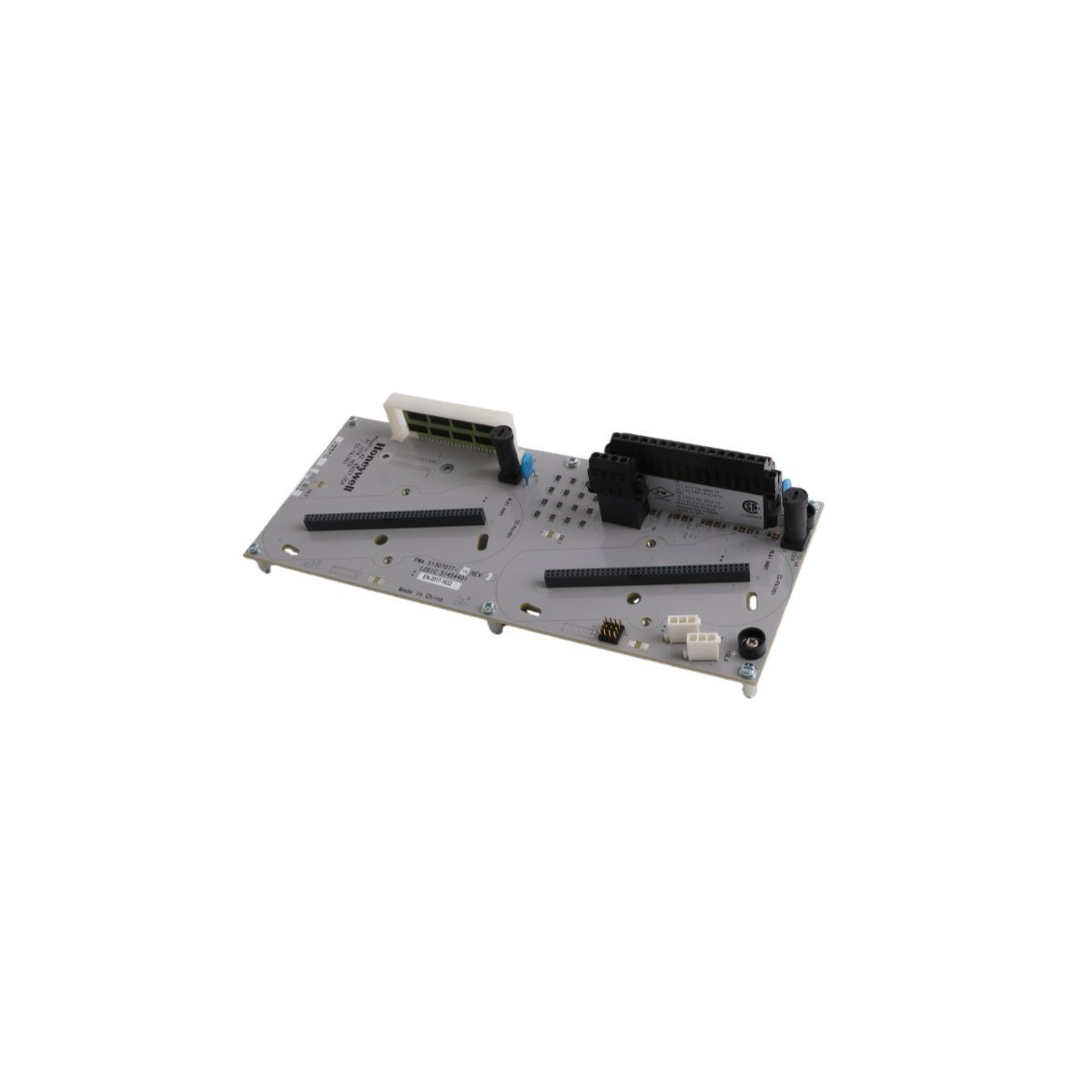

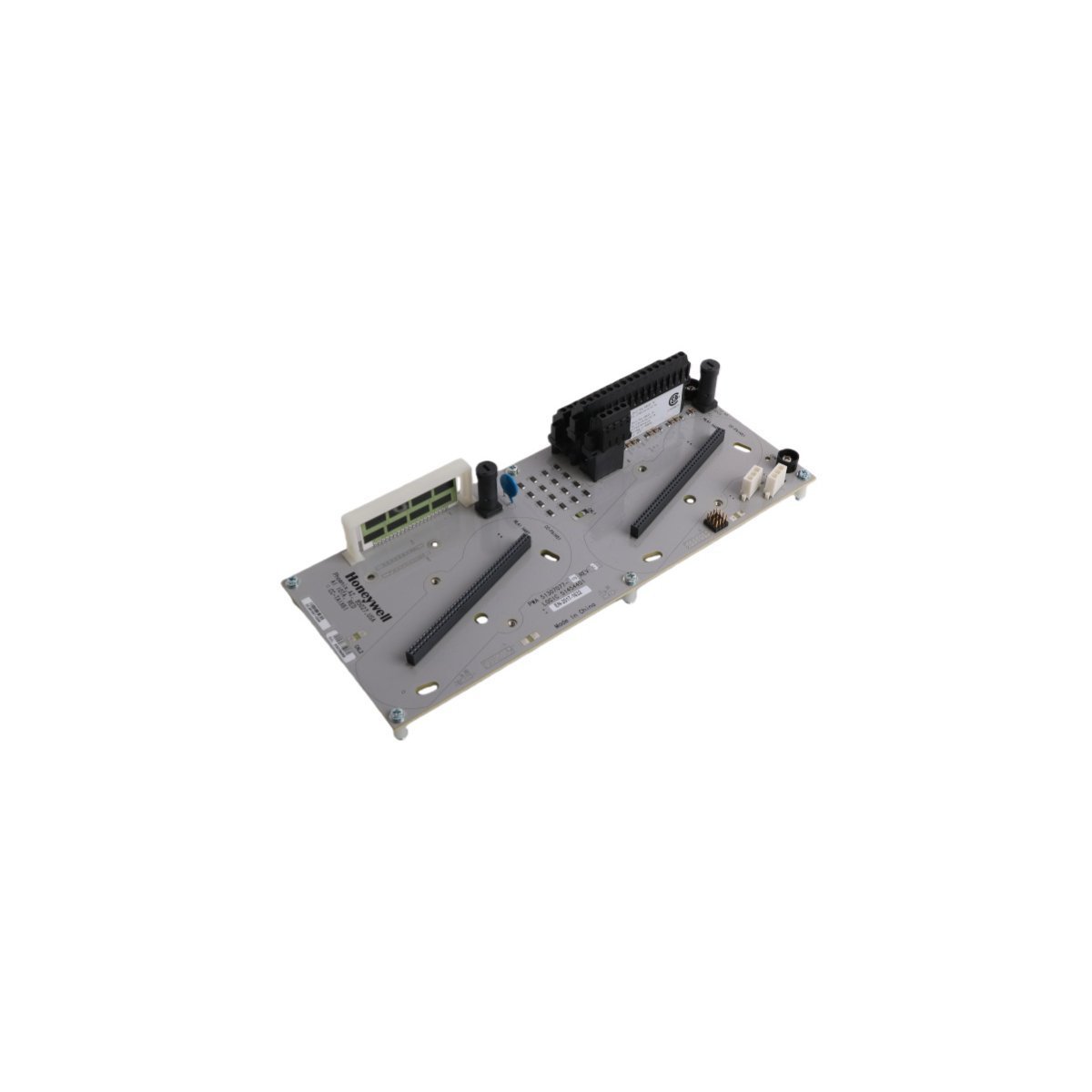

Honeywell CC-TAIX51 Analog Input Module

The Honeywell CC-TAIX51 serves as a high-precision interface for analog field signals within the Experion PKS architecture. This module converts continuous physical variables into digital data for process controller analysis. It utilizes Ultra Large Scale Integrated Circuit technology to maintain superior signal fidelity. Furthermore, the 16-bit analog-to-digital converter ensures extreme accuracy for critical measurement loops. This capability allows operators to monitor minute changes in pressure, temperature, or flow in real-time.

Signal Versatility and Environmental Ruggedness

This Analog Input IOTA (Input Output Termination Assembly) supports multiple standard signal ranges for maximum flexibility. Users can configure the module for 0-20mA current loops or voltage inputs such as 0-5V and 0-10V. Additionally, the ruggedized circuitry performs reliably in extreme ambient temperatures ranging from -40°C to +85°C. The module also resists performance degradation in high-humidity industrial environments up to 95% non-condensing. Consequently, it provides stable data acquisition in the most demanding process conditions.

Technical Specifications

Network Integration and Protocol Support

The CC-TAIX51 enhances system interoperability through comprehensive communication protocol support. It integrates easily with supervisory platforms using either Modbus RTU or Modbus TCP standards. Moreover, the low power profile of under 2W reduces the thermal load within control cabinets. This efficiency allows for higher module density in centralized equipment rooms. Because the unit follows standard 24VDC power requirements, it fits seamlessly into existing industrial power grids.

Industrial Compliance and Safety

Honeywell builds the CC-TAIX51 to meet stringent international quality and safety benchmarks. The module carries full CE, RoHS, and UL certifications for global deployment. These standards guarantee that the hardware meets essential health and environmental protection requirements. Furthermore, the precise signal processing reduces communication errors in safety-critical monitoring loops. This reliability makes the module a preferred choice for energy, manufacturing, and infrastructure management.
