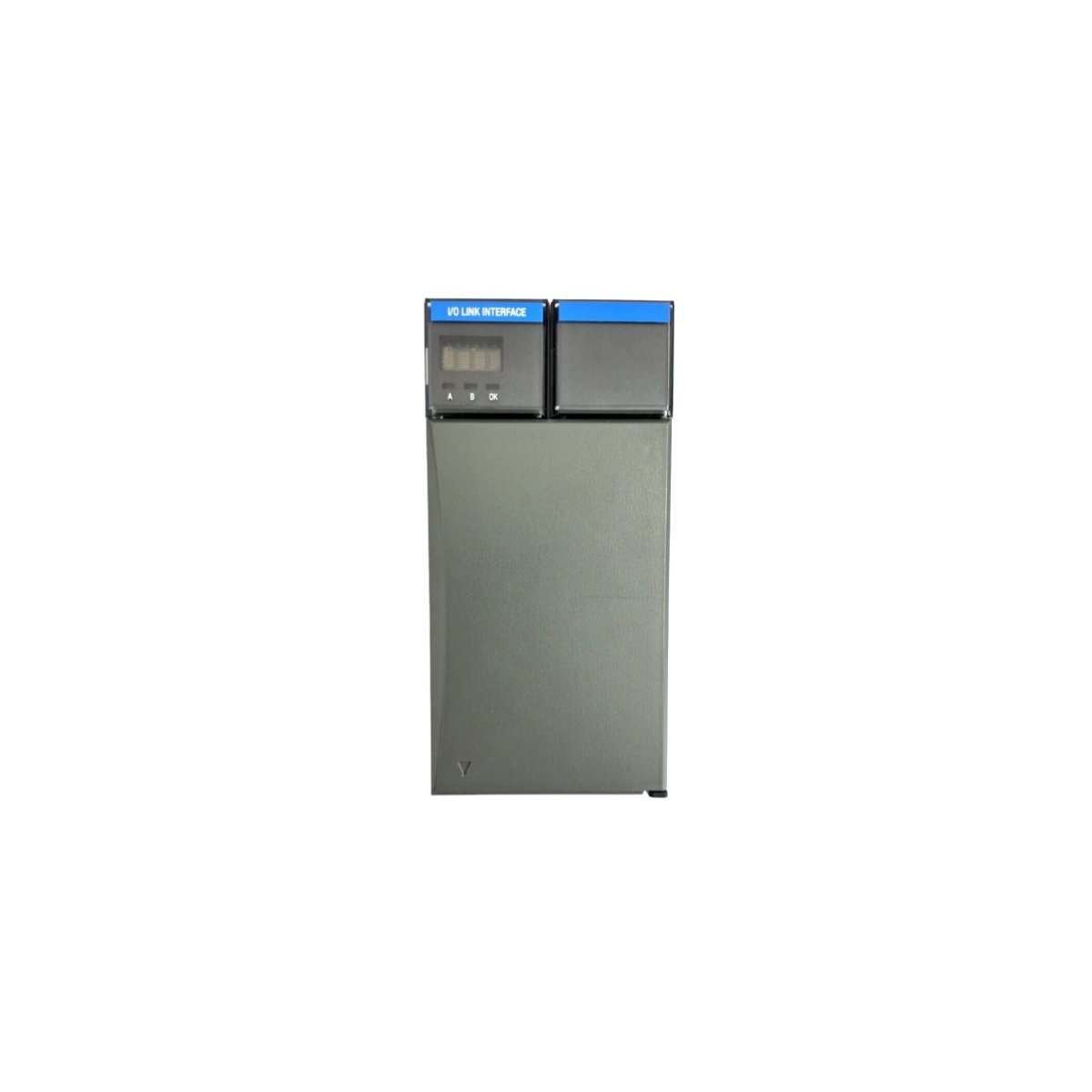

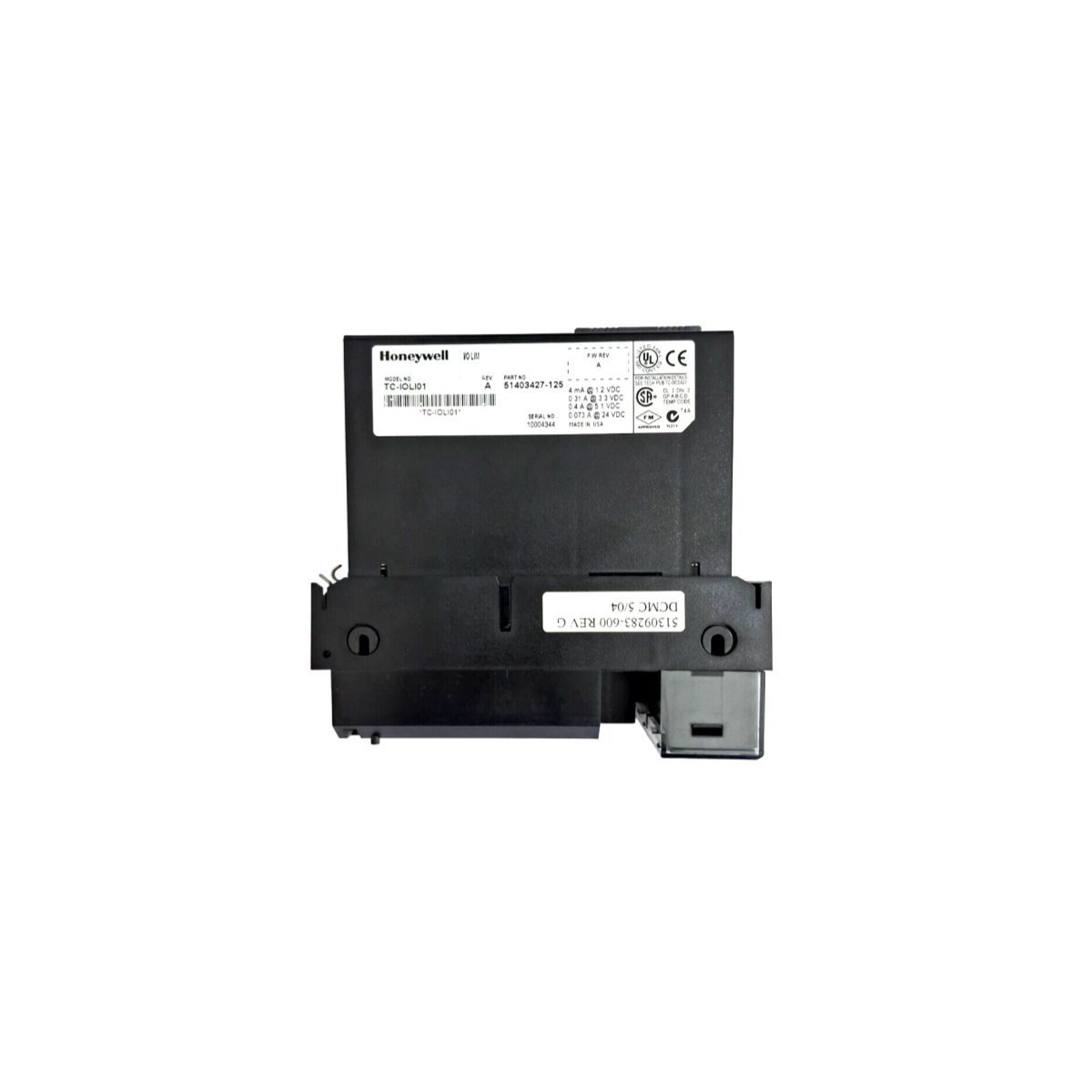

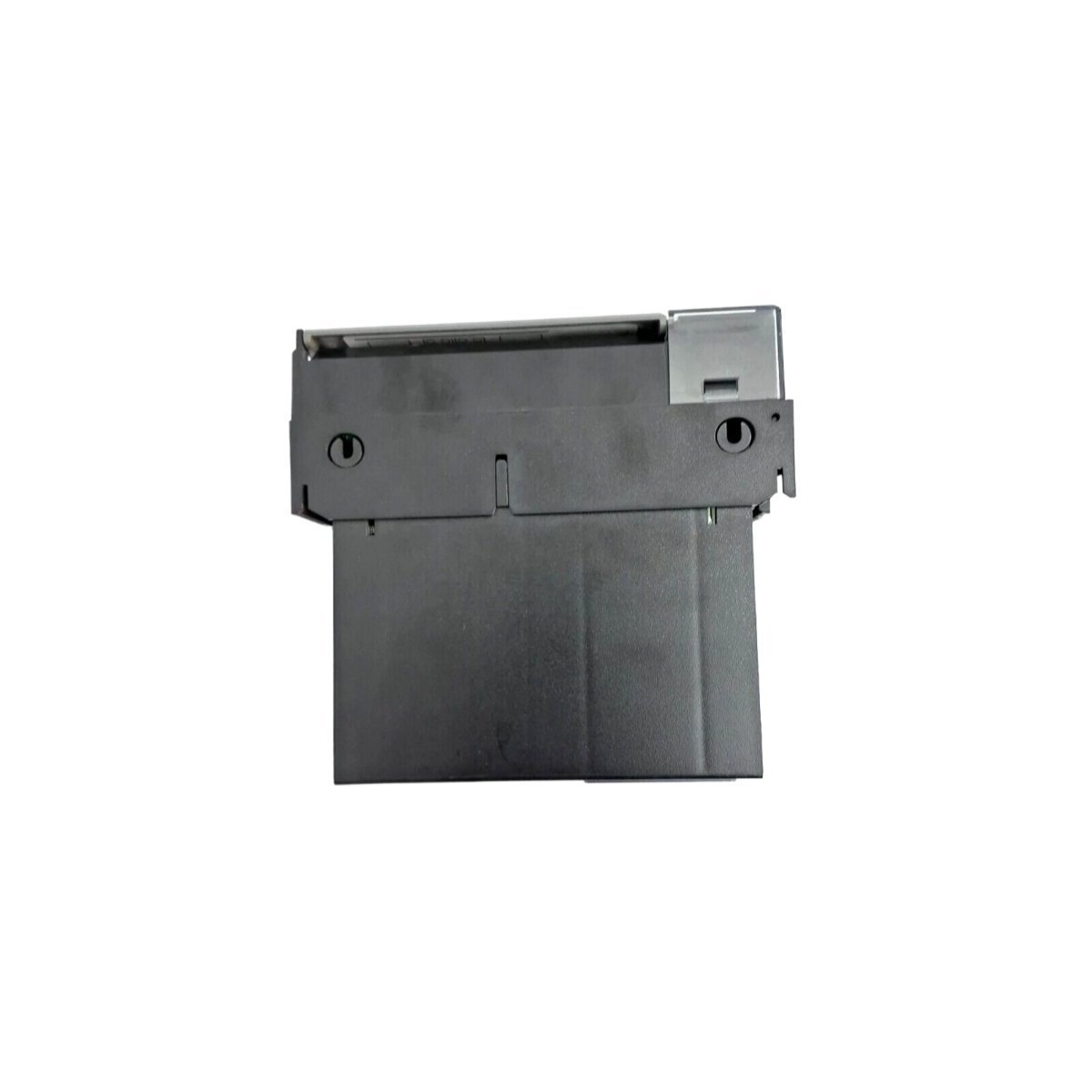

Honeywell TC-IOLI01 Input Module

The Honeywell TC-IOLI01 serves as a high-performance digital input interface for industrial control systems. This module captures discrete signals from field devices for processing within a Distributed Control System (DCS). It specifically supports dual-voltage operations to accommodate various infrastructure requirements. The unit accepts 120 VAC at 50/60 Hz and 24 VDC input signals. Consequently, it provides significant flexibility for diverse automation environments. Each input point consumes approximately 13 mA during active states. This efficiency ensures stable signal acquisition without overloading internal power supplies.

Technical Specifications

Connectivity and Integration

Engineers often pair this module with Remote Terminal Panels (RTPs) to streamline field wiring. It integrates perfectly with standard pre-wired cable assemblies like the 1492-HWCAB series. These cables utilize specialized slide-on covers for increased terminal security. Furthermore, the TC-IOLI01 supports expandable relay interface modules (XIM). This compatibility allows the system to manage higher current applications safely. The design focuses on interoperability within the Honeywell Experion PKS architecture. Users benefit from simplified maintenance and diagnostic capabilities.

Environmental and Build Standards

Honeywell constructs the TC-IOLI01 to withstand rigorous industrial conditions. The module maintains stable performance despite electrical noise or temperature fluctuations. Its compact dimensions allow for high-density mounting in standard racks. Moreover, the active status of this model ensures long-term availability for system expansions. It meets essential global standards for industrial electronic equipment. This reliability makes it a preferred choice for critical process industries.
