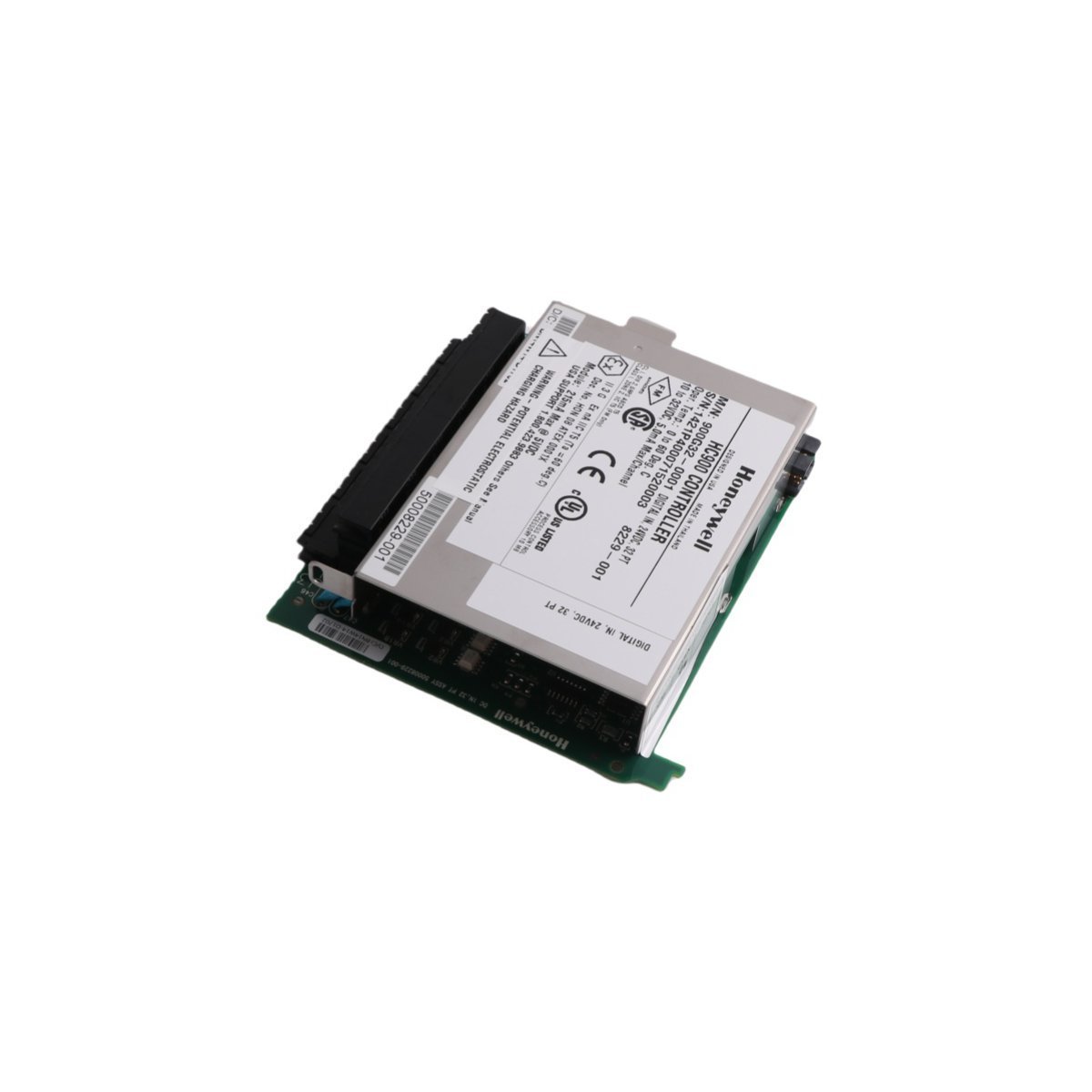

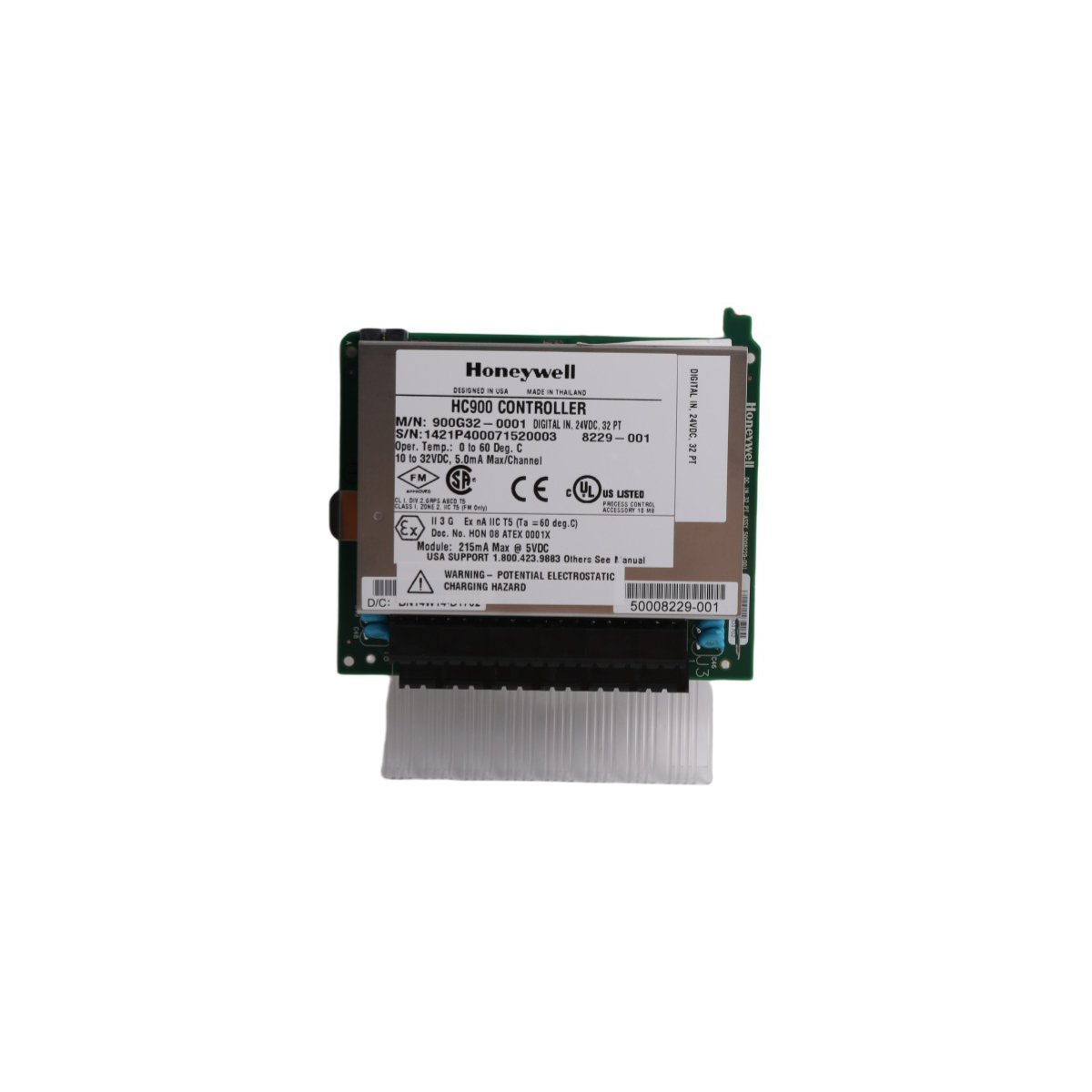

Honeywell 900G32-0301 Digital Input 24 VDC

The 900G32-0301 serves as a high-capacity interface for 24 VDC discrete signals within Honeywell control architectures. This module provides 32 distinct input points to maximize cabinet space efficiency. Because it organizes channels into two isolated groups of 16, it offers superior electrical protection. Each group utilizes independent common terminals to simplify various field wiring requirements. Consequently, the hardware prevents signal interference between different input banks. This design ensures stable data acquisition for critical monitoring tasks in complex automation environments.

Visual Diagnostics and Operational Feedback

Honeywell prioritizes rapid troubleshooting by integrating comprehensive LED indicators directly onto the module face. Green LEDs provide instantaneous status updates for every individual input channel. Furthermore, a central blinking green light confirms that the controller is actively scanning the module. If a technician manually forces a channel for testing, a dedicated amber LED illuminates. A red fault indicator alerts operators to any internal hardware malfunctions immediately. These visual tools significantly reduce the time required for loop testing and system maintenance.

Advanced Control Logic and Integration

This digital input module offers seamless compatibility with the ControlEdge HC900 and Experion PKS platforms. Engineers can easily invert input states through the controller software to match field device requirements. This feature allows for the use of both normally open and normally closed contacts without rewiring. Moreover, the module hardware filters out electrical noise to maintain binary signal integrity. The unit supports hot-swapping to ensure continuous system operation during hardware replacements. It delivers the precise timing needed for high-speed sequence of events recording.

Technical Specifications
