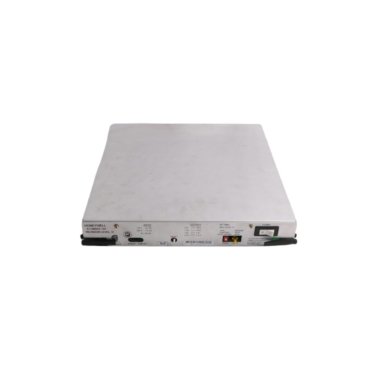

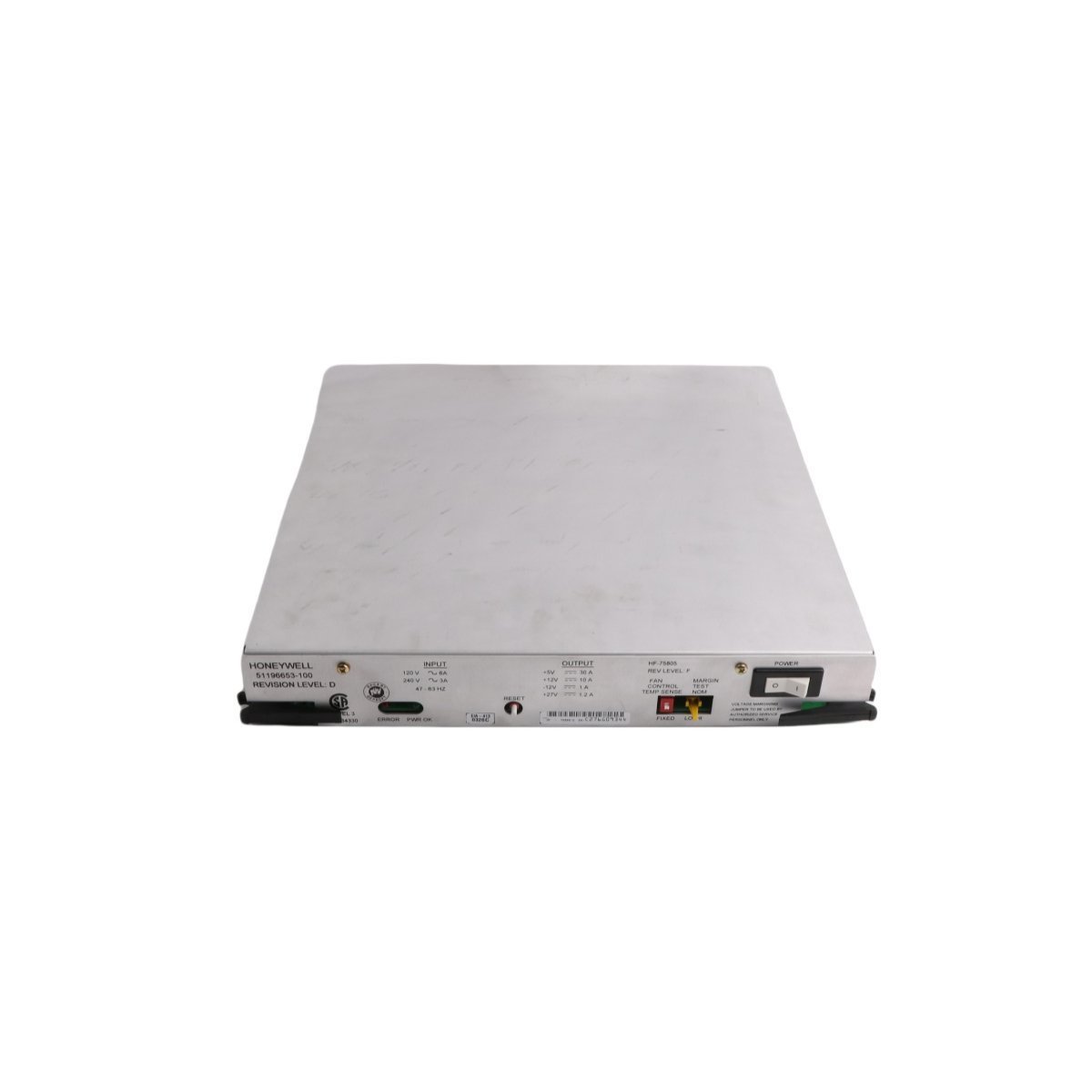

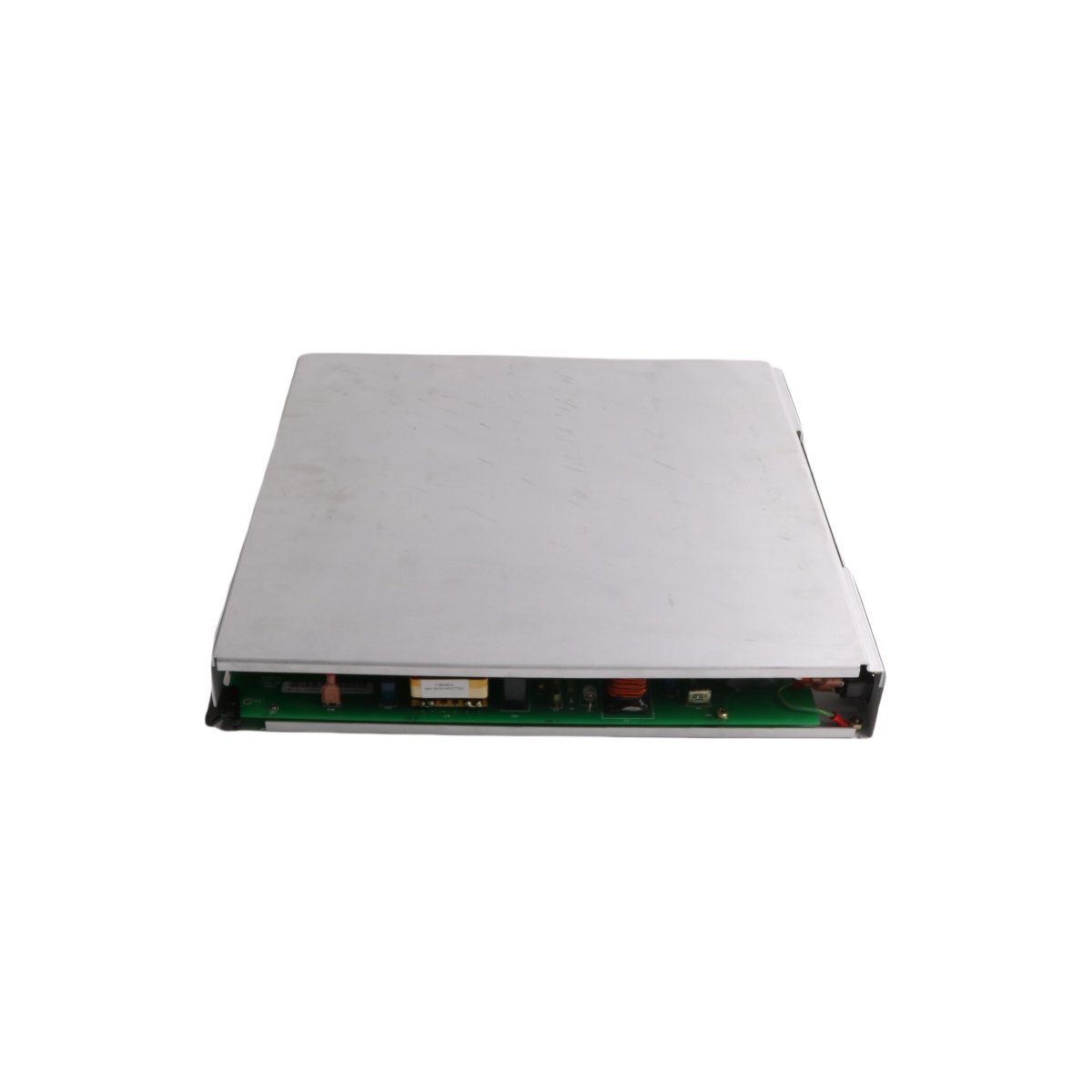

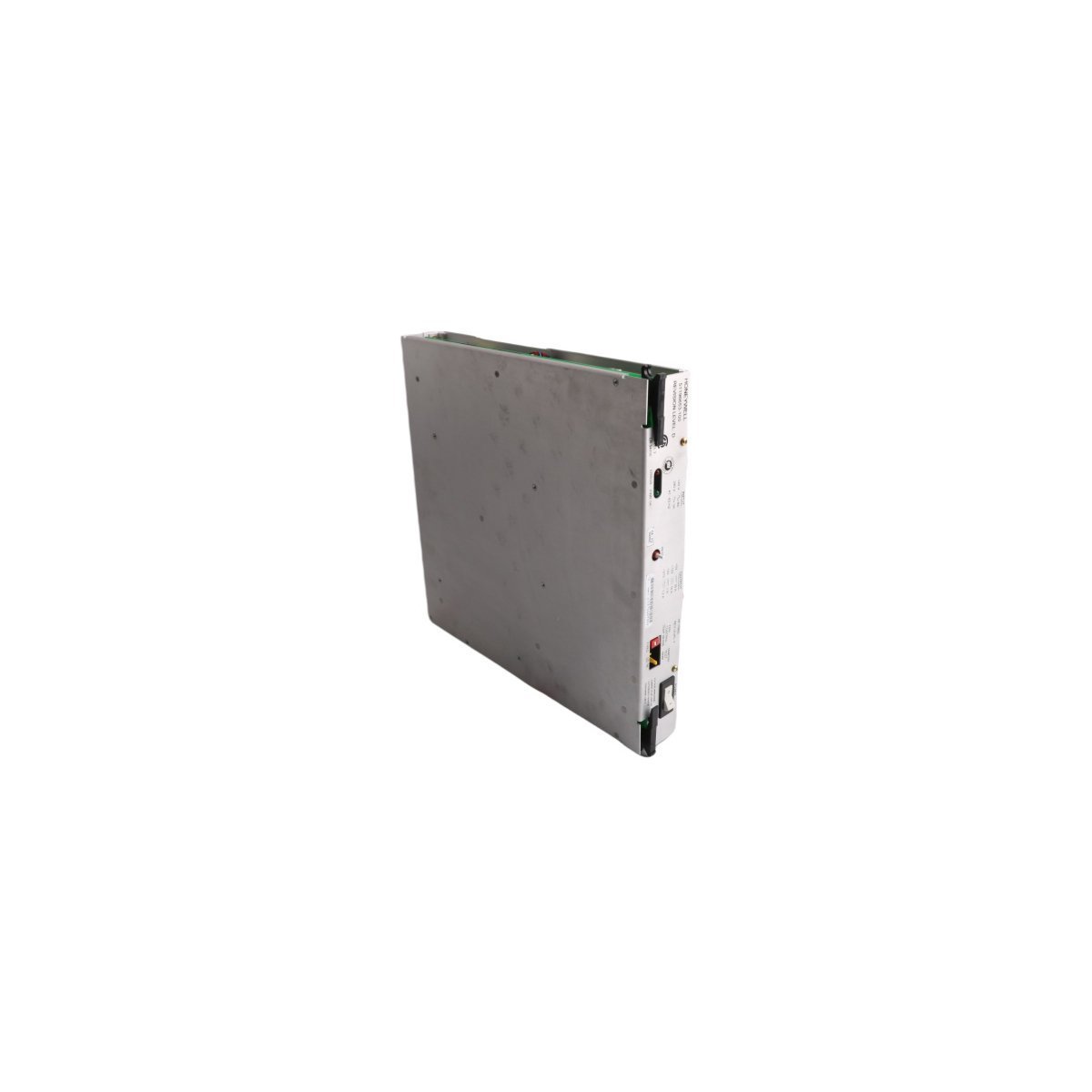

The Honeywell 51196653-100 serves as a primary power source for Five-slot File assemblies. This heavy-duty power supply integrates seamlessly with the Total Plant Solution (TPS) architecture. Specifically, it converts standard input voltage into stabilized direct current for I/O modules. The hardware ensures consistent power delivery across the entire backplane. Consequently, it supports the operational integrity of critical Distributed Control System (DCS) components. Its high-efficiency design minimizes heat generation within the equipment enclosure. This stability remains essential for maintaining continuous process control in industrial environments.
Optimized for Experion PKS Integration
This power module supports the migration and expansion of legacy TDC 3000 hardware. It maintains full compatibility with Experion PKS platforms during system upgrades. Furthermore, the 51196653-100 includes advanced circuitry to protect against input voltage spikes. These protective features prevent damage to expensive downstream electronic cards. The unit facilitates easy installation into standard five-slot file enclosures. This modular approach allows for rapid hardware replacement during planned maintenance cycles. It provides a dependable foundation for large-scale automation networks.
Technical Specifications and Dimensions
The following data outlines the physical and electrical parameters for this power module.
- Brand: Honeywell
- Model Number: 51196653-100
- Hardware Series: TDC 3000 / Experion PKS
- Module Type: Five-slot File Power Supply
- Net Weight: 3.82 kg
- Dimensions: 36.6 cm x 37.0 cm x 5.5 cm
- Manufacturing Origin: USA
- System Category: DCS Power Infrastructure
