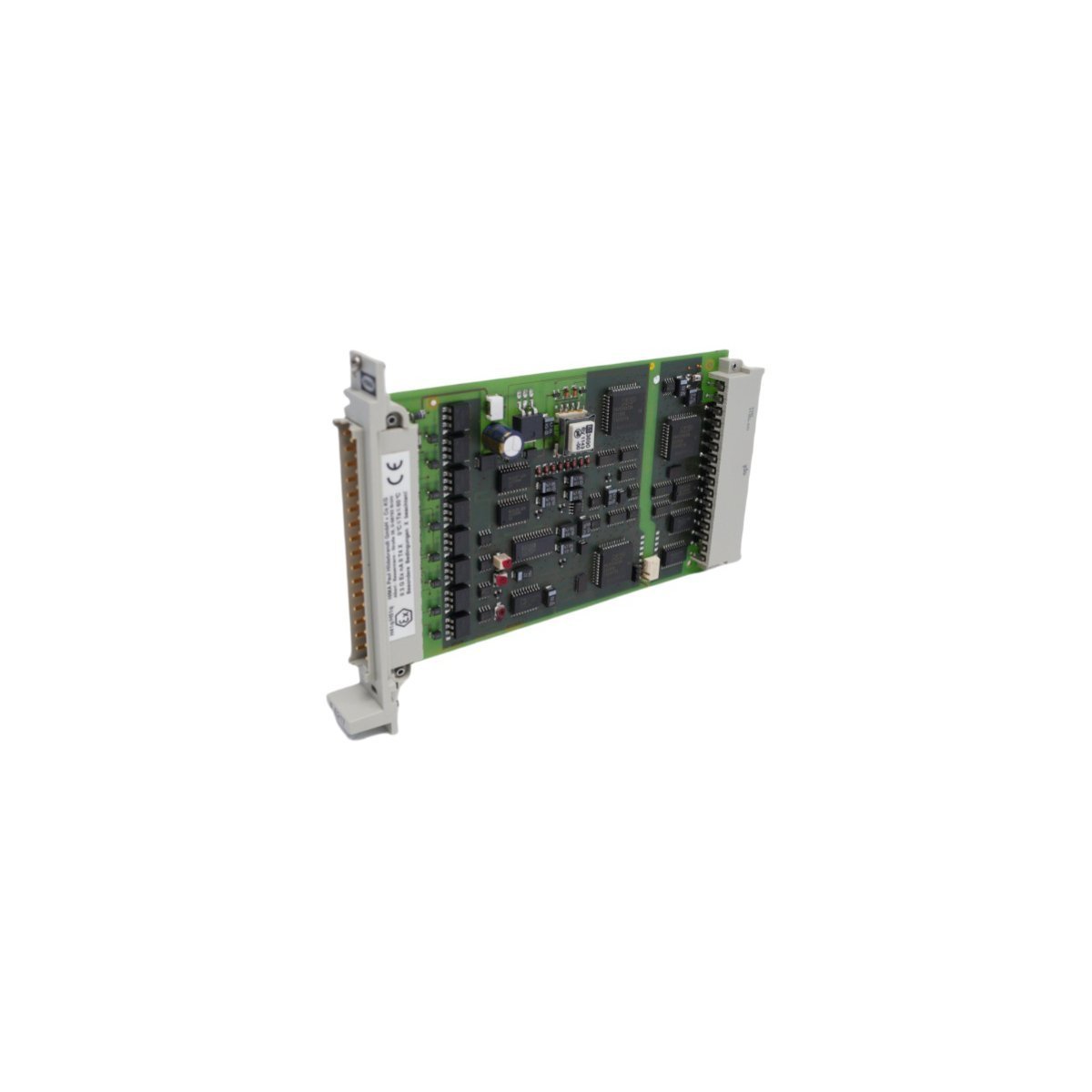

The HIMA F6217 is a high-precision 8-channel analog input module engineered for integration within the HIQuad H41q and H51q safety systems. This module is specifically designed to handle safety-related applications where the reliable monitoring of process variables—such as pressure, flow, and temperature—is mandatory. By utilizing 12-bit analog-to-digital conversion, the F6217 provides the high-resolution data necessary for maintaining operational safety and process integrity in hazardous industrial environments.
Input Versatility and Configuration
- Voltage Measurement: Supports a standard input range of 0 to 5.5 VDC.
- Current Measurement: Accommodates current loops ranging from 0 to 22 mA.
- Signal Processing: Each of the 8 channels is processed with high accuracy to ensure compliance with strict safety standards.
Technical Specifications
| Feature | Specification |
| Number of Channels | 8 |
| Resolution | 12-bit |
| Input Voltage Range | 0 to 5.5 VDC |
| Input Current Range | 0 to 22 mA |
| System Compatibility | HIMA H41q / H51q (HIQuad) |
| Weight | 0.14 kg |
| Dimensions | 2.1 x 19.1 x 12.9 cm |
| Origin | Germany |
