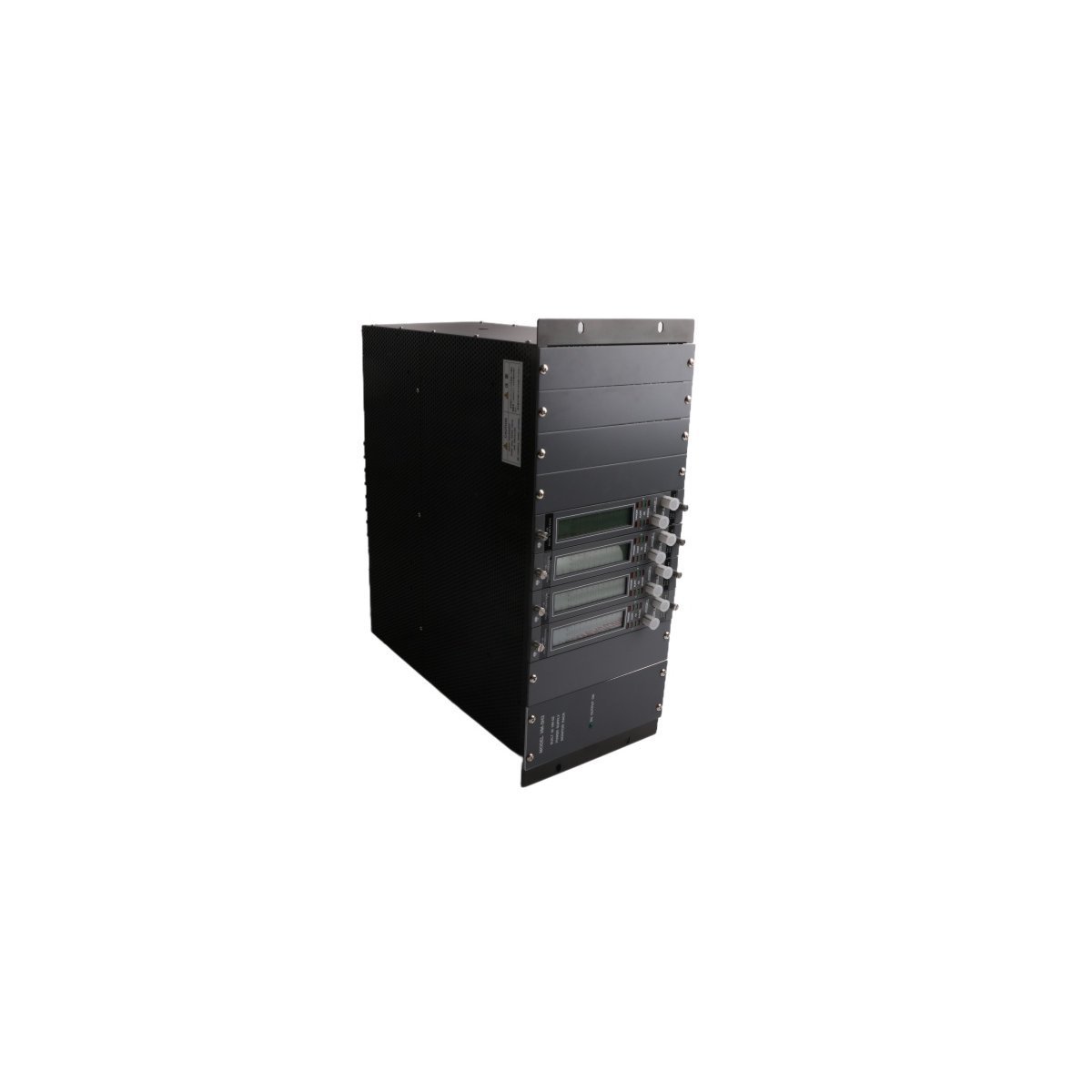

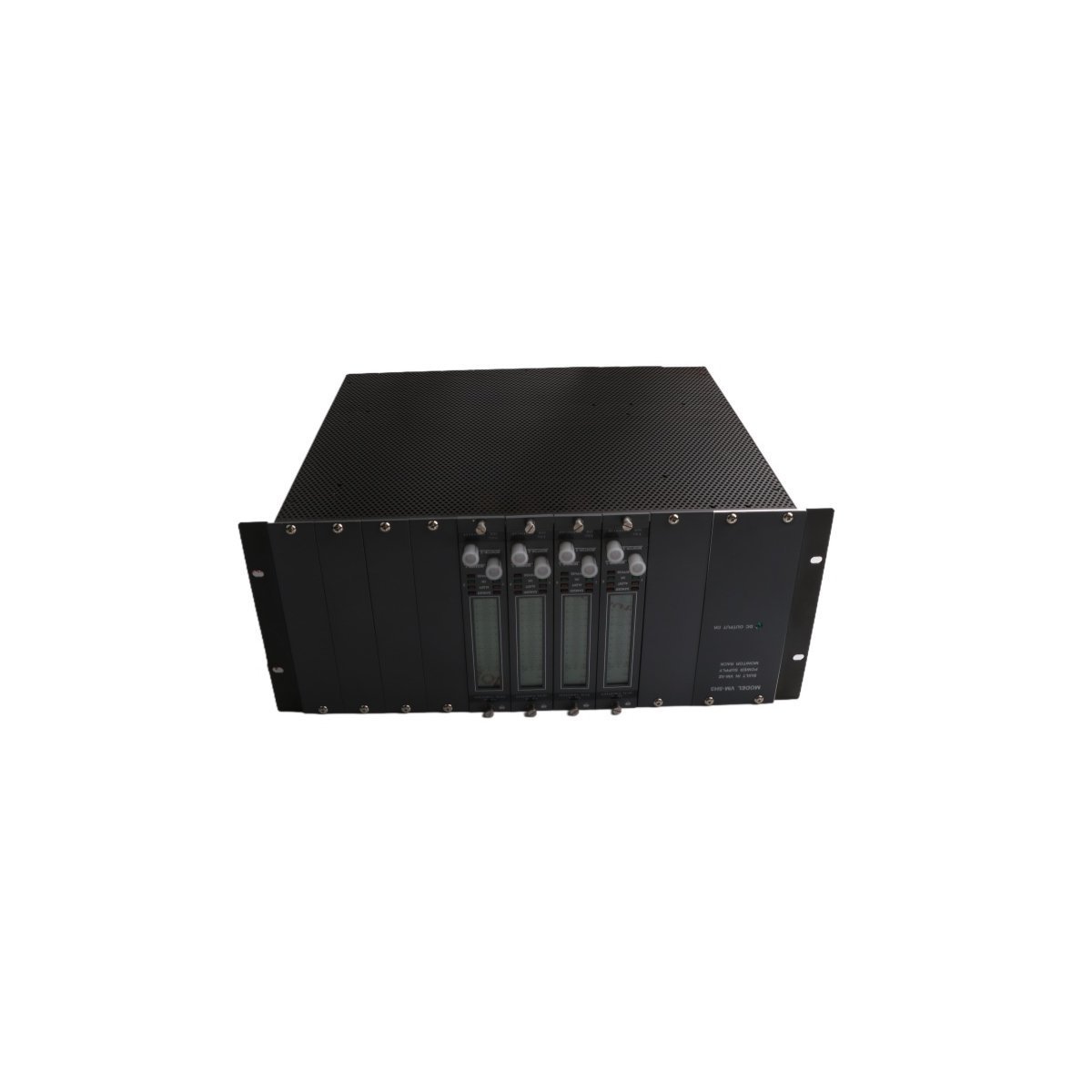

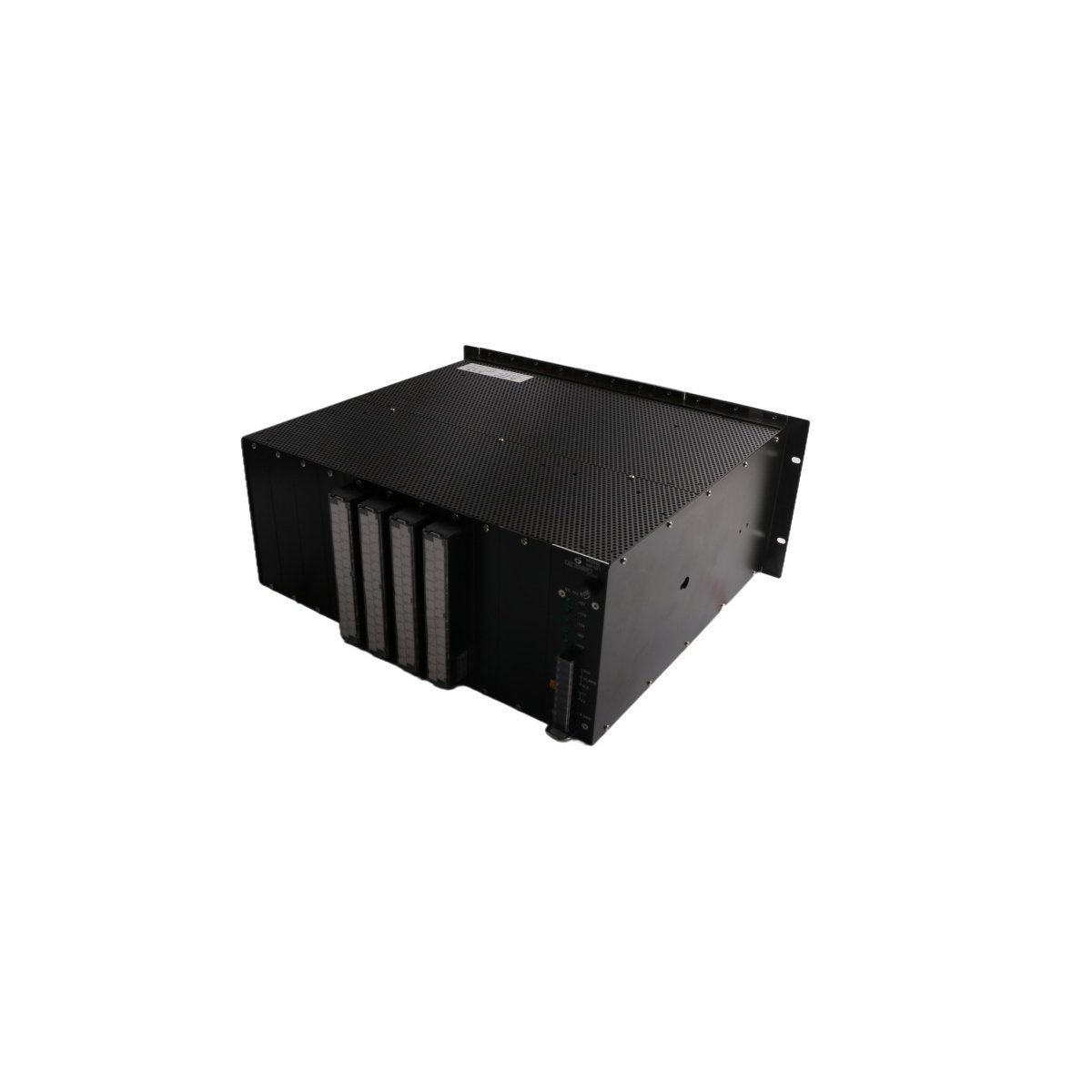

General Electric VM-5H3 VM-5Z VM-5K Power Supply Monitor Rack

The GE VM-5H3, VM-5Z, and VM-5K series represents a sophisticated line of dual-channel vibration monitors designed specifically for the protection of critical rotating machinery. As a core component of GE’s Distributed Control System (DCS) monitoring architecture, these units provide continuous oversight of mechanical integrity for high-value assets. They interface with various transducers, including velocity sensors and accelerometers, to deliver real-time data on turbines, compressors, and industrial pumps.

Technical Specifications and Overview

Advanced Monitoring Capabilities

The VM-5H3 VM-5Z VM-5K series tracks multiple mechanical parameters to ensure comprehensive equipment safety. Operators can configure these units to monitor shaft vibration, bearing cap movement, and eccentricity. The hardware supports precise measurement ranges typically spanning 0-1000 μm peak-to-peak.

The internal electronics maintain high stability across diverse environmental conditions. By providing constant feedback, the system identifies subtle mechanical changes that precede equipment failure. This early detection capability allows facilities to transition from reactive repairs to data-driven predictive maintenance.

Protection Logic and Alarm Management

Reliability remains the primary focus of the VM-5H3, VM-5Z, and VM-5K monitoring units. Each channel features independent, programmable setpoints for graduated alarm responses. The system utilizes specific “Alert” and “Danger” thresholds for both high and low vibration levels.

This multi-tiered protection scheme ensures that operators receive notification before conditions reach catastrophic levels. The monitor rack acts as a first line of defense, triggering protective actions or shutdowns when vibration exceeds safety limits. This functionality minimizes unplanned downtime and extends the operational lifespan of expensive rotating assets.
