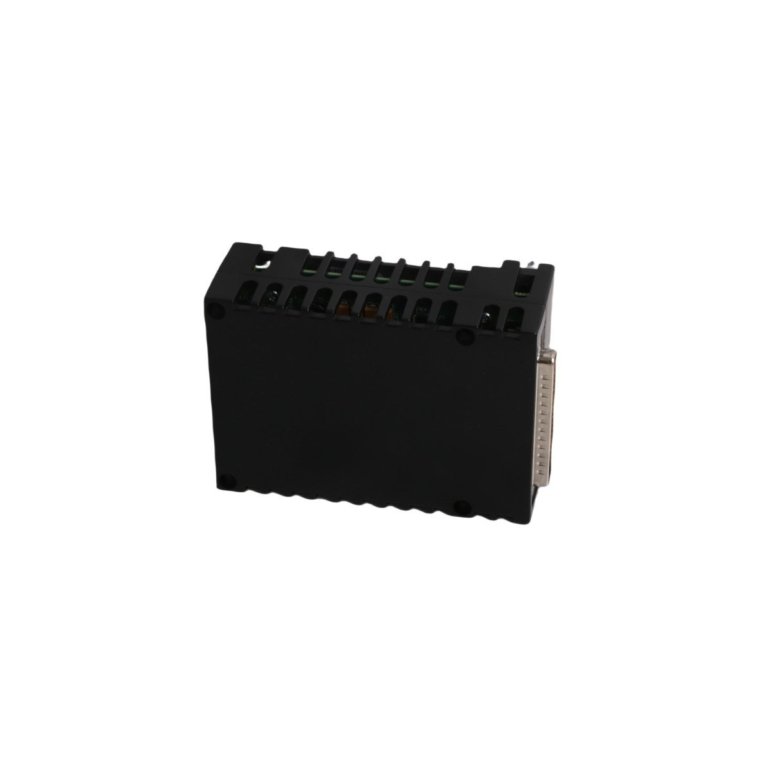

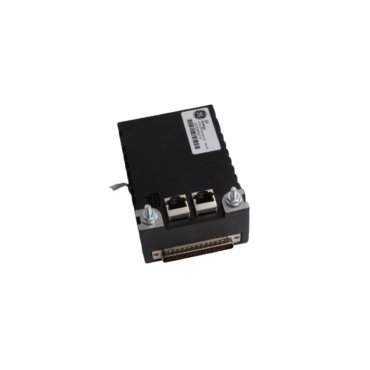

General electric IS220PSCAH1B Serial Modbus Communication I/O Module

The General Electric IS220PSCAH1B serves as a specialized Serial Communication I/O pack. It belongs to the Mark VIe and EX2100e control families. This module bridges I/O Ethernet networks and serial terminal boards. It supports complex data exchange for turbine control systems. The unit features a high-performance processor board common to distributed I/O packs. It includes six independent transceiver channels for versatile serial connectivity. Operators often deploy this module in Distributed Control Systems (DCS). It manages critical data for smart pressure transducers and motor drives.

Technical Specifications

• Manufacturer: General Electric (GE)
• Model Number: IS220PSCAH1B
• Control System: Mark VIe / EX2100e
• Communication Protocols: Modbus RTU, RS-232, RS-422, RS-485
• Ethernet Interfaces: Dual 10/100 RJ45 connectors
• Processor: Integrated high-speed RISC processor
• Input Voltage: 28 VDC nominal
• Dimensions: 12.8 x 8.2 x 6.0 cm
• Weight: 0.38 kg
• Operating Temperature: -30 to 65°C

Key Functional Features

The IS220PSCAH1B utilizes a serial communications board with six configurable channels. Each port supports RS-232, RS-422, or RS-485 standards based on site requirements. The hardware includes a dedicated watchdog timer for system reliability. Dual Ethernet ports provide redundant connectivity to the IONet. This redundancy ensures continuous data flow during network failures. The module handles both fixed I/O and Modbus data streams. High-priority data processes every frame to maintain control precision.

Installation and Configuration

The I/O pack mounts directly onto compatible serial terminal boards. Threaded inserts provide a secure mechanical attachment to the assembly. A three-pin side connector supplies power to the internal circuitry. Built-in soft-start technology manages current inrush during startup. This feature protects sensitive components from electrical stress. Engineers configure the module using the ToolboxST software application. The system supports Auto-Reconfiguration for rapid device replacement. This functionality minimizes downtime during maintenance or hardware upgrades.
