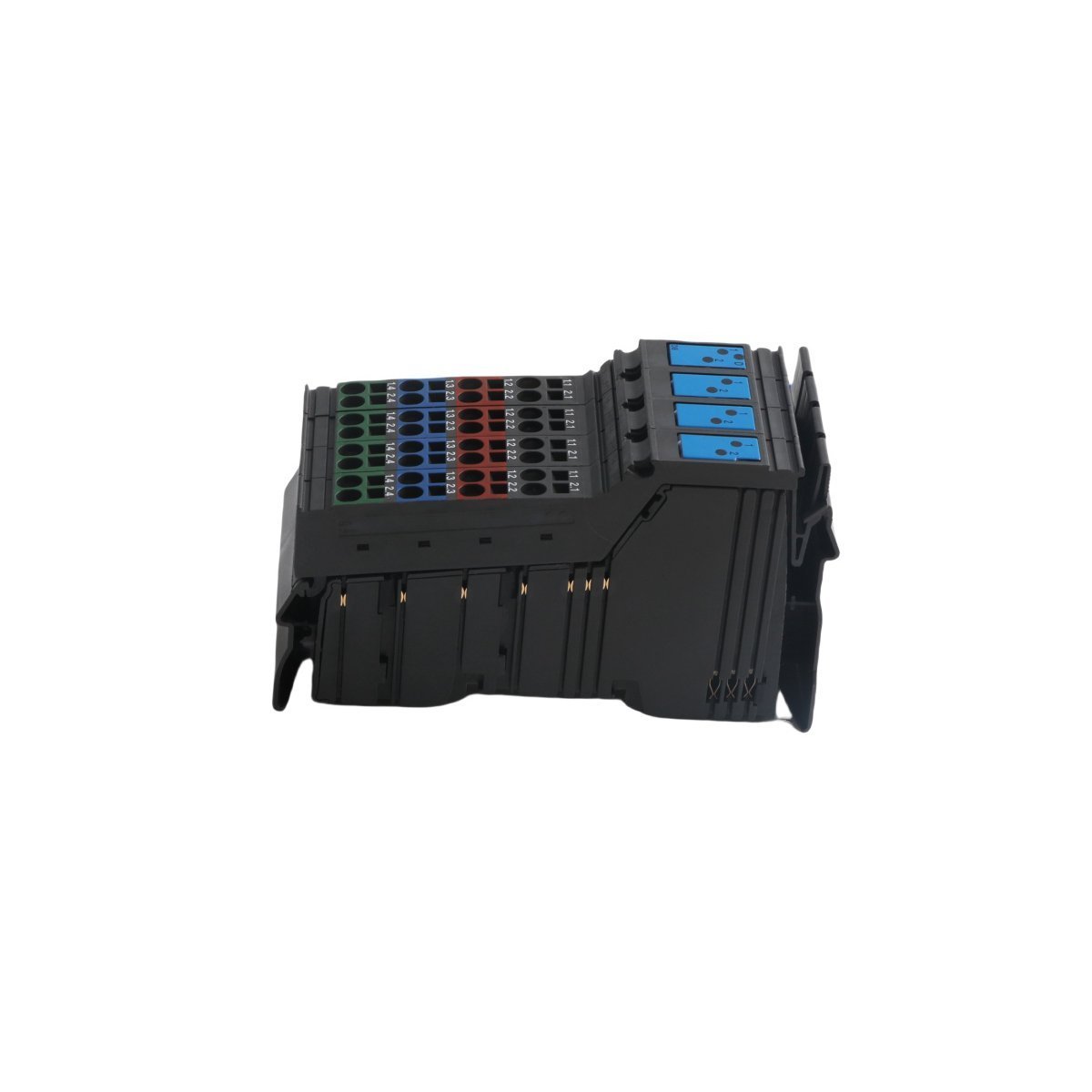

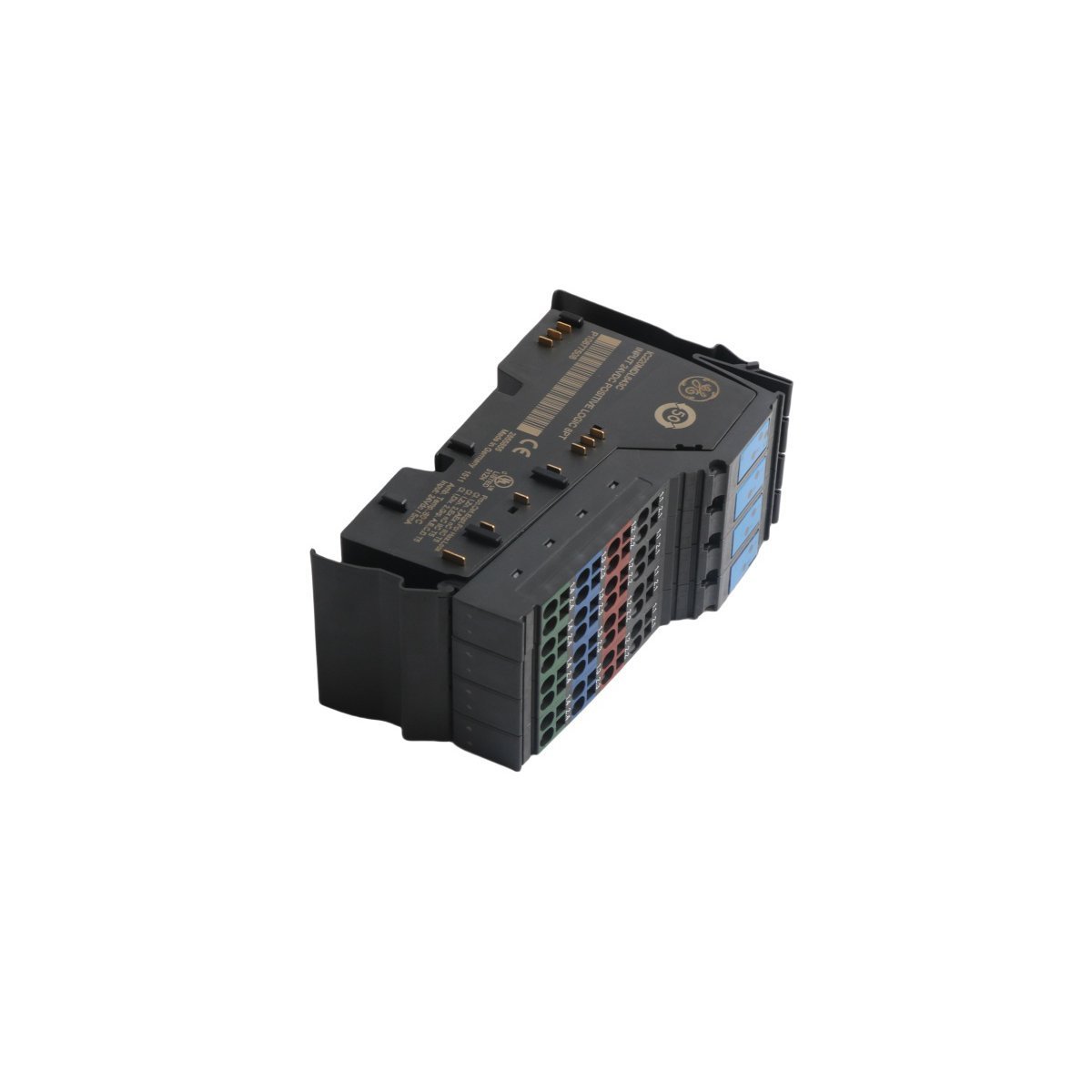

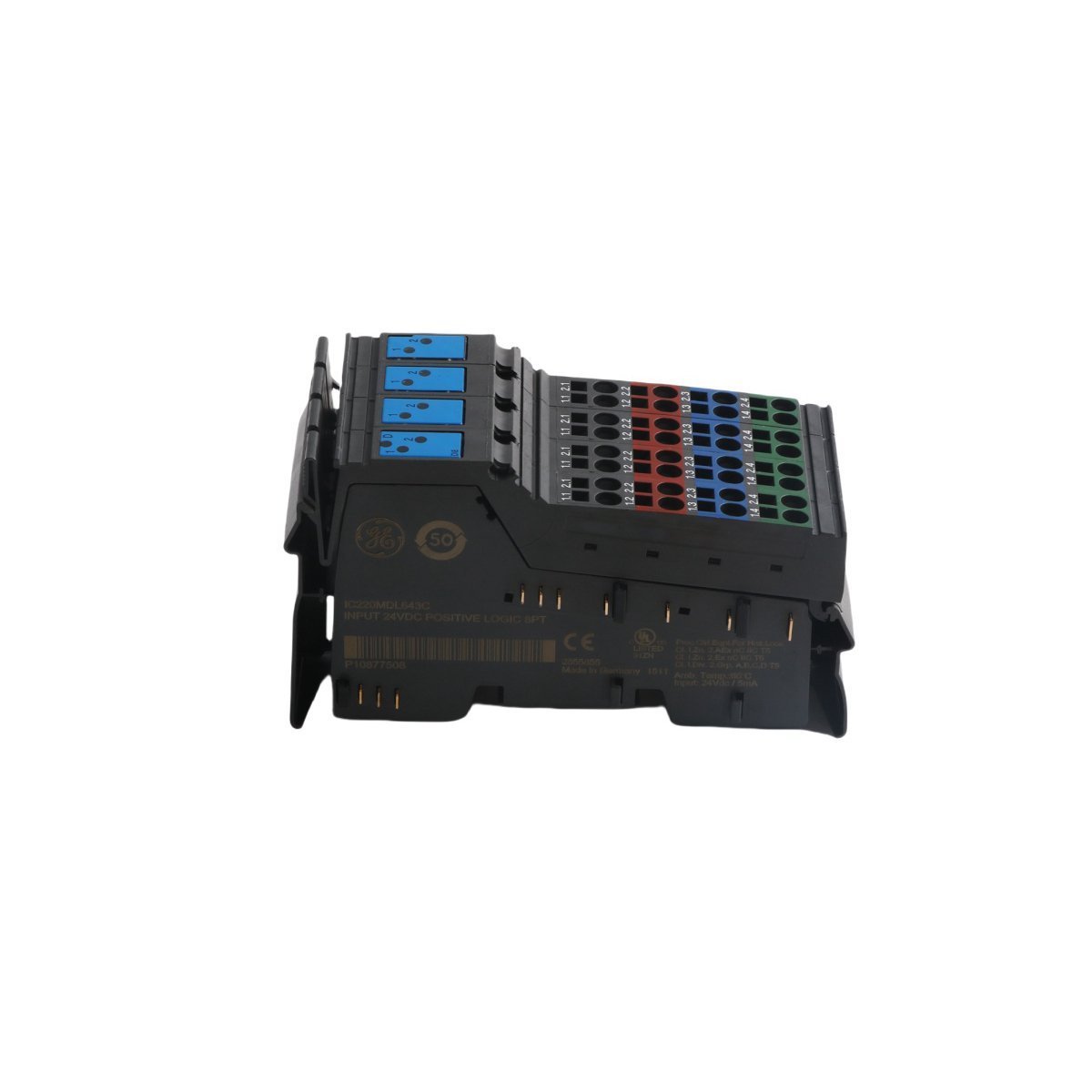

GE Fanuc IC220MDL643 VersaPoint Input Module

Technical Specifications

• Module Type: Discrete DC Digital Input
• Input Points: 8 (Single-wire connection)
• Nominal Voltage: 24V DC
• Input Voltage Range: -30V DC to +30V DC
• Signal Threshold “On”: > 15V DC
• Signal Threshold “Off”: < 5V DC
• Typical Current Consumption: 40 mA from the local bus
• Wiring Method: Spring-cage terminals
• Status Display: Green LEDs per channel

The GE Fanuc IC220MDL643 is a specialized discrete input module belonging to the VersaPoint distributed I/O family. This module captures digital signals from field devices and converts them into logic-level data for the controller. Engineers primarily use this component to monitor the status of sensors, limit switches, and pushbuttons within an automated workflow. Its slice-type architecture allows for high-density configurations, which effectively reduces the overall footprint of the control cabinet.

Advanced Signal Processing and Connectivity

The IC220MDL643 features eight discrete input points designed for 24V DC positive logic (sinking) applications. To ensure data integrity, the module utilizes internal filtering to eliminate electrical noise and contact bounce from field wiring. Because the VersaPoint system focuses on modularity, this unit snaps onto a standard DIN rail. It interfaces with the local bus through integrated potential jumpers. This design simplifies the power distribution process across adjacent modules without requiring extensive manual jumping.

Compact Design for Space Optimization

Space efficiency is a critical advantage of the IC220MDL643. Its narrow “slice” profile allows users to add significant I/O capacity in tight enclosures. Furthermore, the module supports tool-free wiring through its spring-cage terminal technology. This feature significantly accelerates the installation phase and ensures vibration-resistant connections. Consequently, the hardware remains stable even when installed on machinery subject to constant movement or mechanical shock.

Diagnostic Monitoring and Durability

Maintenance personnel can perform rapid visual inspections using the integrated LED status indicators. Each of the eight input points has a dedicated green LED that illuminates when a signal is active. Additionally, the module includes a bus diagnostic indicator to verify proper communication with the network interface. The rugged housing protects internal electronics from industrial contaminants. Furthermore, the electronic components are rated for continuous operation in environments ranging from 0°C to 55°C.
