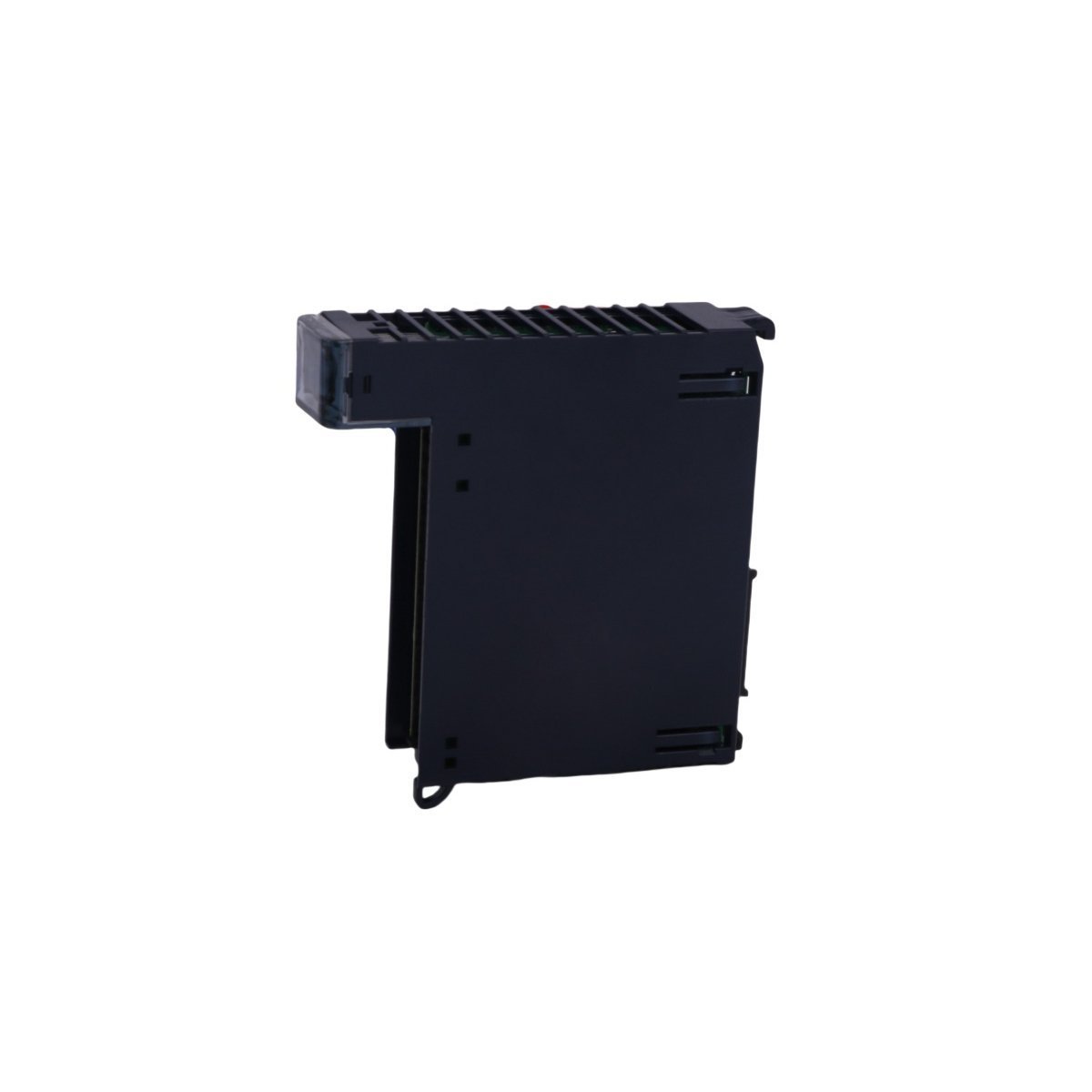

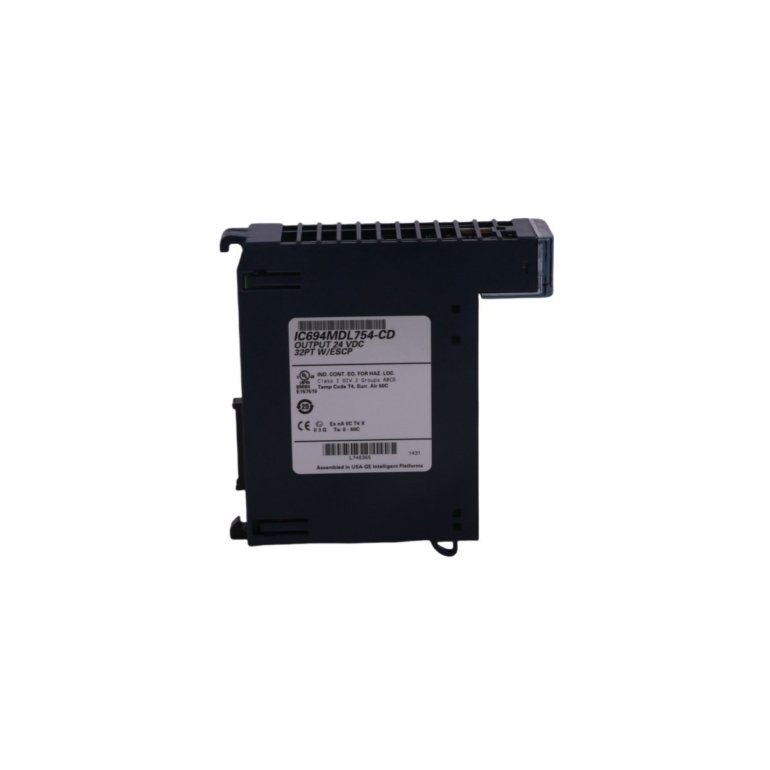

General Electric IC694MDL754 Discrete Output Module

The IC694MDL754 serves as a high-density digital output interface for the PACSystems RX3i control platform. This module provides thirty-two independent channels for driving industrial actuators and indicators. Specifically, it employs positive logic (sourcing) to control field devices. The unit organizes its outputs into two isolated groups. Each group contains sixteen individual points to ensure signal integrity across the system. This hardware integrates seamlessly into local CPU racks or remote I/O stations. It effectively manages high-speed switching tasks in complex automated environments. Consequently, it remains a staple for modern distributed control systems (DCS).

Installation and System Compatibility

Engineers can install the IC694MDL754 in any vacant RX3i universal backplane slot. The module supports both box-style and spring-style terminal blocks for wiring flexibility. Furthermore, it requires RX3i CPUs with firmware version 2.90 or higher. The front panel features a clear LED display for real-time status monitoring. These indicators show the state of each channel at a single glance. Because of its compact 3.6cm width, it maximizes available space in control cabinets. This high-density design significantly reduces the footprint of large I/O systems.

Advanced Electronic Protection and Safety Features

• Short-Circuit Protection: Shuts down affected channels during wiring faults
• Overcurrent Shielding: Limits output current to protect internal components
• Overtemperature Sensors: Monitors thermal levels to prevent heat-related failures
• Auto-Recovery Logic: Restores channel operation automatically after clearing faults
• Group Isolation: Prevents electrical noise from affecting the entire backplane

High-Speed Performance and Technical Specifications
