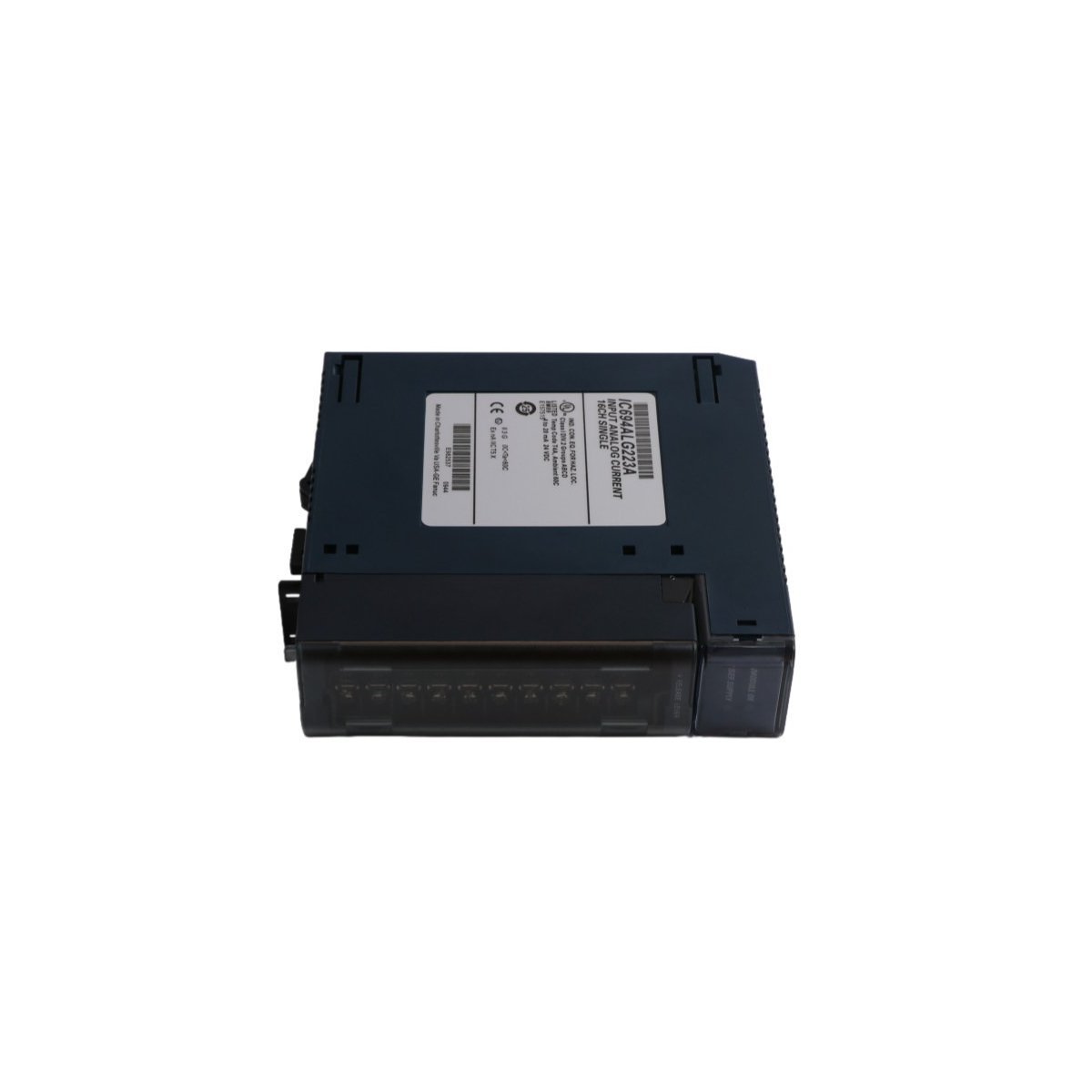

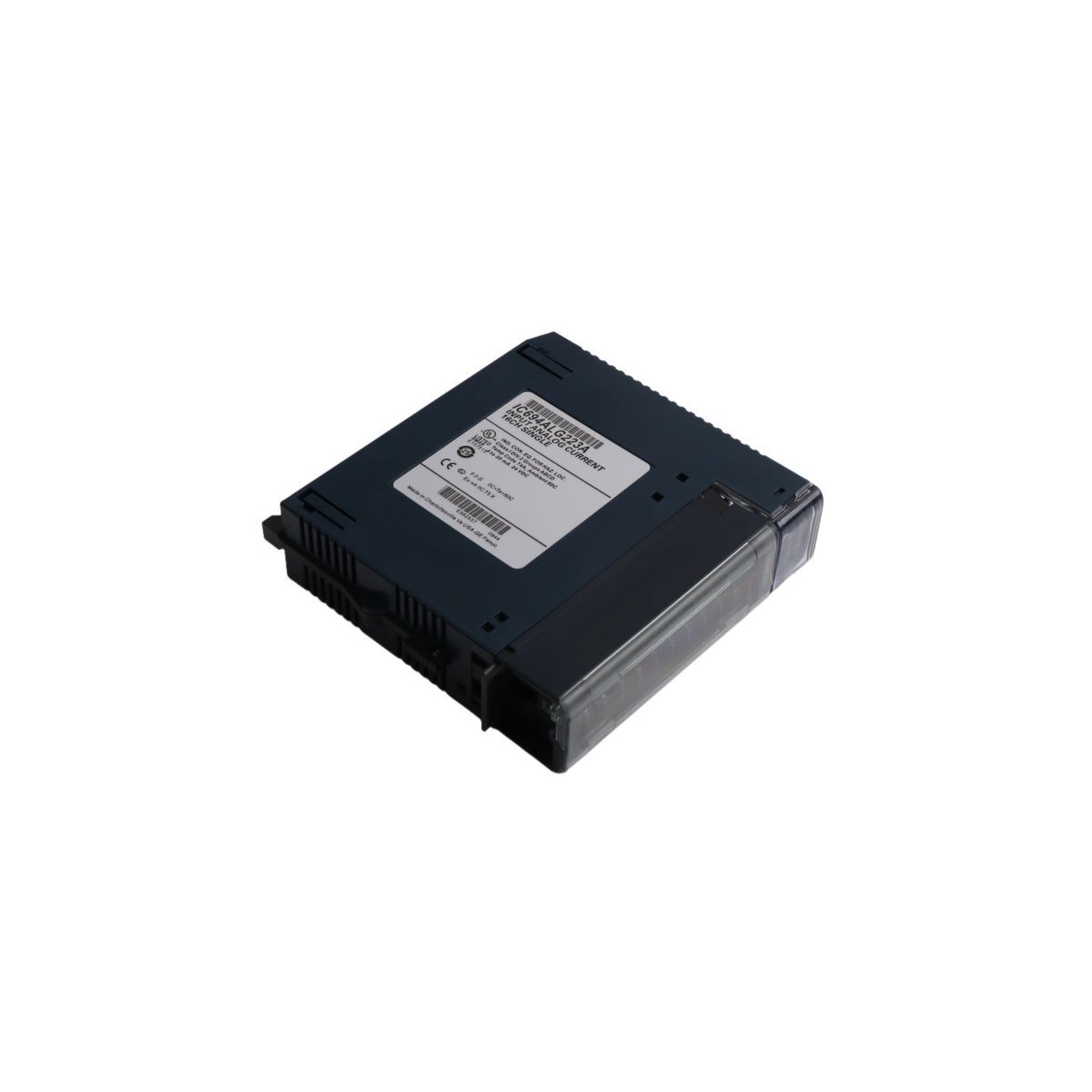

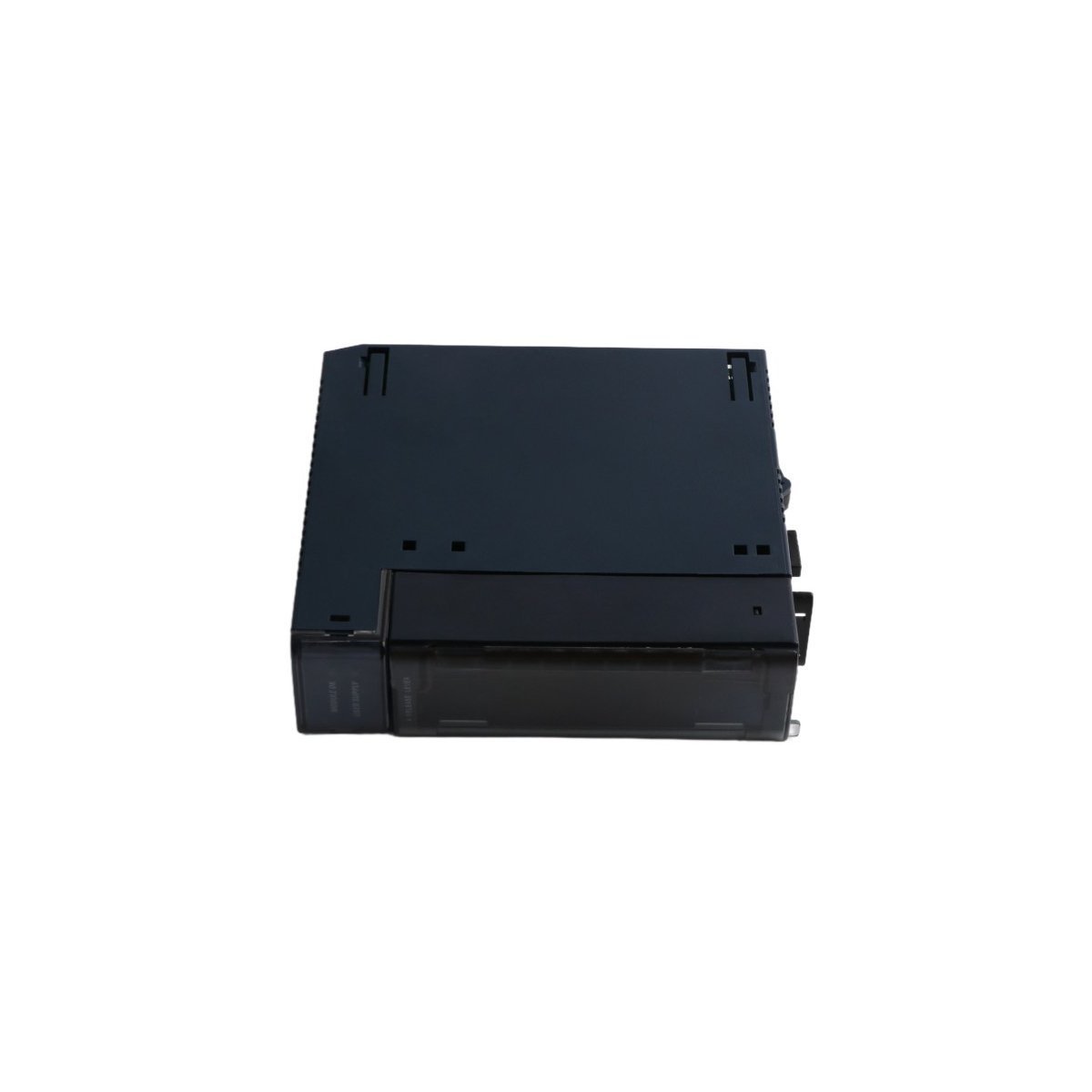

General Electric IC694ALG223 Input Module

The GE IC694ALG223 functions as a high-density analog input module for PACSystems RX3i and Series 90-30 PLC racks. It processes up to 16 single-ended current signals from field instruments. This module supports multiple input ranges, including 0-20 mA and 4-20 mA configurations. Furthermore, it offers an enhanced 4-20 mA mode for advanced diagnostic needs. By converting analog currents into digital data, the module enables precise process monitoring. Its compact, single-slot architecture optimizes rack space in both local and distributed control configurations.

Technical Performance and Signal Processing

Each channel utilizes a high-speed 12-bit analog-to-digital converter for accurate signal transformation. The module provides a resolution of 4-5 μA depending on the selected range. It delivers a fast update rate of 13 ms per channel for real-time responsiveness. Moreover, the unit incorporates strong noise immunity features, including common-mode rejection exceeding 70 dB. This ensures stable performance in electrically noisy industrial environments. The module also monitors external power supply status to ensure loop integrity. Consequently, engineers gain reliable feedback for critical process control loops.

Technical Specifications

Diagnostic Capabilities and Operational Benefits

The module provides comprehensive diagnostics to assist maintenance teams. In enhanced mode, the system detects open-wire faults within the current loop instantly. This feature alerts operators to connection issues before they cause process interruptions. Additionally, the unit features factory-calibrated channels to ensure measurement consistency across the entire array. These capabilities make the IC694ALG223 an essential interface for transmitters and transducers. It effectively streamlines maintenance workflows while maintaining high signal integrity for complex automation applications.
