The GE DS200TCQBG1BCB serves as a specialized expansion interface for the Speedtronic Mark V control system. This Extended Analog I/O Board facilitates complex signal processing for automated turbine assemblies. It supports gas, steam, and wind turbine applications by managing critical analog data streams. As a part of the RST overflow architecture, it expands the base functional capacity of the primary controller. The board translates field sensor data into actionable logic for the DCS environment. Consequently, it ensures precise regulation of turbine speed, temperature, and pressure parameters.
Hardware Architecture and Configuration

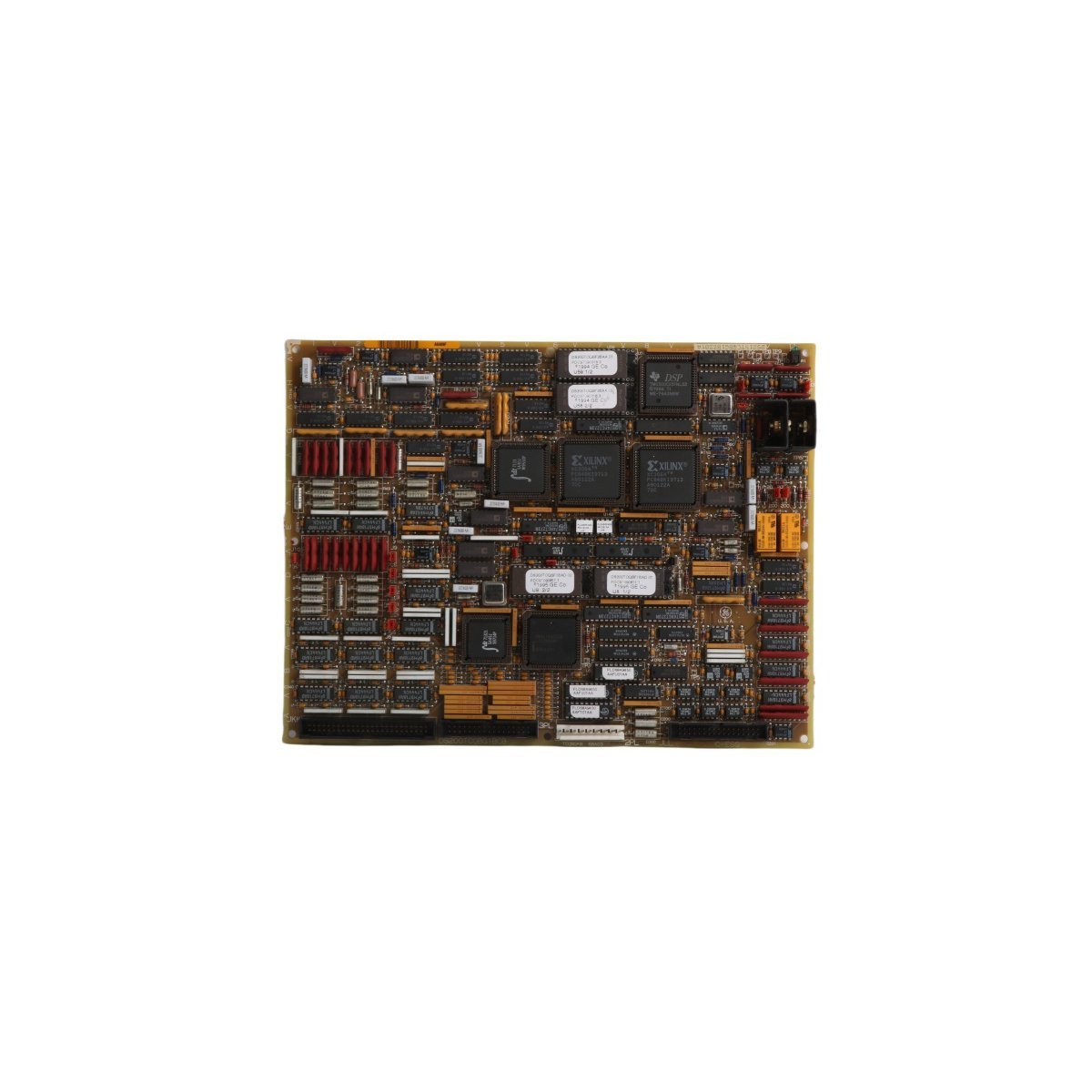

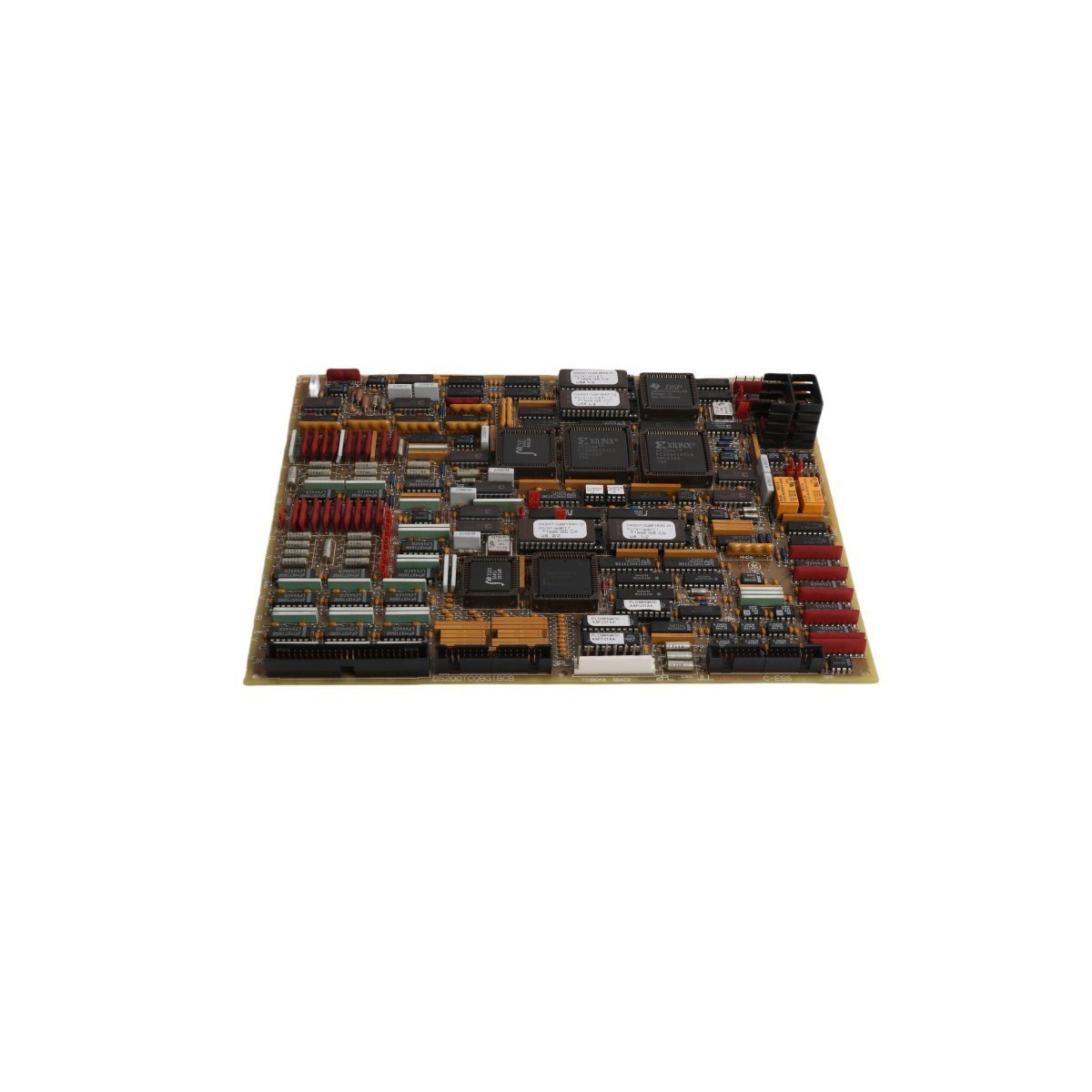

This revised PCB features several advanced hardware elements to improve signal integrity and processing speed. It includes a programmable logic device and dedicated EPROM modules for firmware storage. For manual hardware customization, the board provides 15 onboard jumpers. These jumpers allow technicians to configure specific signal paths or operational modes. A side-mounted “OK” LED offers immediate visual confirmation of the board’s health. Furthermore, the multi-layered design minimizes electromagnetic interference during high-speed data transmission.
Key Technical Specifications
The following data highlights the physical and functional properties of the DS200TCQBG1BCB:
- Manufacturer: General Electric (GE)
- Series: Mark V Speedtronic
- Model Number: DS200TCQBG1BCB
- Board Type: Extended Analog I/O (RST Overflow)
- Firmware Storage: Onboard EPROM
- Diagnostic Indicators: Green OK LED
- Hardware Customization: 15 User-defined Jumpers
- Shipping Weight: 0.66 kg
- Physical Dimensions: 27.8 x 21.2 x 3.5 cm
- Origin: United States
Maintenance and Installation
The DS200TCQBG1BCB requires careful handling due to its sensitive CMOS components. Technicians should always use anti-static wrist straps during the installation process. Before swapping the board, users must document the jumper settings of the existing unit. This ensures that the replacement board matches the specific site configuration. Because the Mark V is a legacy system, keeping verified spare parts is vital for turbine uptime. Regular inspections of the 50-pin ribbon cables prevent signal loss caused by environmental degradation.
