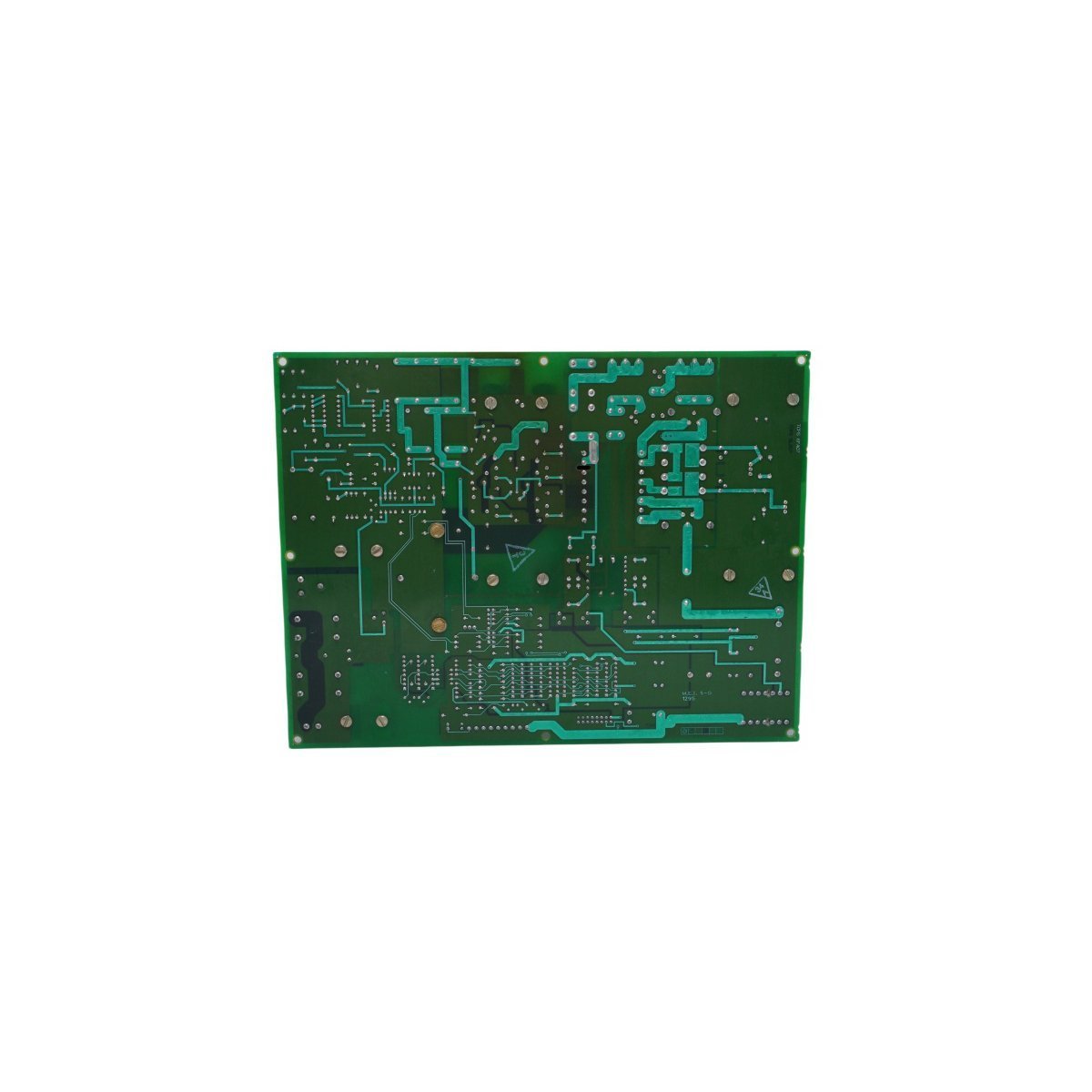

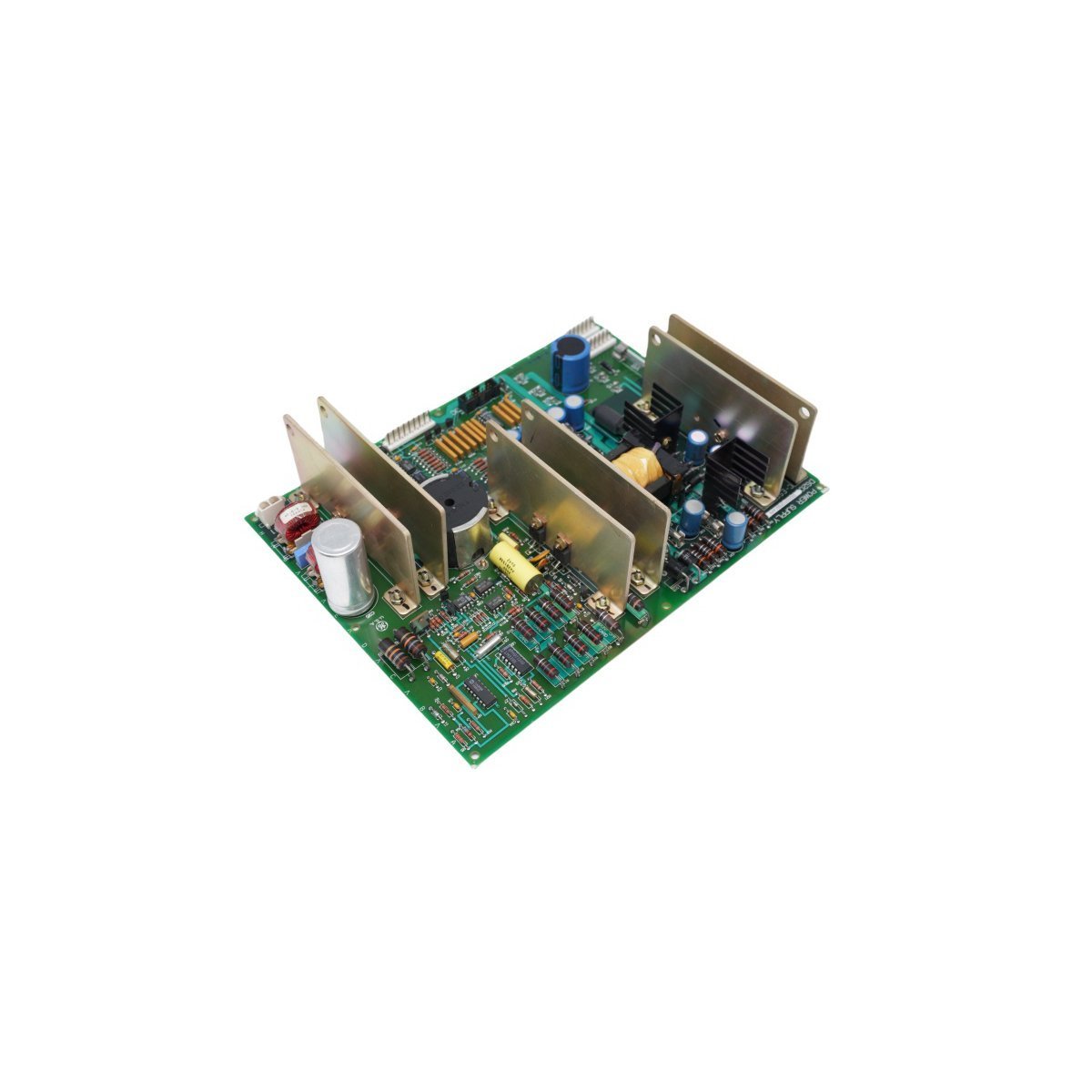

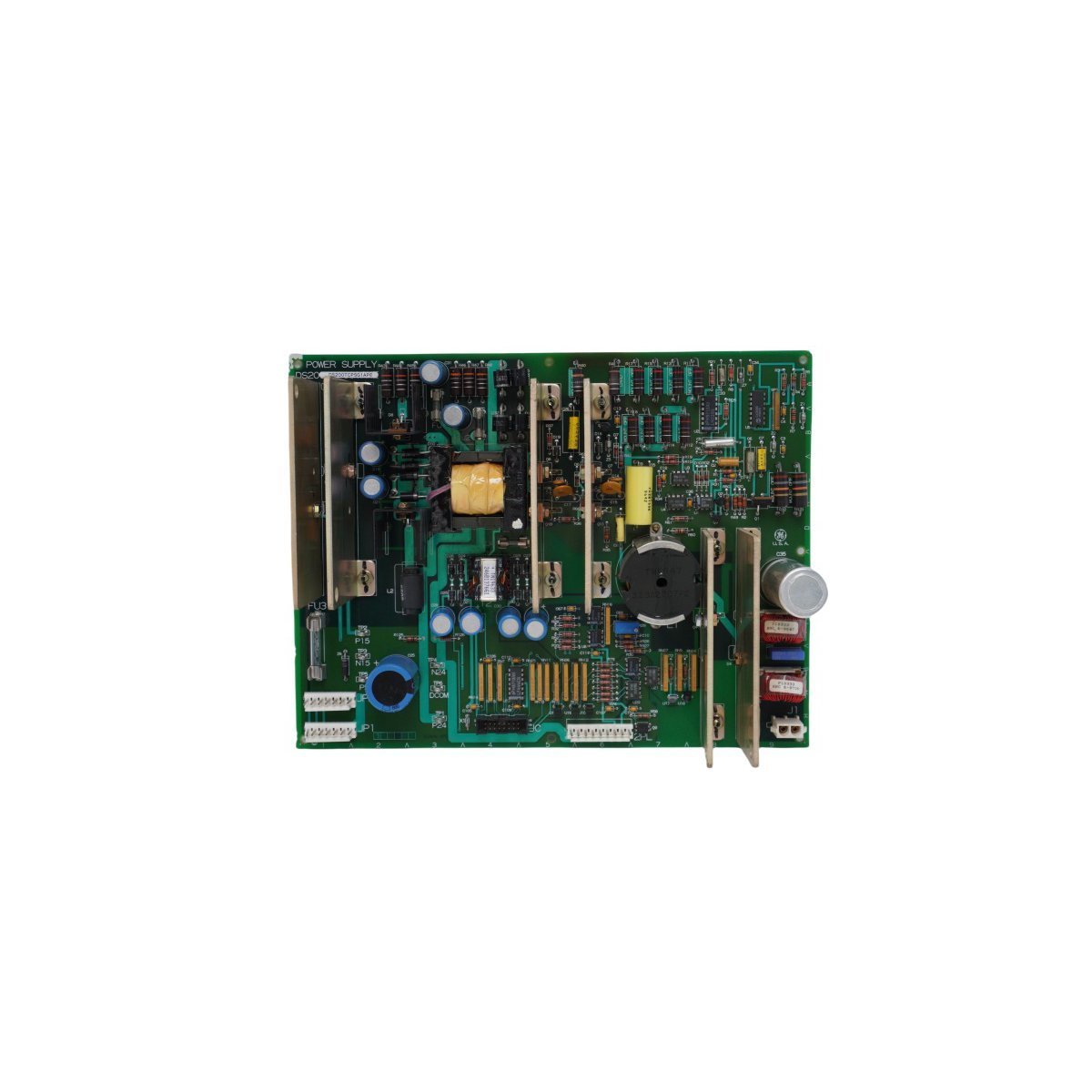

General electric DS200TCPSG1AME DC Input Power Supply Circuit Board

The GE DS200TCPSG1AME serves as a specialized power conversion module designed for the Mark VIe and Mark V turbine control series. This board primary function involves transforming a standard 125 VDC input from the core power distribution into various stabilized output voltages. These regulated voltages support critical control components, including microprocessor arrays, Resistance Temperature Detectors (RTDs), and servo valve current outputs. Because this module acts as a foundational power source, its reliability directly influences the stability of the entire Distributed Control System (DCS).

Core Functional Characteristics

This circuit board utilizes specialized hardware to maintain system integrity. The J1 connector receives the 125 VDC primary feed from the <PD> core. Subsequently, the board distributes filtered power through secondary connectors like 2PL, JC, JP1, and JP2. These interfaces supply electricity to essential boards such as the TCQC, TCCA, and TCDA.

Protection remains a priority in the board design. The assembly includes integrated fuses and metal oxide varistors to prevent surge damage. Furthermore, inductor coils and transformers manage voltage regulation while heat sinks dissipate excess thermal energy during continuous operation.

Installation and Maintenance Advantages

The DS200TCPSG1AME facilitates straightforward integration into existing DCS cabinets. General Electric designed this board as a fixed-configuration module. Consequently, engineers do not need to perform manual hardware or software adjustments during the installation process.

For diagnostic tasks, the PCB includes multiple accessible test points (TP). These points allow technicians to verify output voltages without dismantling the assembly. The protective conformal coating on the PCB also guards against humidity and industrial contaminants. This ensures a longer service life in harsh turbine room environments.

Technical Specifications and Hardware Overview
